Standalone R5 Wheelbase

USD $299.00

Out of stock

Standalone R5 Wheelbase

USD $299.00

Begin your journey into the Sim Racing world with MOZA R5. With a peak torque of 5.5 N·m, this entry-level wheelbase delivers great force feedback introducing you to realistic racing experiences. Crafted with aeroplane-grade aluminum, for superior durability, it’s also powered by an ultra-high power density servo motor, for precise and responsive movements. Take full control with the MOZA Pit House Control Software and APP Cloud Control. Enjoy compatibility with all MOZA V2 wheels, expanding your options.

Overview>

*Ship within 7 business days, with estimated delivery in 7-12 business days after the order is shipped.

Out of stock

14-Days Protection

Money back guarantee

Secure Payment

Paypal/Credit card

Global Support

Support guarantee

R5 Direct Drive Wheel Base

R5 Direct Drive Wheel Base

5.5 N·m Peak Torque

Aeroplane Grade Aluminum

Ultra-high Power Density Servo Motor

MOZA Pit House Control Software

APP Cloud Control

5.5 Nm of Torque from
Direct Drive Power

With a punchy 5.5Nm of torque, feel everything the road has to give with the power of direct drive.

Lightweight Design, Maximum Torque

Using smart design techniques, the R5 delivers maximum power with minimum volume and weight, allowing for a wider audience to get the best simracing experience.

Lightweight Design, Maximum Torque

Using smart design techniques, the R5 delivers maximum power with minimum volume and weight, allowing for a wider audience to get the best simracing experience.

Aviation-grade Aluminum

Aluminum alloy gives a sleek look, with powerful durability and endurance.

Ultra low torque ripple and groove torque

Countless hours have been spent with local engineers and motorsport experts to achieve the best steering possible, featuring ultra-low torque ripple and groove, for a smoother experience than ever.

Intelligent
Temperature Control

With MOZA’s onboard temperature monitoring, even endurance racers can relax knowing that the R5 will provide reliable performance.

15-bit Resolution

The motor encoder sports a 15-bit ultra-high resolution, ensuring steering is accurate and gives a true-to-life feel.

Military grade conductive slip ring

The base and the steering wheel are connected through a military-grade conductive slip ring with a life of 5 million revolutions. The unique patented design has extremely high stability and durability while achieving infinite high-speed rotation.

MOZA Pit House

Control center, convenient and fast
The MOZA Pit House control center allows a racer to check the status of a device, adjust settings, and load presets.
One-click Start
The driving modes such as GT, performance car, formula, rally, drifting, and karting are custom designed for racers.
See What you Feel
The R5 can simulate different driving experiences.
Custom Settings
User created custom settings for the best racing experience.
One-Click Ecosystem Upgrading
When firmware needs to be updated, users can upgrade all devices in the control center with just one click.
Previous slide
Next slide

Cloud-based App Control

The settings of the wheel base, steering wheel, pedals, etc. can be modified through the MOZA APP.

Cloud-based App Control

The settings of the wheel base, steering wheel, pedals, etc. can be modified through the MOZA APP.

Cloud-based App Control

Dimensions

Specs

Platform

PC

FFB Drive System

Direct Drive

Max Wheel Rotation

Limitless

Housing Material

Aviation Grade Aluminum Alloy

Color

Black

Peak Torque

5.5Nm

USB Refresh Rate

1000Hz

Input Voltage

110V~220V AC —>12V DC

Encoder Resolution

15 bits

App Functions

Supported

Quick Release

Supported

Connection Ports

Power, DC Input, Pedal, USB, Dash

Accessories

User manual, Warranty card, Power supply, USB cable, Toolkit

Mounting Method

4 holes on the bottom

Desktop Mounting Clip

Standard

Online Firmware Upgrade

Supported

Emergency Stop Switch

Optional

Firmware Upgrade

Applicable

Size (L x W x H)(mm)

174*157*124

Mass

3.45kg

Compatibility

R5 Wheel Base
KS Steering Wheel
ES Steering Wheel
CS V1 ×
CS V2
RS V2
GS Alcantara V1 ×
GS Alcantara V2
GS Microfiber Leather V2
FSR Formula Wheel
SR-P Lite Pedals
SR-P Pedals
CRP Pedals
MOZA Racing Compatibility

Customer Reviews

Based on 31 reviews
81%
(25)
13%
(4)
6%
(2)
0%
(0)
0%
(0)
K
Kent Anderson
An amazing starter DD wheelbase

This was my first DD wheelbase and it’s honestly everything I could’ve asked for.

C
Ciprian Bogdan

Standalone R5 Wheelbase

S
SLH
Rly nice but looses calibration sometimes

When im drifting and have a crash which happens relatively rarely the steering wheel looses a little calibration and isnt fully straight. Its only an annoyance becauce i still have 900* degrees of steering and can continue playing with no issue but the steering wheel till i recalibrate it is slightly off center.

V
Vasilii Skutin
Wheel quality - start thinking for upgrade.

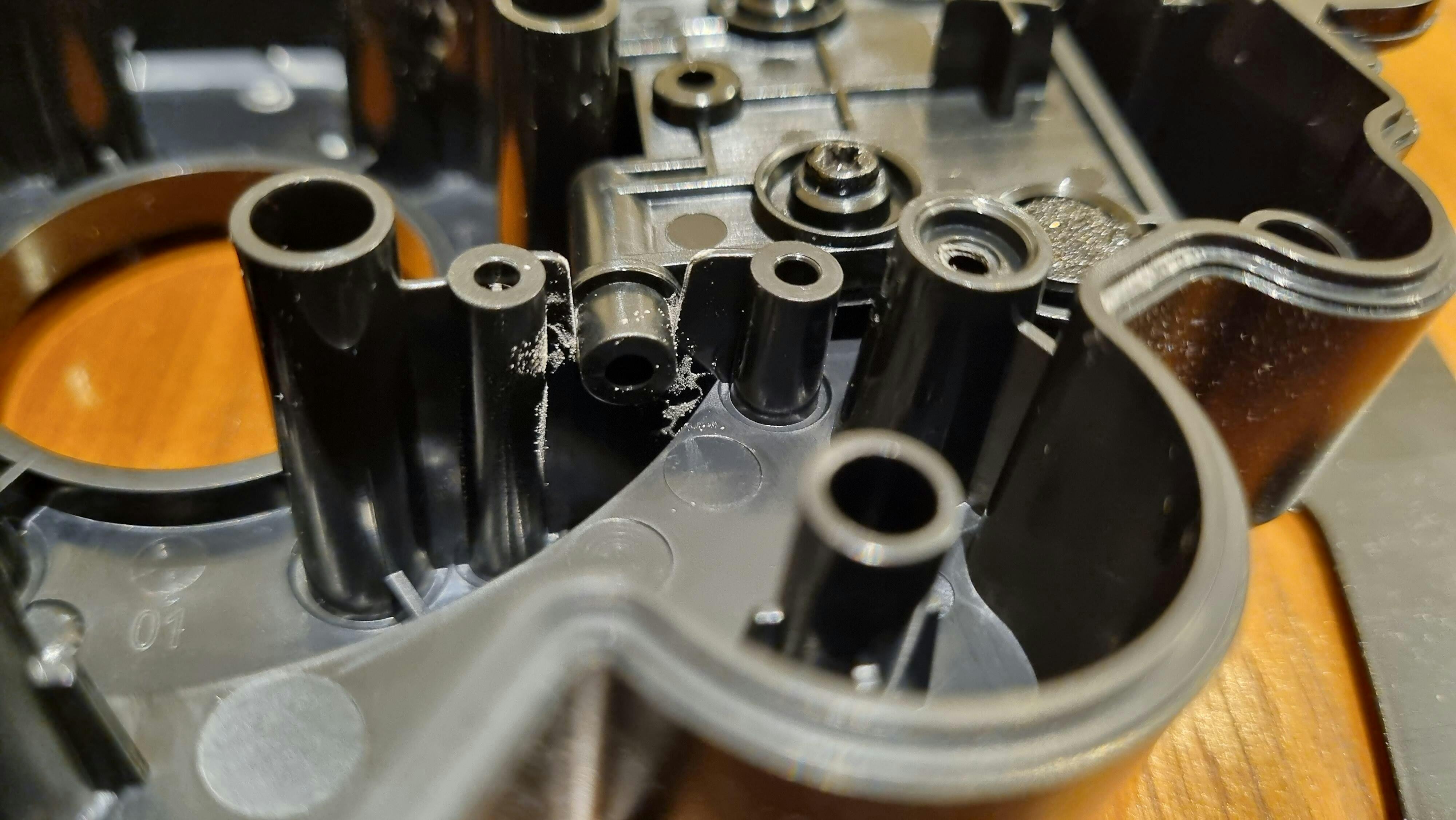

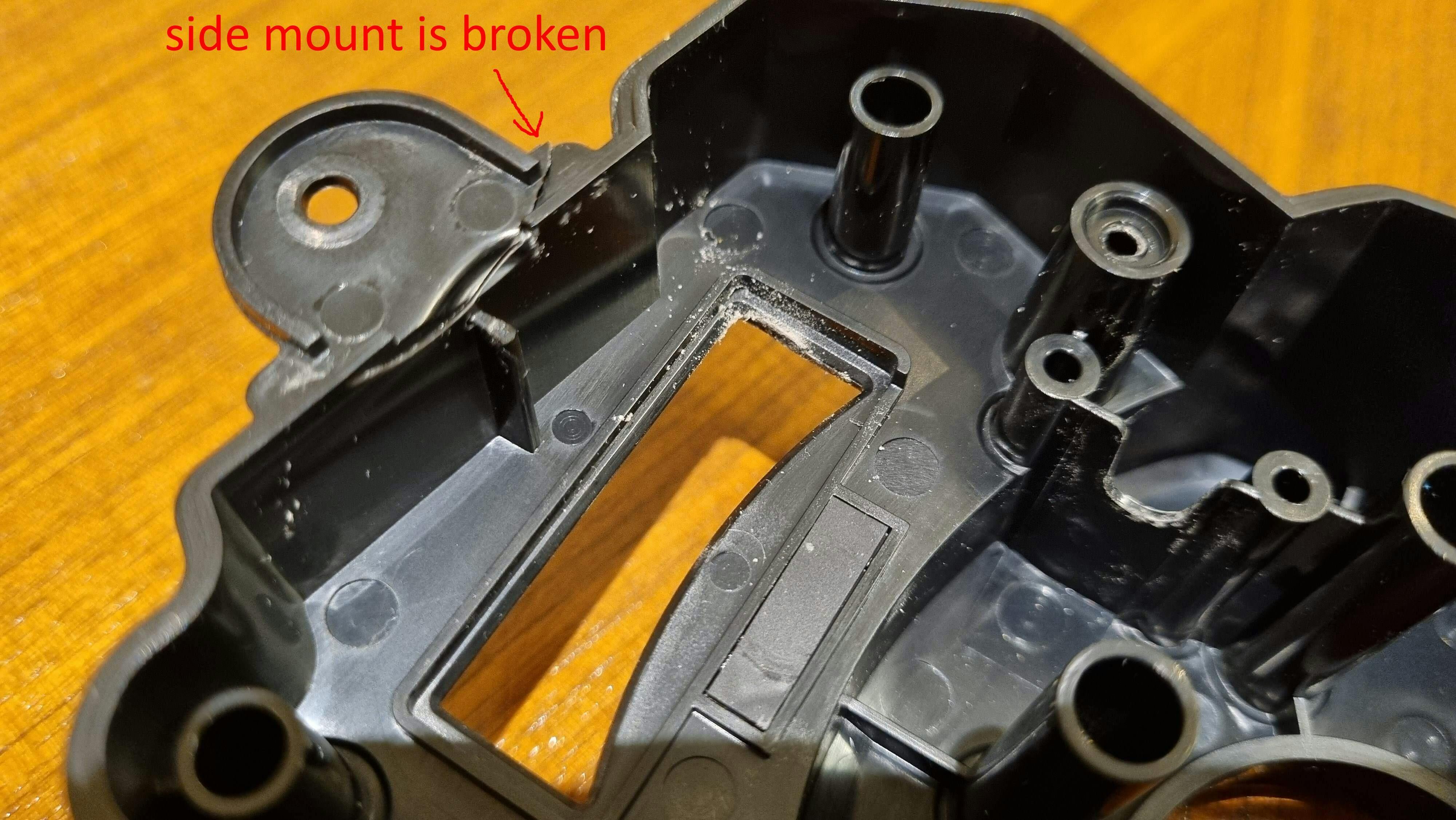

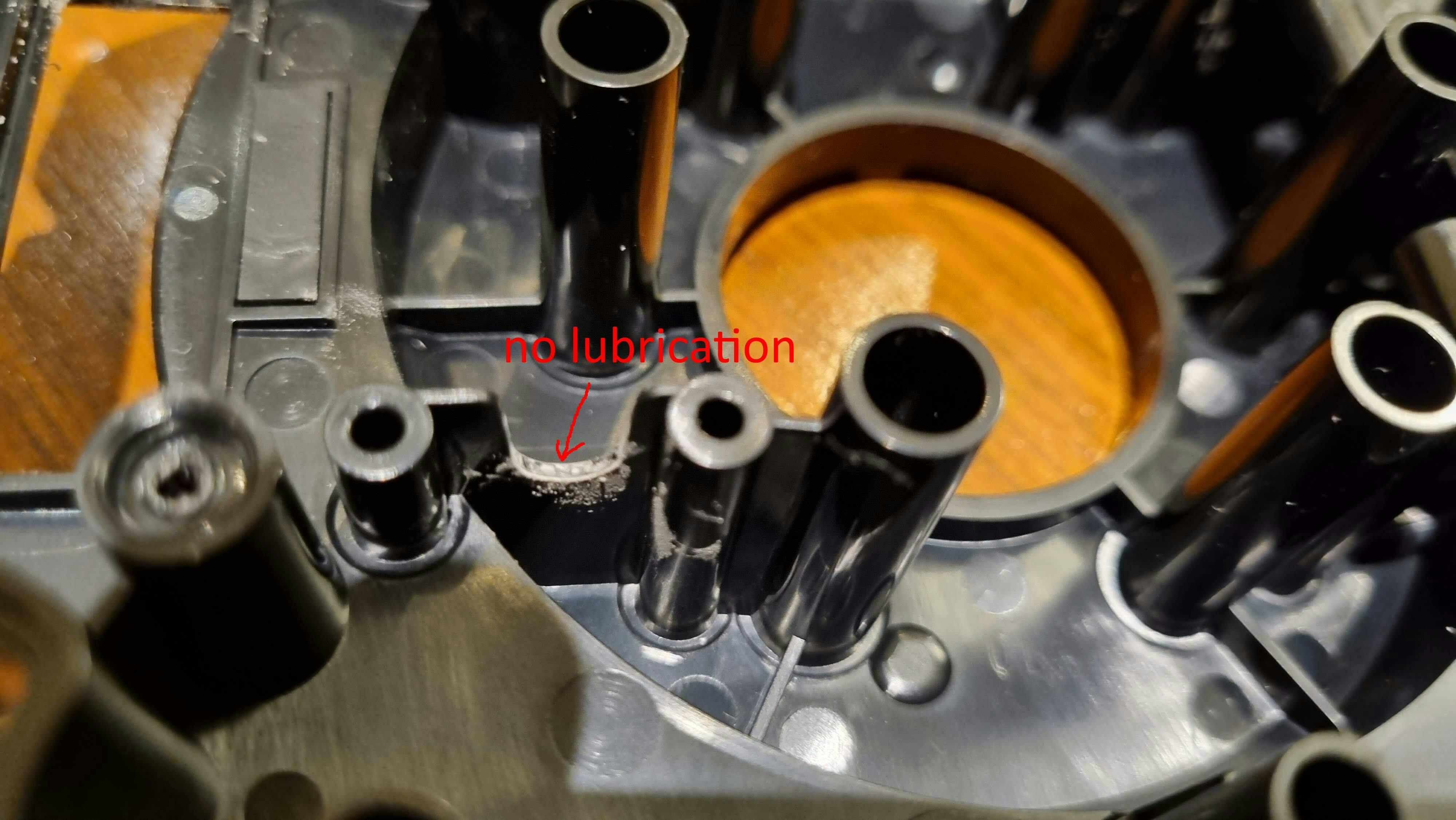

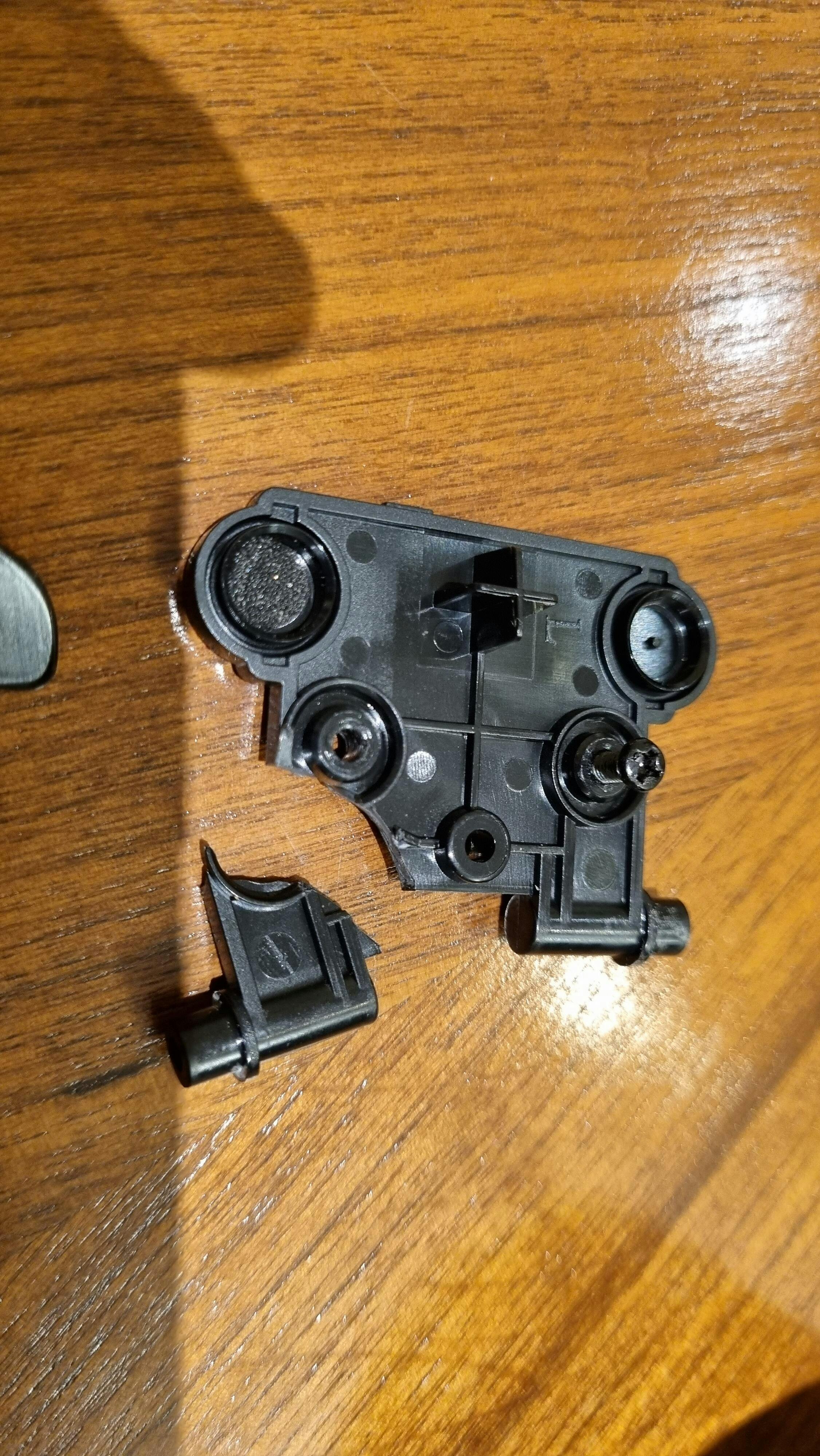

This is my first DD wheel. It works fine as I cannot compare it with other DD wheels. The only complaint is about the quality of the wheel itself. The plastic and assembly are low quality, below expectations. See pictures.

n
nour adel yassen
High end products thanks moza team hope more better thanks ..

Really recommend so high quality and fair eco.. thanks
