概要

仕様

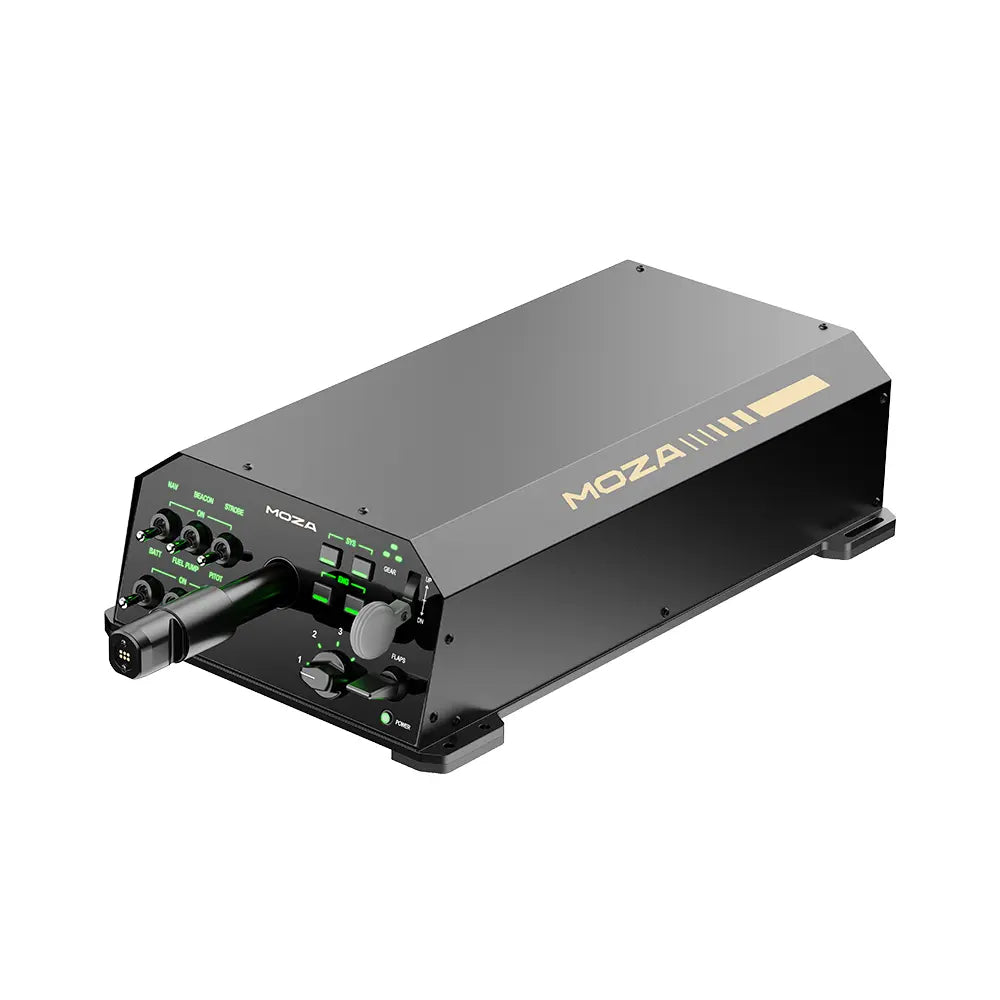

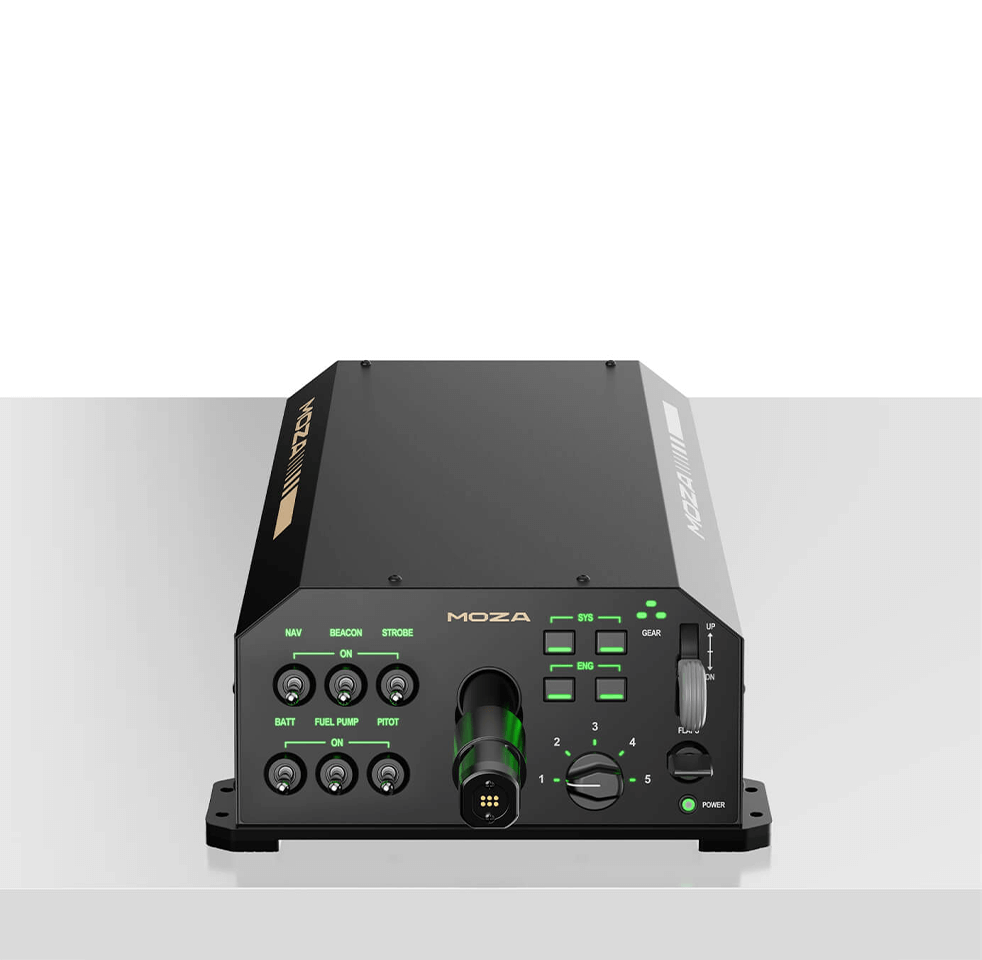

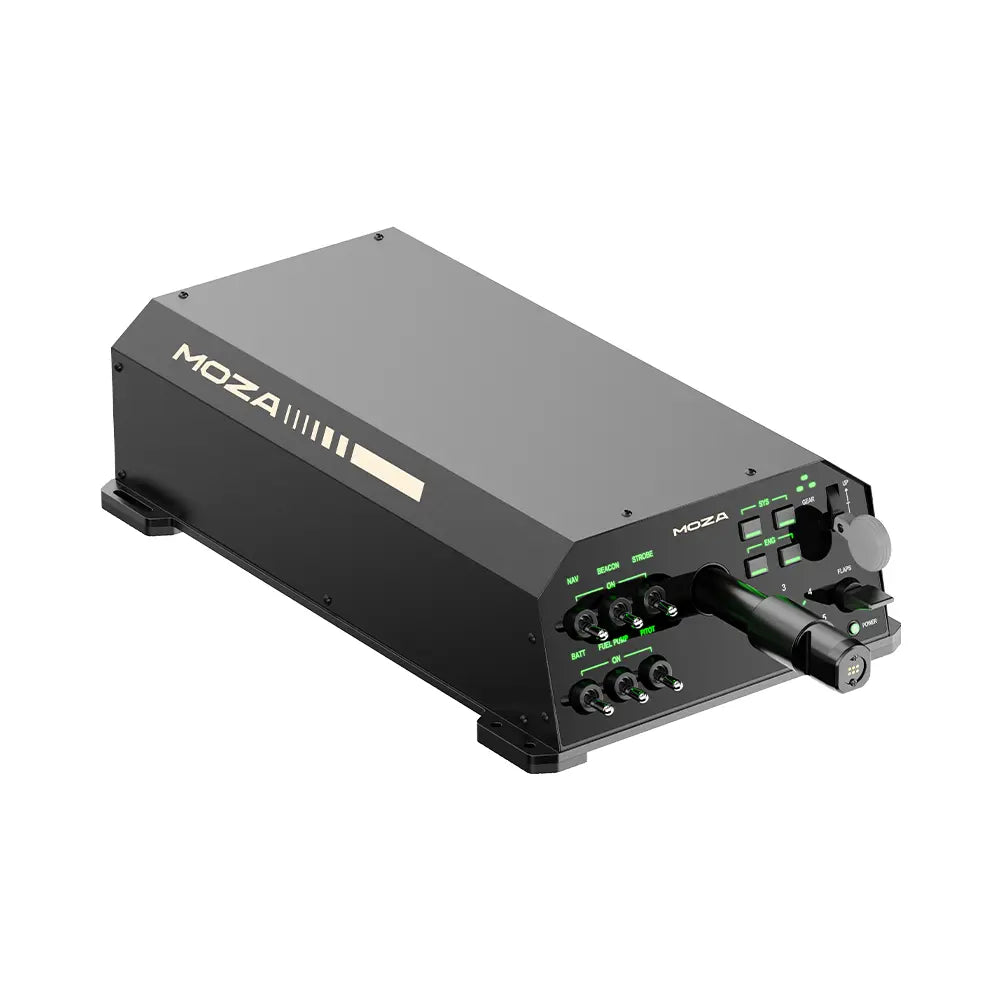

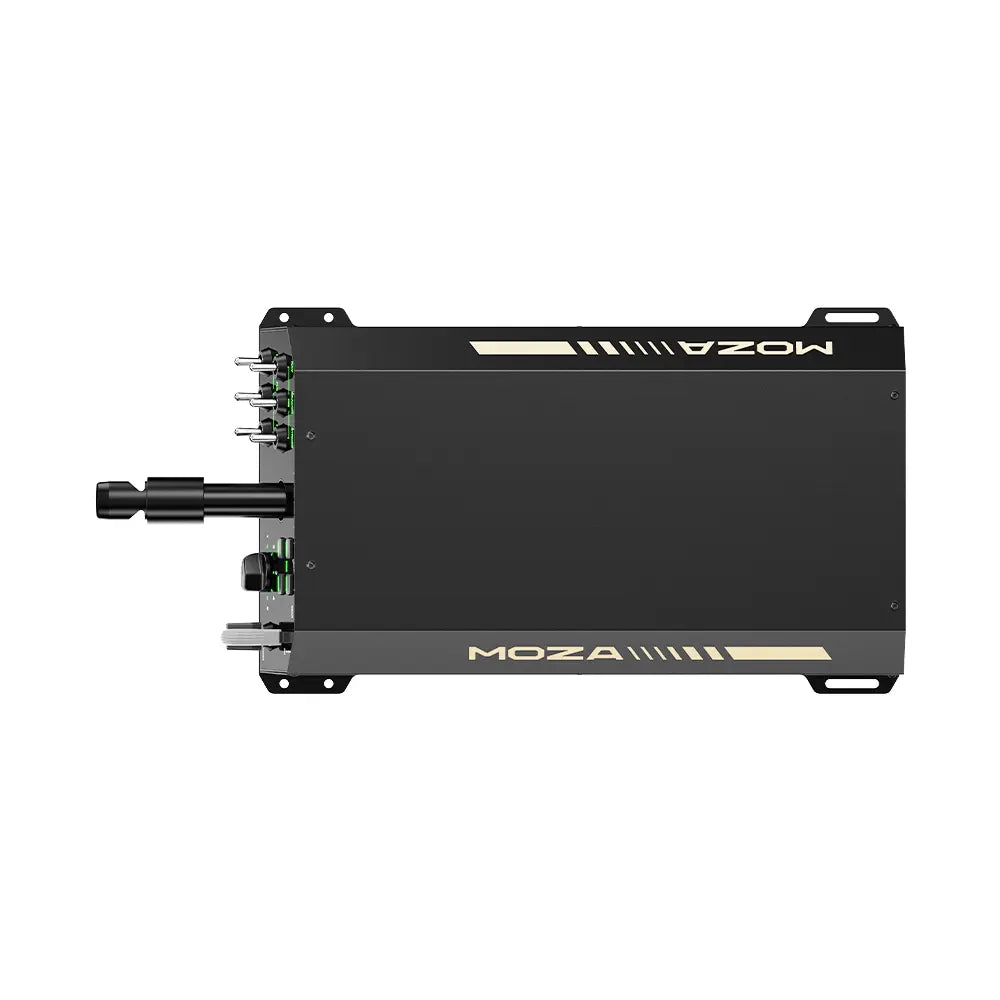

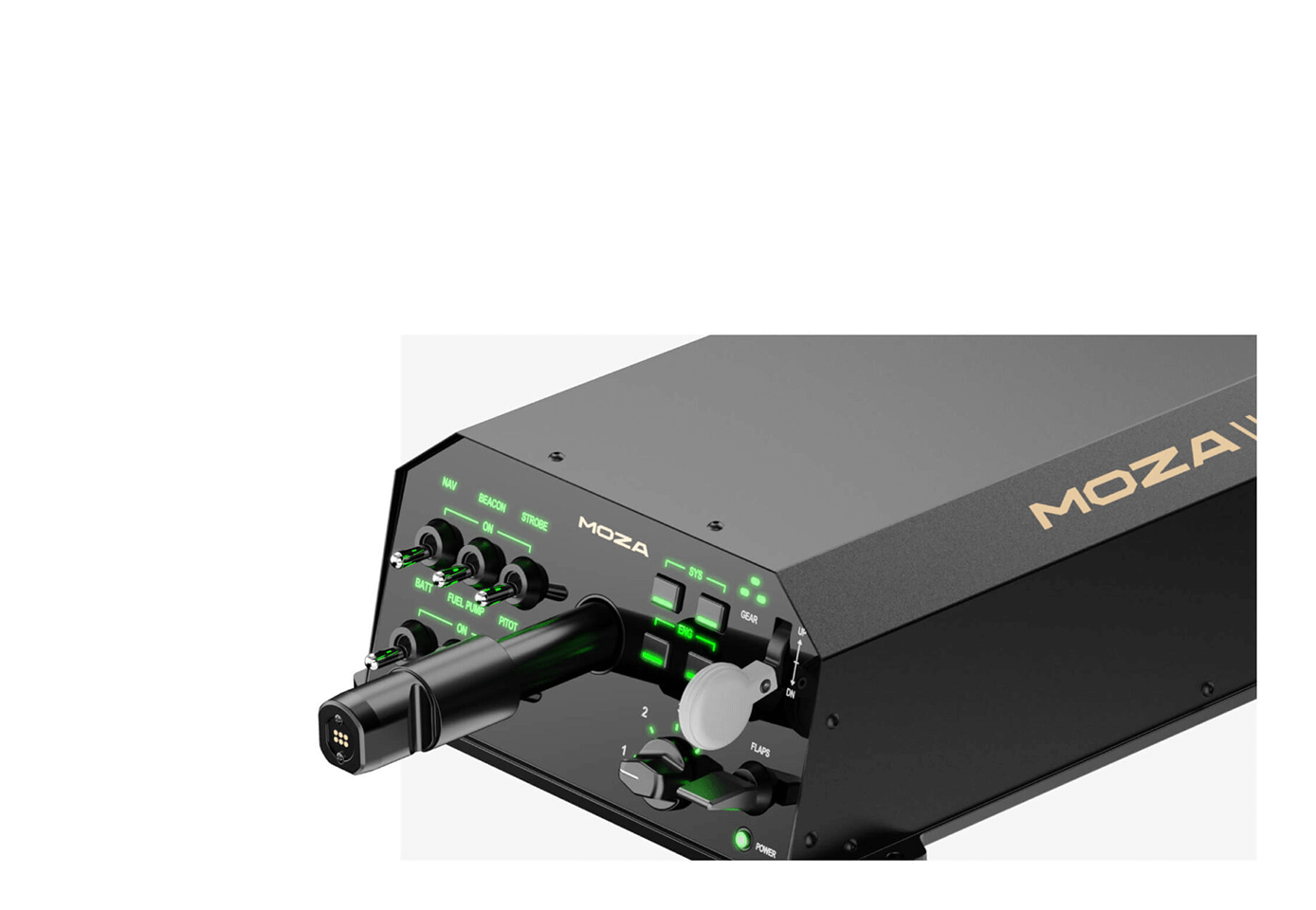

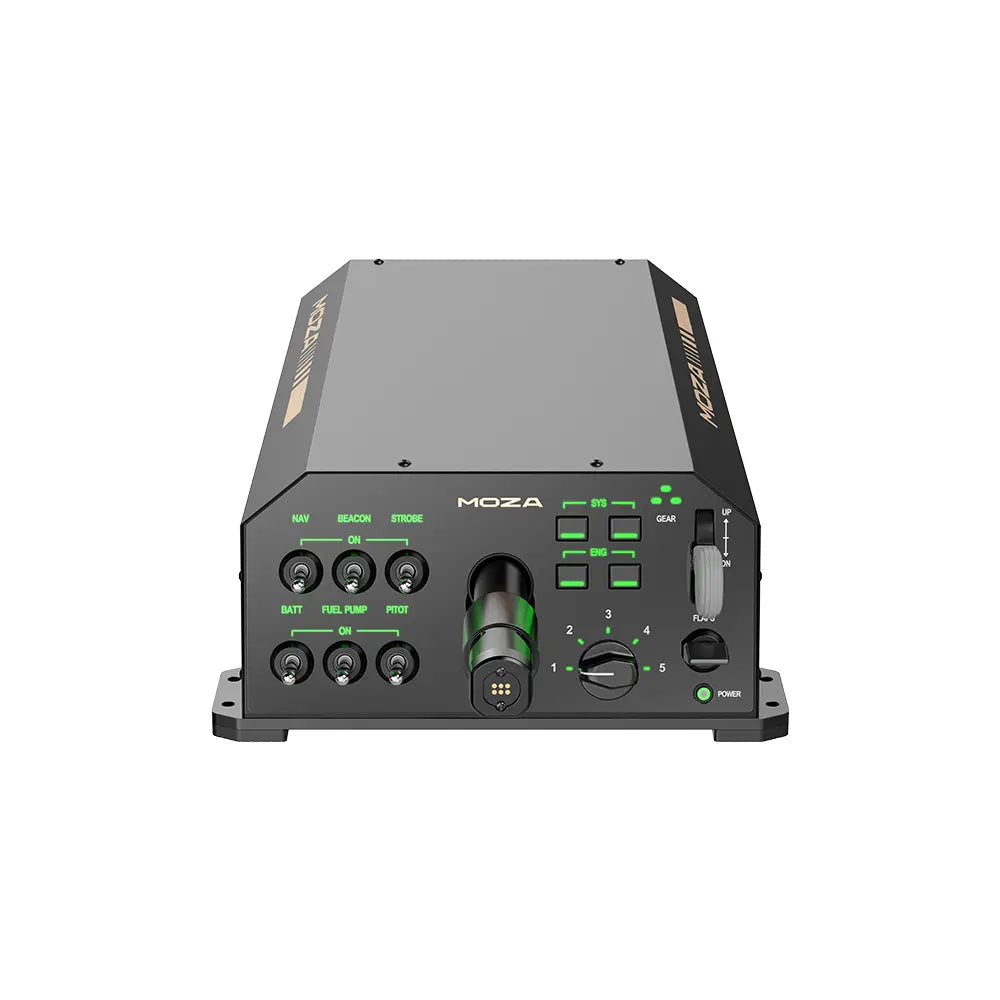

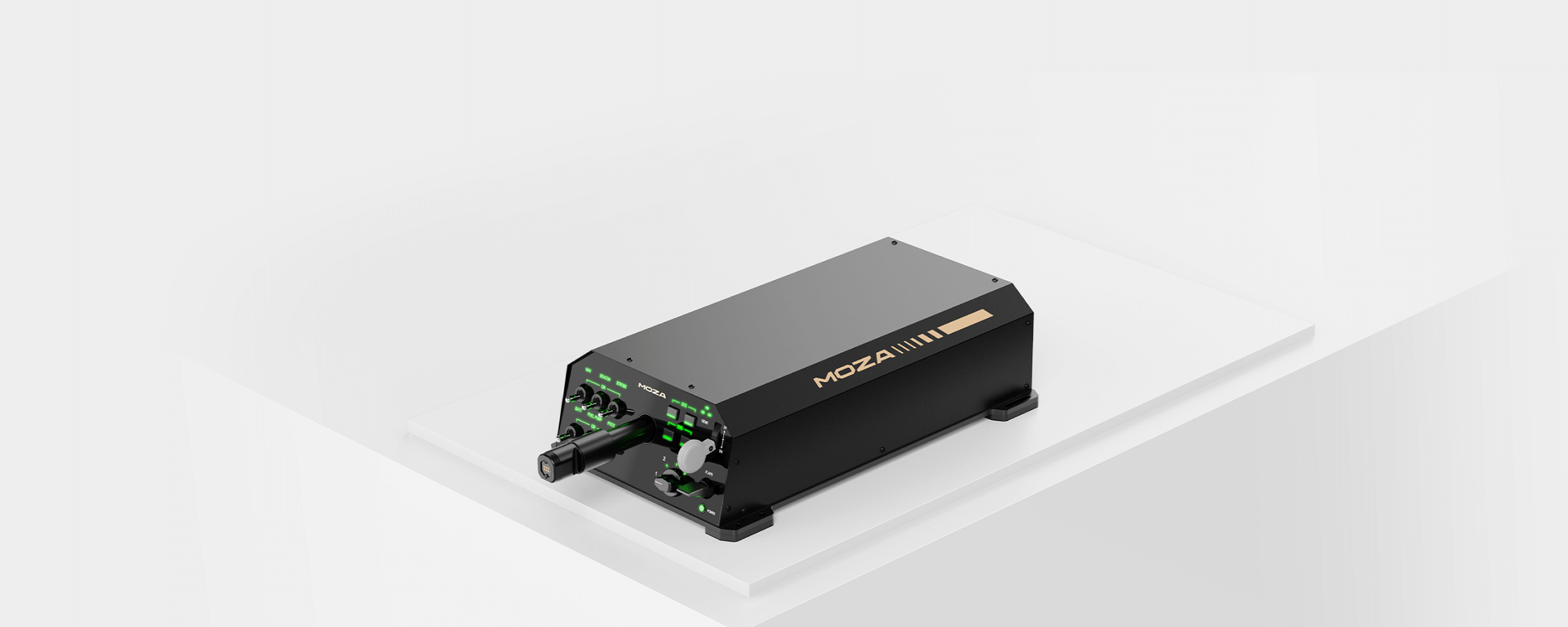

MOZA AY210 FFBヨークベース

寸法:243 × 403 × 216 mm
ハウジング材質:アルミニウム合金
重さ:8.0キロ

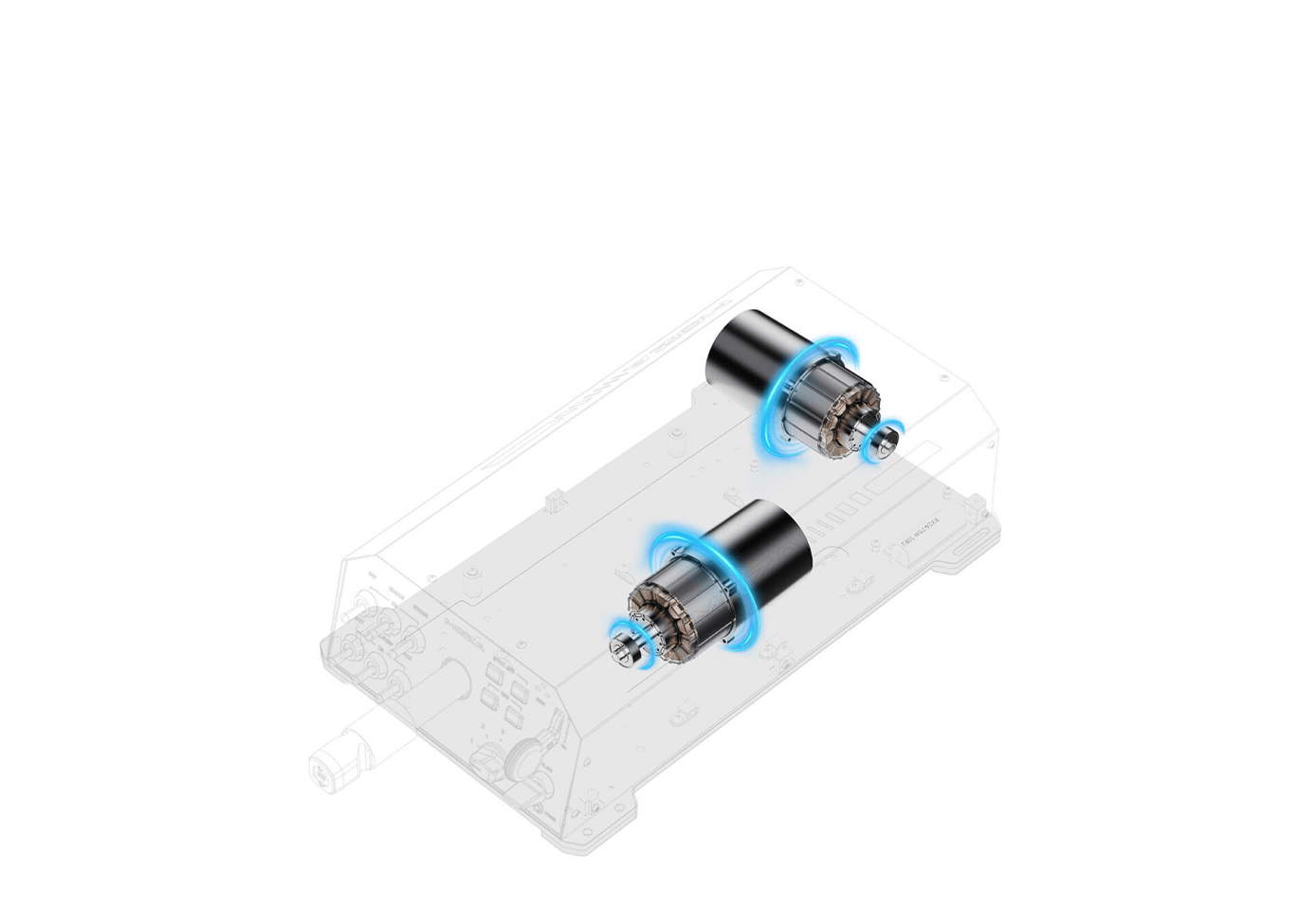

モーター:デュアル高性能サーボモーター
最大ピッチ力:210N
持続ロールトルク:9 Nm

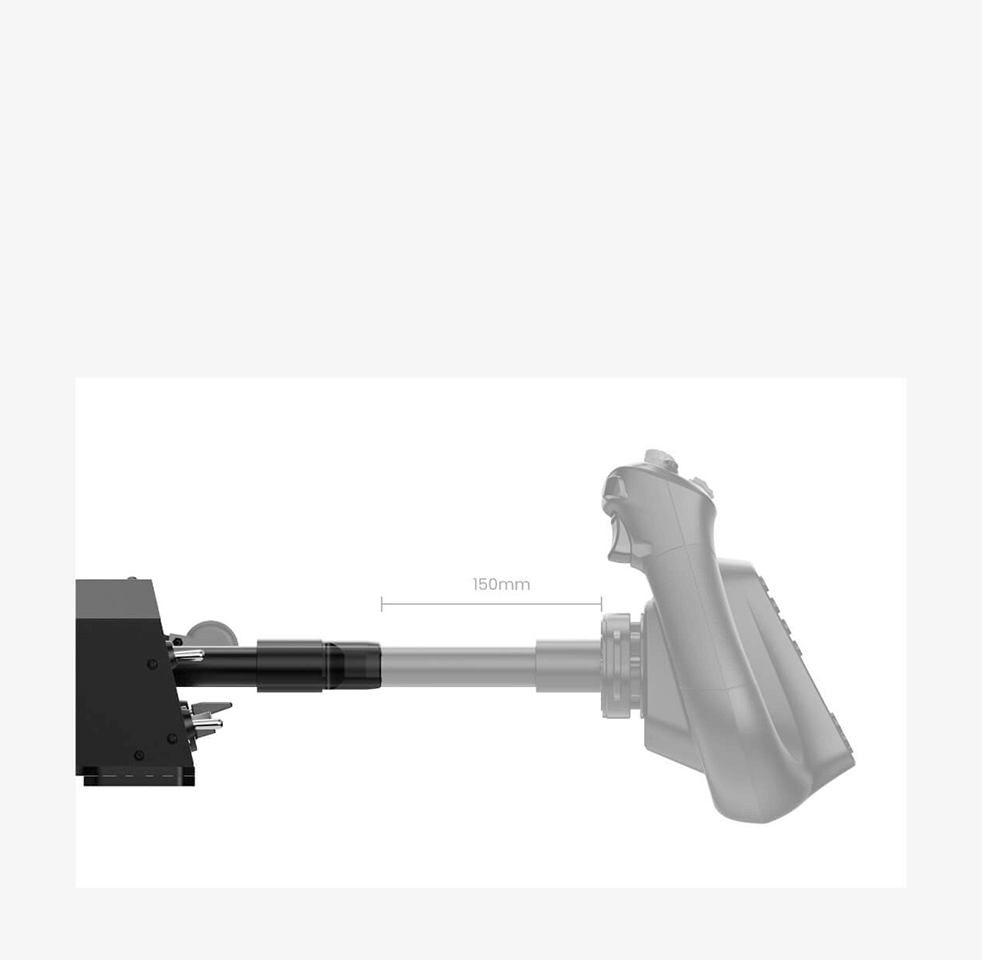

移動距離:150mm

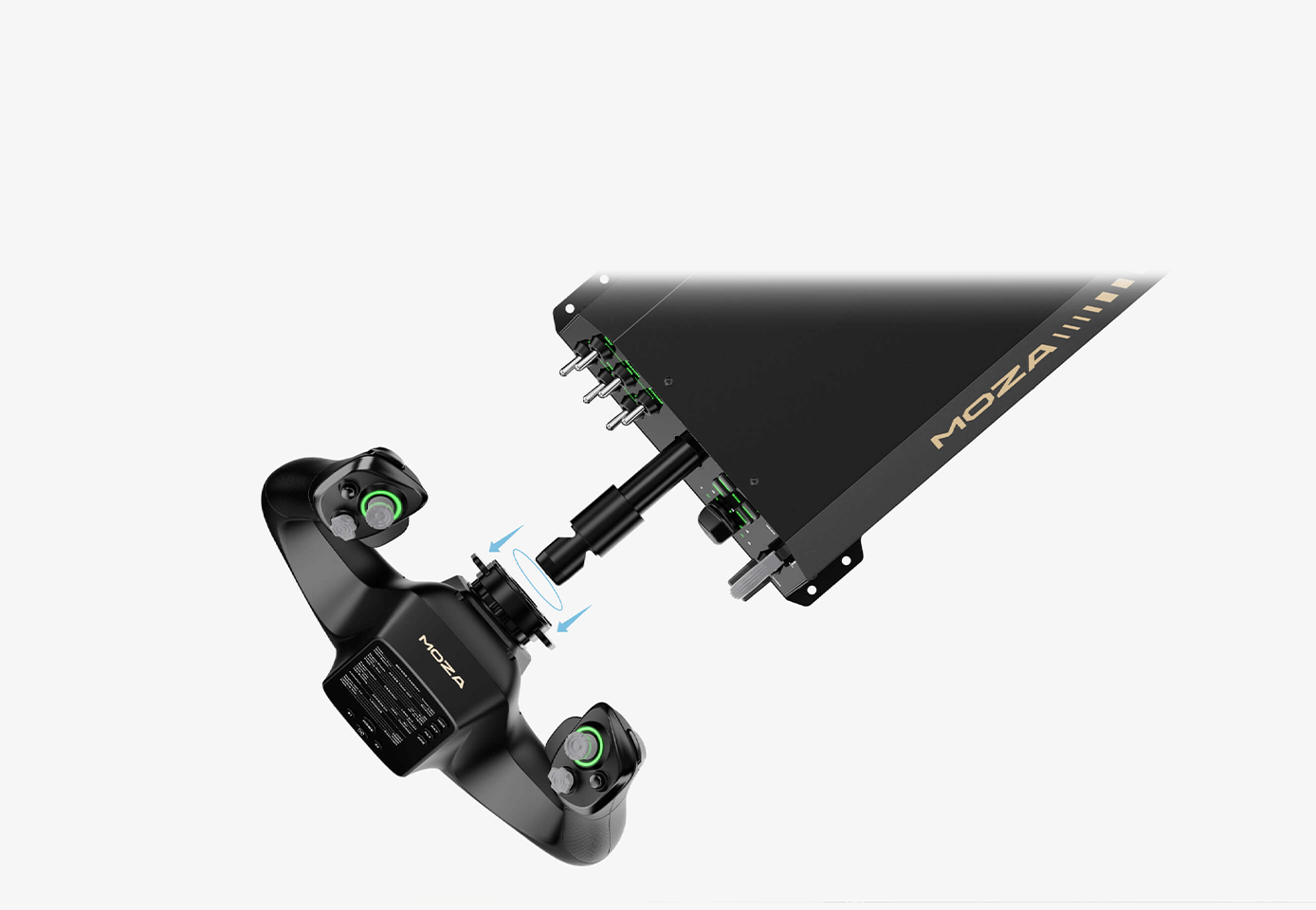

互換性のあるヨーク:MOZAヨークシリーズ
力:216W
電圧:110~220V AC → 36V DC
チップ精度:15ビット磁気エンコーダ
USBリフレッシュレート:1000Hz
取り付けオプション:デスクトップクランプ(オプション)、吊り下げデスクトップクランプ(オプション)、シミュレータコックピットへの直接取り付け
接続ポート:電源、USB、スロットル、ラダーペダル、パネルなど。
緊急停止スイッチ:オプション
インテリジェントテレメトリーフォースフィードバック:サポートされています(プラグインは不要)
ネイティブフォースフィードバック:サポートされている
プラットフォームサポート:パソコン

セット内容

  • MOZA AY210 ヨークベース * 1

  • ツールキット

  • ユーザーマニュアル

  • 保証

AY210 ヨークベースはどのような航空機に最適ですか?

AY210 は、高いトルク、長い移動量、リアルなレイアウトにより、ボーイングやエアバス スタイルの操作など、一般航空や商用航空機のシミュレーションに最適です。

AY210 は Microsoft Flight Simulator 2024 および X-Plane 12 で動作しますか?

はい、MSFS 2024/2020、X-Plane 12、DCS、その他主要なシミュレーション タイトルに対してネイティブ互換性と組み込みのテレメトリ フォース フィードバックを提供します。追加のプラグインは必要ありません。

AY210 はエントリーレベルのヨークと何が違うのでしょうか?

AY210 は、プロ仕様の 9Nm のトルクと 210N のピッチフォース、150mm の移動量、オールメタルのボディ、超スムーズなサーボ モーターを備えており、本格的なシマーやトレーニングでの使用に最適です。

AY210を通常のデスクに設置できますか?

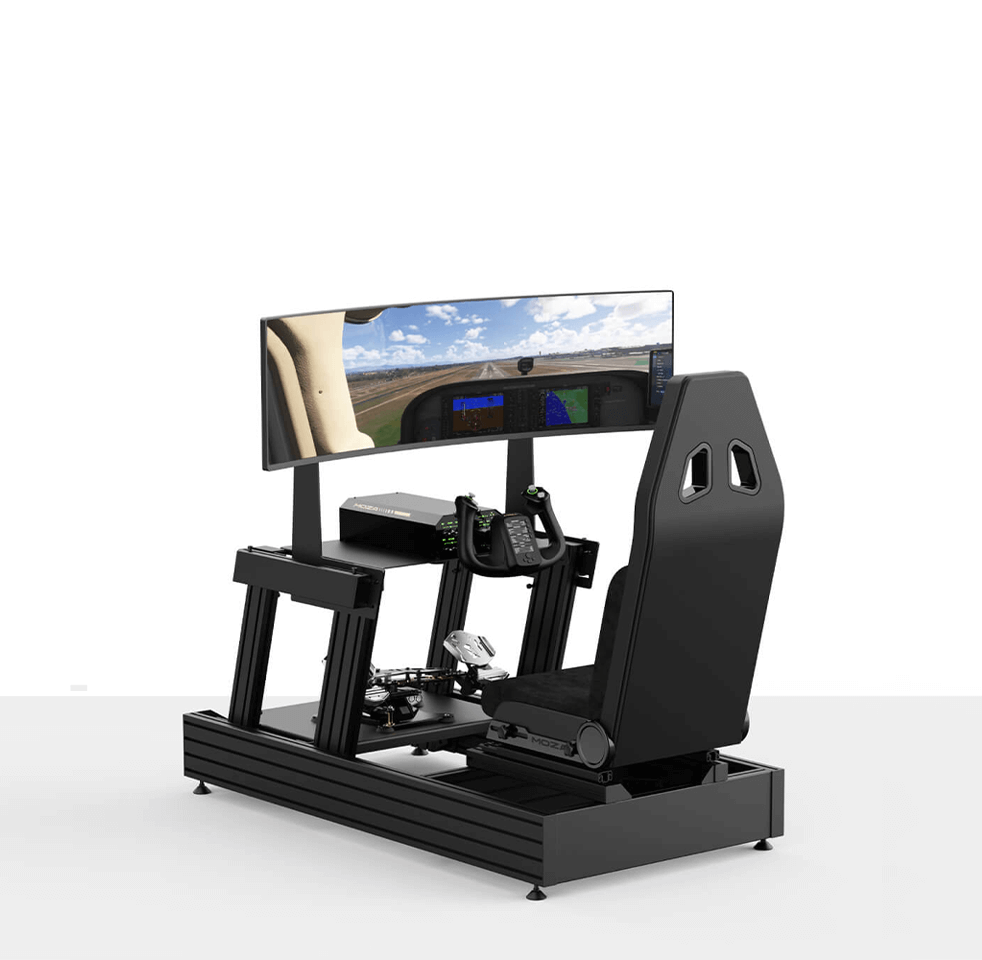

はい、デスクトップ クランプ、吊り下げクランプ、コックピット マウントをサポートしており、柔軟な設置オプションが可能です。

設定にはどのようなソフトウェアを使用しますか?

AY210はMOZAコックピットソフトウェアボタンのマッピング、照明、移動カーブ、フォースフィードバック プロファイルを完全にカスタマイズできます。

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
Saar

Although I have it less than a month, I think the product is really promising. Build quality is great.
What I wish:
1. More options to bolt the base to a desktop, instead of only 2 points (front and rear) I would have added in the middle more options.
The option to place the base under the desk, thus releasing lots of space, is also something that I would appreciate (check the CL60, has this option built into the base).
2. IF you7 could add a USB hub to the base then other peripherals could be connected to it in chain.
3. I use the Yoke mainly in VR, so all the switches are less useful to me, instead, thank you for all the buttons you put on the MFY Yoke handle.
For the amount of money I paid, I got more than what others charge more.

4. Software: The FFB yoke won't be great without a good software. Currently the compatibility with Simulators is a mix bag, and there is a lot to be desired. My suggestion:
I. Provide tools to make it simpler to compare different "profiles".
II. Work with community and real pilots to correctly tune your base profiles.
III. Work with the community, not just through Discord or forums, actively let the community participate with parts of the software.
Plugins - should have been "open source" so others could create compatible plugins for all platform.
There will always be "official version" of the plugin, and "community version", an unsupported plugins.

IV: Your main program is the middle man between the application and the Yoke. Make it cross platform, not by opening the main application to everyone, but by open sourcing only the service that communicates with the Yoke, the community will do the rest for you, it is a win win situation and not an easy step to take.

Overall I'm happy, but still waiting for better "Trip" support and better "profiles" for my X-Plane and other applications I use.

R
Rémy

The yoke is very well built, I really like the grip, and the feeling of force feedback is perfect, you really have the impression of pilotin a real plane.

J
Joseph E.
aY210

Love it
