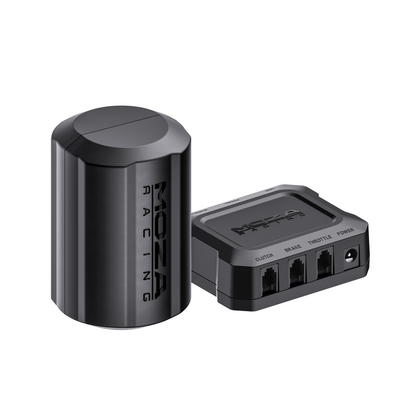

MOZA Pedal Haptic Feedback Kit

Compatible Pedals: SR-P Lite Pedals, SR-P Pedals, SR-P2 Pedals, CRP2 Pedals
Supported Software: MOZA Pit House
PHF Module Dimensions: 40 × 41 × 61 mm

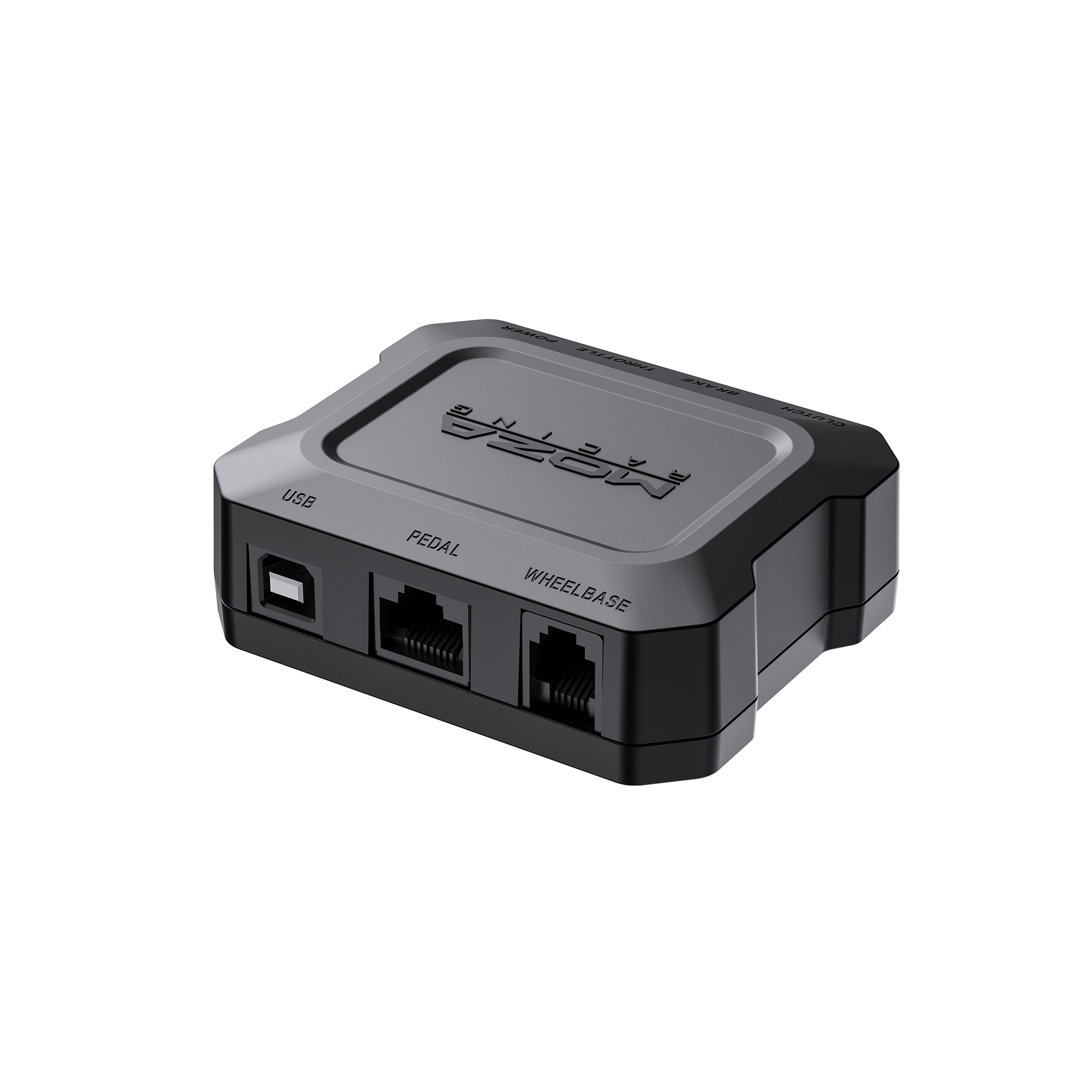

Control Box Dimensions: 80 × 66 × 26 mm
Power Supply: 12V, 2A
Net Weight: 98 g

Installation on SR-P Lite / SR-P Pedals

1. Remove the two factory-installed M4×8 countersunk screws from the applicable SR-P Lite or SR-P pedal and replace them with two M4×12 countersunk screws.
2. Secure the L-shaped mounting bracket using two M4 nuts and install it onto the back of the corresponding pedal. Mount the MOZA PHF Pedal Haptic Feedback Module onto the bracket using two M4×6 pan-head screws.

Installation on SRP2 Pedals

1. Install the L-shaped mounting bracket onto the back of the corresponding SRP2 pedal using two M4×6 pan-head screws.
2. Mount the MOZA PHF Pedal Haptic Feedback Module onto the L-shaped bracket using two M4×6 pan-head screws.

Installation on CRP2 Pedals

1. Secure the MOZA PHF Pedal Haptic Feedback Module to the L-shaped mounting bracket using two M4×6 pan-head screws.
2. Attach the bracket and module assembly to the corresponding CRP2 pedal using two M6×12 pan-head screws.

Place an M6 flat washer between the pedal and each screw to prevent scratches or damage to the pedal surface.

1. Connect each PHF Module to the corresponding THROTTLE, BRAKE, or CLUTCH port on the Control Box. Then connect the pedals to the PEDAL port on the Control Box to complete the installation.

Connection Methods

The Control Box supports two signal transmission methods: direct PC connection or connection through a compatible MOZA wheelbase.

Important: Do not connect the Control Box to both the PC and the wheelbase at the same time. Connect it to only one device.

Connection via PC

• Connect the pedals to the Control Box using the RJ45 cable.
• Connect the Control Box directly to the PC using the USB cable.
• Connect the PHF Module and 12V power adapter to the Control Box.

Connection via MOZA Wheelbase

• Connect the Control Box to a compatible MOZA wheelbase using the RJ11 cable.
• Connect the pedals to the Control Box using the RJ45 cable.
• Connect the PHF Module and 12V power adapter to the Control Box.
