仕様

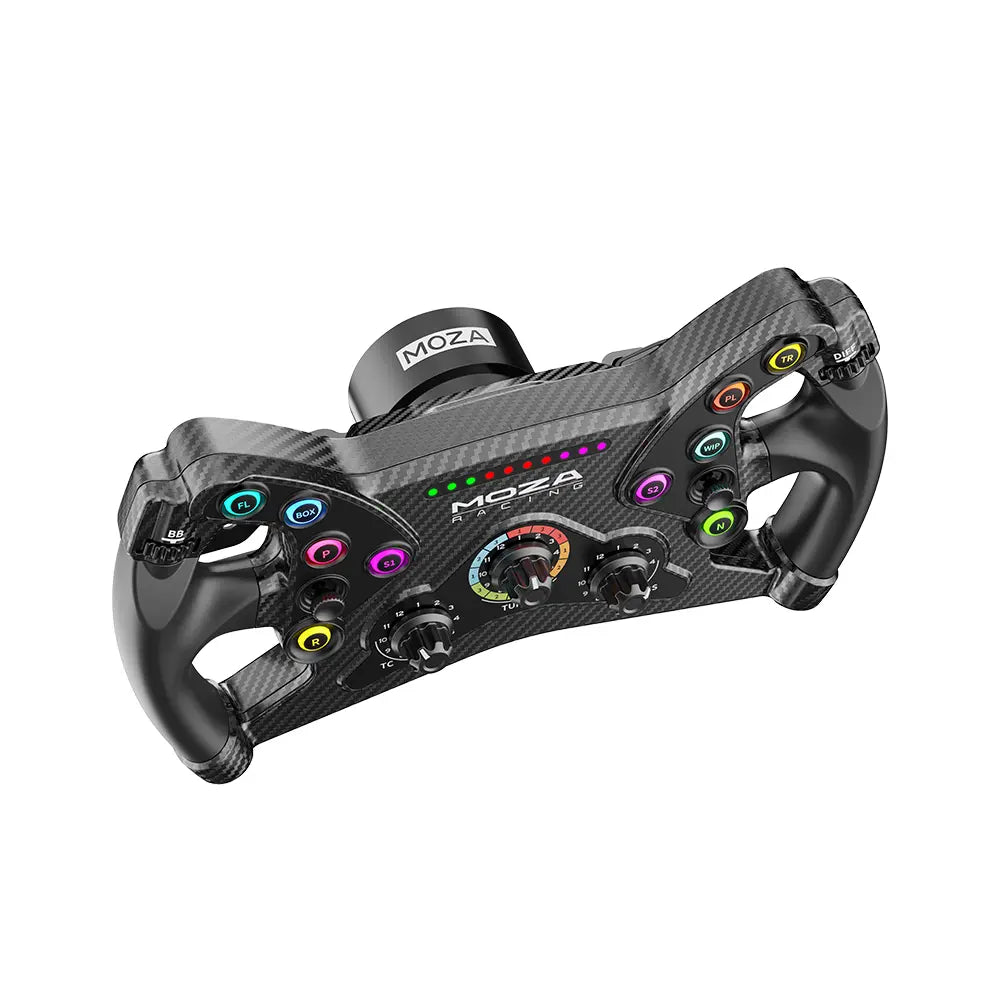

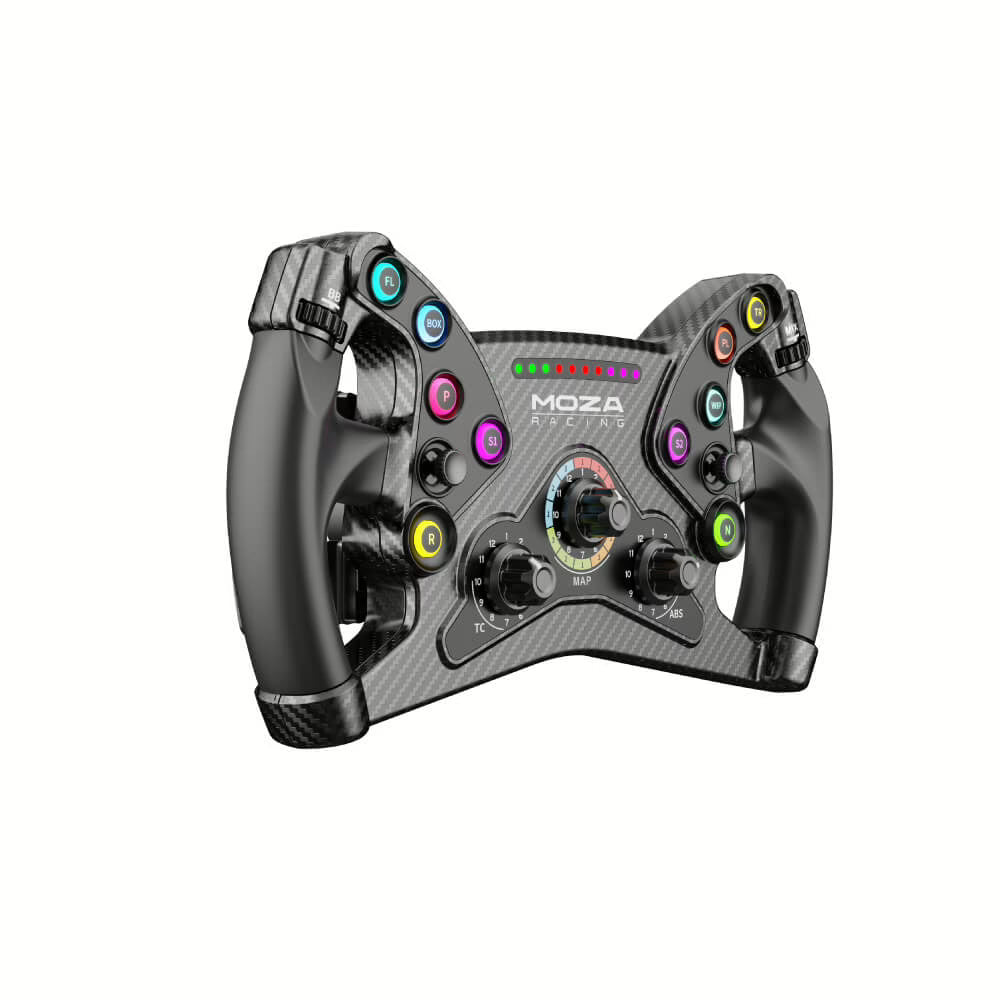

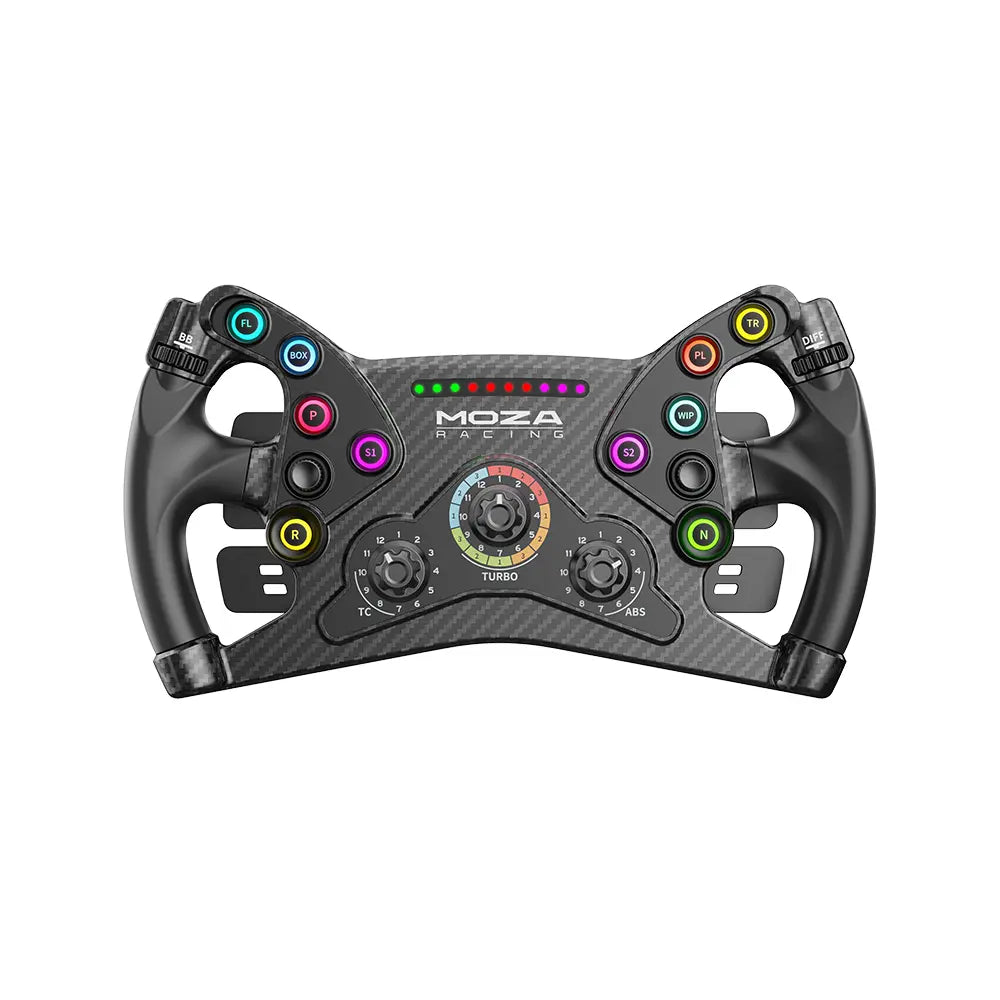

KSステアリングホイール

ホイールサイズ:300mm標準GTホイール

重さ:2.6キロ

寸法(長さ x 幅 x 高さ):300 × 120 × 165 mm

パドル素材:アルミニウム合金

マグネティックシフターパドル:2

クラッチパドル:2

パドルセンサー:非接触ホールセンサー

デュアルクラッチパドルモード:複合軸 / 独立軸 / ボタン

光るショートトラベルボタン:10 (RGB、0.25mm の移動量、8 色のカスタマイズ可能)

ジョイスティック(押し下げ式):2

サムエンコーダー:2(20ポジション)

ロータリーエンコーダー:3(12ポジション)

高輝度LED:10

LEDの色:8つのカスタマイズ可能な色

RPM LED調整:MOZAピットハウスで完全に調整可能

インテリジェントテレメトリ:サポートされている

通信方法:ワイヤレスまたは産業用導電性スリップリング経由

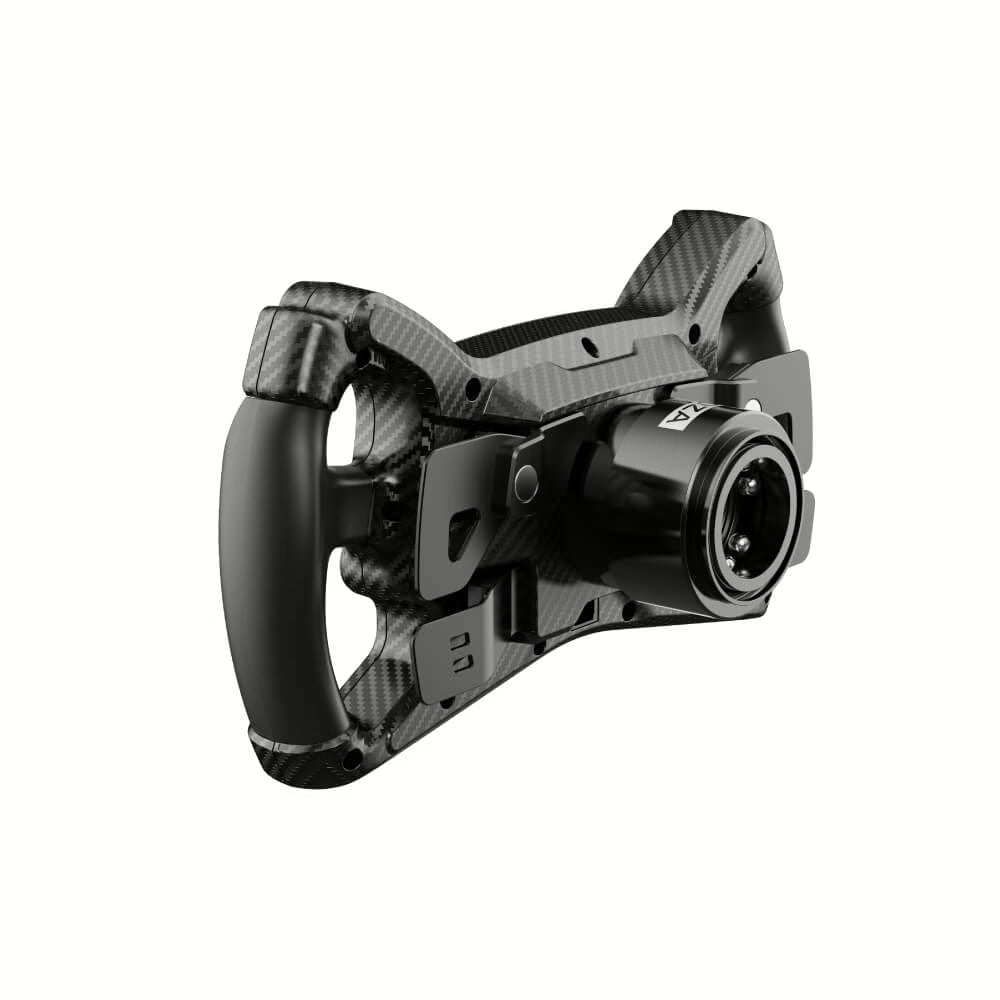

クイックリリース:MOZAクイックリリース

互換性:すべてのMOZAホイールベースとサードパーティのホイールベース

サードパーティベース拡張ポート:サポートされている

ソフトウェアサポート:MOZA ピットハウス PC スイート

MOZA R9 V3 DDベース

プラットフォーム:パソコン
FFBドライブシステム:ダイレクトドライブ
最大ホイール回転:無限
ピークトルク:9 N·m
ピーク電力:180W
入力電圧:110V~220V AC → 36V DC
USBリフレッシュレート:1000Hz
ホイールベースインジケーターライト:サポートされている
アプリの機能:サポートされています(MOZA Pit House & MOZAモバイルアプリ)
クイックリリース:MOZAクイックリリース
接続ポート:電源、DC入力、ペダル、緊急停止装置、USB、ダッシュボード、シフター、ハンドブレーキ
ファームウェアの更新:該当する
温度制御システム:インテリジェントな温度監視とアクティブ冷却
エンコーダー:21ビット磁気エンコーダ(1回転あたり2,097,152ステップ)
モータータイプ:高性能サーボモーター(18スロット/16極構成)
ハウジング材質:航空グレードアルミニウム合金
色:
取り付け:4穴底マウント、オプションのテーブルクランプとサイドマウントをサポート
テーブルクランプ:オプション
サイドマウント:オプション
緊急停止スイッチ:オプション
サイズ(長さ×幅×高さ):240 × 157 × 124 mm
付属品:ユーザーマニュアル、保証書、電源、USBケーブル、ツールキット

受信トレイとは

  • KSステアリングホイール* 1

  • R9 V3 DDベース * 1

  • ツールキット

  • ユーザーマニュアル

  • 保証書

よくある質問

このバンドルがユーザーに指示されている理由は何でしょうか?
  • KSホイールの軽量設計(約1.2kg)はR9 のフォースフィードバックの忠実度を維持し、GT およびプロトタイプの体験においてより鮮明で詳細な触覚情報を提供します。
  • ユーザーの洞察は、精度へのこの重点を裏付けています。「私が使用している KS は、GT3、プロトタイプ、オープンホイール カー専用です。」
  • また、KS は、持続的なセッション全体にわたって敏捷性と明瞭性に優れており、競争的なライドや持久力ライドの快適性とパフォーマンスの両方を向上させることも注目されています。

R9 V3 + KS バンドルと互換性のあるレーシング ゲームはどれですか?

このバンドルは、以下を含むすべての主要なPCベースのレーシングシミュレータで動作します。iRacing、Assetto Corsa Competizione、Assetto Corsa、rFactor 2、Autobilista 2、F1 202X シリーズ、RaceRoom Racing ExperienceKS GTホイールは、GT、プロトタイプ、オープンホイールレースに最適化されています。

KS GT ホイールが GT およびオープンホイール レースに最適な理由は何ですか?

KS は、軽量の 300 mm バタフライ スタイルのリム、磁気式デュアル クラッチ パドル、RGB バックライト付きボタンを備えており、素早い入力と強化されたフォース フィードバックの詳細が可能で、GT3、プロトタイプ、フォーミュラ スタイルの車に最適です。

R9 V3 には外部電源が必要ですか?

はい。バンドルには、9Nmダイレクトドライブモーターに安定した電力を供給し、一貫したパフォーマンスを実現するための電源アダプターが含まれています。

後でアップグレードできますか?

もちろんです。R9 V3MOZAエコシステムの一部であるため、レースのニーズの変化に応じて、さまざまなホイール、ペダル、シフター、アクセサリーに簡単にアップグレードできます。KS GTホイールは、以下の製品と組み合わせることで、特定のサードパーティ製ホイールベースにも対応します。MOZAユニバーサルハブキット将来のアップグレードに対してさらに柔軟性が高まります。

Customer Reviews

Based on 7 reviews
100%
(7)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
B
Bertrand Q.

Les réglages m'ont pris un peu de temps pour les adapter à mes préférences mais une fois que c'est fait on a une base fantastique accompagnée d'un super volant.

P
Pierluigi S.
Molto soddisfatto

Sono davvero molto soddisfatto del mio MOZA , oltre le aspettative

b
b g.

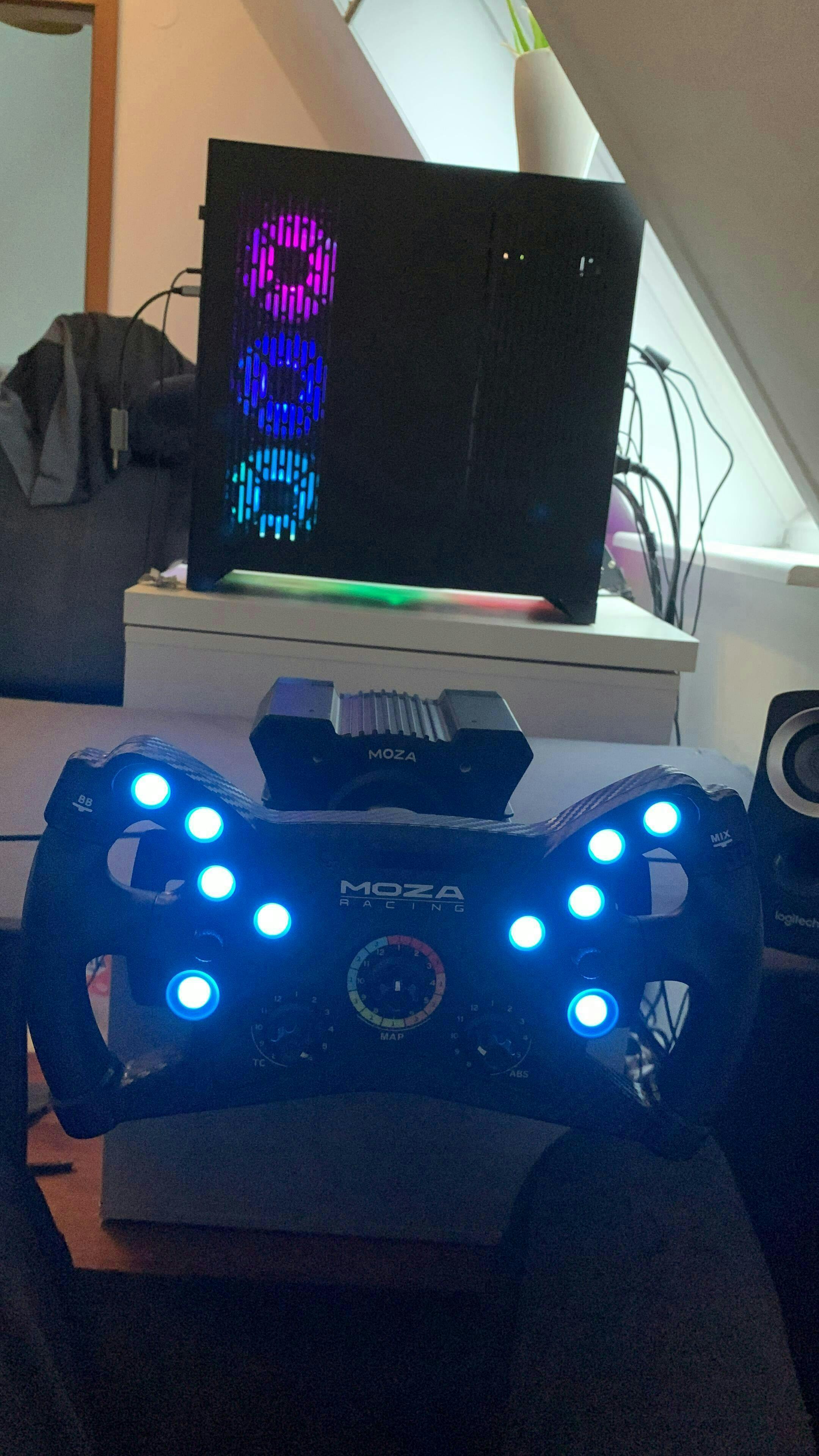

MOZA r9 and ks wheel

Two top pieces of equipment the wheel feels perfect and the ffb on the base is spot on makes my racing experience so much better.

G
Giuseppe
Excelent

I was coming from fanatec ecosystem? but this one is on another level. Materials, technology, software and other stuff are simply superior.

A
Alex
Premium feel, excellent force feedback, confident racing

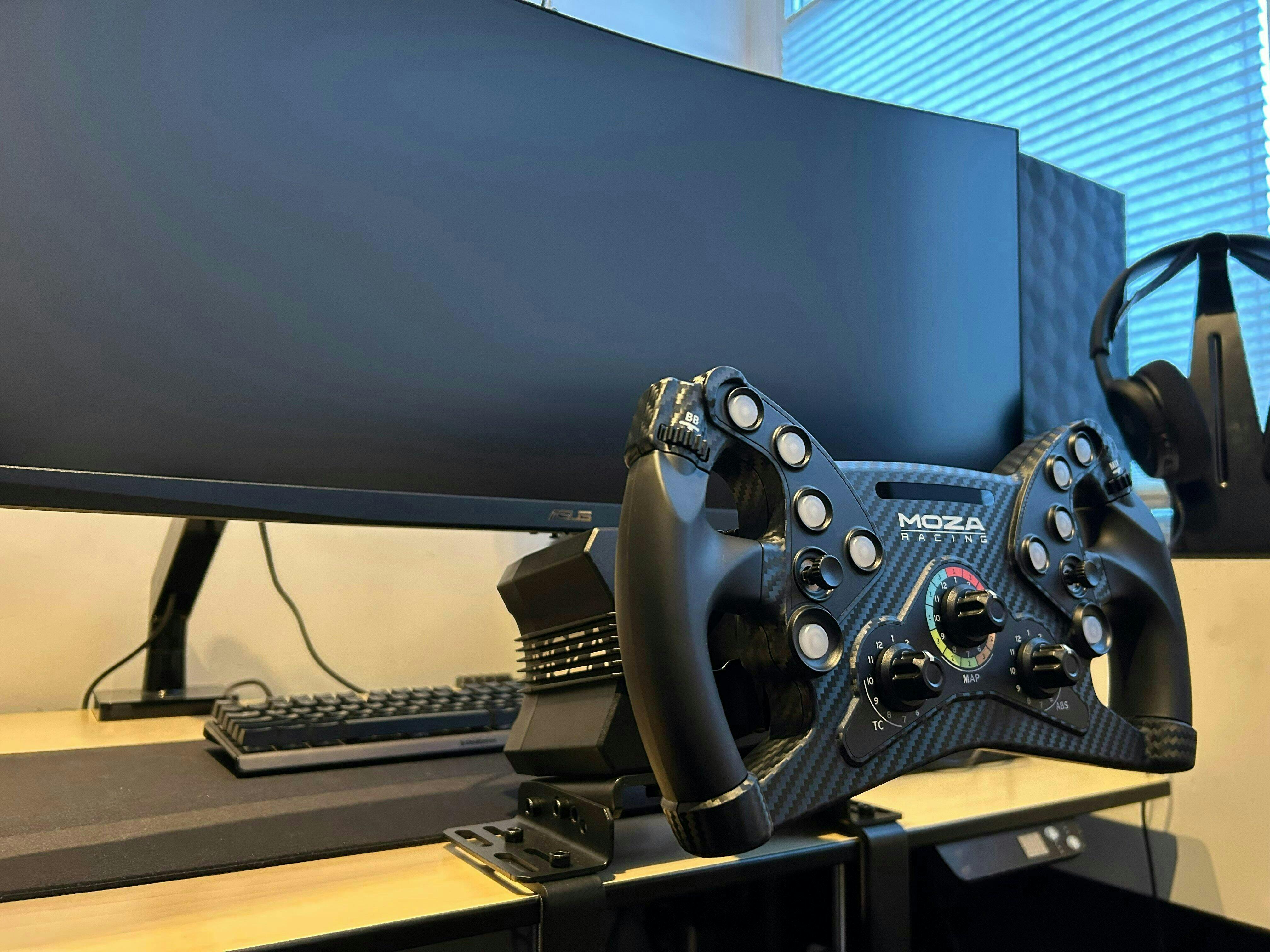

This wheel and R9 base feel very premium. There is no noticeable unwanted movement between the parts and the Quick Release is a world a difference compared to what I used to do with my Thrustmaster Eco-system. Also the Force Feedback is excellent. I came from a Thrustmaster T300 and it feels like the 9nm is a great next step. I planned on mounting it on my desk with the base clamp (which is easy to mount and of very high quality) therefore I didn't want to have too much power on the force feedback as to keep my desk standing. 9nm seems to be a nice spot when considering deskvibration and powerful feedback in the wheel.

The KS wheel is great. The firmware update now makes it possible to adjust all the RGB-colors in the Pithouse software instead of using some sort of button-combo. The amount of buttons and dials is well balanced, I wouldn't want to have more. Maybe if I were to be using it solely for F1 I would've considerd the GS, but I also enjoy LMGT3, so this is a great balanced wheel for this use.

I've read a lot of concern about ordering directly from MOZA, but my experience is very positive. Especially through Discord I had quick responses about delivery and any other questions.

A
Andrew
Creamy

I buss on the wheel and the R9 everyday and night frfr

U
Uriel E.
lets you race

KS Wheel
- the wheel feels very high quality
- i didn't like the thumb dials at first, they are kinda sharp, and feel/sound different on each side/ But I got used to them and they're fine now
- i like the buttons, and the center dials feel very tactile
- the shifters are too quite, they have no click. just the sound of the paddle hitting the end. i tried the ES before and i liked its way clicky-er shifters.
- the rubber material is like a “good for sweating” kind of rubber
- the "carbon fiber reinforced plastic" feels very nice
- overall quite comfortable, need to reach a little for most buttons, but far less than ES wheel
- smells like new tire!!!
- wheel rattles while racing, at high speed, and during braking.
- tbh i initially half wished i had spent the extra $160 for the GS. It would have had nicer leather grips, more metal parts, and clicky shifters, but this KS is not bad by any means, so I didn't bother returning it and spending more.
- i am glad however i spent the extra money over the ES. but honestly the leather ES feels nicer, and you can drift since its round, so not a bad option either.
- overall this wheel is great. when you're racing, it just fades into the background and lets you do your thing, which is really all you can ask out of any tool.

R9
strong asf
-gives room to not run force feedback at 100%
- - this is good because you can feel some things you couldn't feel with the R5 like extra wheel forces mid-corner.
-you can still overcome the steering angle limit, but it’s decently heavy
- very smooth
- power supply light is bright af
- i do have the occasional connection issue, but its hard to replicate and honestly might be something with my PC so I'm not sure.
- overall, I don't have as much to say about the R9 since I haven't tried any other brand wheelbases to compare, but it also just fades into the background and lets you do your thing. the force feedback is great, you can feel what the car is doing in game, and the software is pretty adjustable

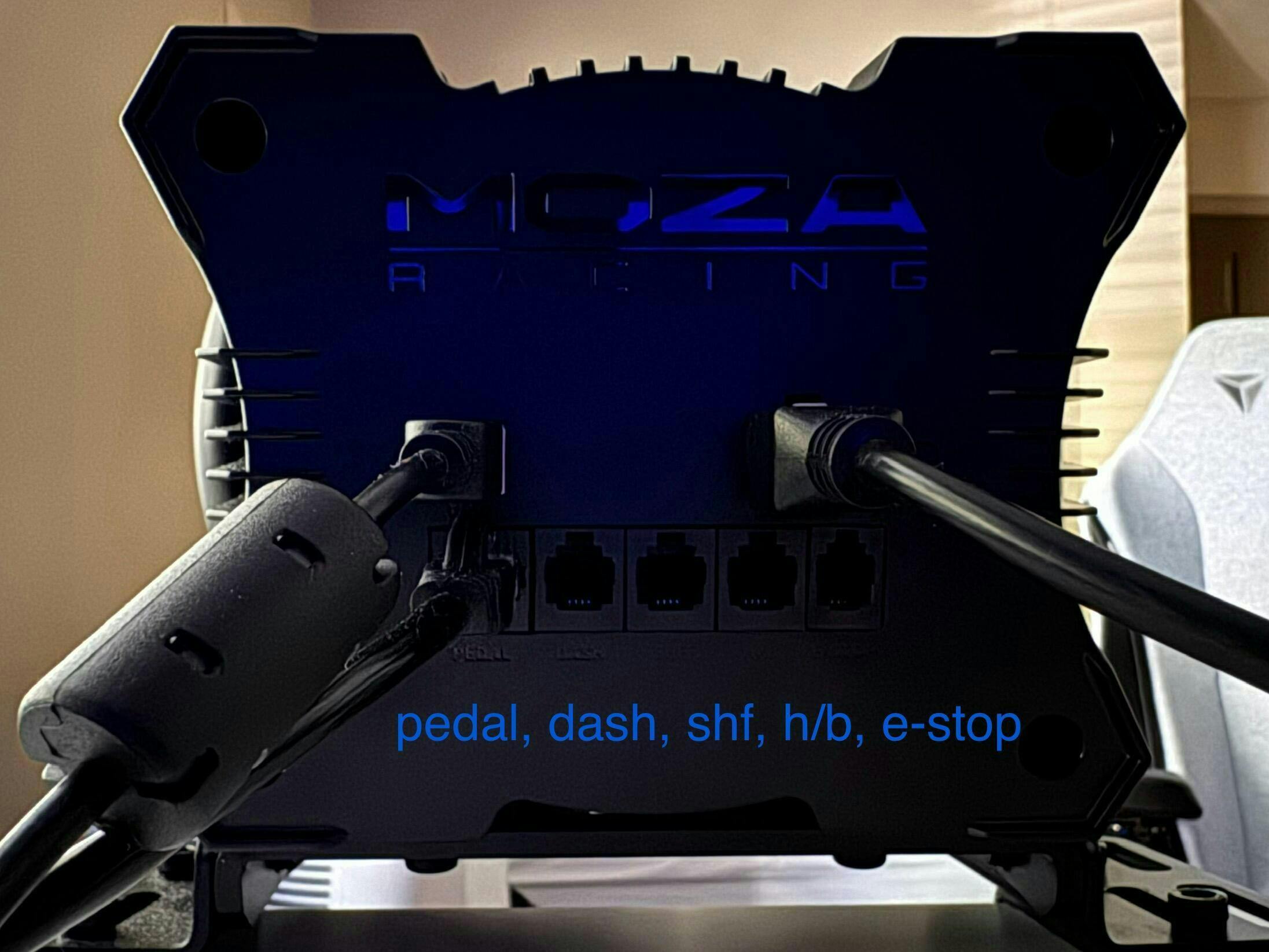

- I also included a picture of the ports on the back since the website doesn't have this info for some reason
