6Nm Peak Torque
Dual Servo Motors
High-Performance Outrunner Motor
Full Metal Construction
15-bit Magnetic Encoder

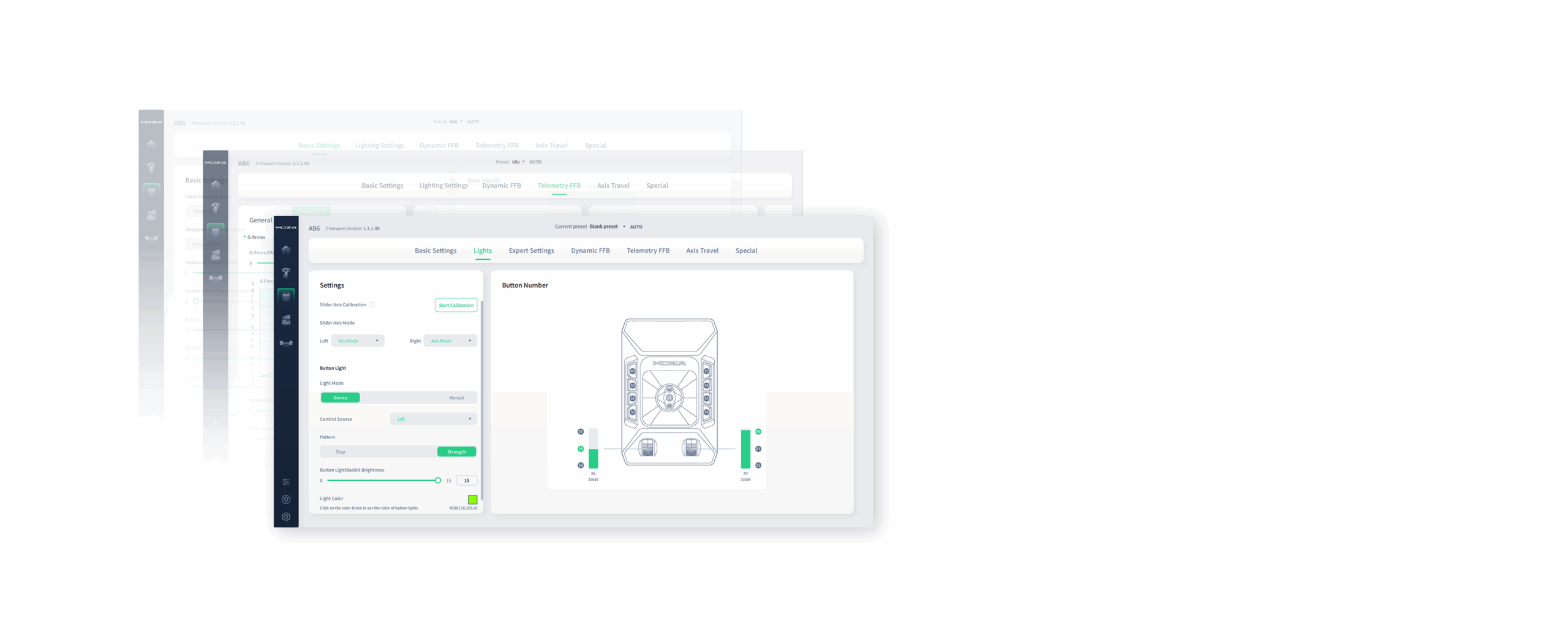

Programmable Front Panel with RGB Lighting
AB6 Specs
| Dimensions | 188*123*163 mm |
| Housing Material | Aluminum alloy |
| Dust Bag Material | Microfiber leather |
| Weight | 2.95KG |
| Motors | Dual high-performance servo motors |
| Roll Axis Continuous Torque | 4.4N·m |
| Peak Combined Torque | 6N·m |
| Travel Range | ±20° |
| Compatible Sticks | All MOZA flight sticks |
| Power | 72W |
| Voltage Input | 110~220V AC —>12V DC |
| Game Resolution | 0-65535 |
| USB Polling Rate | 1000Hz |
| Mounting Options | Desk clamp (optional), baseplate (optional), direct hard mount |
| Emergency Stop Switch | Optional |
| Smart Telemetry-Based Force Feedback | Supported (no plugin required) |
| Native Force Feedback Support | √ |
| Platform | PC |
| Included Accessories | Power supply, power cable, data cable, toolkit, user manual, stickers |

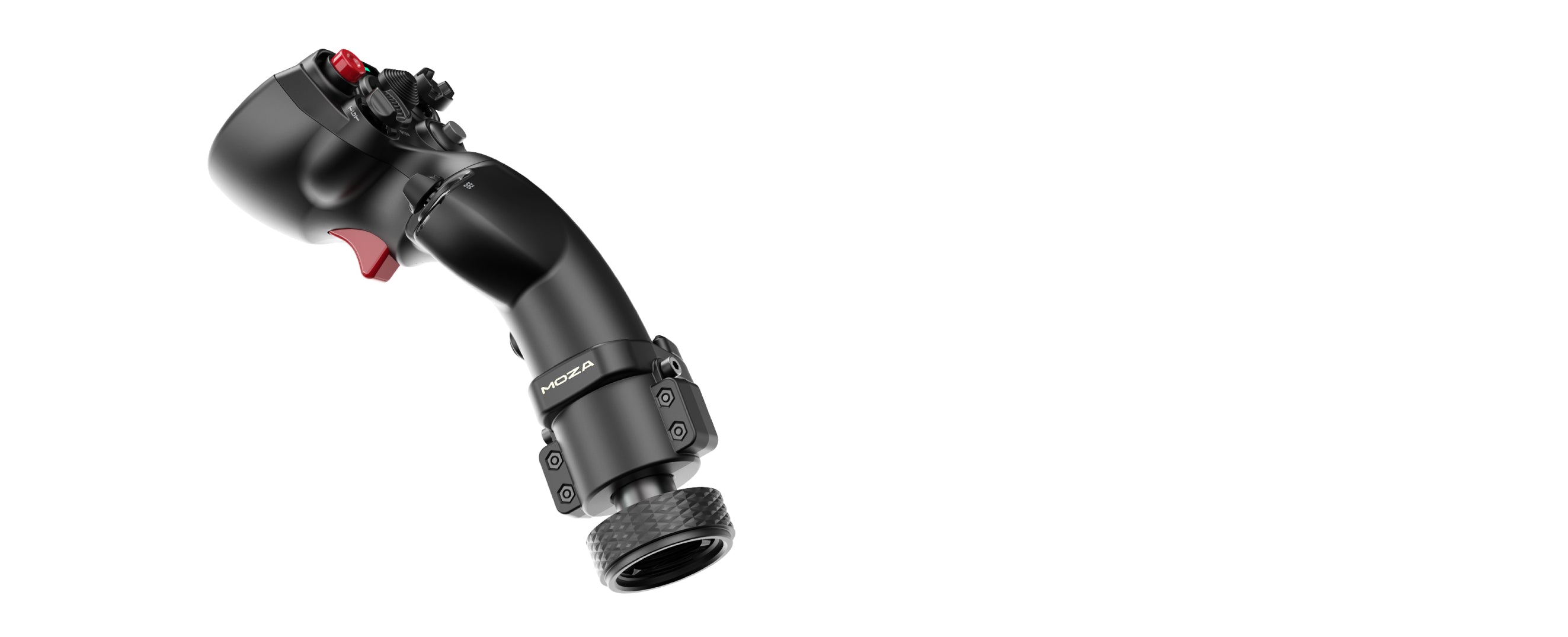

Reinforced Carbon Fiber Composite Construction

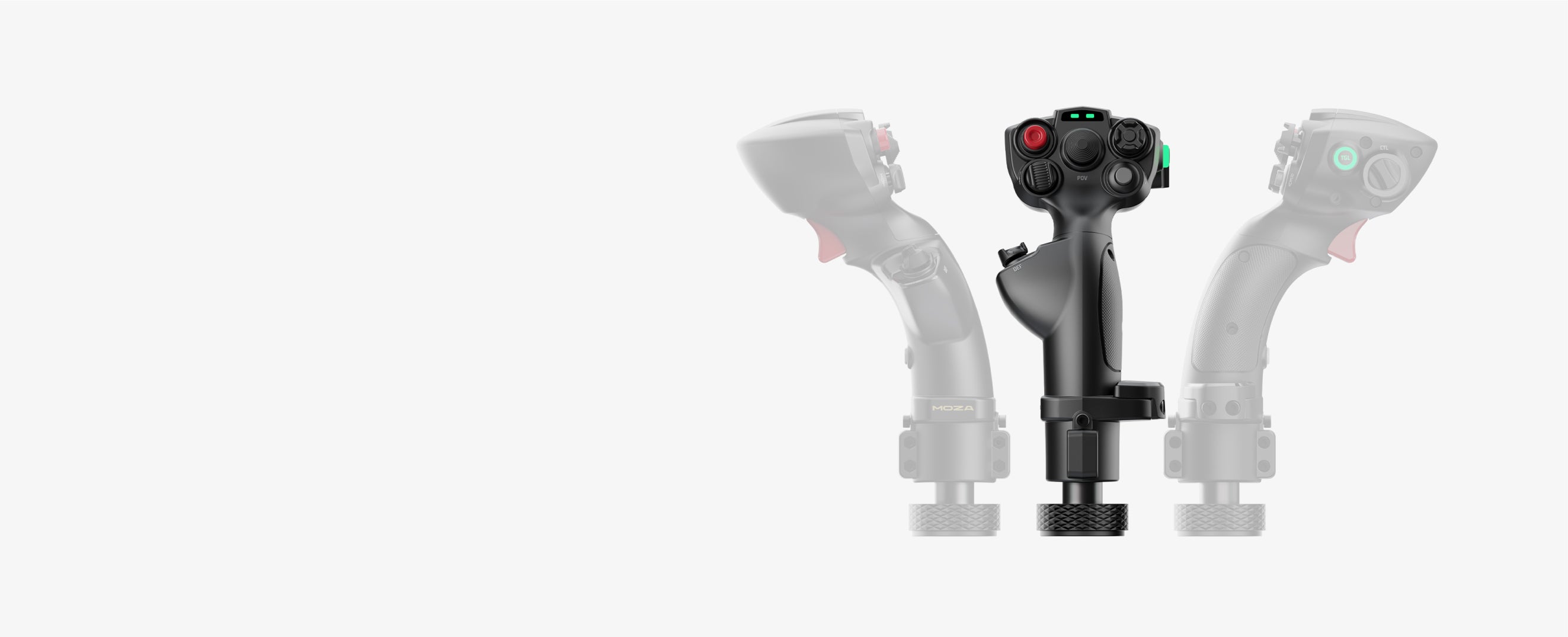

Comprehensive Button Layout

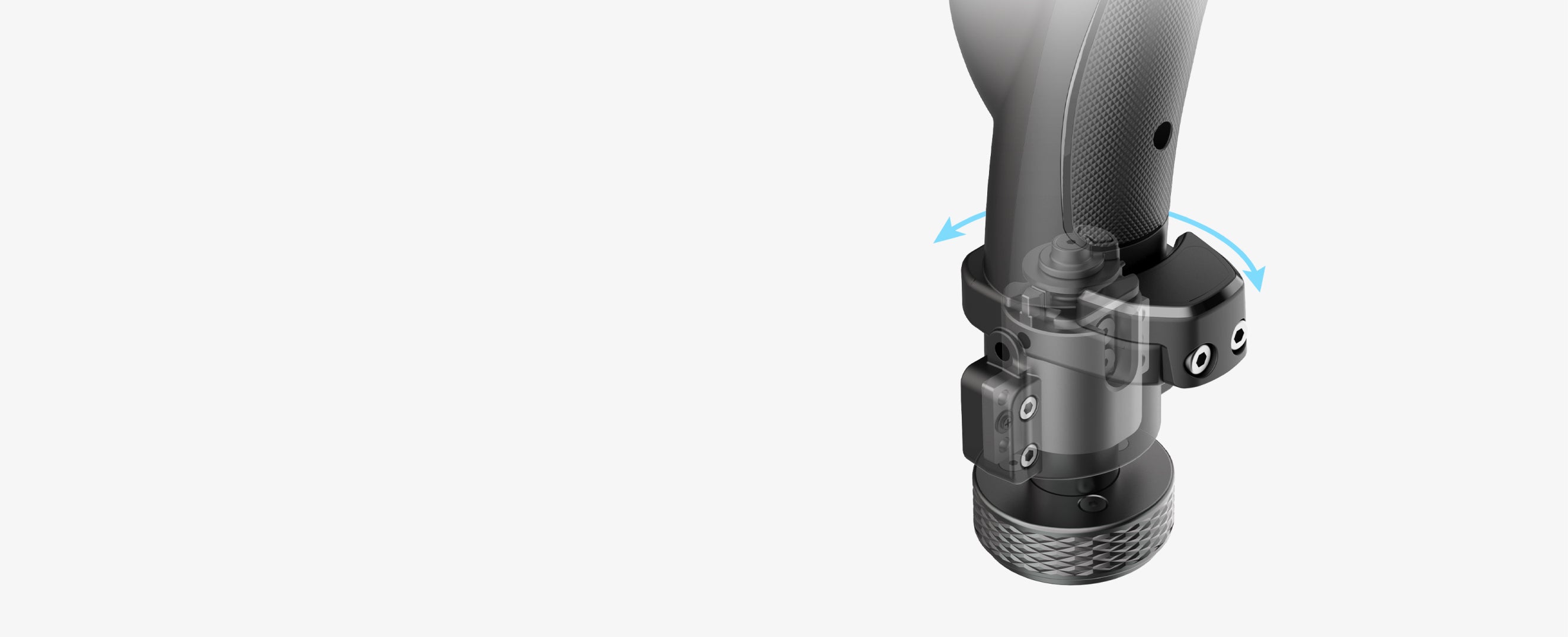

High-Precision Z-Axis
Two-Stage Trigger
Hall-Effect Hat Switch
Customizable RGB Lighting
MHG Specs
| Dimensions | 142.5*202*313mm |
| Casing Material | Carbon fiber reinforced composite |
| Connector Material | Metal |
| Button Cap Material | ABS plastic |
| Weight | 395g |
| 5-Way Switches | 4 |
| Hall Effect Mini-Stick | 1 |
| Trigger Stages | 2 |
| Assignable Outputs | 25 |
| Included Accessories | User manual, toolkit |
