SPECS
Base Dimensions | 157 × 227.9 × 184 mm |

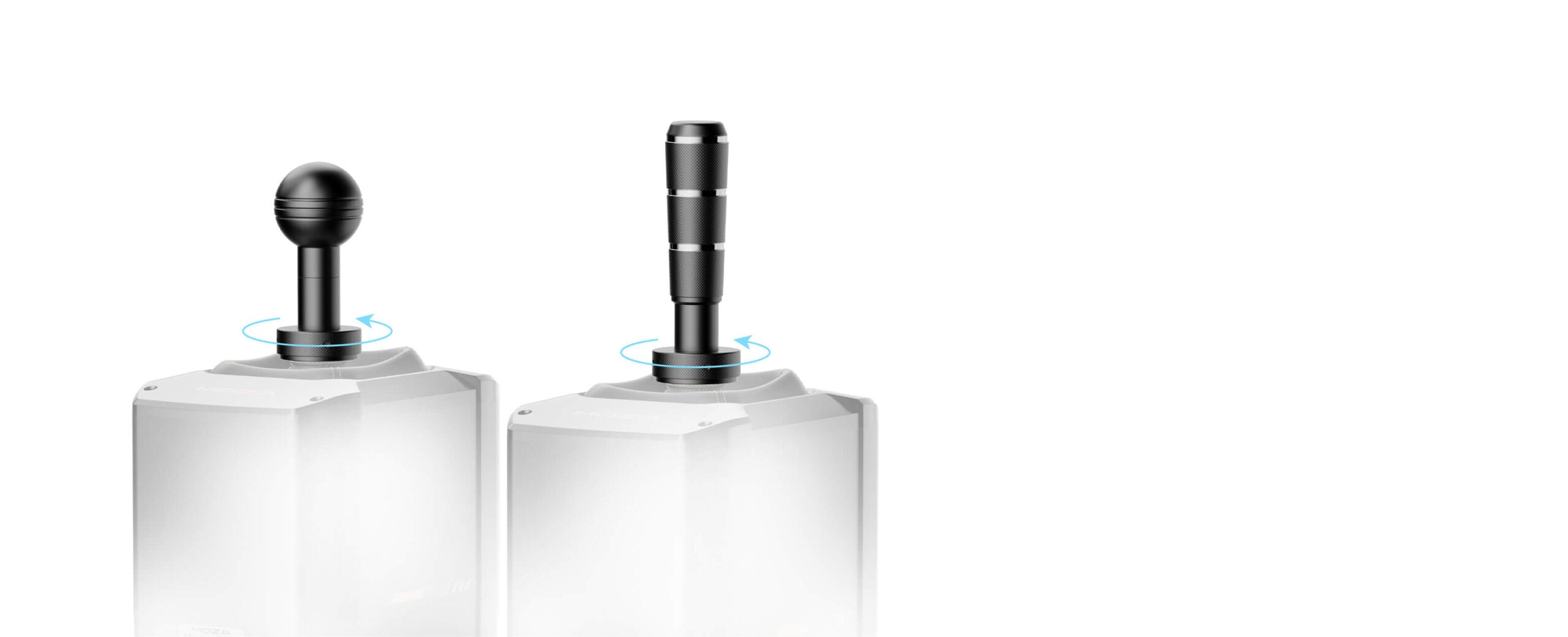

Shift Lever Length | H-pattern: 100 mm, Sequential: 130 mm |
Shift Lever Material | Aluminum Alloy |
Housing Material | Aerospace-Grade Aluminum Alloy |
Dust Bag Material | Microfiber Leather |
Weight | 5.5 kg |

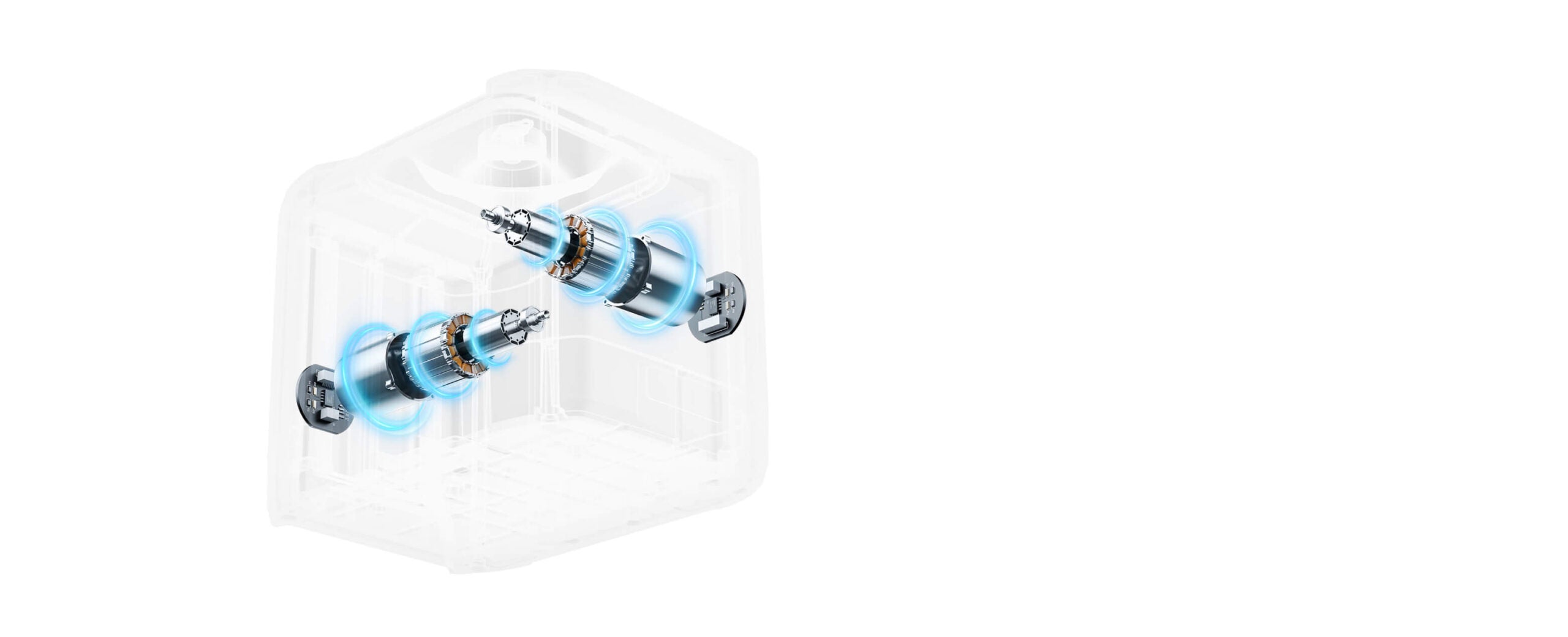

Motors | Dual High-Performance Servo Motors |
Peak Torque | 12 N·m |
Travel Range | ±20° |
Power | 216W |
Voltage | 110~220V AC → 36V DC |
Encoder Precision | 15-bit Magnetic Encoder |
USB Refresh Rate | 1000 Hz |
Mounting Options | Desktop Clamp (optional), Mounting Plate (optional), or direct installation on a simulator cockpit |
Connection Ports | Power, USB |
Emergency Stop | Optional |
Intelligent Telemetry Feedback | Supported (No Plug-ins Required) |
Native Force Feedback | Supported |
Supported Platform | PC |
