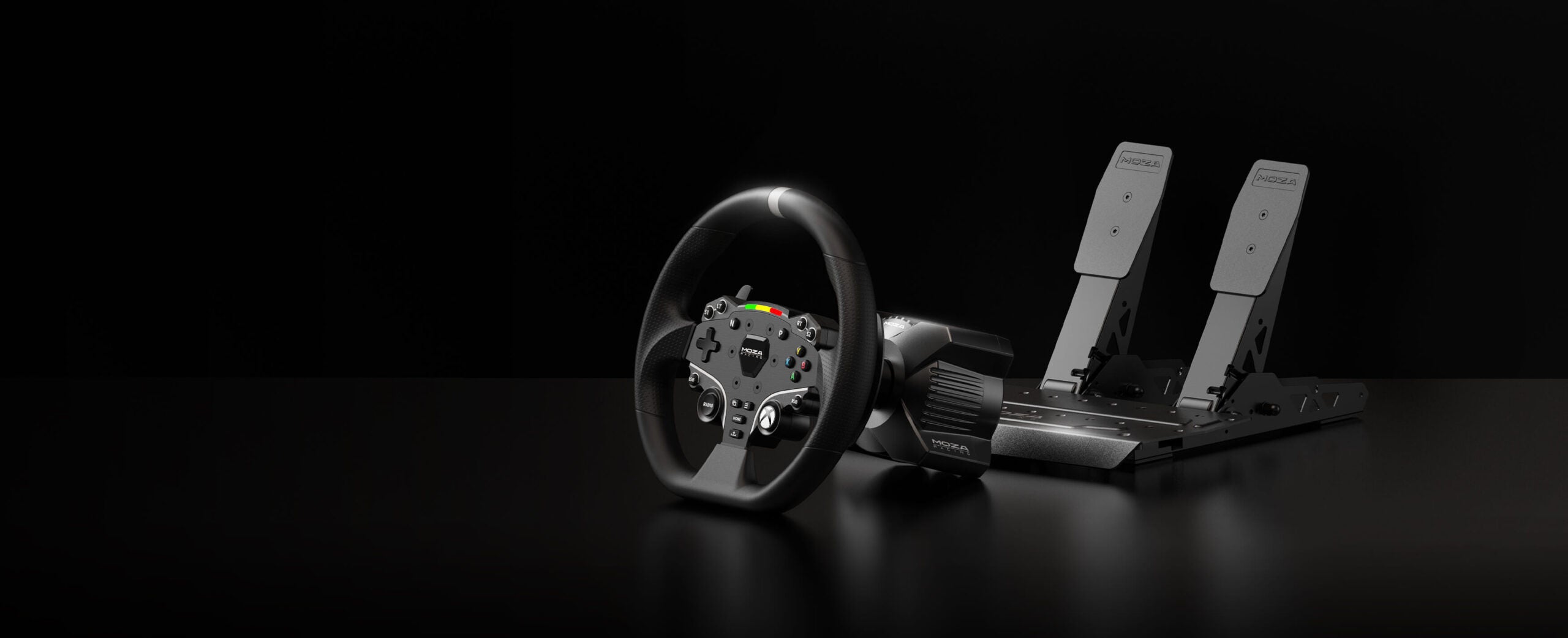

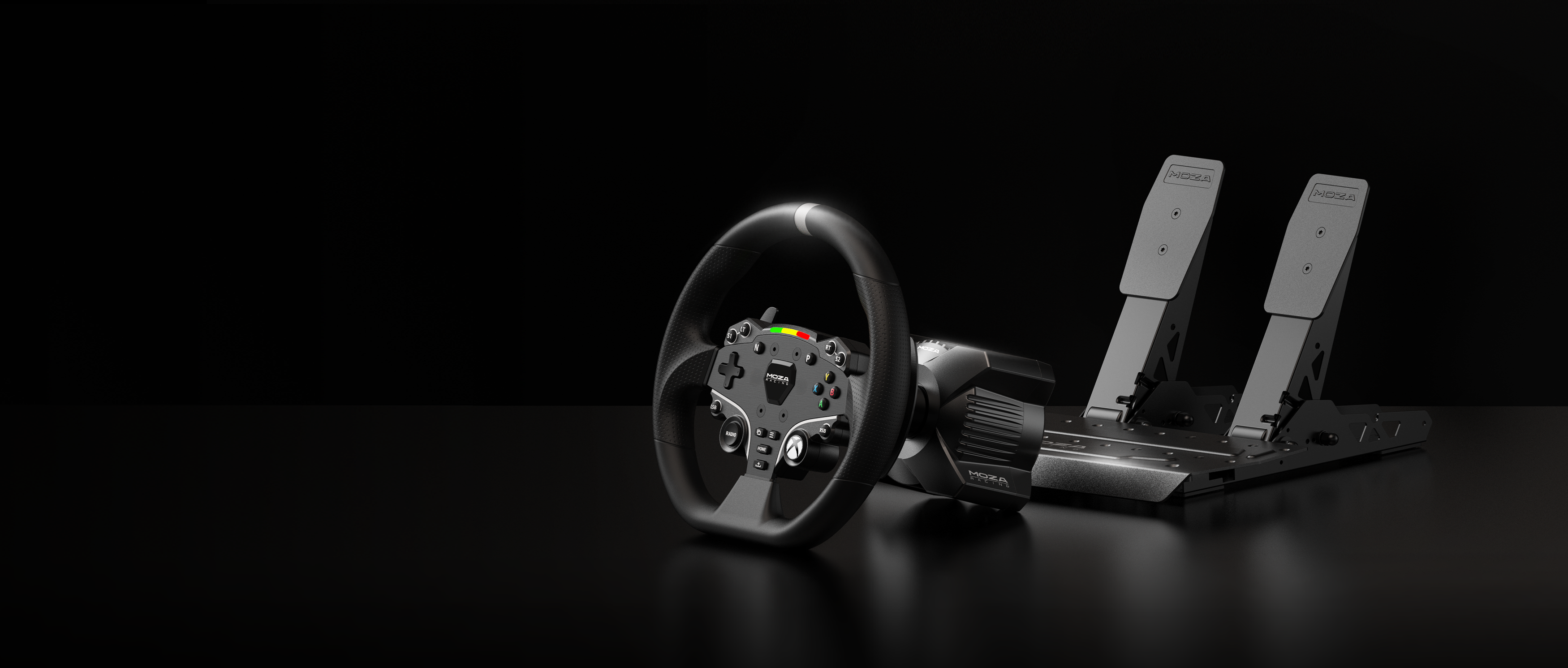

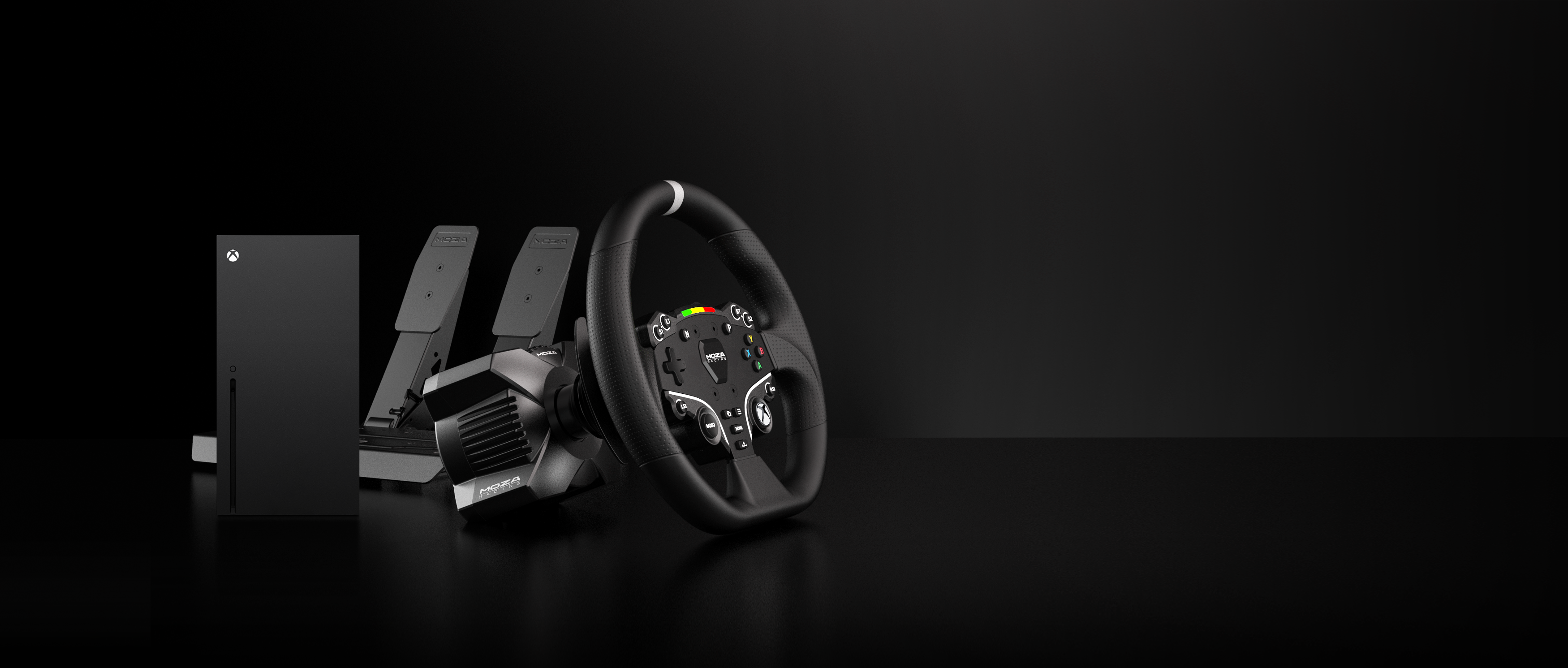

R3 Racing Wheel and Pedals
FOR XBOX & PC
Designed for Xbox
3.9Nm DD Servo Motor

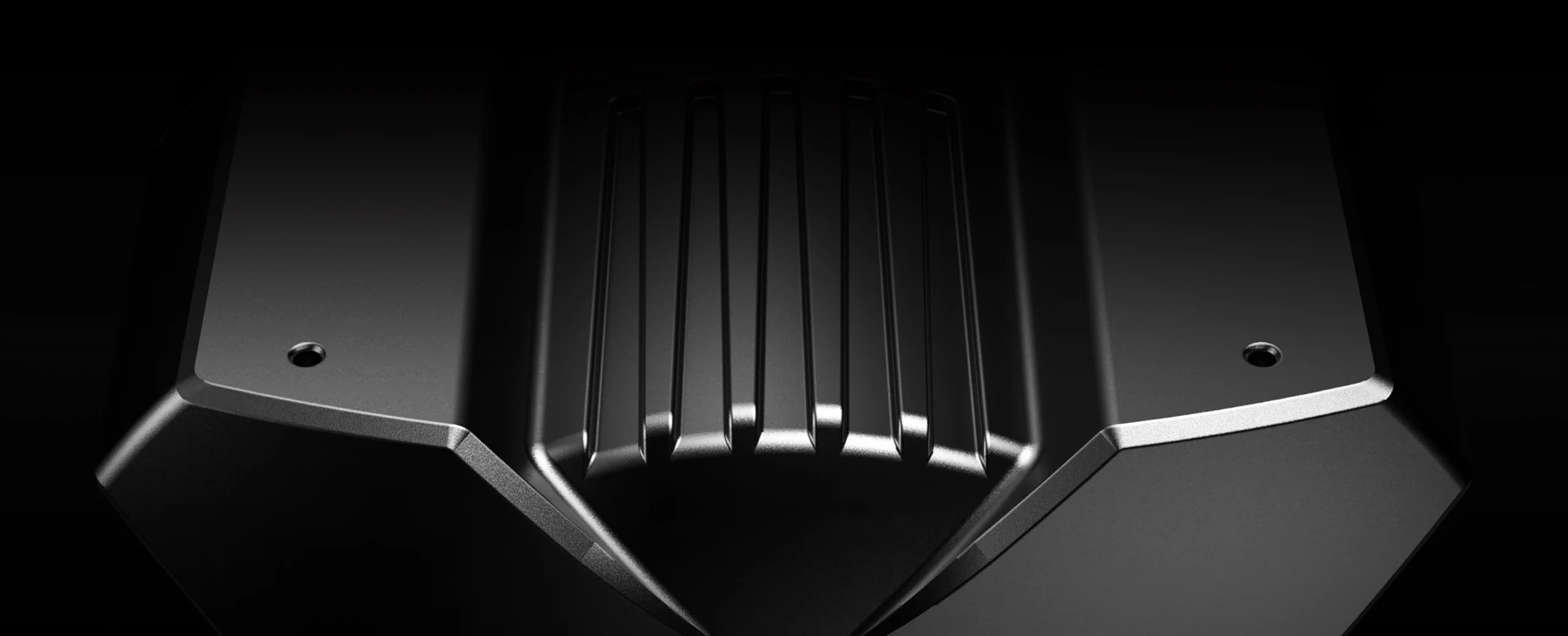

Aviation-grade Aluminum
ISF PU Grips

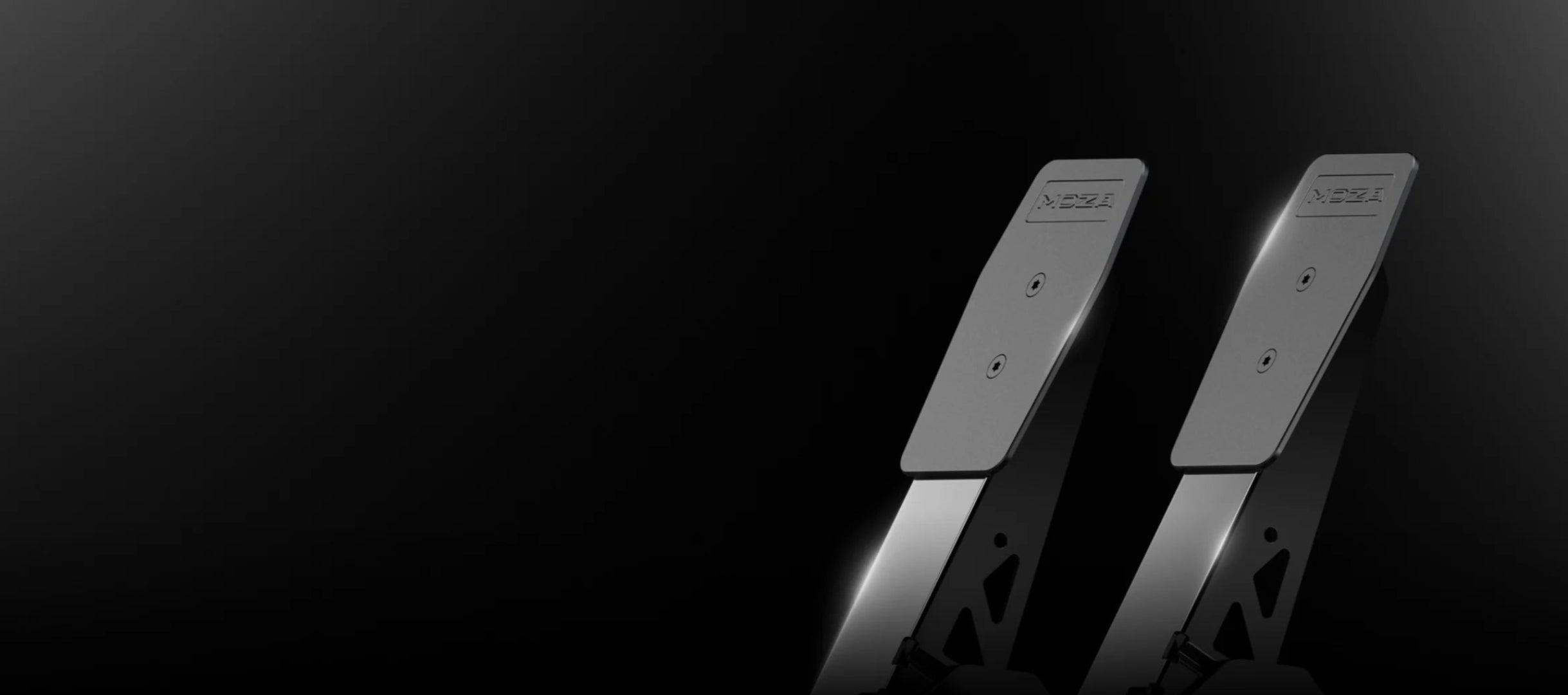

Full High-Strength Steel

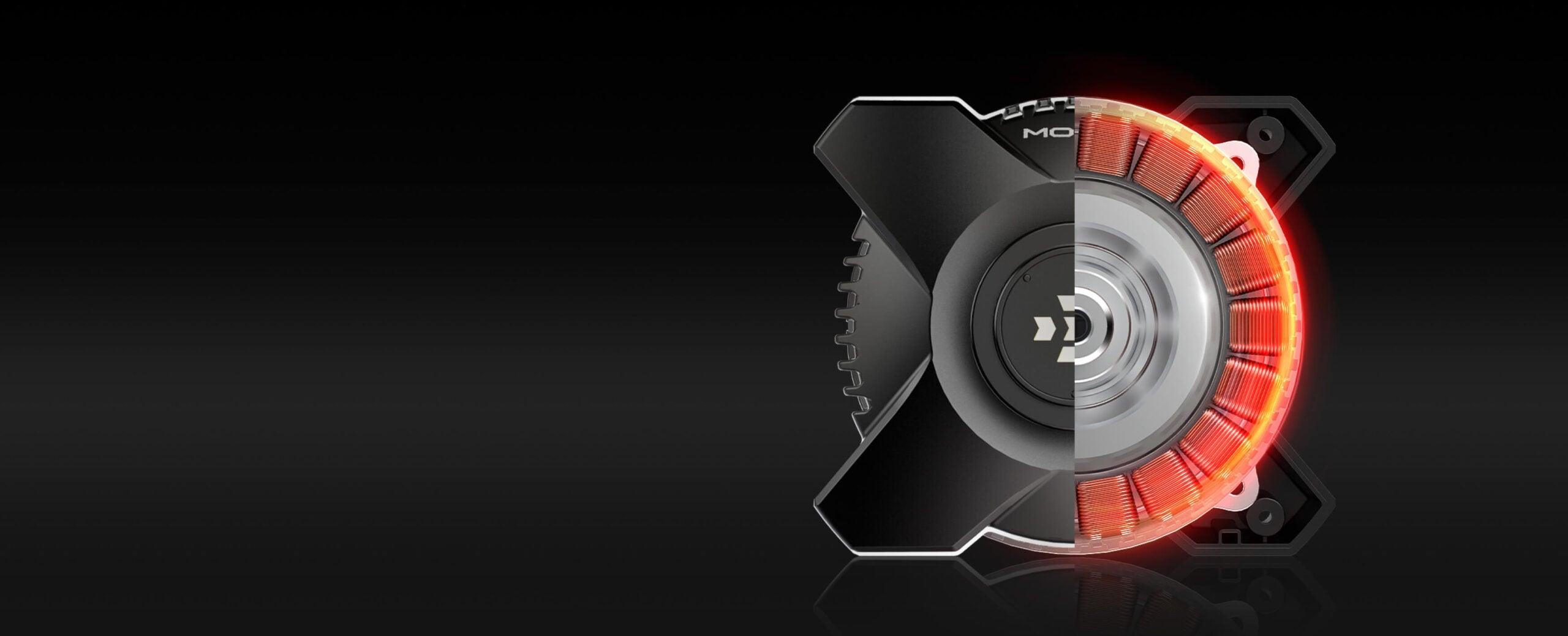

Ultra-low Torque Ripple & Groove Torque

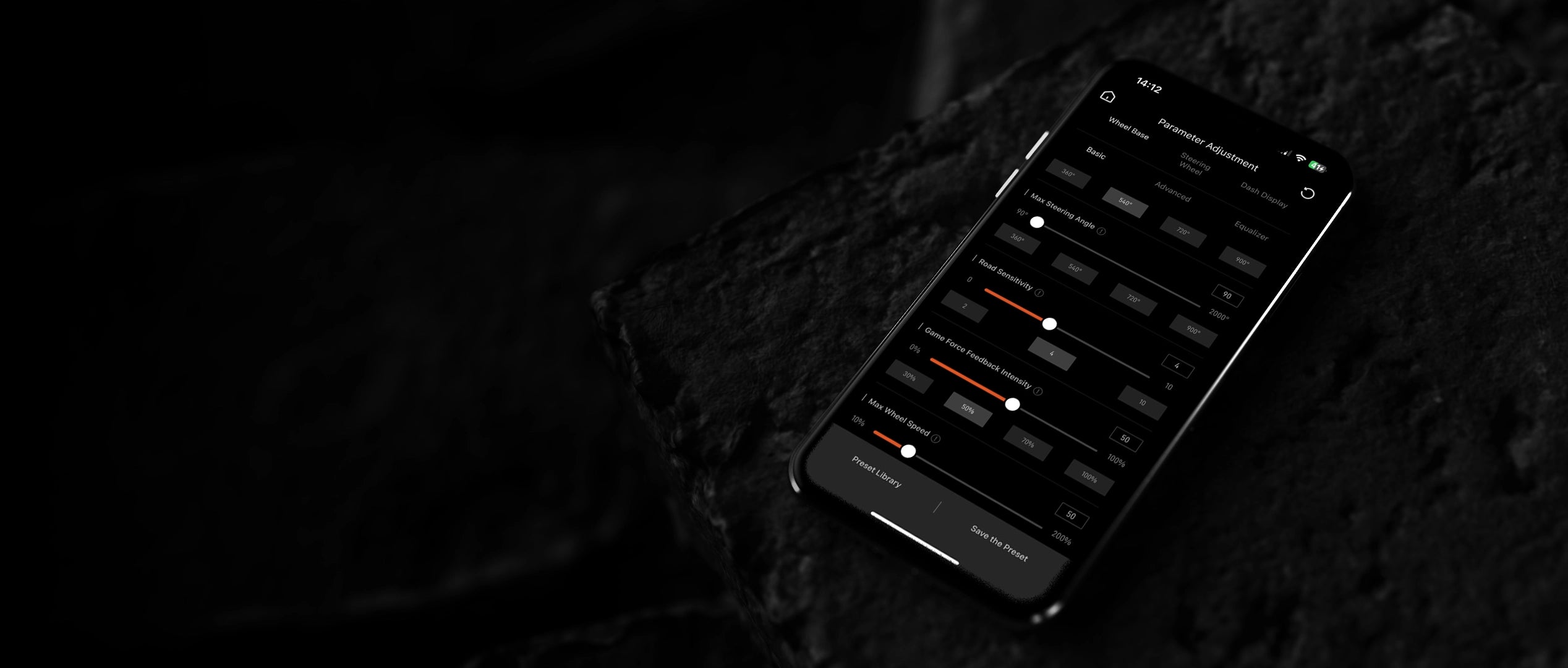

Mobile App Control
MOZA Pit House Control Center
Full Compatibility with Mainstream Games

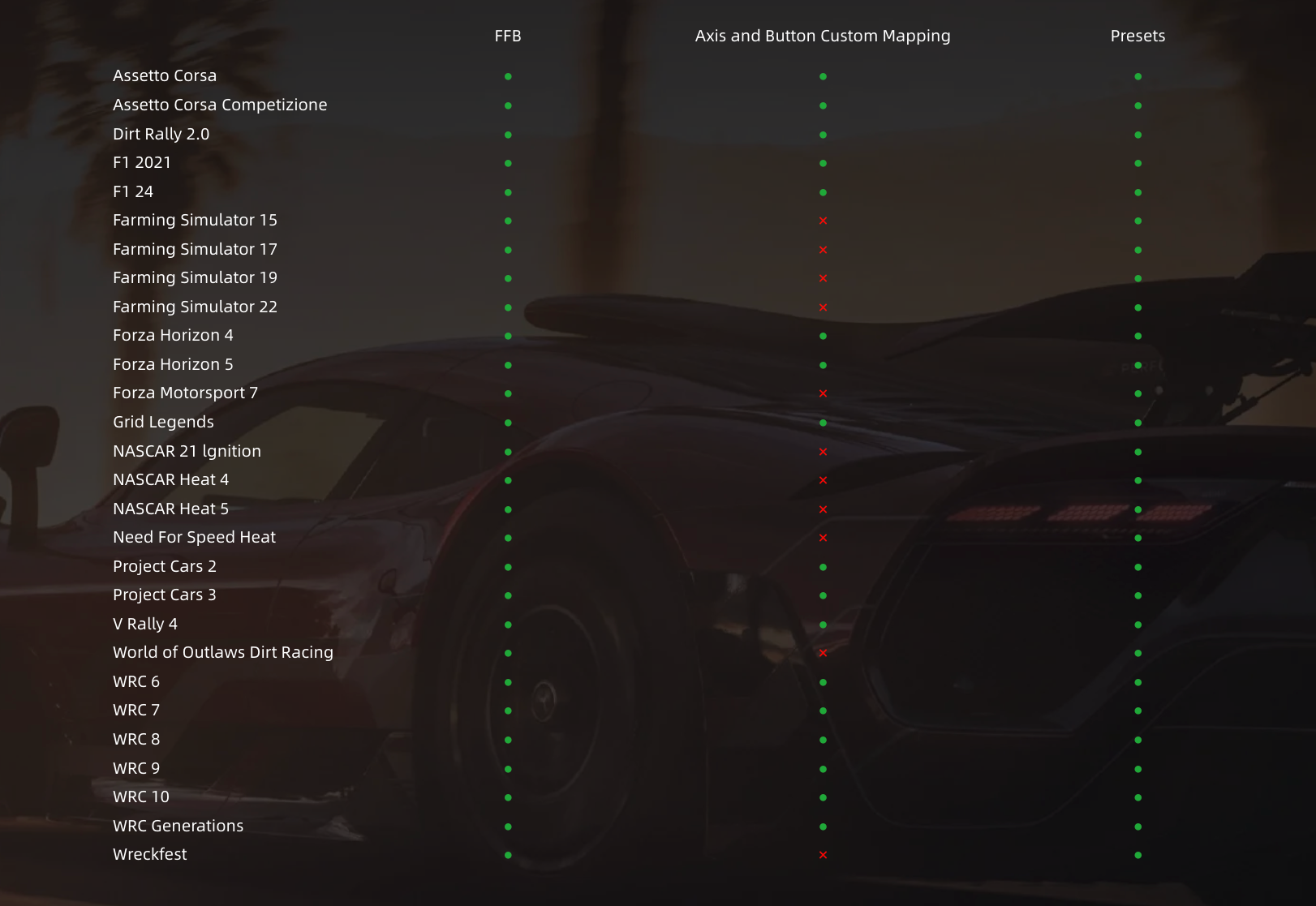

Compatible with dozens of mainstream simulation racing games, including Forza Horizon, Project CARS, F1, DiRT Rally, and Assetto Corsa series.
PC
Assetto Corsa
Assetto Corsa Competizione
Dirt Rally
Dirt Rally 2.0
Dirt 4
F1 2018
F1 2019
F1 2020
F1 2021
F1 2022
WRC Generations
Project CARS 1
Project CARS 2
Project CARS 3
iRacing
Forza Horizon 4 (This game is currently not compatible with Steam)
Forza Horizon 5 (Win 10)
Live For Speed
Automobilista
Automobilista 2
Richard Burns Rally
rFactor2
Euro Truck Simulator 2
American Truck Simulator
KartKraft
WRC 9
WRC 10
BeamNG.Drive
MudRunner
Wreckfest
RaceRoom Racing Experience
CarX Drift Racing Onlin

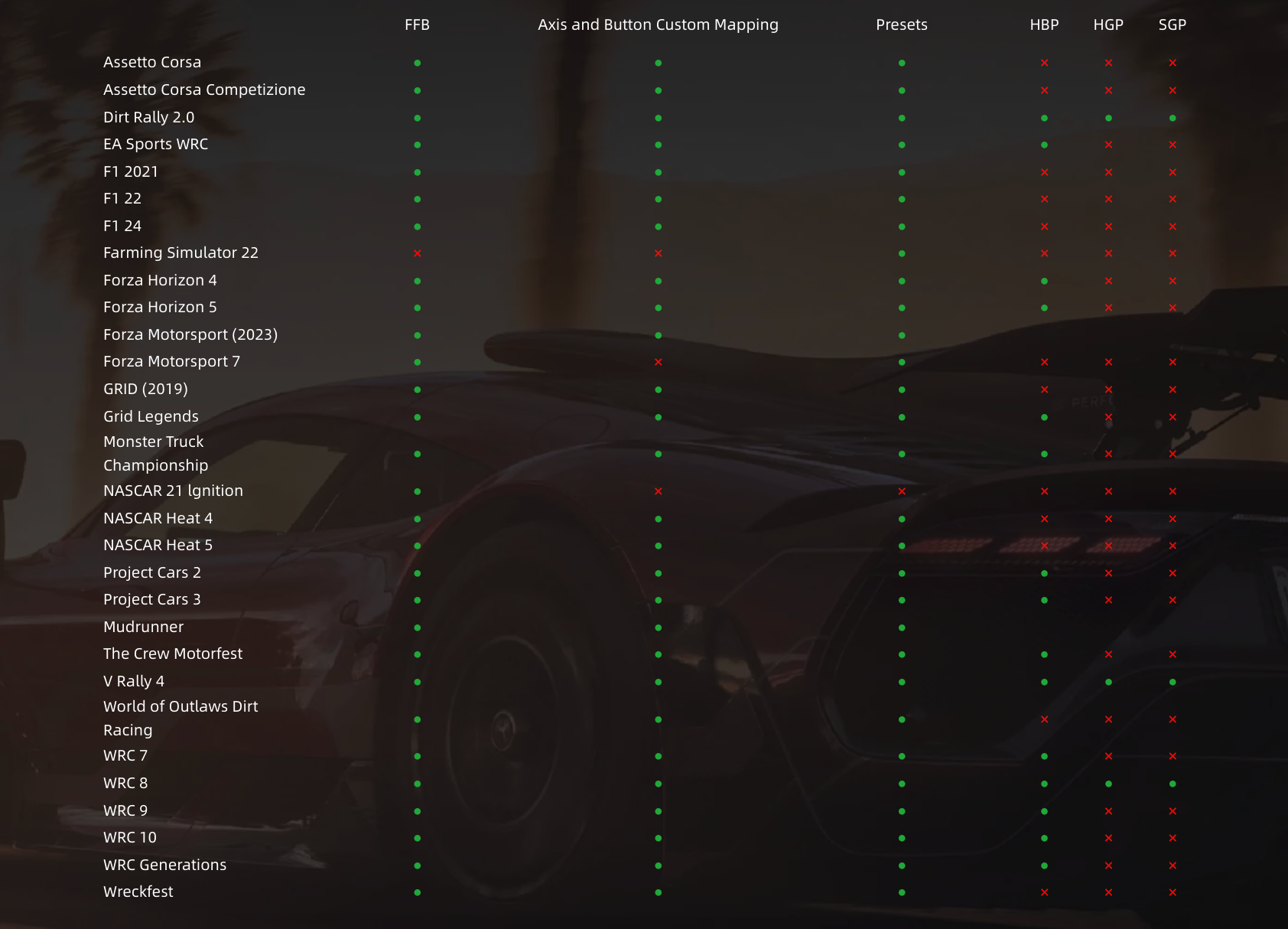

XBOX
XBOX SERIES X | S
*Partial List of Supported Games for XBOX.
XBOX ONE
*Partial List of Supported Games for XBOX.

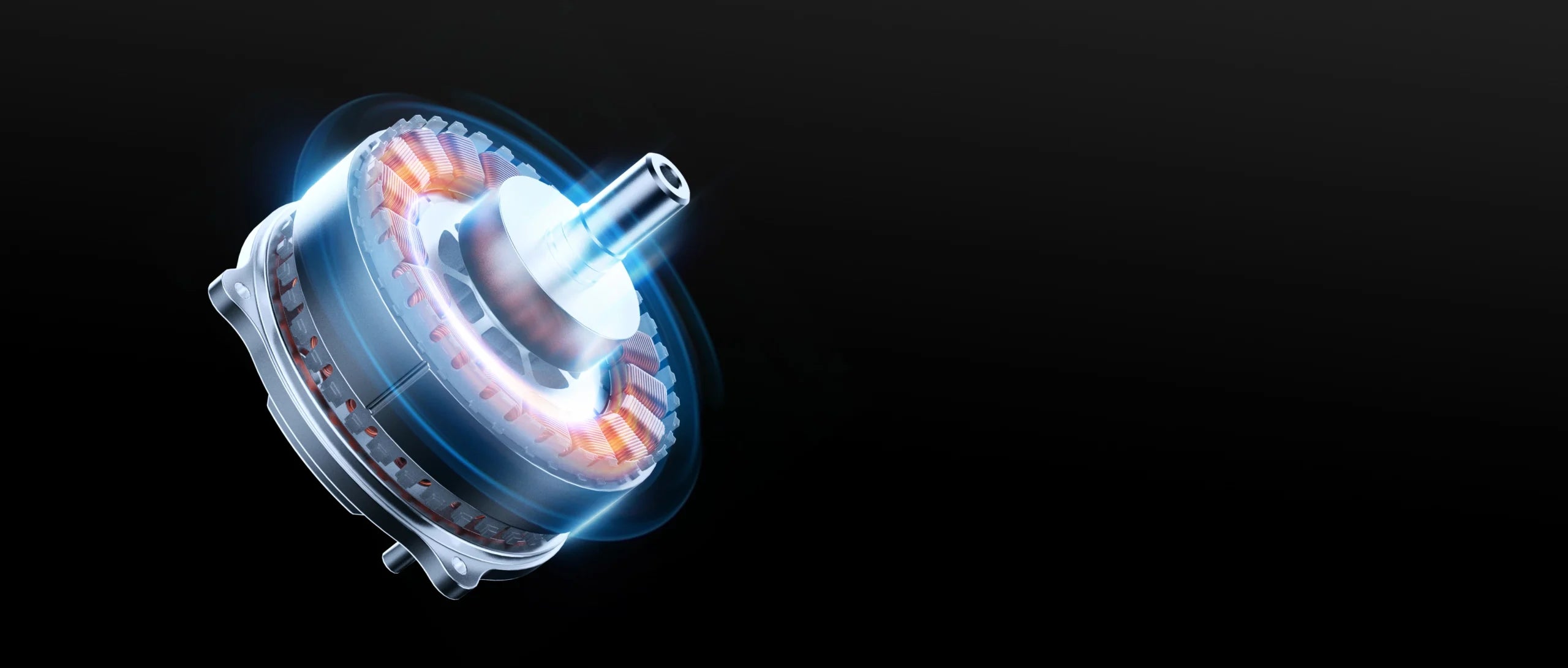

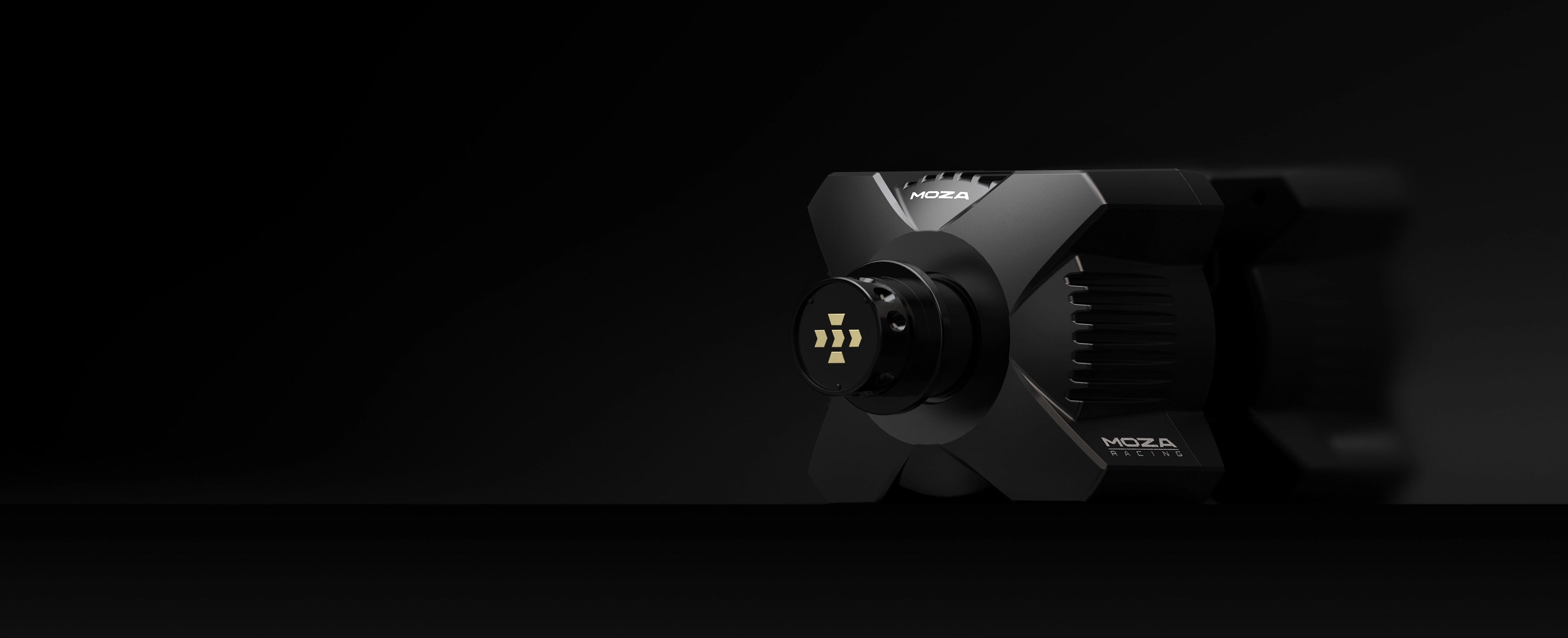

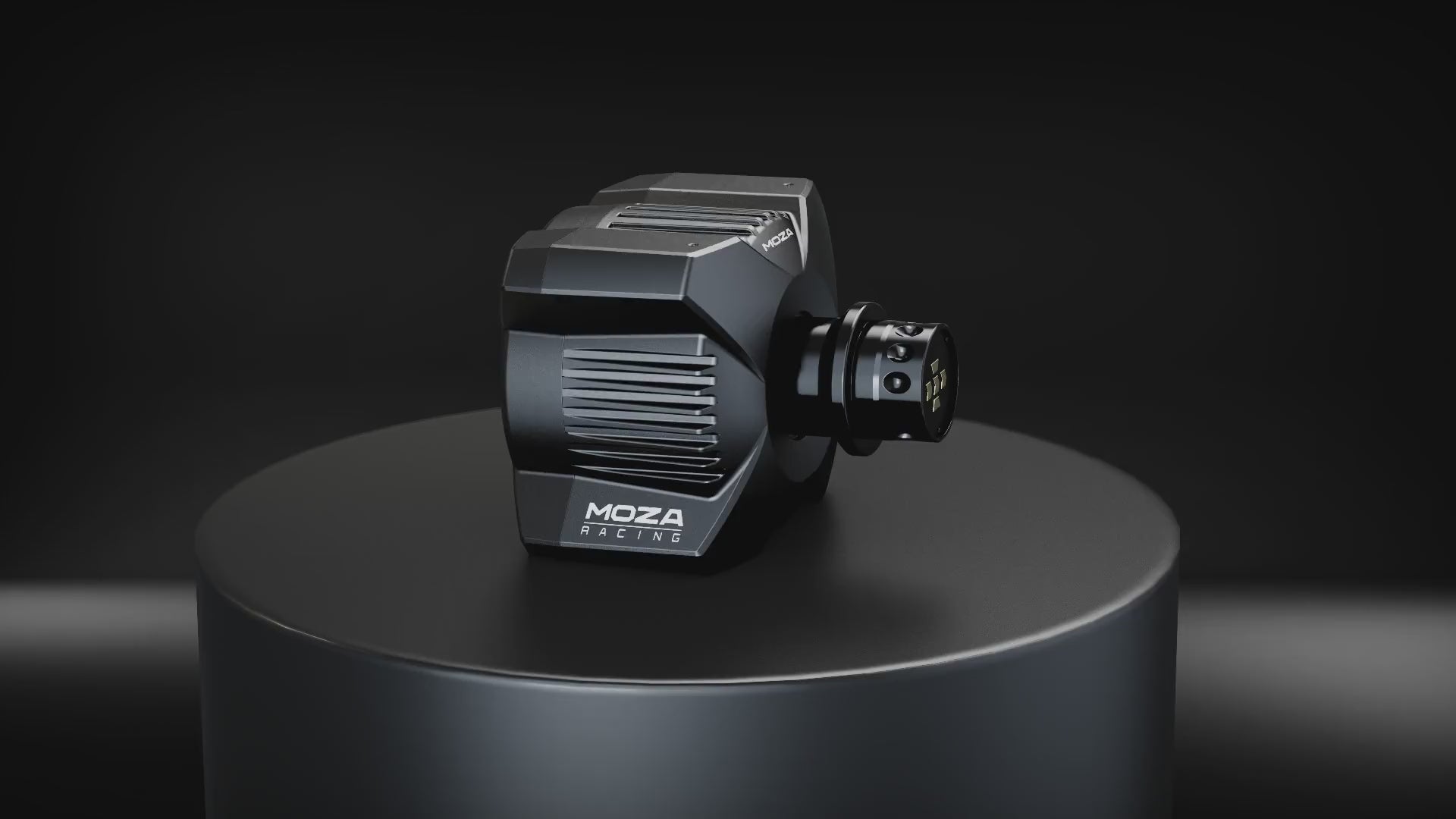

3.9 Nm DD Servo Motor
The direct drive servo motor delivers a stable and realistic torque output of 3.9 Nm. It flawlessly replicates the steering force found in road and race cars, providing detailed and immersive feedback direct to your hands.
Specs

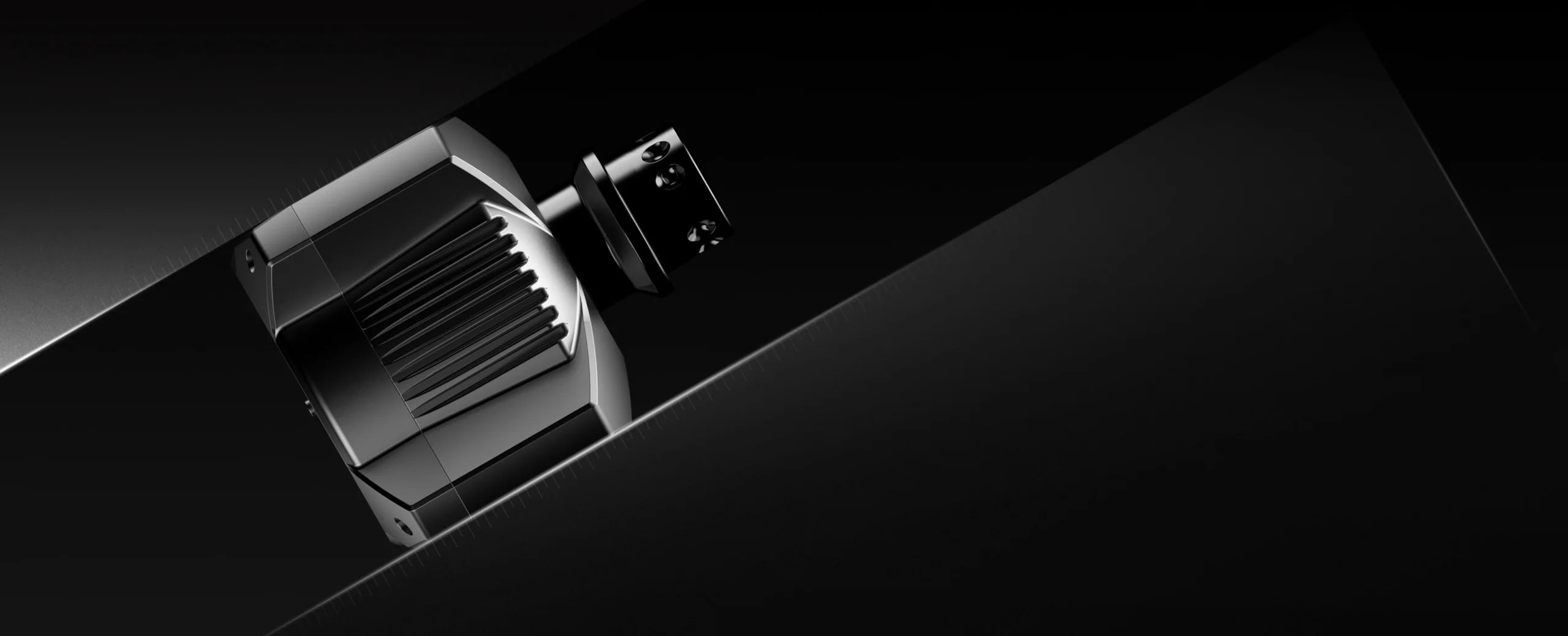

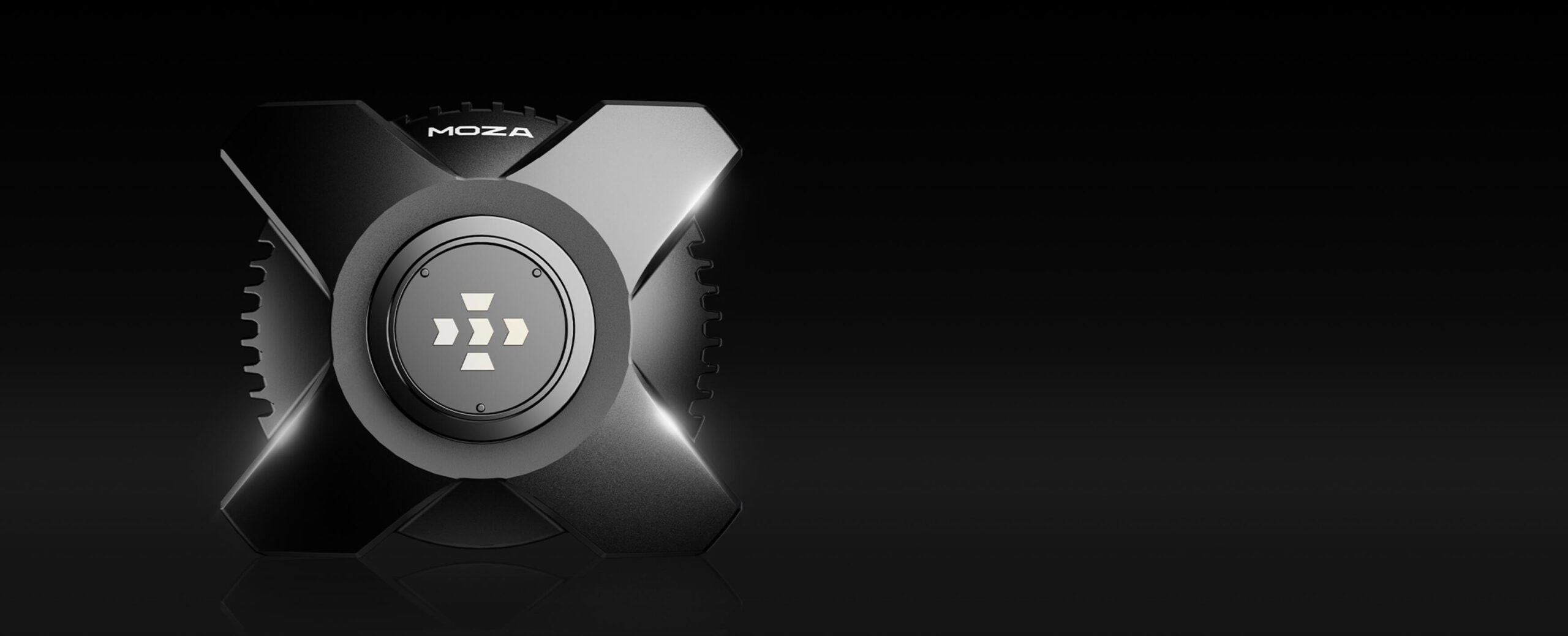

R3 Base
- Platform: PC & Xbox
- Drive type: Direct Drive
- Max Wheel Rotation: Limitless
- Housing Material: Aviation Grade Aluminum Alloy
- Color: Black
- Peak Torque: 3.9 Nm
- Rated Power: 60W
- Input Voltage: 110V~220V AC —>12V DC

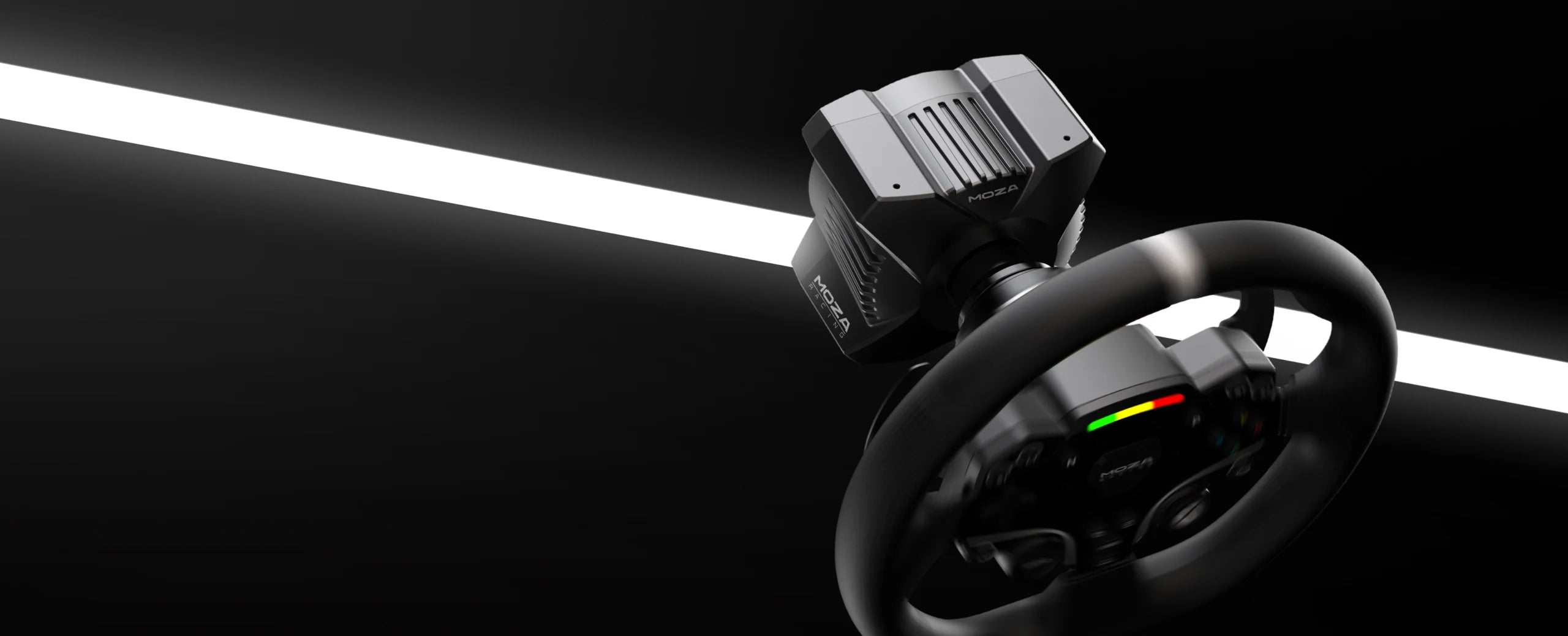

- Encoder Resolution: 15 bits
- USB Refresh Rate: 1000 Hz
- APP Functionality: Supported
- Quick Release: Supported
- Connection Ports: Power, DC Input, Pedal, USB, Dash
- Accessories: Manual and Warranty Card, Power Supply, Data Cable, Toolkit
- Mounting Method: 4 holes on the bottom
- Table Clamp: Included
- Online Firmware Upgrade: Supported

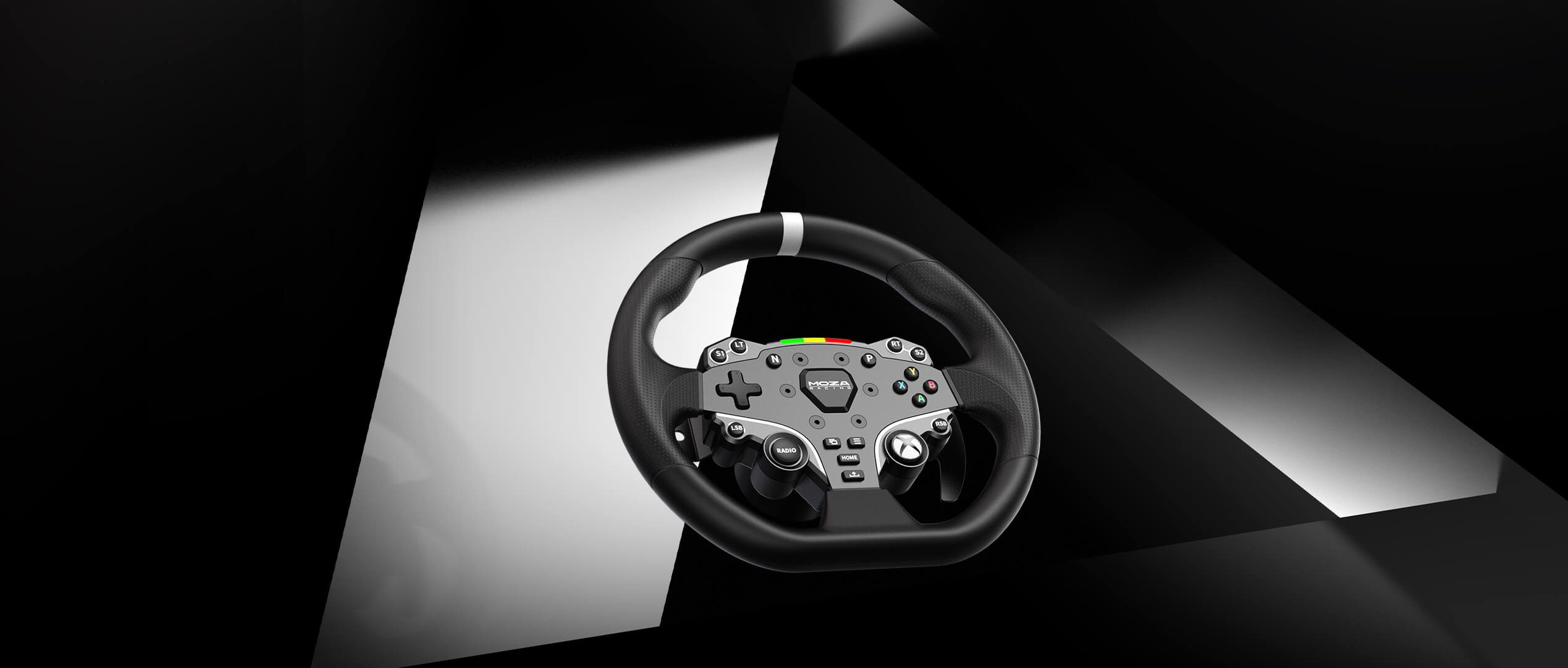

ES Wheel
- Grips: ISF PU
- Face Plate Material: Aluminum Alloy
- Shifter Paddle Material: Aluminum Alloy
- Size: 280mm
- Buttons: 22
- RPM LED Light: 10 High brightness LED RGB Beads
- Intelligent Telemetry: Supported
- Fully Adjustable RPM LEDS through MOZA Pit House: Supported
- Release Method: MOZA Quick Release

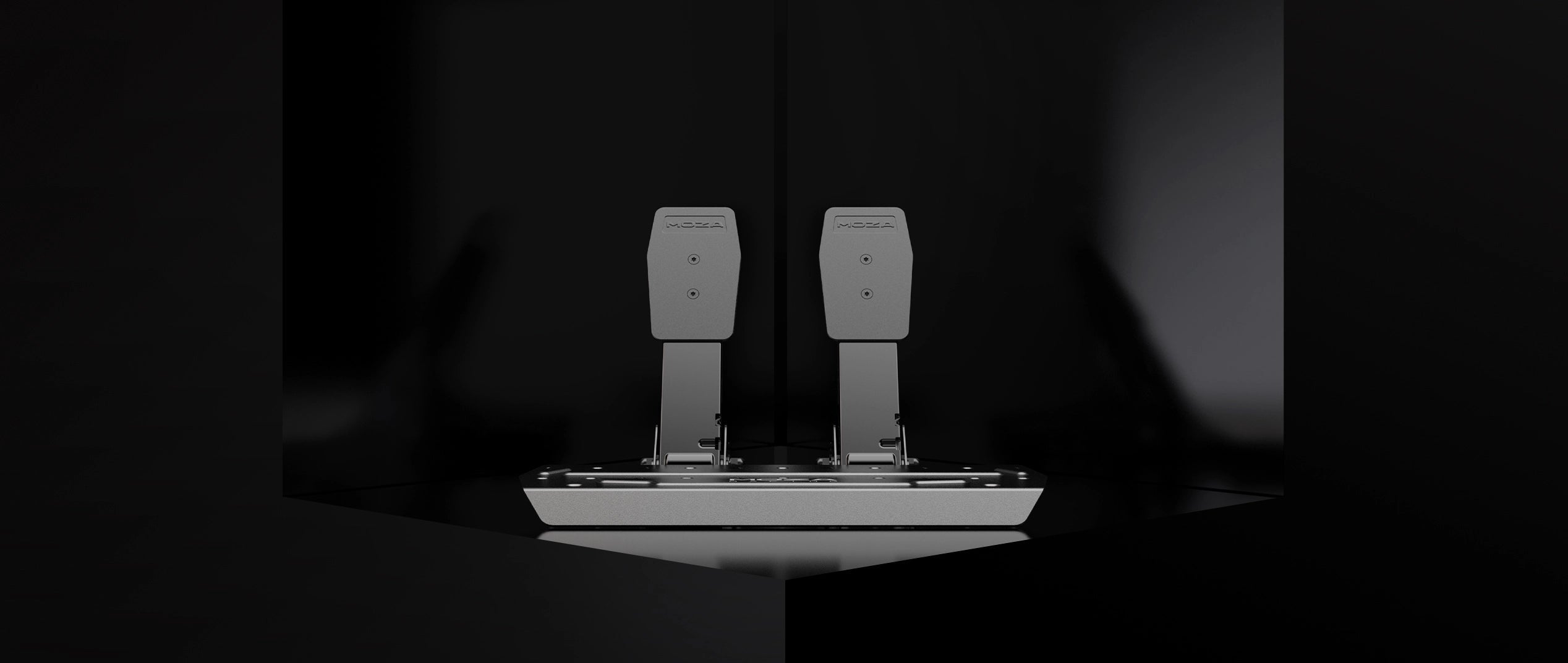

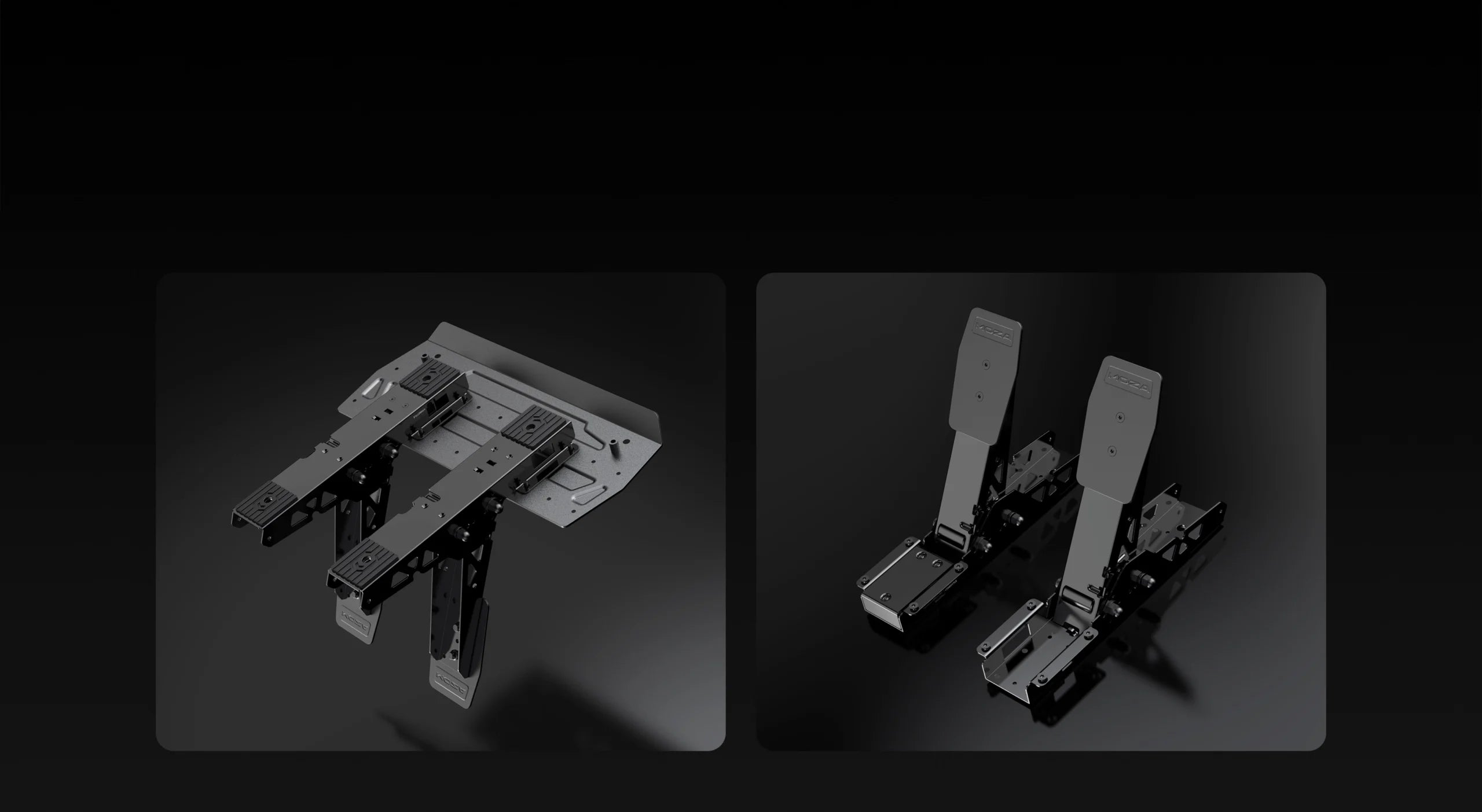

SR-P Lite Pedals
- Material: High-strength Steel
- Plate Material: High-Strength Steel
- Color: Black

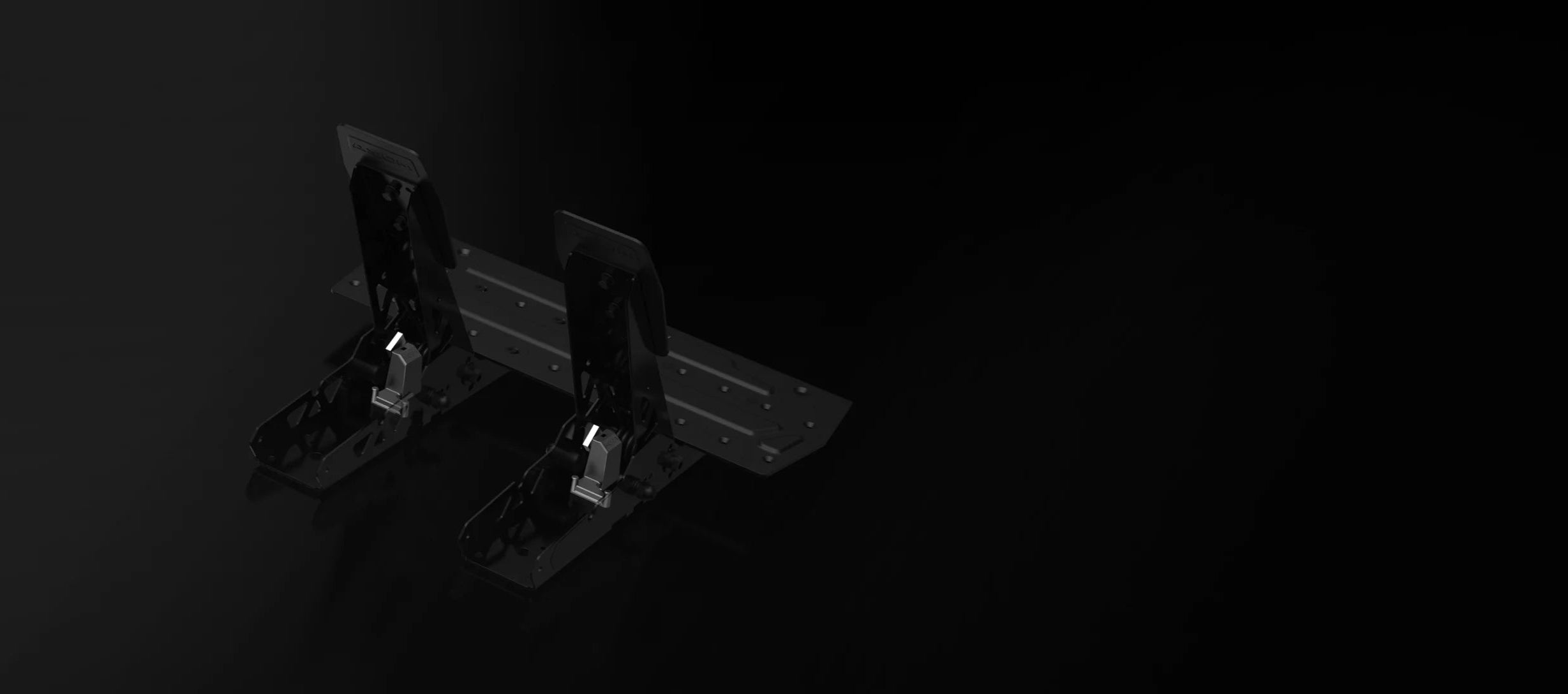

- Throttle Sensor: Hall Sensor
- Pedal Spacing: Adjustable
Pedal Plate Height: Adjustable - Pedal Input Adjustment: Supported
- Pedal Input Reversal: Supported

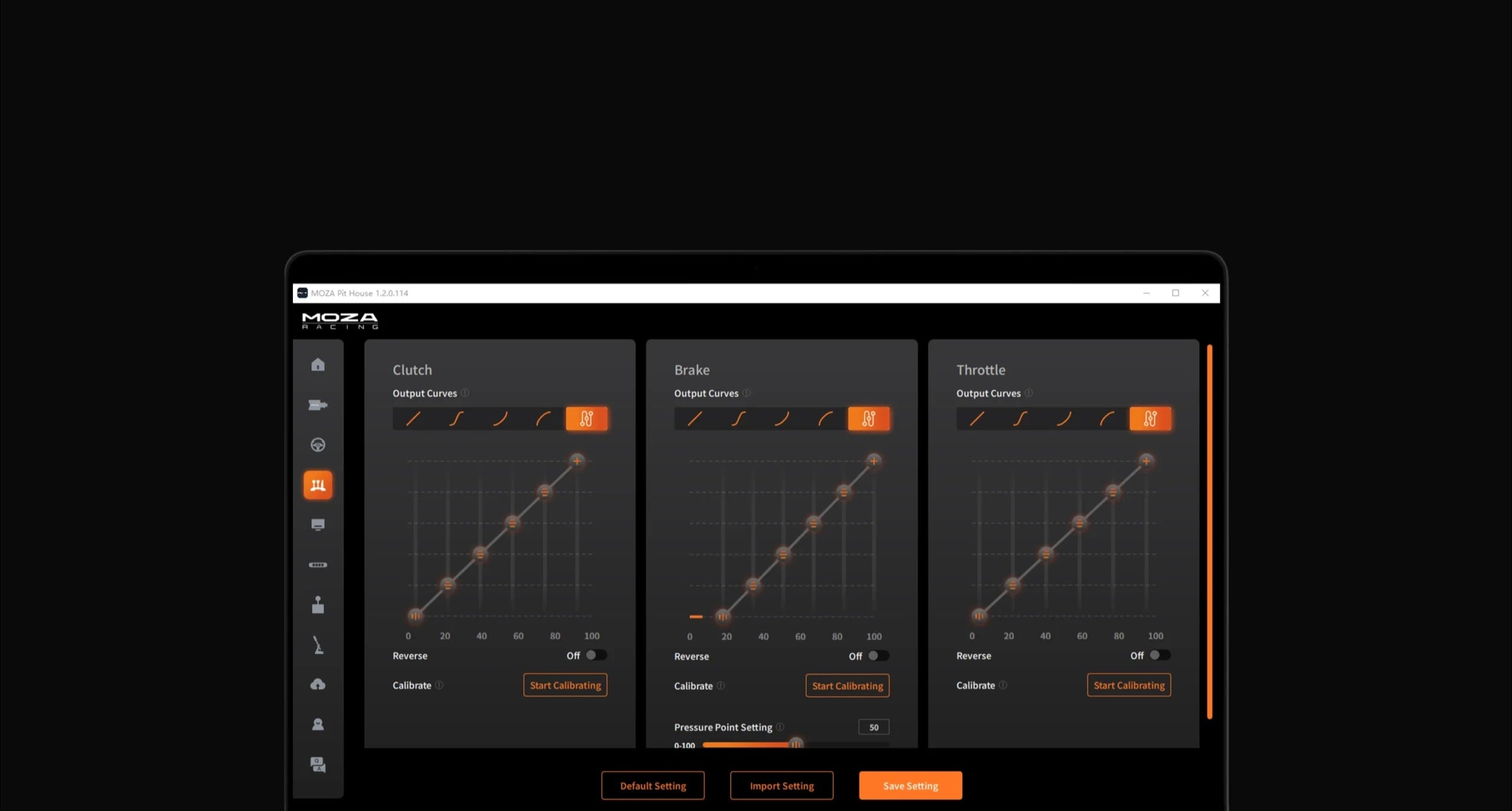

- Pedal Output Curve Adjustment: Supported
- Anti-slip Pad: Included
FAQs
Is the ES Steering Wheel in the R3 Bundle the same as the standalone ES Wheel sold in the store, and what are the differences between them?
The ES Steering Wheel included in the MOZA R3 Xbox Bundle is constructed using durable ISF PU grips. In contrast, the standalone ES Wheel currently offered features meticulously crafted stitched leather, but it’s not compatible with Xbox consoles.
Does the SR-P Lite Pedal included in the R3 Bundle have a clutch? How does it differ from the one in the R5 Bundle?
The pedals in the R3 Bundle are the ‘Pedal Set of 2 – No Clutch,’ which does not include a clutch pedal. We offer the ‘SR-P Lite Clutch Pedal’ which can be purchased separately. Additionally, there are no differences between the SR-P Lite Pedals in the R3 Bundle and those included in the R5 Bundle.
How to switch Xbox/PC mode?
Press and hold the S1 and S2 buttons on the ESX steering wheel simultaneously for 5 seconds. The base will automatically restart and switch to Xbox/PC mode.
- In Xbox mode: The steering wheel RPM lights will move from the left and right to the center.
- In PC mode: The steering wheel RPM lights will show red, yellow, and green breathing lights.
Why are some popular racing games not adapted, like ACC and F1 23?
The xbox console platform should actually in principle have no adaption issues between device manufacturers and game manufacturers. Since Microsoft sets the standards, both game makers and device makers design according to Microsoft’s standards, and the two will naturally adapt. But with the F1 23 and ACC games, they first determine if the device is on its adaptation list before adapting. Devices that are not on the game’s adaptation list will not be able to plug and play. We are also working with different game manufacturers to advance the compatibility of xbox games.
Are all racing games on Xbox plug and play?
Most of the games listed are plug-and-play and require no additional configuration. A few games may require manual binding of buttons.
Can the MOZA handbrake and shifters be used in Xbox mode?
Peripherals can obtain Xbox certification support by directly connecting to the base. If the game supports custom key bindings, the peripherals can be adapted normally in the game (the adaptation needs to be determined according to the specific game)
Can the Xbox controller be connected at the same time?
The Xbox controller and the racing steering wheel are two different control devices and there will be no conflict. However, in the Forza series of games, switching back and forth between the two control devices may cause the controller to be in a vibration state all the time.
The tentative solution is as follows:
- Controller wired connection: Disconnect the USB power supply cable.
- Controller wireless connection: Long press the Xbox button on the controller and choose to turn it off.
