MOZA SRP2 Pedals

Buy Now
Alt image Alt image Alt image

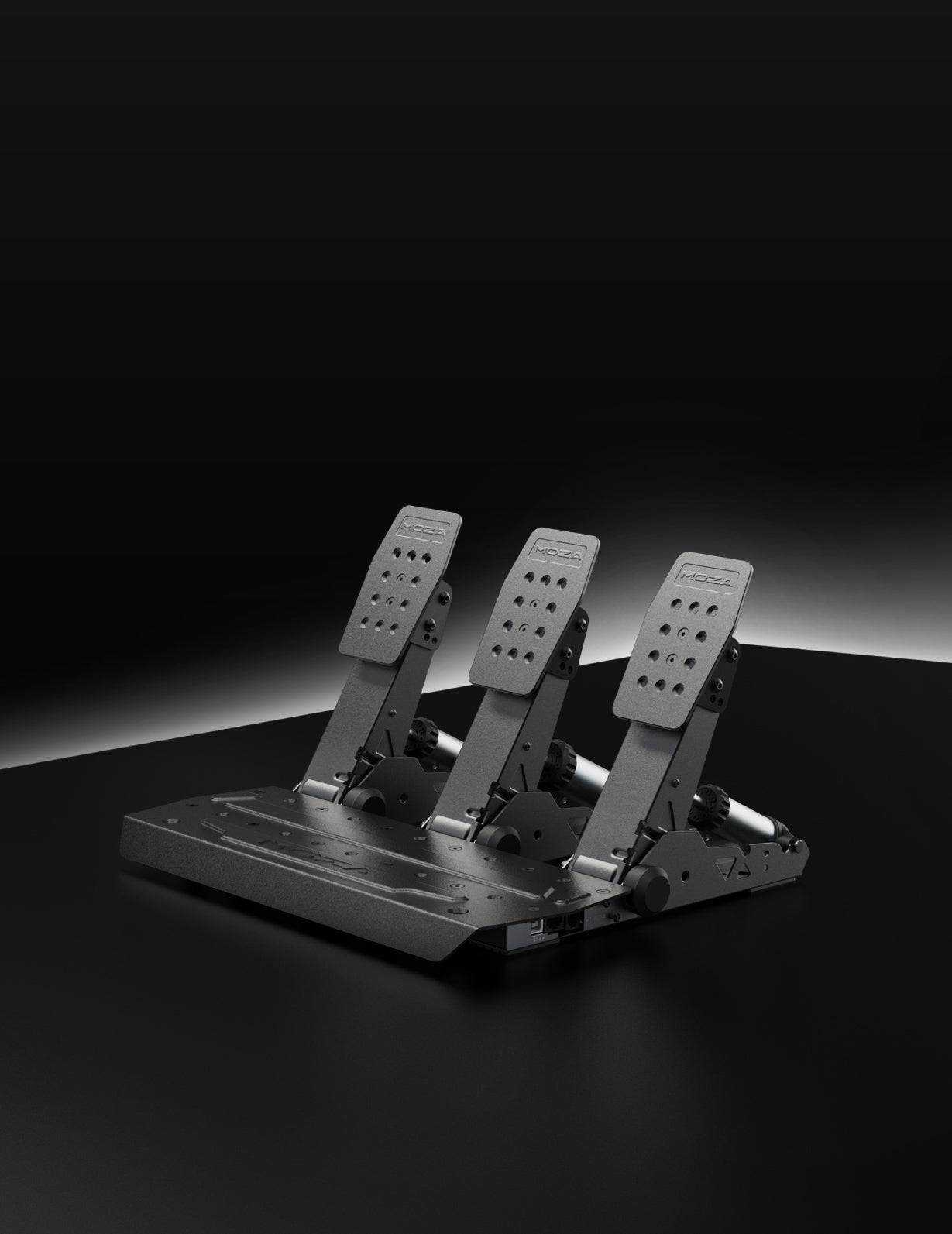

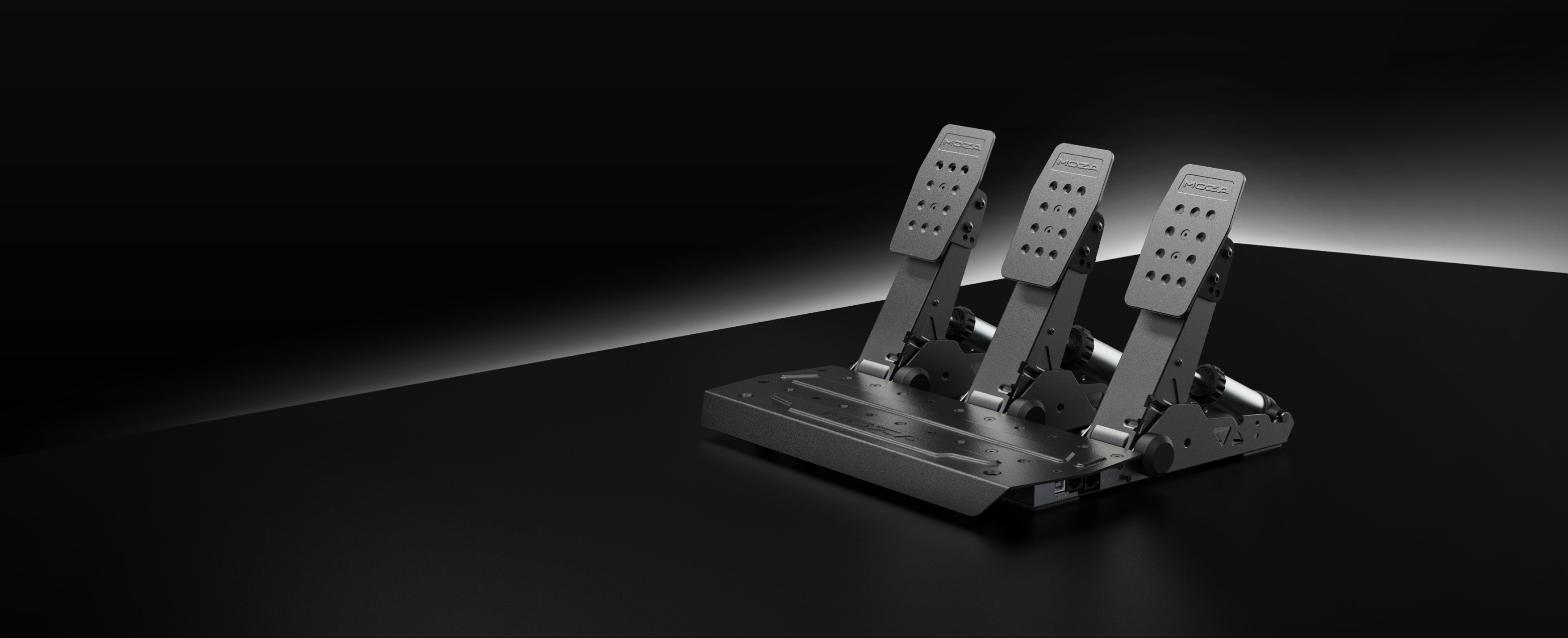

SRP2 Load Cell Pedals

25 Brake Feel Configurations

Aluminum Construction

100KG High-precision Load Cell Sensor

15-bit High-precision Angle Sensor

Wide-range Adjustable Design

Smooth and Quiet Operation

Tool-free
Adjustment

Open
Ecosystem

Alt image Alt image Alt image
Alt image Alt image

Brake Feel Adjustment with Elastomer and Spring

The standard setup features an elastomer structure with multiple spring hardness options (60R, 70R, and 80P), offering 25 distinct brake feel configurations. The optional Performance Kit provides additional elastomers and springs, enabling over 1,000 customizable brake feel settings.
Alt image Alt image Alt image

Aerospace-grade
Aluminum Construction with
CNC Precision Machining

Pedal components are made from aerospace-grade aluminum, precision-machined using CNC technology, and anodized for enhanced durability. The base and pedal linkages are constructed from high-strength steel to withstand high torque and pressure.
Alt image Alt image Alt image

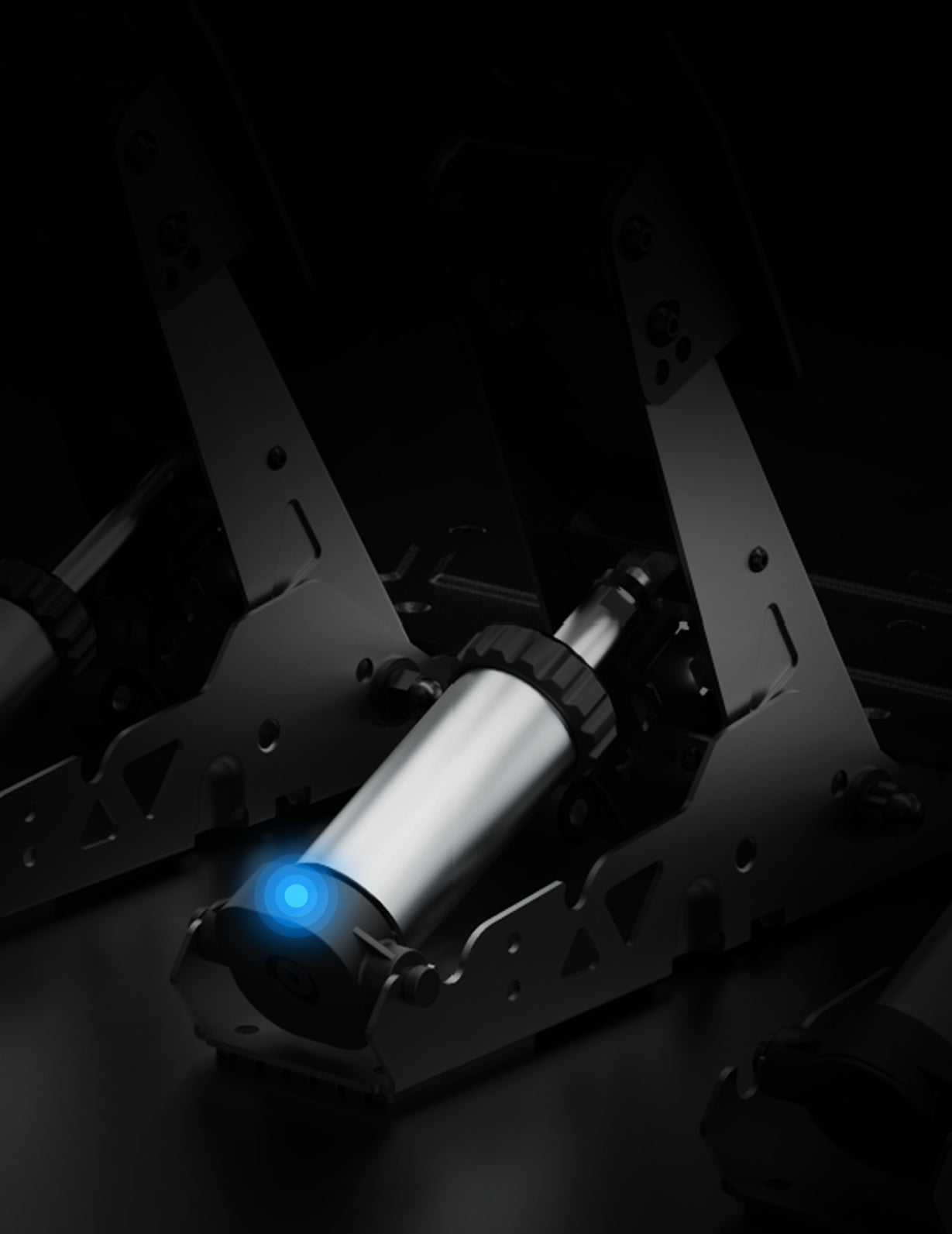

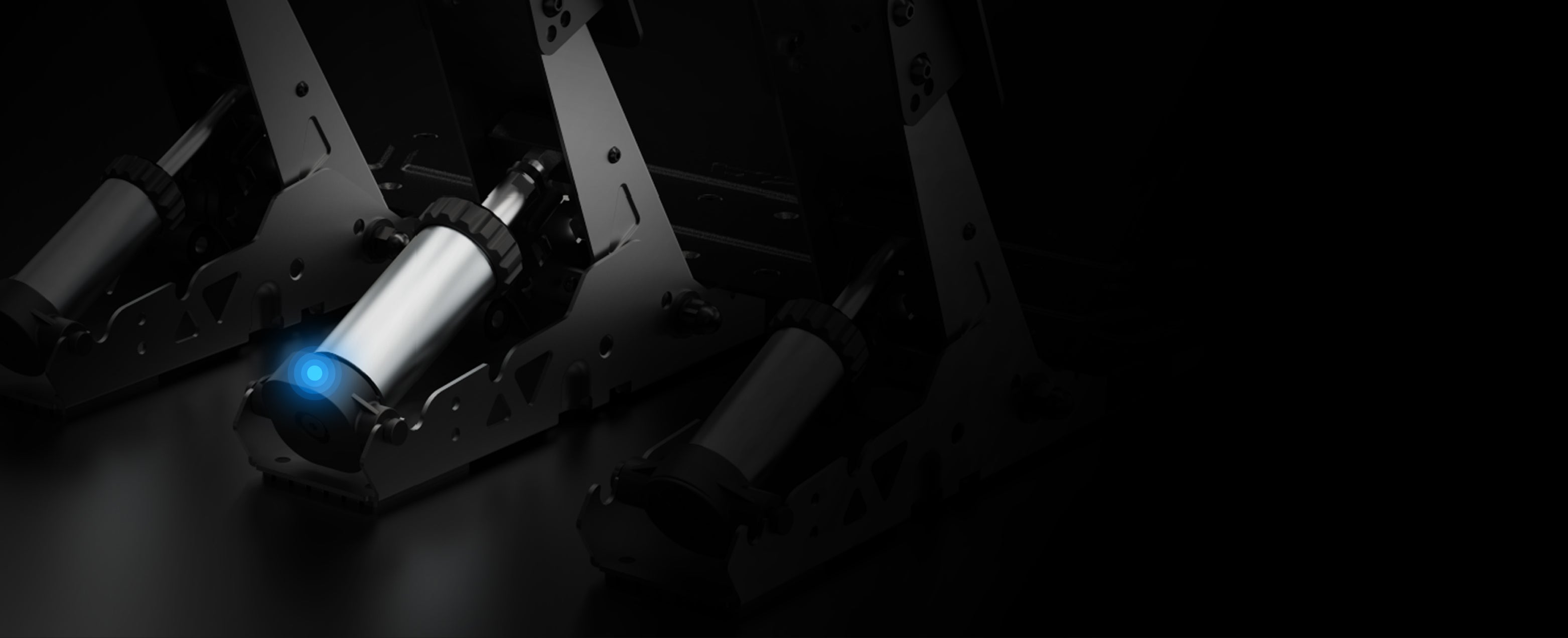

100KG High-precision Load Cell

Featuring a 100Kg load cell, this sensor provides highly accurate and responsive brake input, making it ideal for users seeking precise control.
Alt image Alt image Alt image

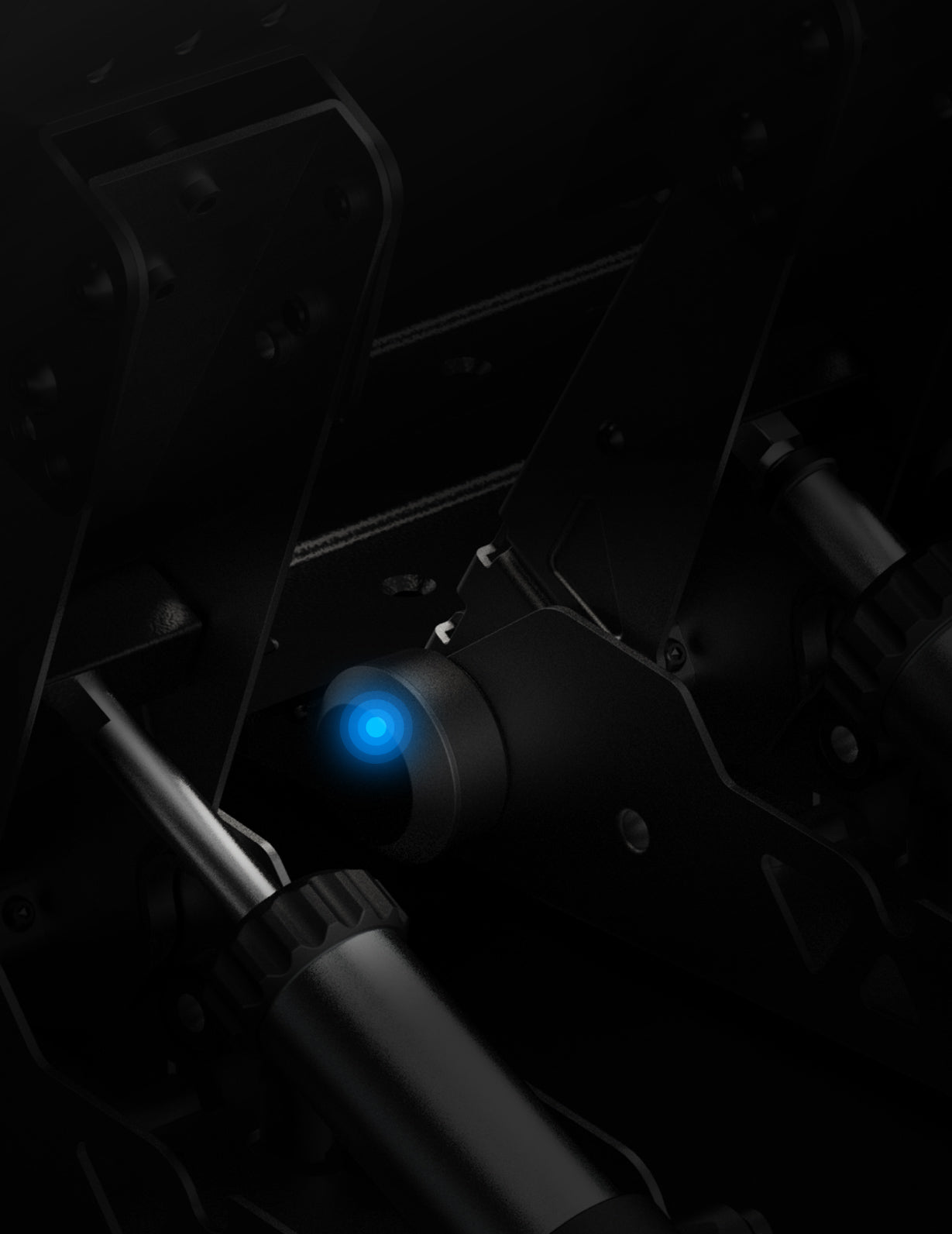

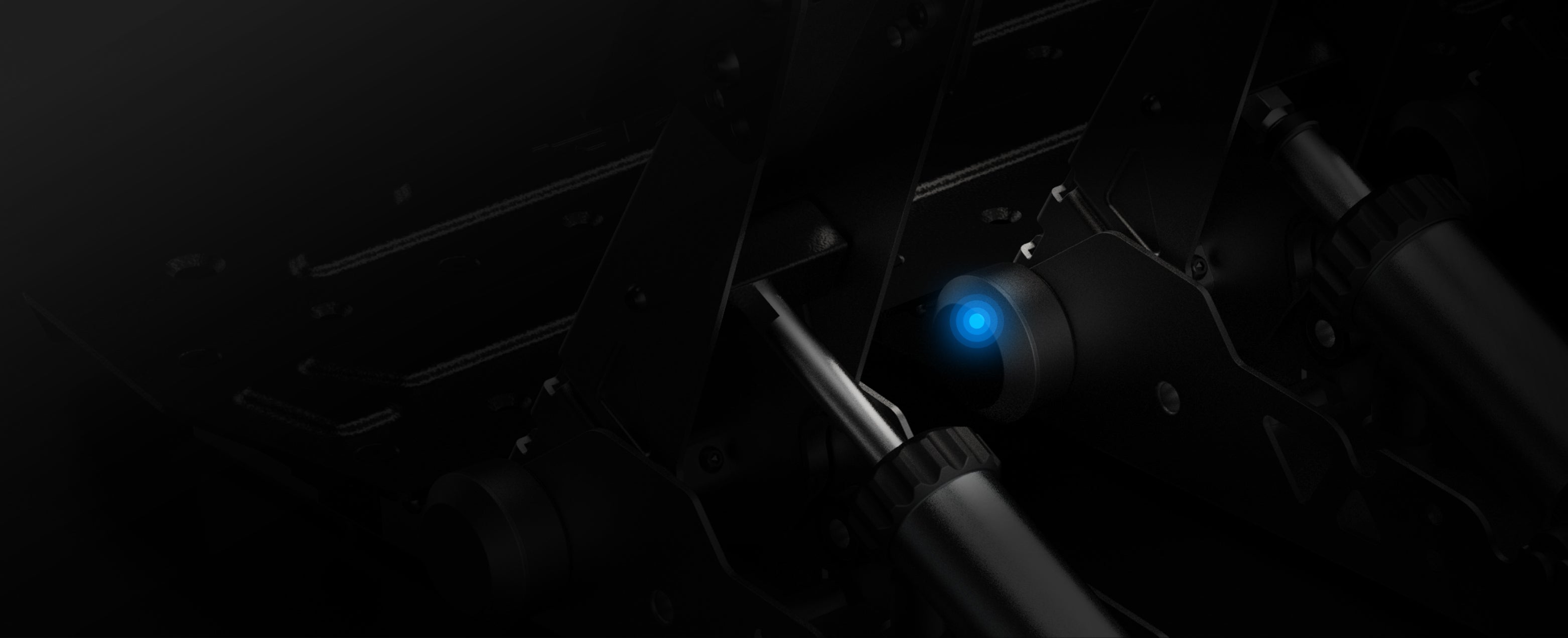

15-bit High-precision Angle Sensor

Utilizing patented sensor fusion technology, this system combines a 15-bit angle sensor with the load cell, ensuring precise brake inputs while leveraging muscle memory for accurate control over braking force.
Alt image Alt image Alt image

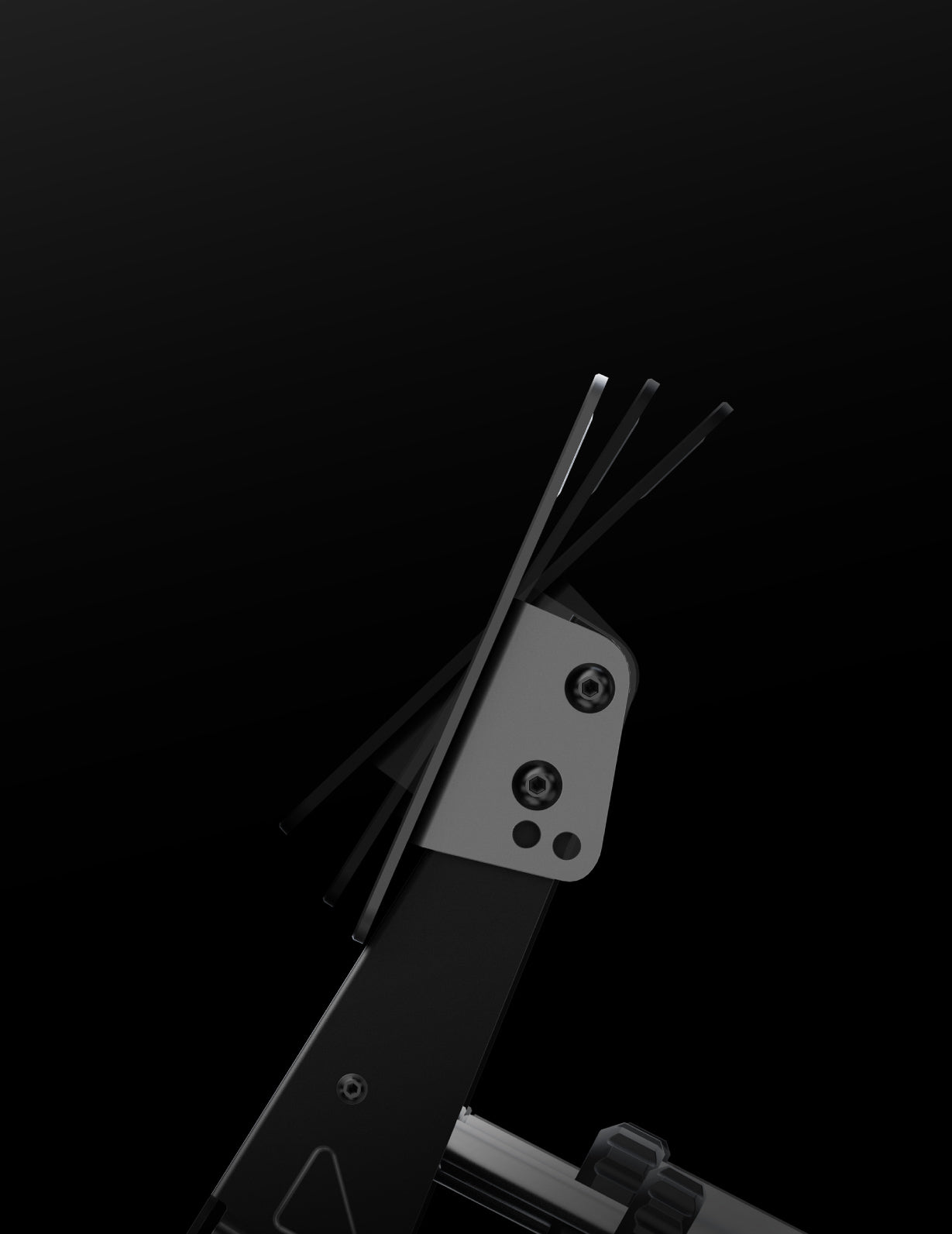

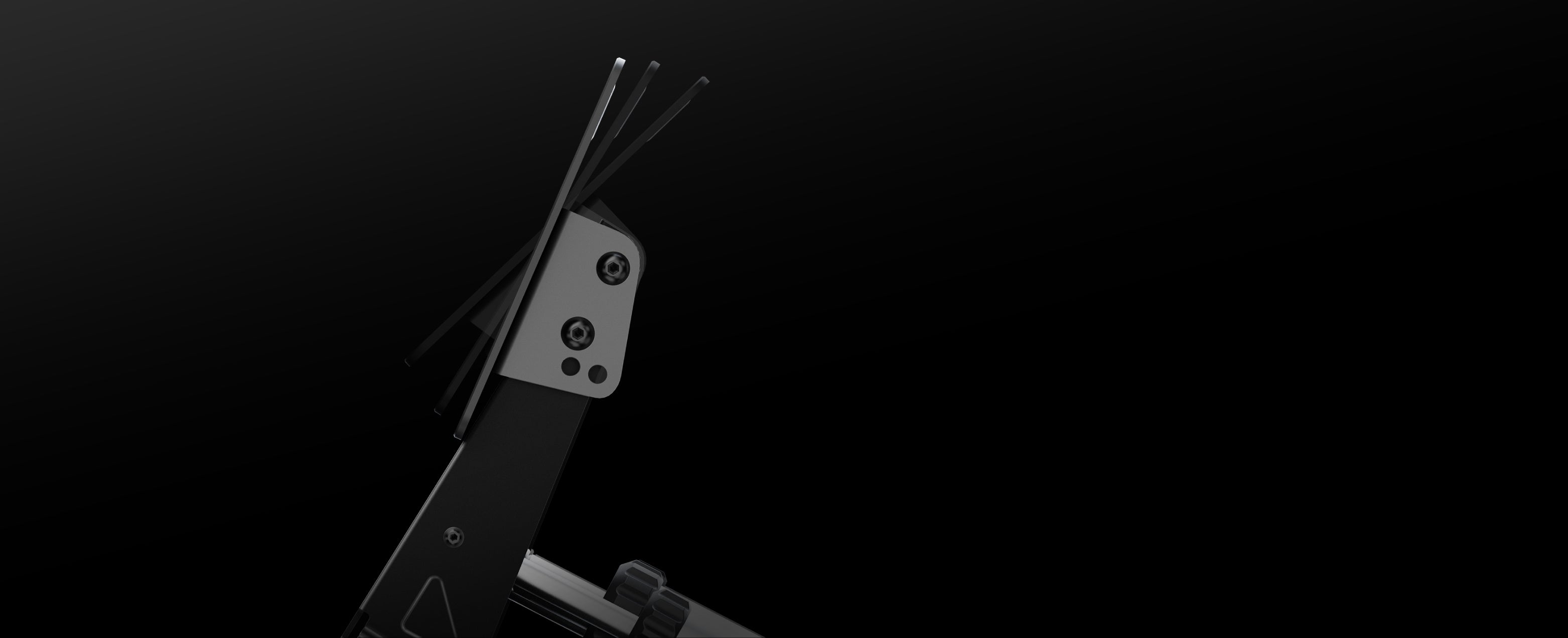

Adjustable Pedal Angle

The pedals feature a full 25° of angle adjustment allowing for better customization to suit different user preferences and ergonomic needs.
Alt image Alt image Alt image

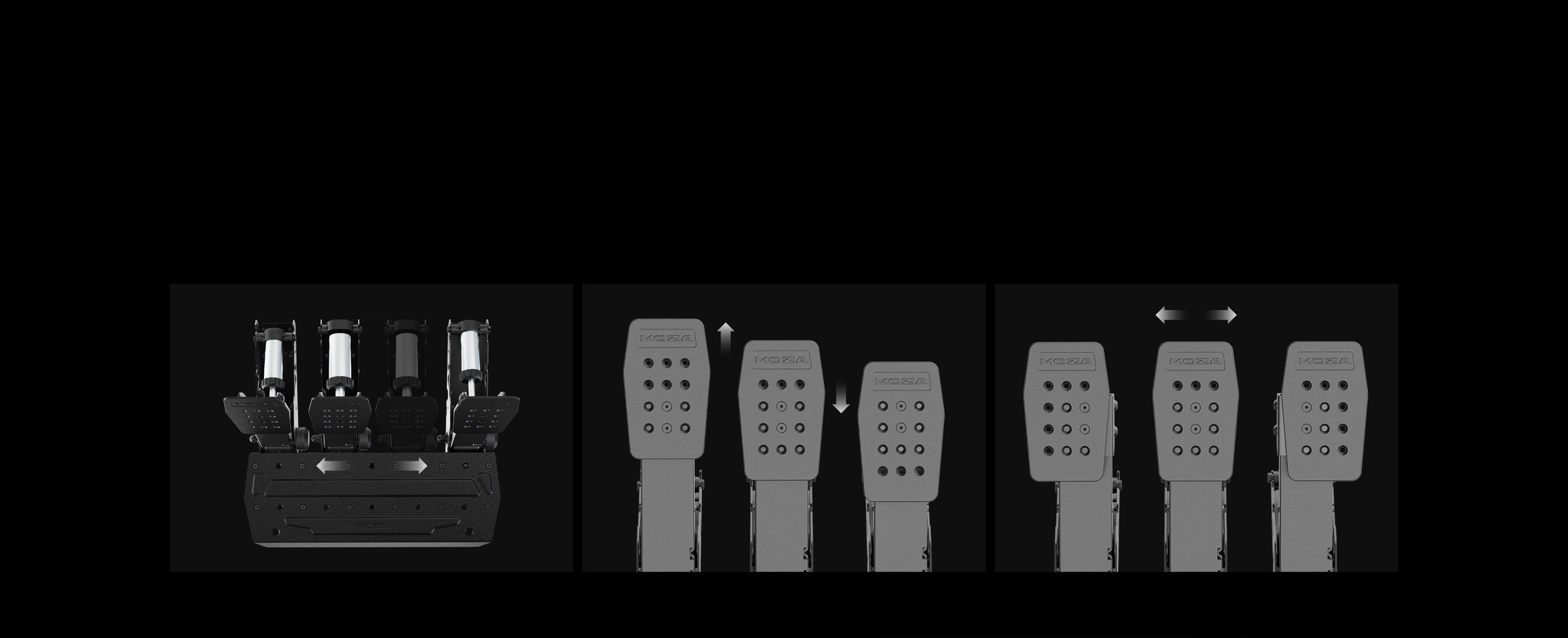

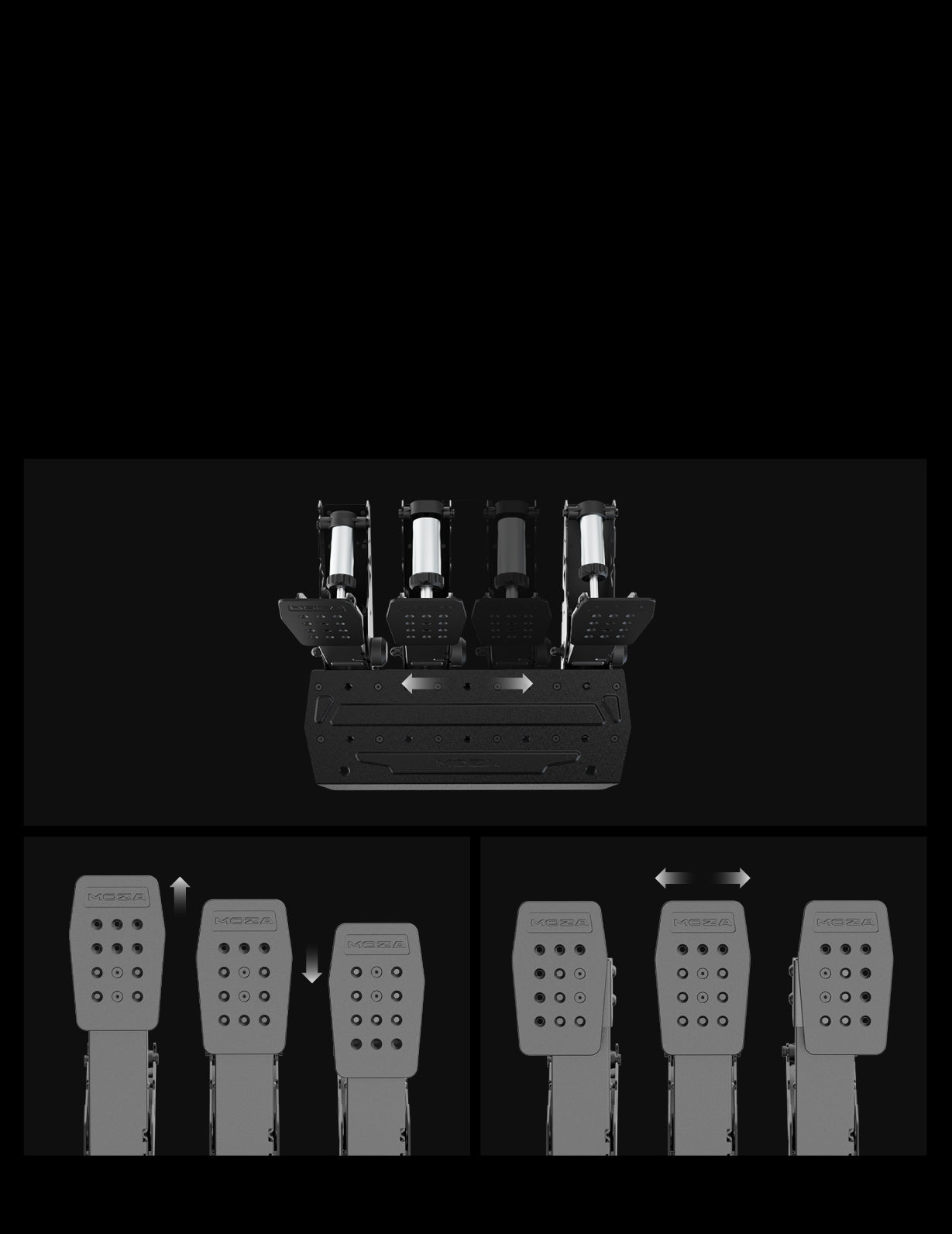

Adjustable Pedal Position and Height

The spacing between the brake, throttle, and clutch pedals can be easily adjusted, with the option to fine-tune the distance (±15mm left/right) by adjusting the pedal installation position. Additionally, the pedal height is individually adjustable with a range of 36mm.
Alt image Alt image Alt image

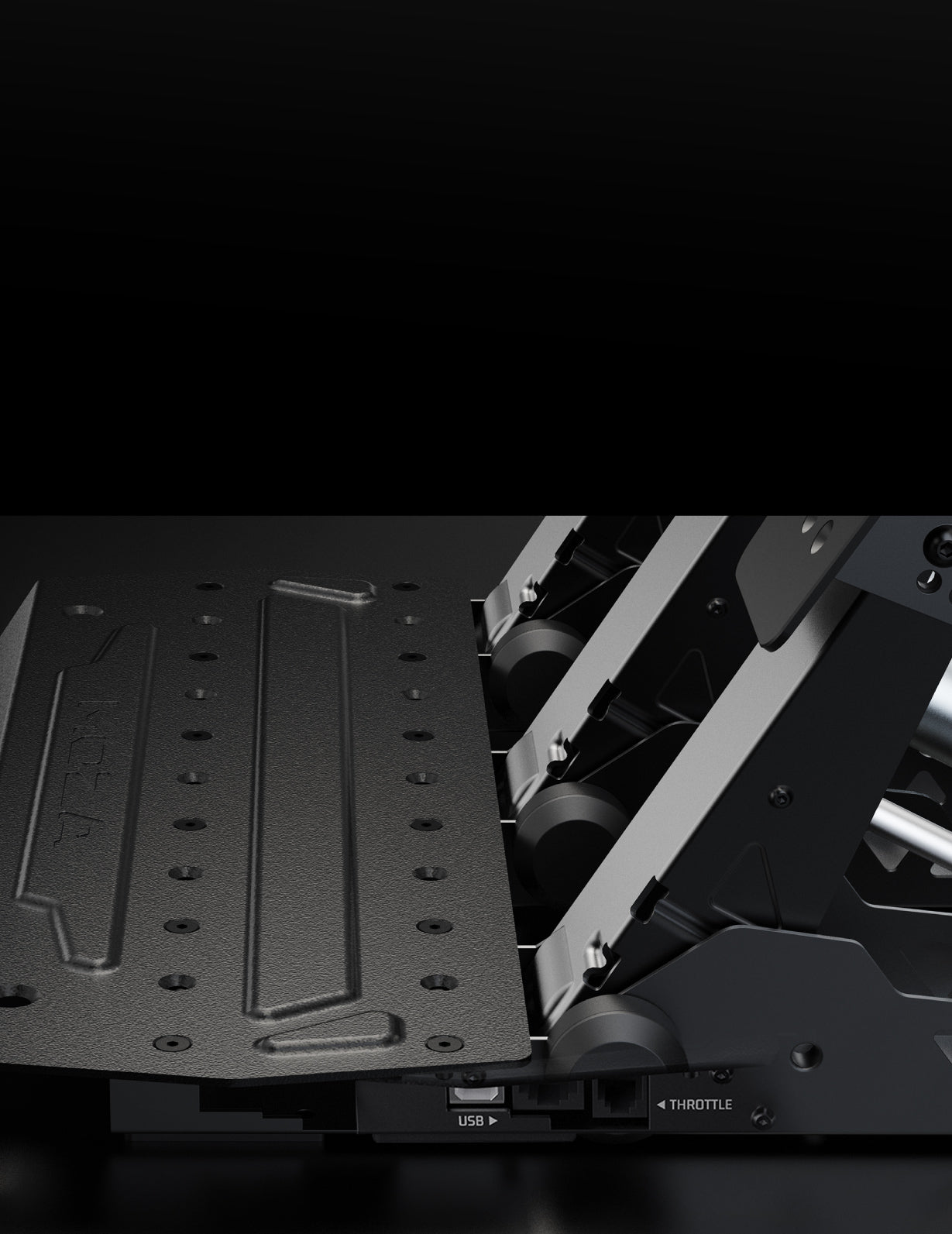

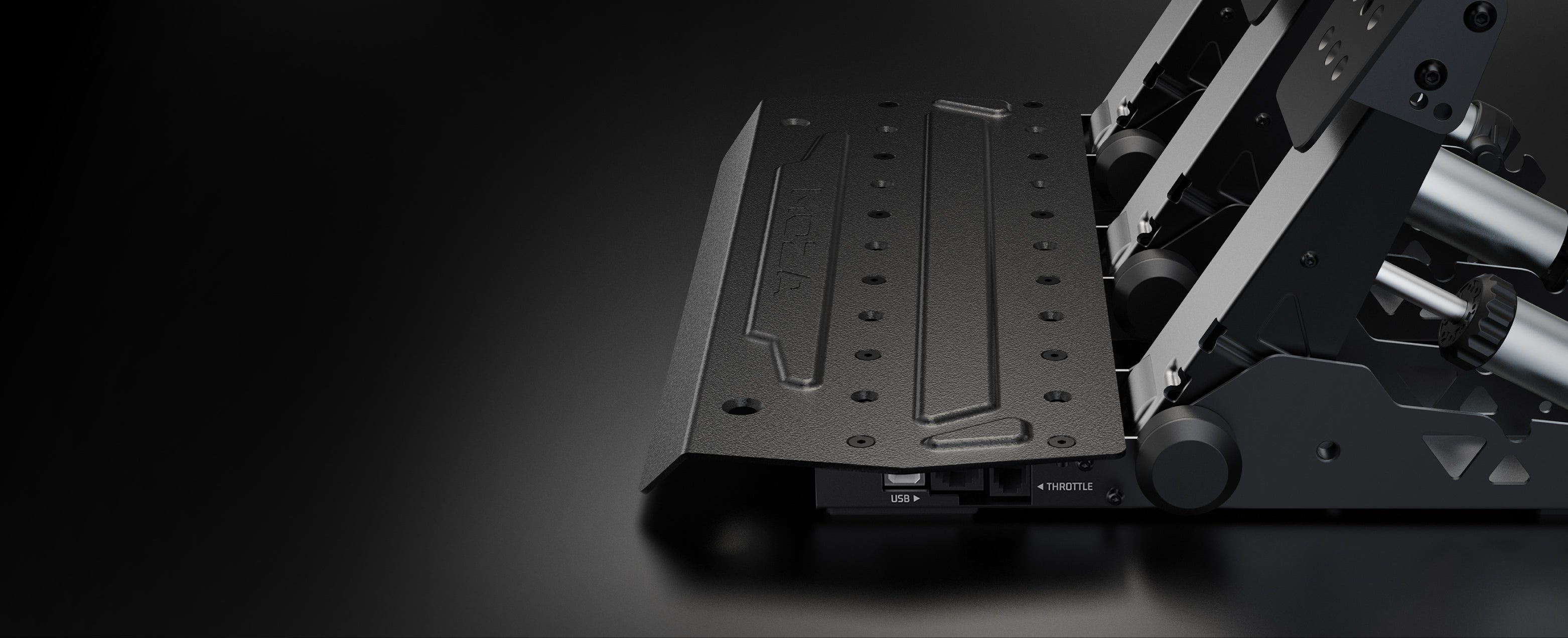

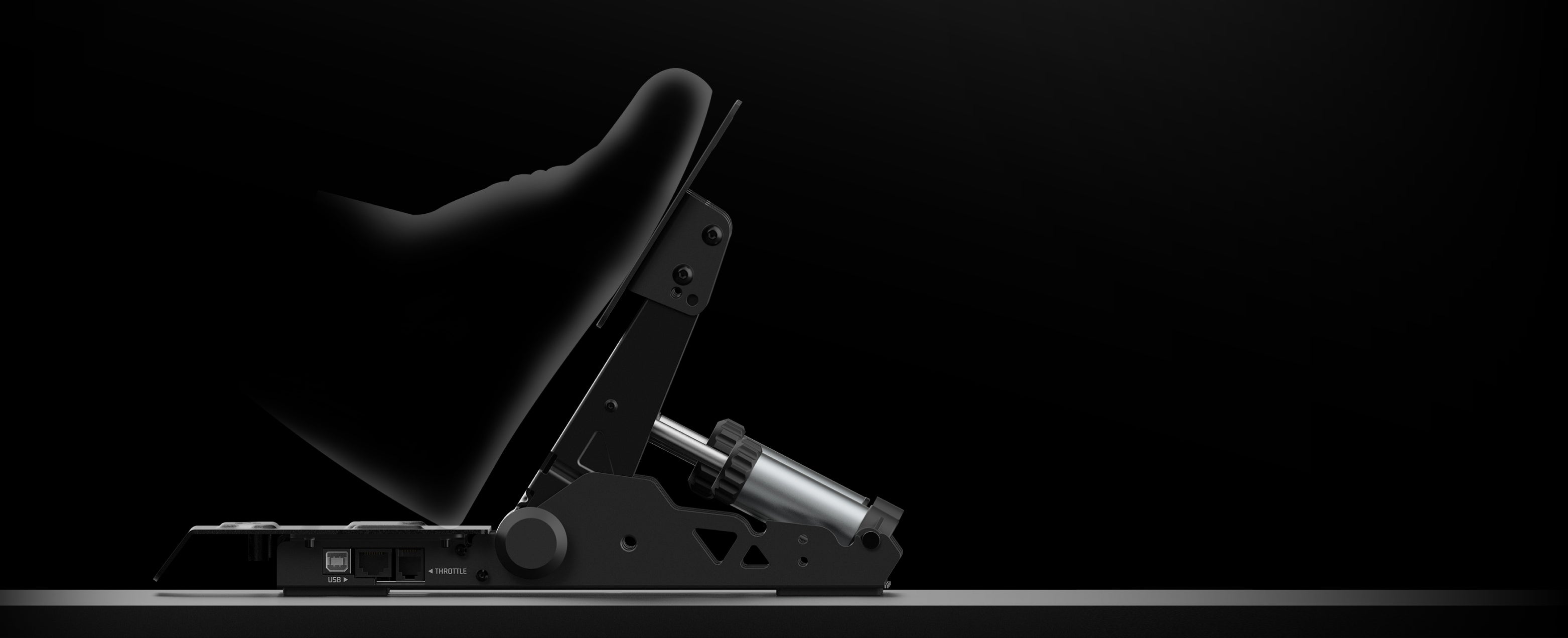

Desktop-optimized Design

The angle of the pedal arm is tailored for desktop racing setups, aligning with natural seating and foot positioning.
Alt image Alt image Alt image

Optional Wall Support Bracket

 An optional wall support bracket is available to further stabilize the pedals, preventing sliding and enhancing comfort during use.
Alt image Alt image Alt image

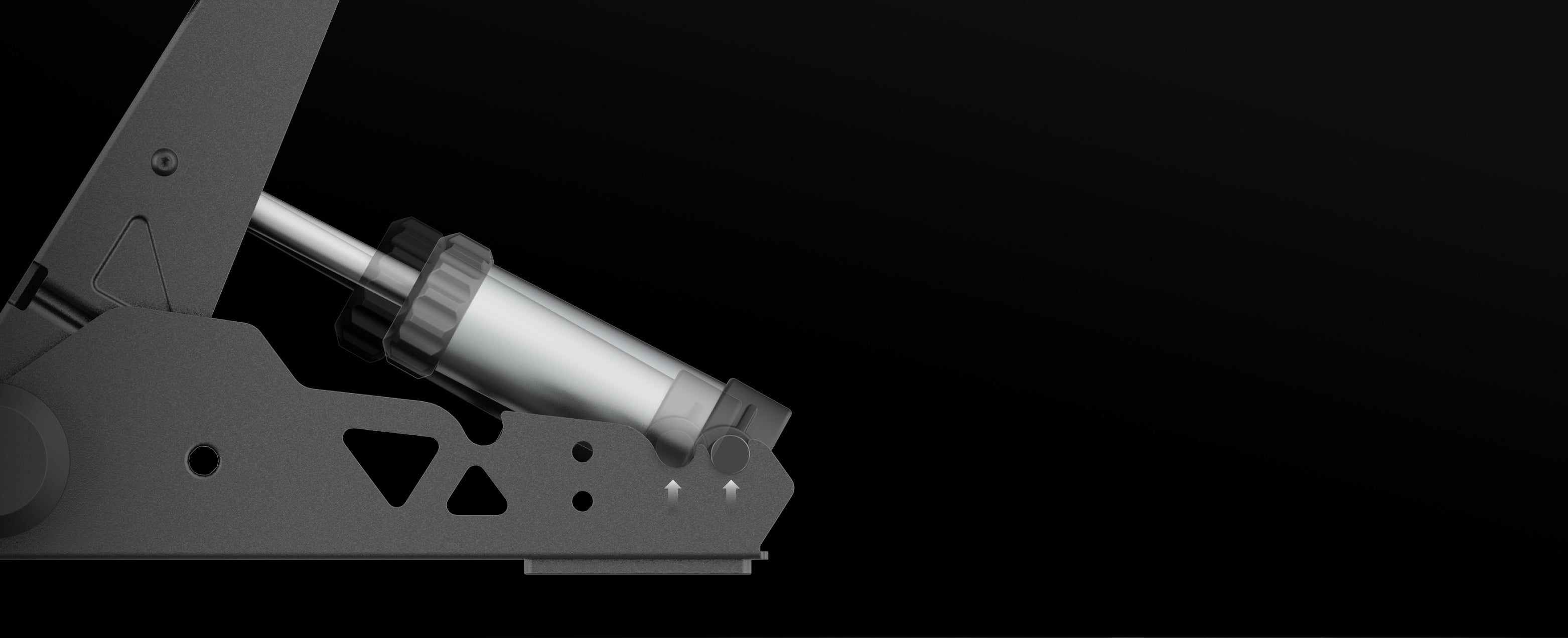

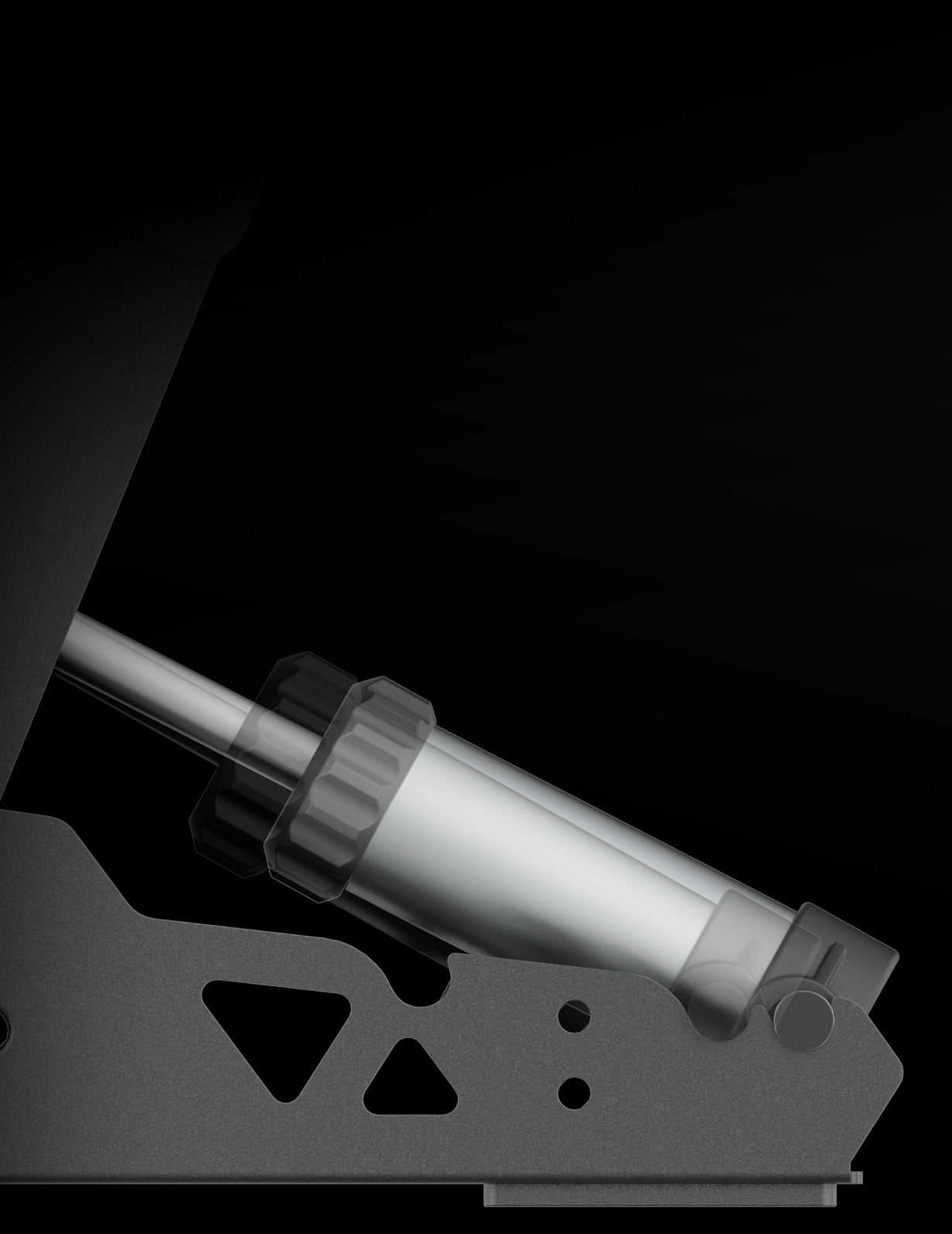

Adjustable Throttle and Clutch Feel

Both the throttle and clutch pedals feature a spring-loaded, enclosed design with a smooth guiding rod, allowing for quick manual adjustment of preload in two levels, ensuring a smooth and responsive feel.
Alt image Alt image Alt image

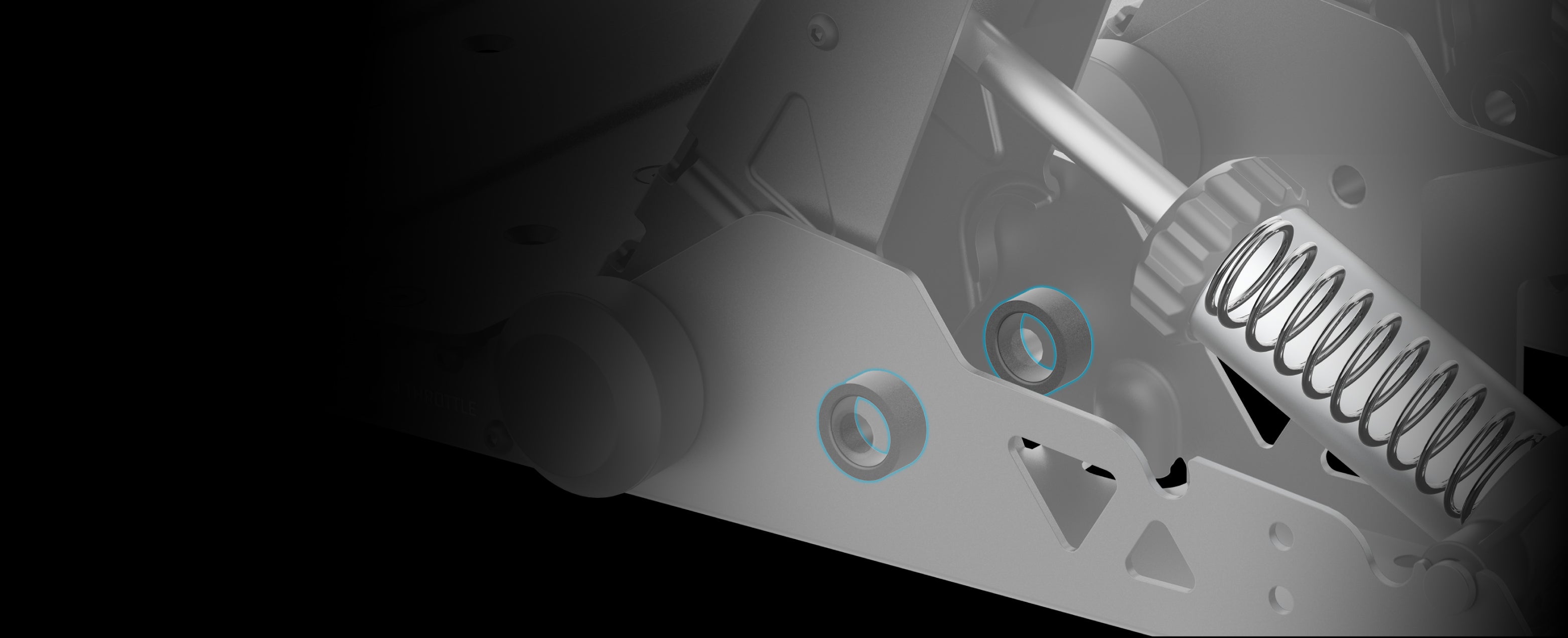

Extremely Smooth and
Quiet Operation

The enclosed sleeve motion structure and highly polished steel shafts ensure exceptionally smooth and quiet pedal movements. Soft cushioning at the limit points further reduces noise, providing a more immersive experience.
Alt image Alt image Alt image

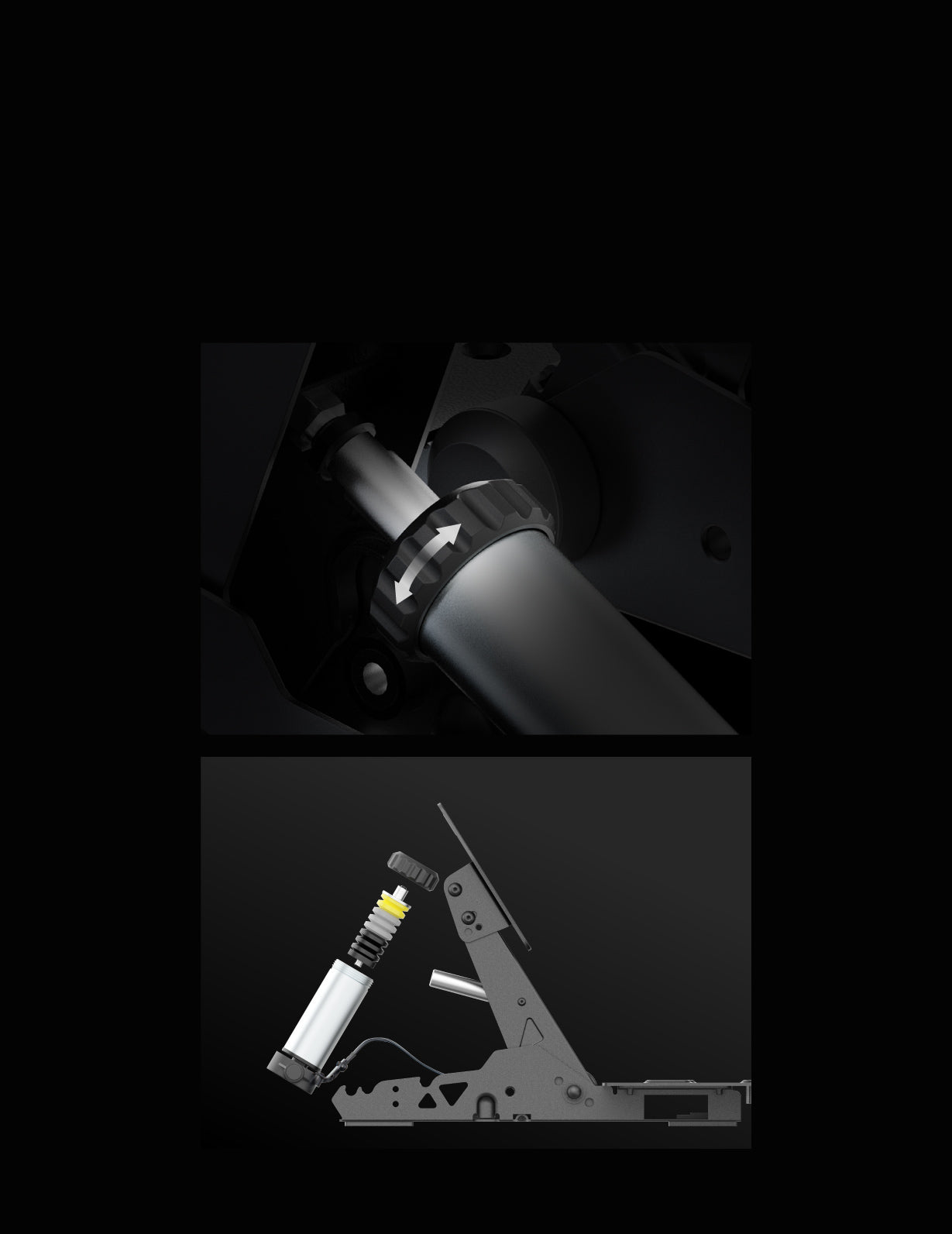

Tool-free Adjustment

The pedal system is designed for quick, tool-free force adjustments, allowing you to modify brake feel and force levels with just your hands.
Alt image Alt image Alt image

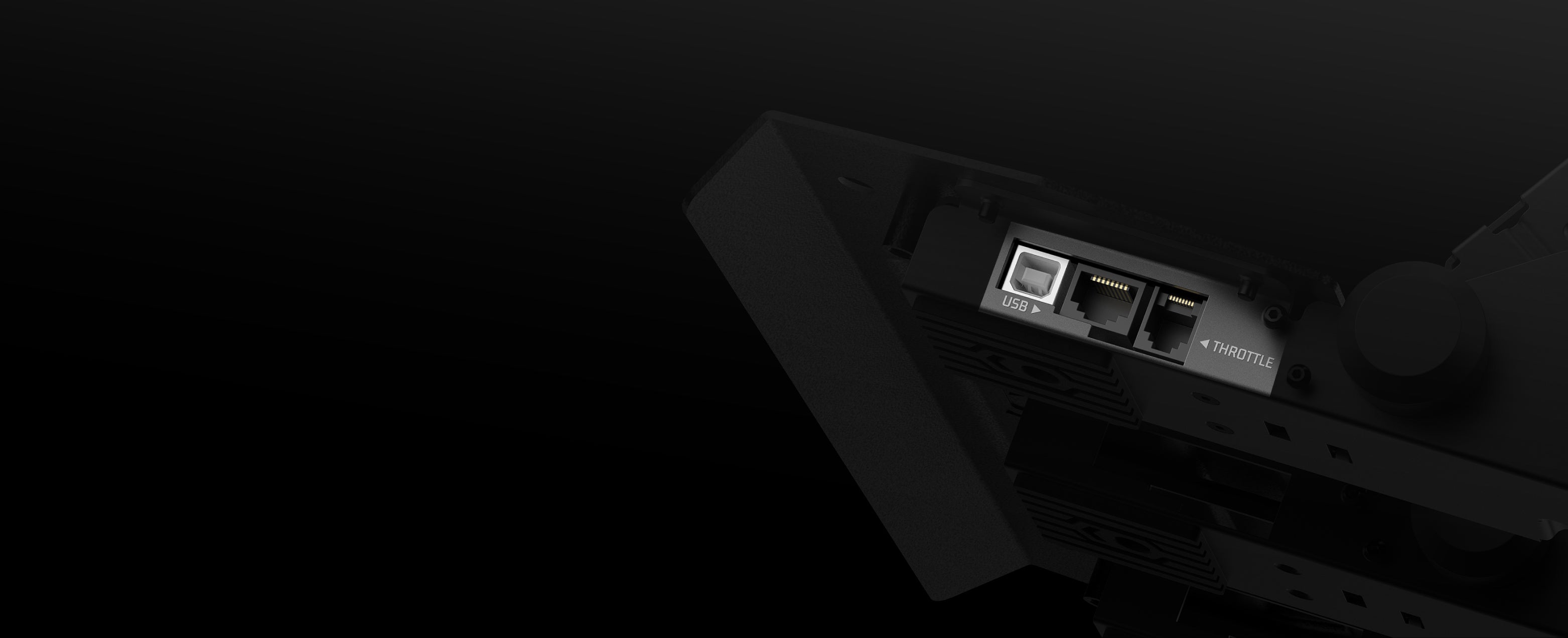

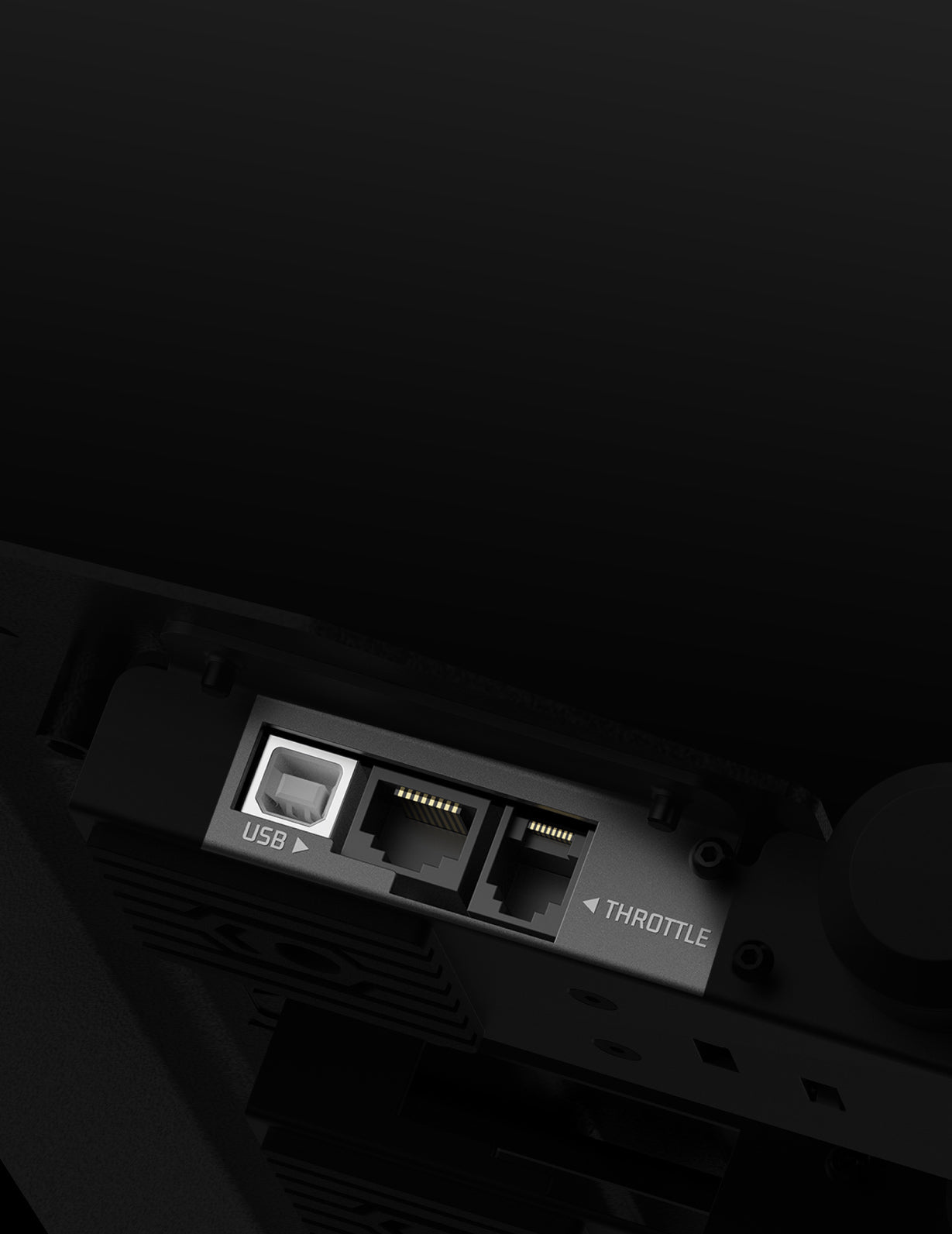

Xbox & PC Compatibility

The pedals are compatible with both Xbox and PC. You can connect them directly to a PC via USB or use them with the Xbox-compatible ESX steering wheel to play Xbox racing games.
Alt image Alt image Alt image

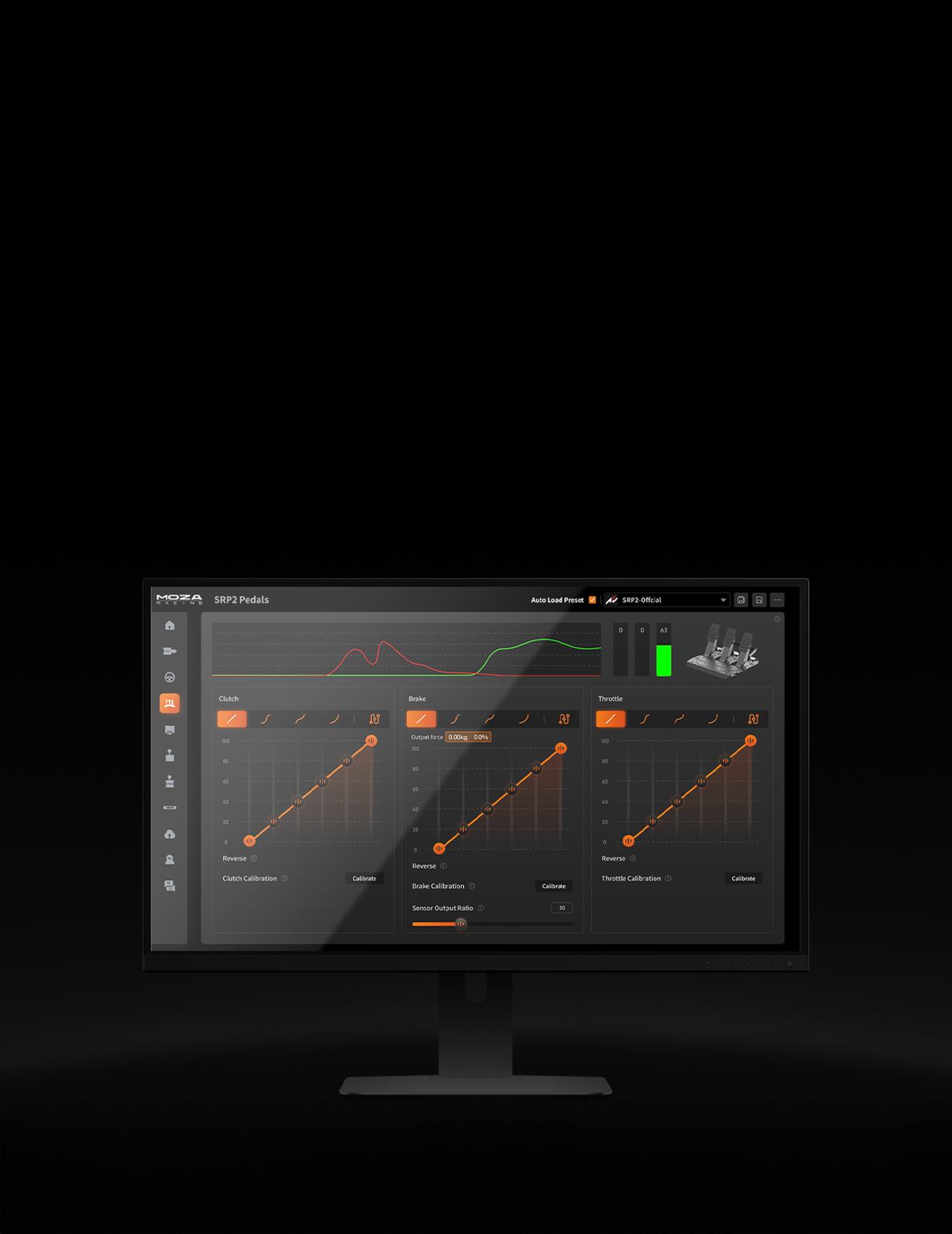

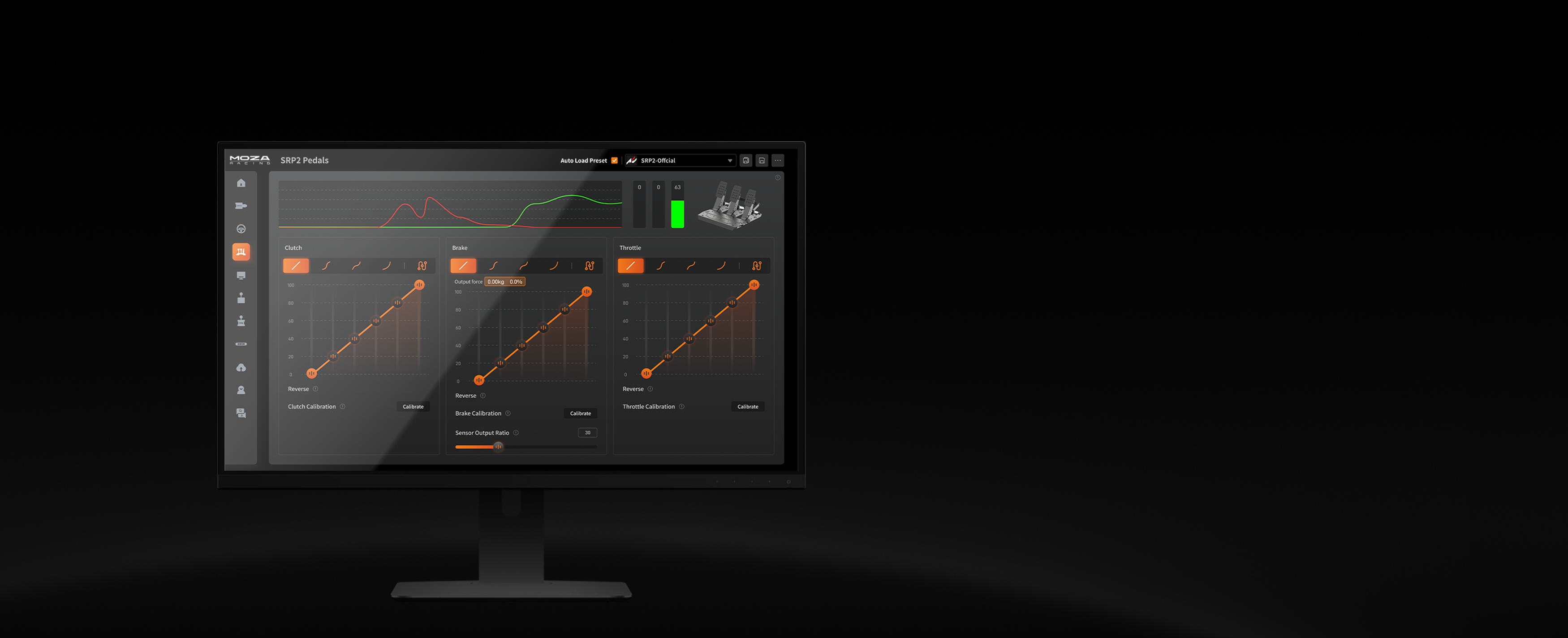

Professional Software Support

With the Pit House software, you can monitor pedal performance, adjust pedal travel and signal output curves, and view real-time data, allowing the hardware to perform at its full potential.
Alt image Alt image Alt image

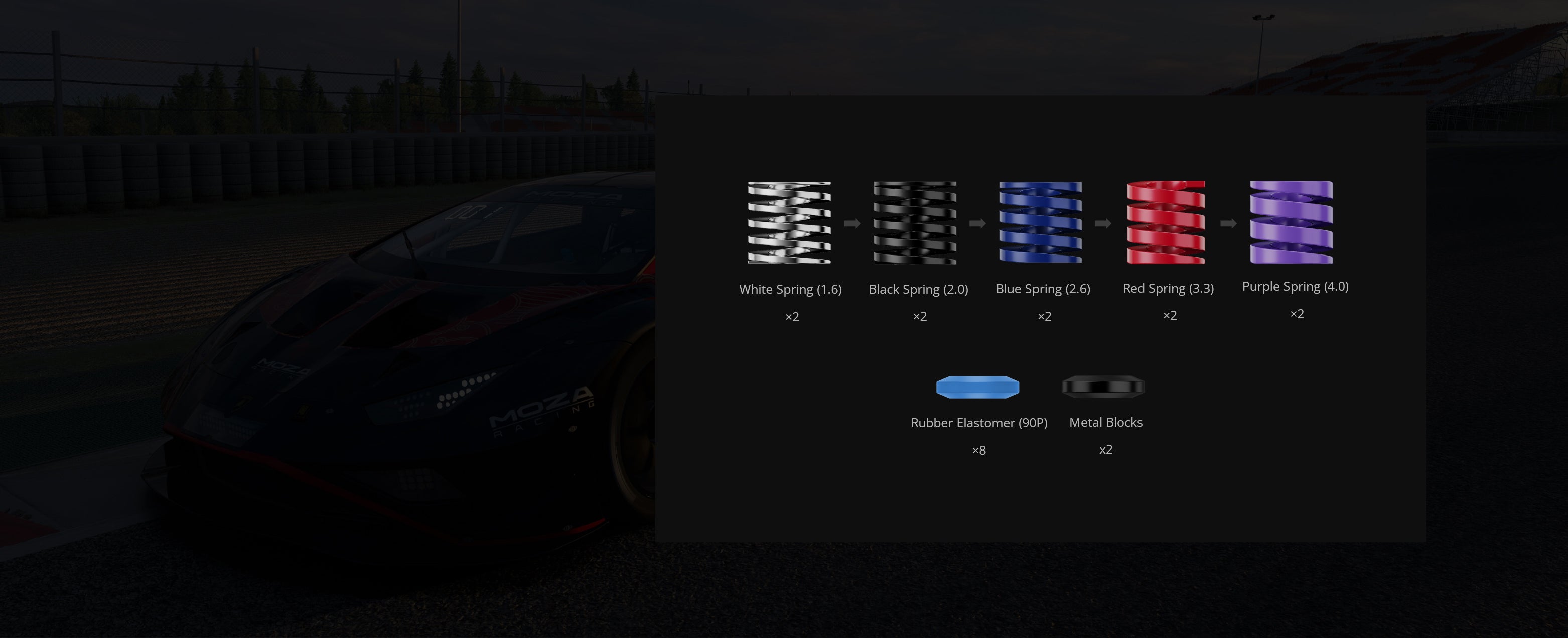

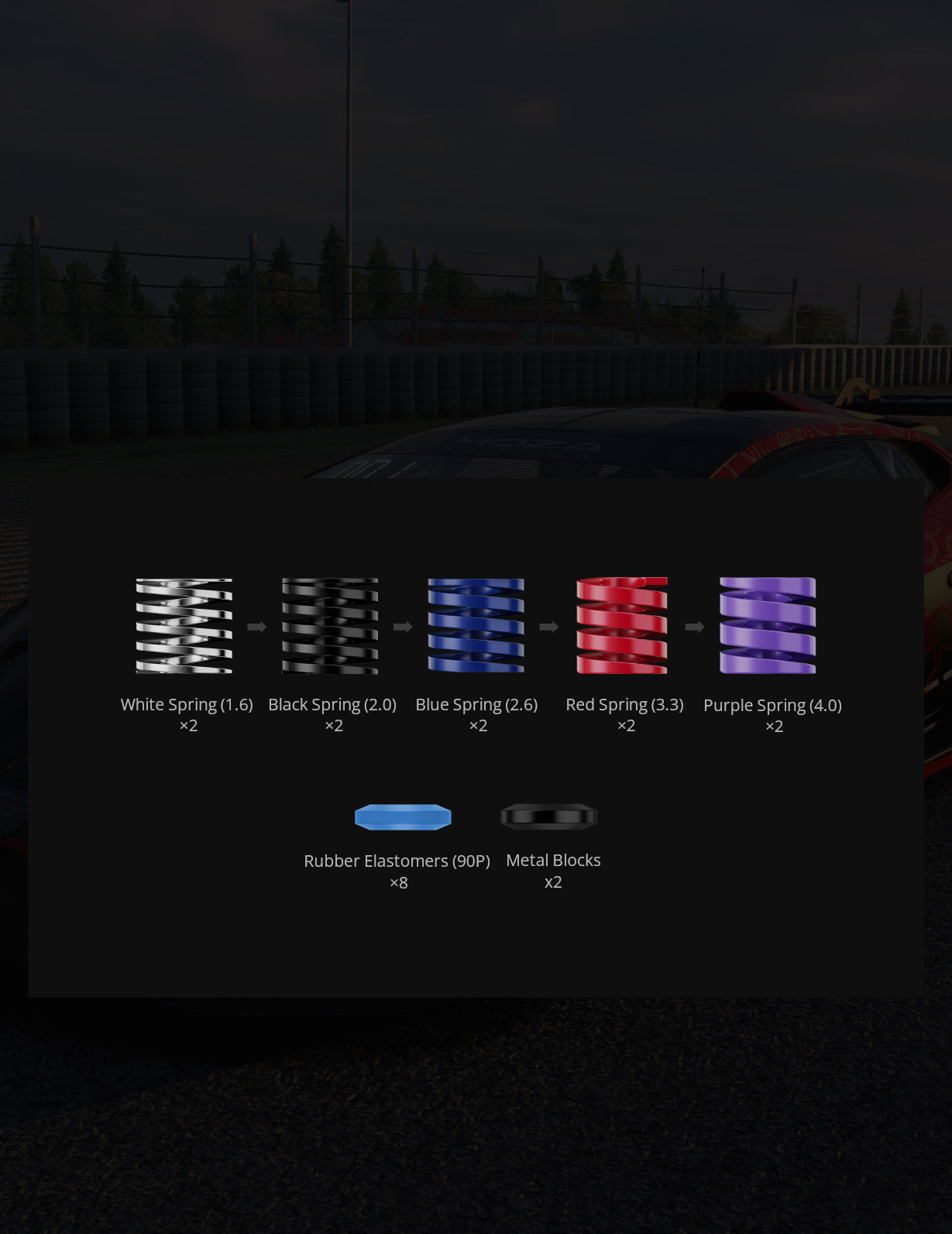

Optional Performance Kit

The optional performance kit includes 10 molded springs, rubber springs, and metal blocks, which can be combined with the standard setup to provide over 1,000 possible brake feel configurations. This kit can replicate the stiff brake feedback found in high-performance racing cars like F1 and LMP1, allowing for ultra-fast brake response times.
Alt image Alt image Alt image

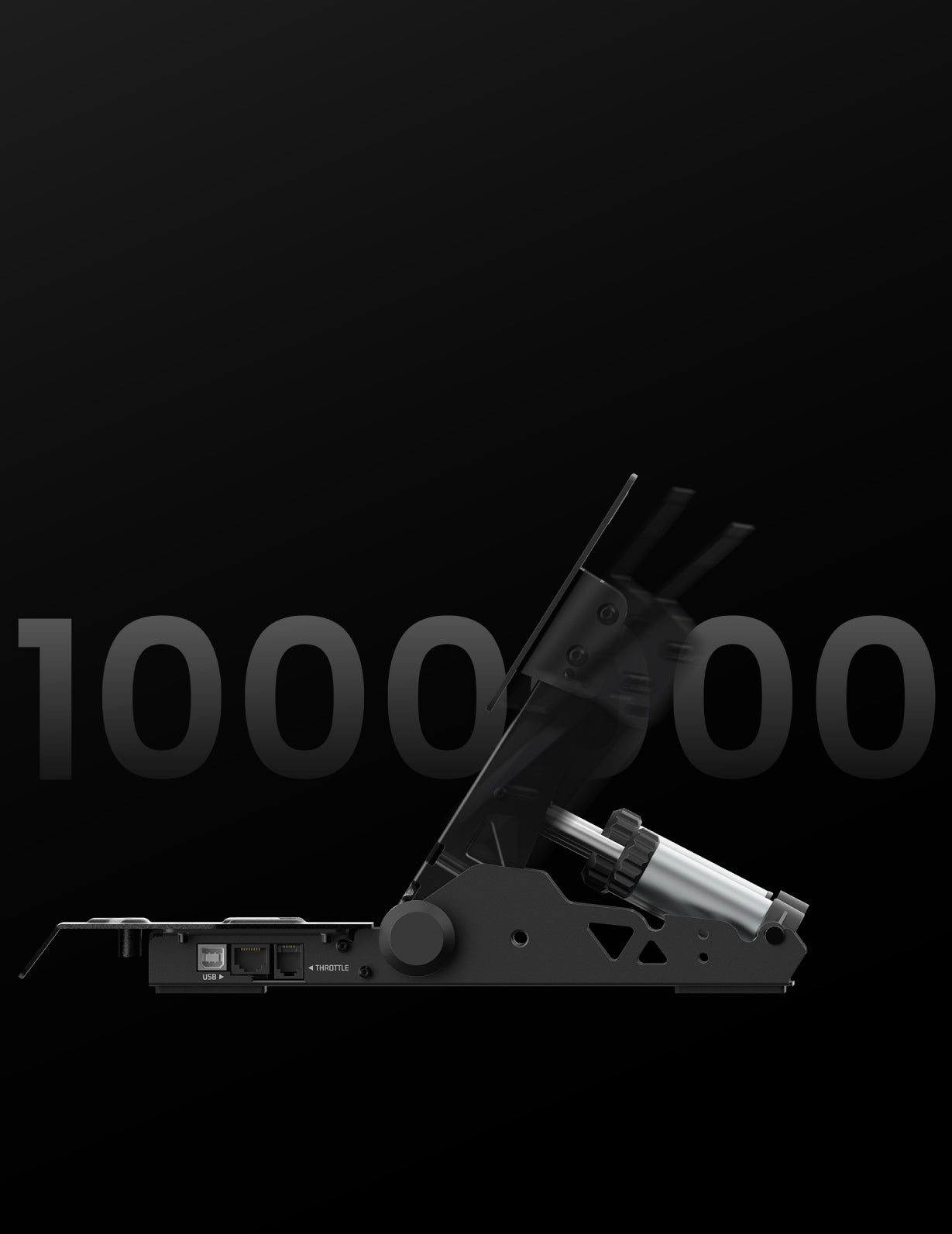

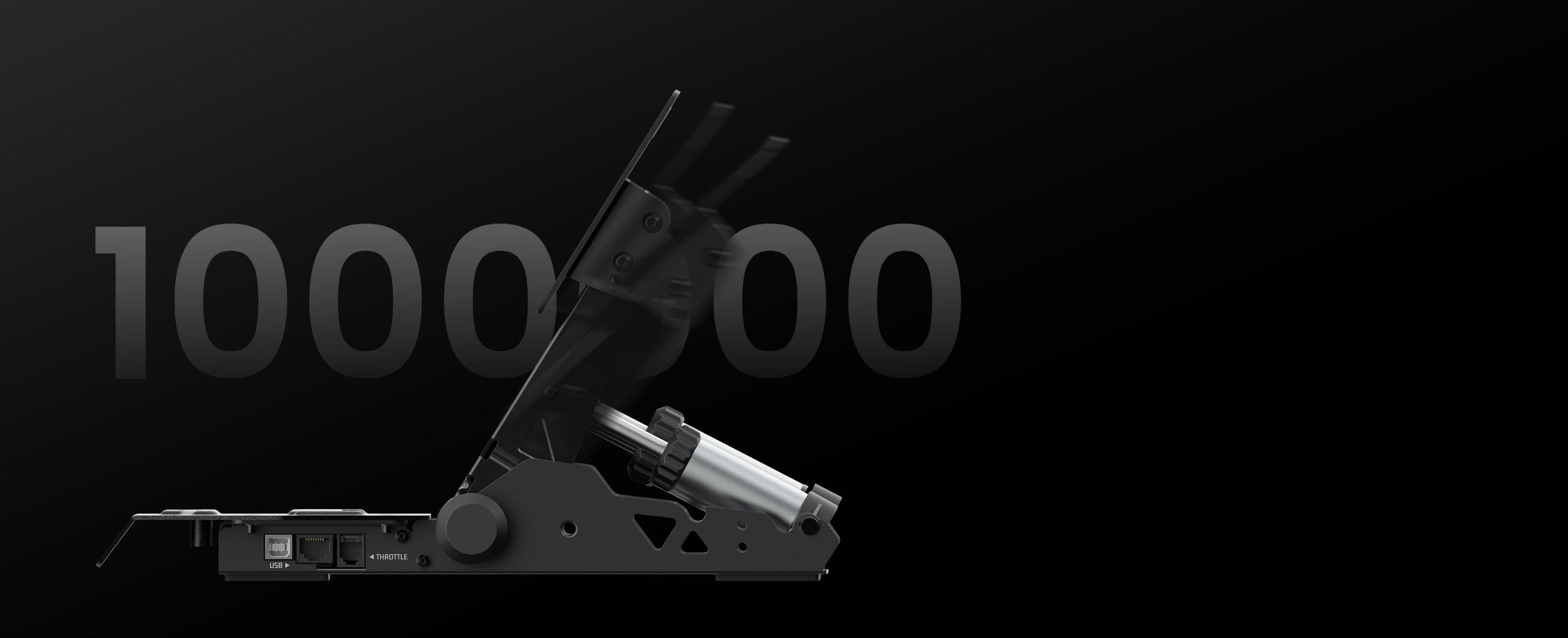

Extreme Durability

Both the throttle and clutch pedals feature a spring-loaded, enclosed design with a smooth guiding rod, allowing for quick manual adjustment of preload in two levels, ensuring a smooth and responsive feel.

Specs

Pedal Material

High-strength Steel

Base Material

High-strength Steel

Load Cell Range

0-100 kg

Brake Sensing Method

Hybrid Load Cell and Angle Sensor

Angle Sensor Resolution

15-bit (32,768 PPR)

Brake Feel Adjustability

Supported by swapping the included 2 elastomer sets or using the optional Kit

Throttle Adjustability

2-step preload adjustment

Clutch Adjustability

2-step preload adjustment

Pedal Angle Adjustment Range

10°/25°

Pedal Left/Right Adjustment Range

15 mm

Pedal Height Adjustment Range

36 mm

Pedal Curve Adjustment

Supported

Real-time Pedal Output Display

Supported

Brake Pressure Engagement Point Adjustment

Supported
