R5 Direct Drive Wheel Base
A Giant Step towards Your Racing
R5 Direct Drive Wheel Base
A Giant Step towards Your Racing

5.5 N·m Peak Torque

Aeroplane Grade Aluminum

Ultra-high Power Density Servo Motor

MOZA Pit House Control Software

APP Cloud Control
5.5 Nm of Torque from
Direct Drive Power
With a punchy 5.5Nm of torque, feel everything the road has to give with the power of direct drive.
Lightweight Design, Maximum Torque
Using smart design techniques, the R5 delivers maximum power with minimum volume and weight, allowing for a wider audience to get the best simracing experience.
Lightweight Design, Maximum Torque
Using smart design techniques, the R5 delivers maximum power with minimum volume and weight, allowing for a wider audience to get the best simracing experience.
Aviation-grade Aluminum
Aluminum alloy gives a sleek look, with powerful durability and endurance.

Ultra low torque ripple and groove torque
Countless hours have been spent with local engineers and motorsport experts to achieve the best steering possible, featuring ultra-low torque ripple and groove, for a smoother experience than ever.
Intelligent
Temperature Control
With MOZA’s onboard temperature monitoring, even endurance racers can relax knowing that the R5 will provide reliable performance.

15-bit Resolution
The motor encoder sports a 15-bit ultra-high resolution, ensuring steering is accurate and gives a true-to-life feel.


Military grade conductive slip ring
The base and the steering wheel are connected through a military-grade conductive slip ring with a life of 5 million revolutions. The unique patented design has extremely high stability and durability while achieving infinite high-speed rotation.

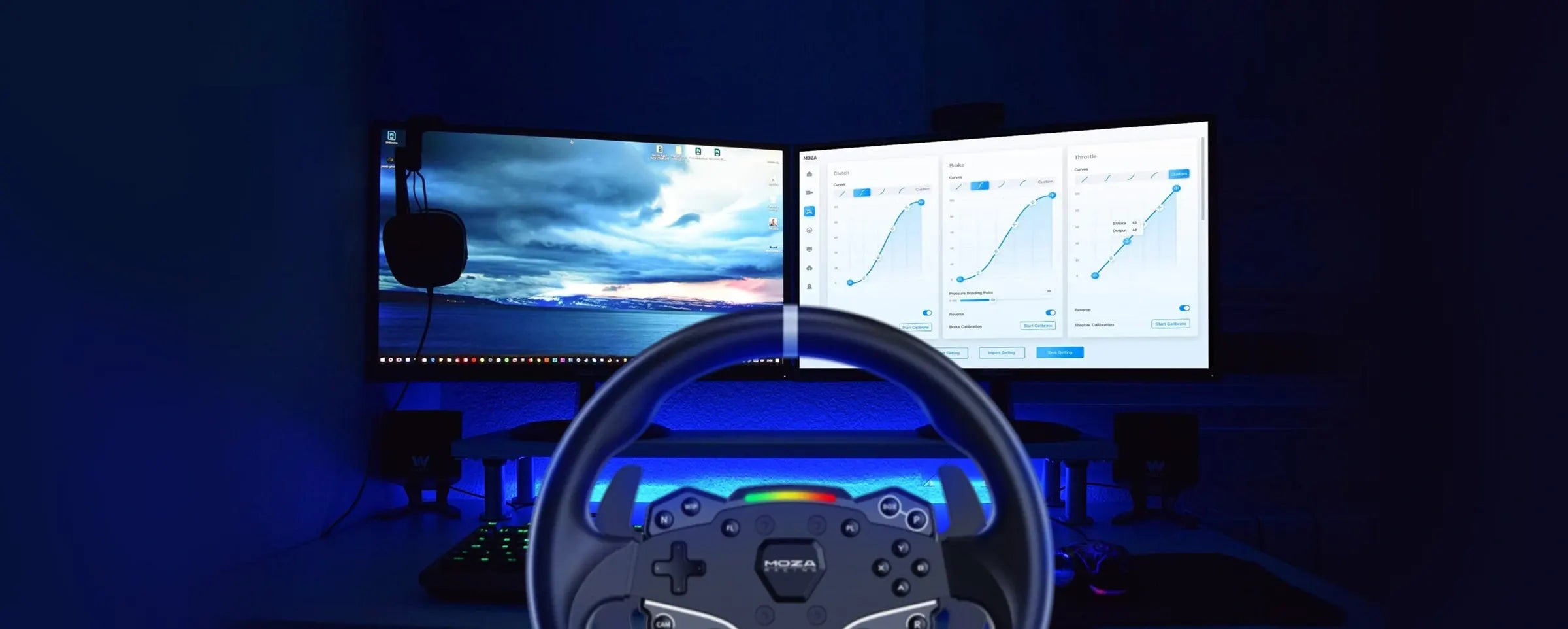

MOZA Pit House
Cloud-based App Control
The settings of the wheel base, steering wheel, pedals, etc. can be modified through the MOZA APP.
Cloud-based App Control
The settings of the wheel base, steering wheel, pedals, etc. can be modified through the MOZA APP.

Dimensions

Specs
Platform
PC
FFB Drive System
Direct Drive
Max Steering Angle
Infinite Rotation
Housing Material
Aviation Grade Aluminum Alloy
Color
Black
Peak Torque
5.5Nm
USB Refresh Rate
1000Hz
Input Voltage
110V~220V AC —>12V DC
Encoder Resolution
15 bits
App Functions
Supported
Quick Release
Supported
Connection Ports
Power, DC Input, Pedal, USB, Dash
Accessories
User manual, Warranty card, Power supply, USB cable, Toolkit
Mounting Method
4 holes on the bottom
Desktop Mounting Clip
Standard
Online Firmware Upgrade
Supported
Emergency Stop Switch
Optional
Firmware Upgrade
Applicable
Size (L x W x H)(mm)
174*157*124
Mass
3.45kg
Compatibility
R5 | R9 V1 | R9 V2 | R16 | R21 | |
---|---|---|---|---|---|
ES Steering Wheel | √ | × | √ | × | × |
CS V1 | × | √ | √ | √ | √ |
CS V2 | √ | √ | √ | √ | √ |
RS V2 | √ | √ | √ | √ | √ |
GS Alcantara V1 | × | √ | √ | √ | √ |
GS Alcantara V2 | √ | √ | √ | √ | √ |
GS Microfiber Leather V2 | √ | √ | √ | √ | √ |
FSR Formula Wheel | √ | √ | √ | √ | √ |
SR-P Lite Pedals | √ | × | × | × | × |
SR-P Pedals | √ | √ | √ | √ | √ |
CRP Pedals | √ | √ | √ | √ | √ |
