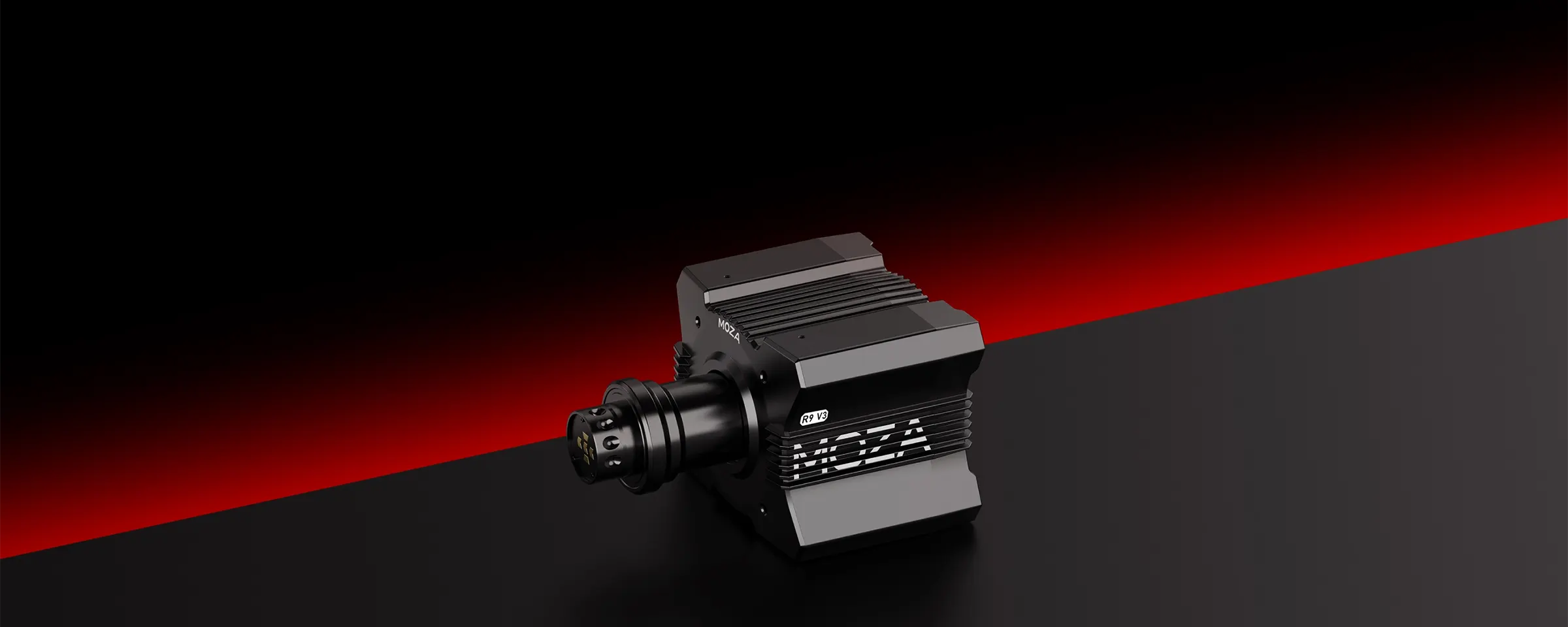

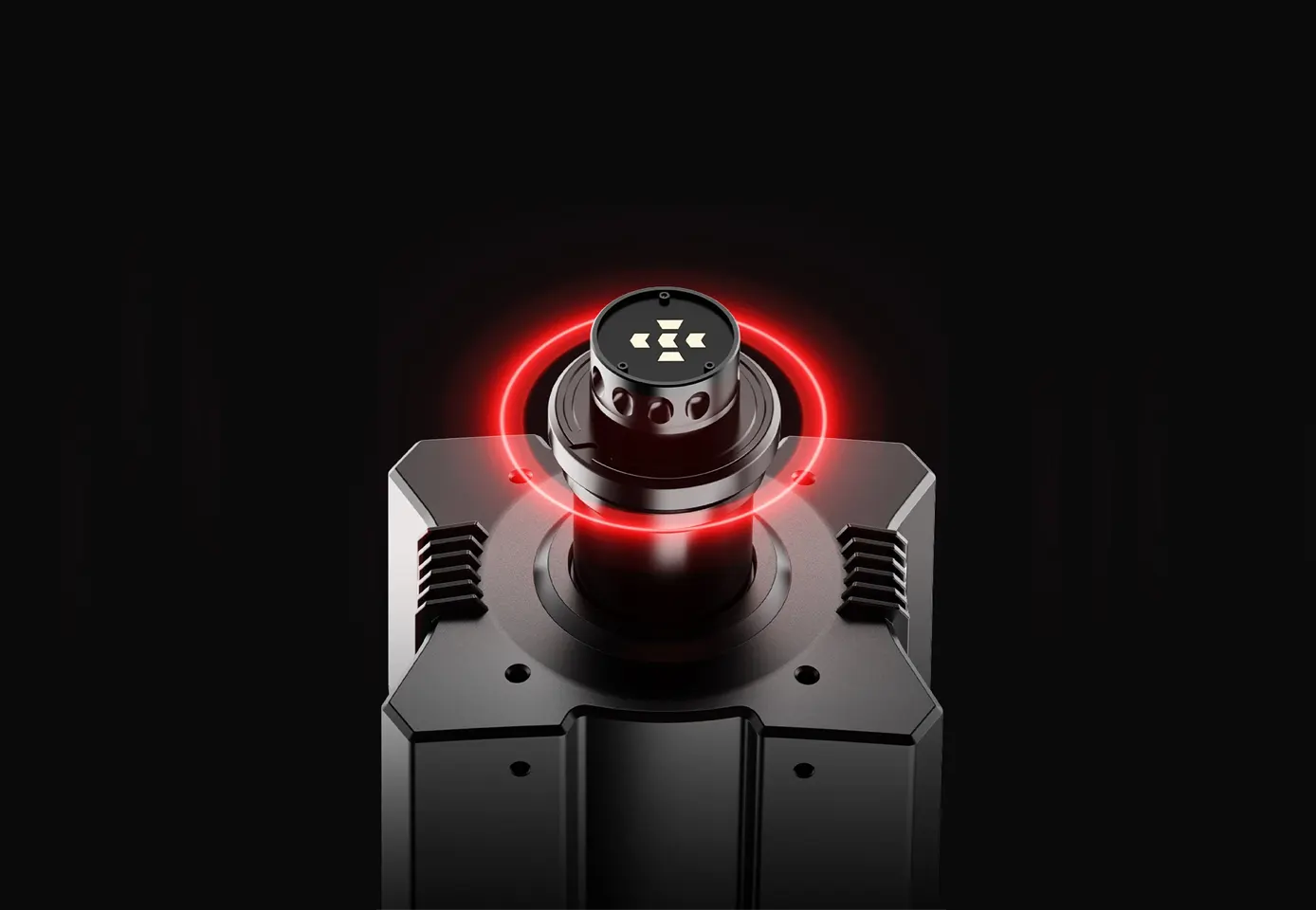

Name: R9 Wheel Base
Brand: MOZA Sim Racing
Price: 439 USD
Availability: InStock

Specs

Platform	PC

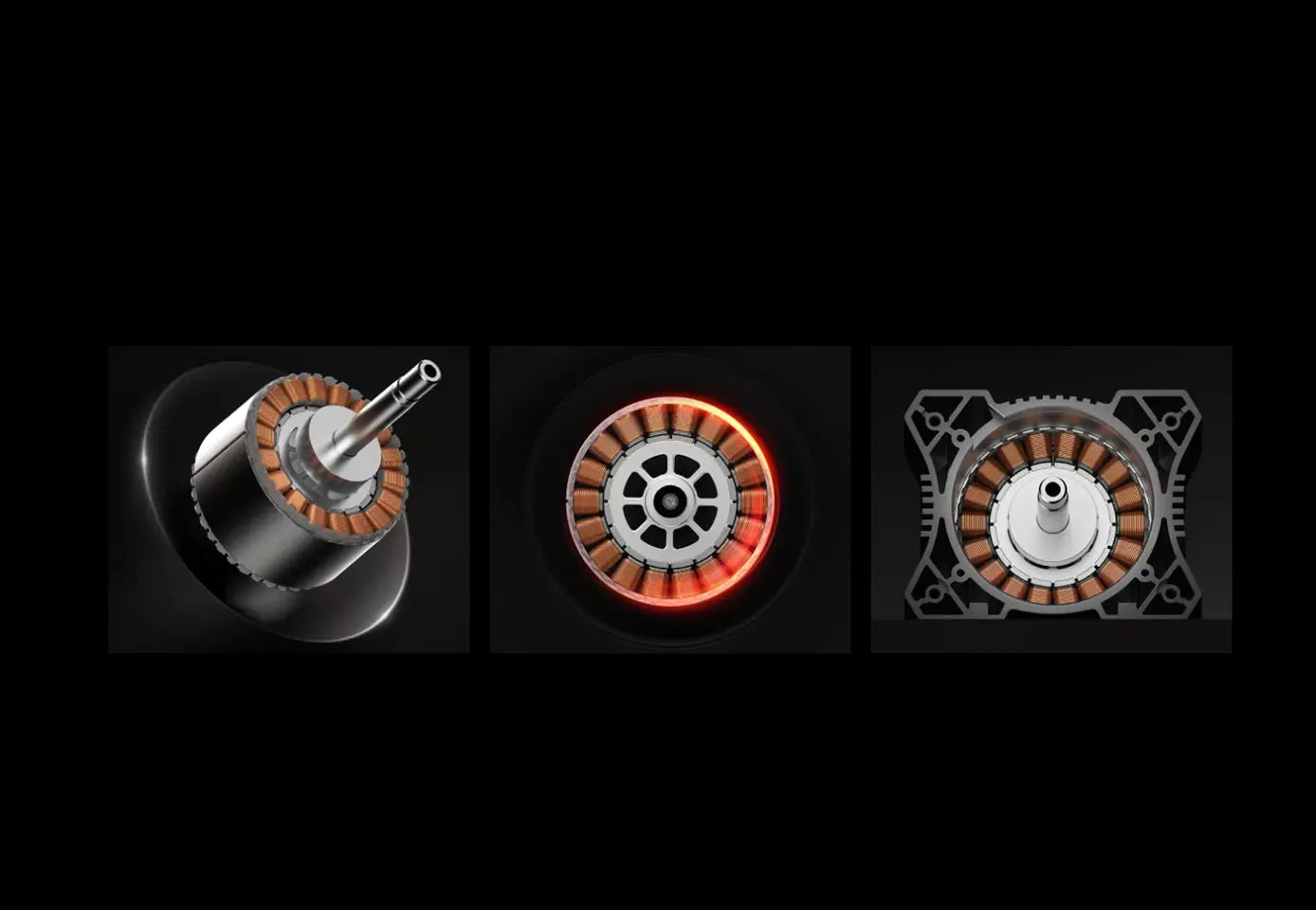

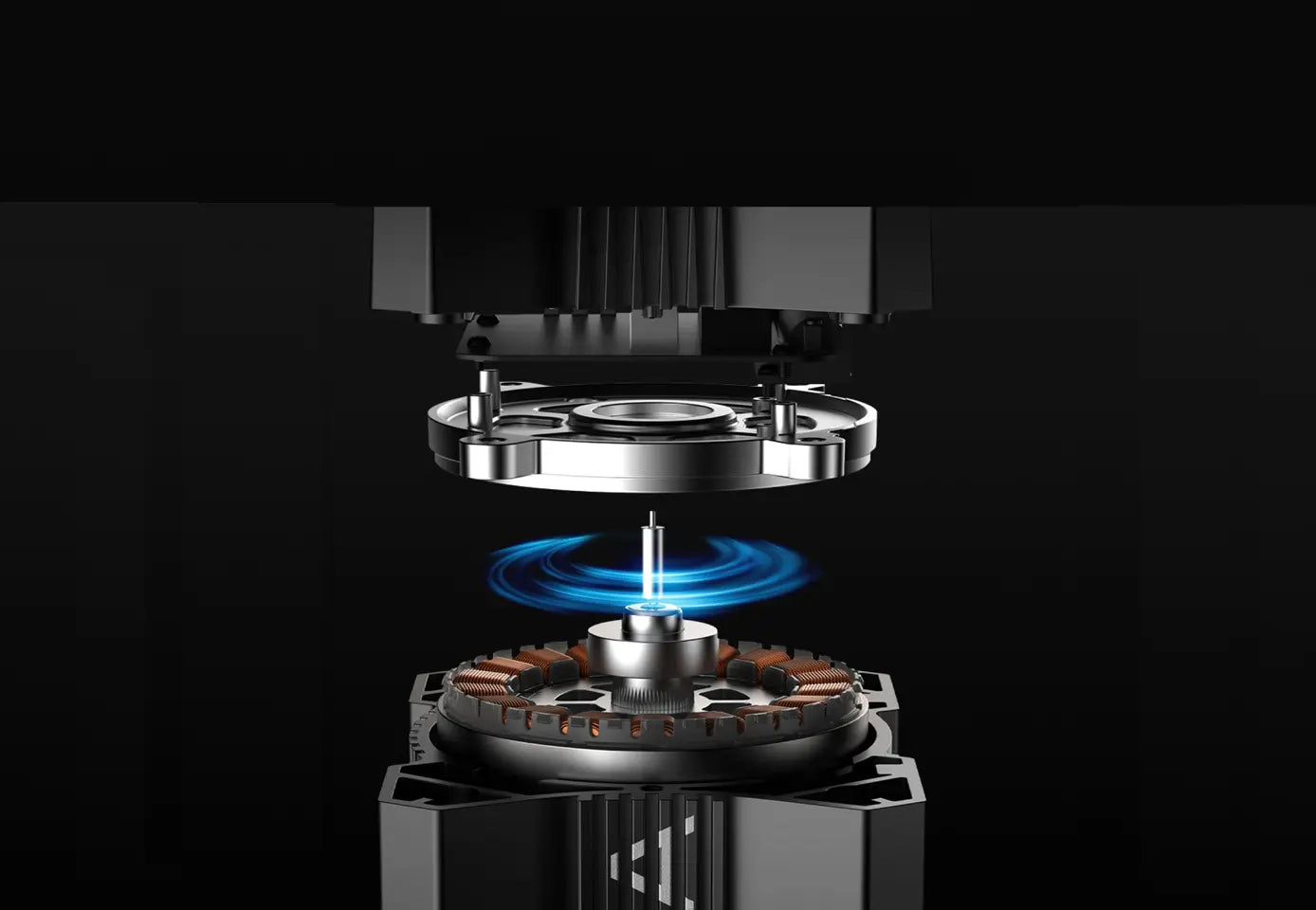

FFB Drive System	Direct Drive
Maximum Steering Angle	Limitless
Housing Material	Aviation Grade Aluminum Alloy
Color	Black
Peak Torque	9 N·m
Peak Power	180W
Input voltage	110V~220V AC —>36V DC
USB Refresh Rate	1000Hz
Wheel Base Indicator Light	Applicable
Smartphone APP	Applicable
Quick Release	Customized Quick Release
Connection Port	Starting Switch, Power Supply, Data, Emergency Stop Switch, Display Screen
Accessories	User manual, Warranty card, Power supply, USB cable, Toolkit
Mounting	4 holes on the bottom; exclusive holder that supports angle adjustment and side fix; Table clamp
Table Clamp	Optional
Side Mounting	Optional
Emergency Stop Switch	Optional
Firmware Updating	Applicable
Size (L x W x H)（mm）	240x157x124

What's Inbox

Wheel Base R9
DC power supply/supplies
Power Cord
Data cable
Screw Kit
Cloth Bag
Quick start guide & Warranty card
MOZA Sticker

COMPATIBILITY

	R5	R9 V1	R9 V2	R16	R21
ES Steering Wheel	√	×	√	×	×
CS V1	×	√	√	√	√
CS V2	√	√	√	√	√
RS V2	√	√	√	√	√
GS Alcantara V1	×	√	√	√	√
GS Alcantara V2	√	√	√	√	√
GS Microfiber Leather V2	√	√	√	√	√
FSR Formula Wheel	√	√	√	√	√
SR-P Lite Pedals (For R5)	√	×	×	×	×
SR-P Pedals	√	√	√	√	√
CRP Pedals	√	√	√	√	√

Platforms

> PC: This product is compatible with Windows PC.

These games for PC:

Assetto Corsa
Assetto Corsa Competizione
Dirt Rally
Dirt Rally 2.0
Dirt 4
F1 2018
F1 2019
F1 2020
F1 2021
F1 2022
Project CARS 1
Project CARS 2
Project CARS 3
iRacing
Forza Horizon 4 (This game is currently not compatible with Steam)
Forza Horizon 5 (Win 10)
Live For Speed
Automobilista
Automobilista 2
rFactor2
Euro Truck Simulator 2
American Truck Simulator
KartKarft
WRC 9
WRC 10
BeamNG.Drive
MudRunner
Wreckfest
RaceRoom Racing Experience

FAQs

Q: What is the difference between V1 and V2?

A: The only difference is that the R9 V2 version is compatible with the ES steering wheel, while the V1 version is not.

Q: Does MOZA R9 V1 compatible with the upcoming MOZA wheels？

A: Yes.

Q: Can I use my R9 DD wheel base on my Xbox or PS?

A: The products we offer are currently only compatible with Windows PCs. Mac OS, PS4, PS5, Xbox One, and Xbox Series X is currently not offcially supported.

Q. If I buy an R9 wheel base with the GS/RS/CS wheel do I have to buy the extra QR (Quick Release)? Or does the wheel come with one/ can the wheel be mounted to the base without the QR?

A: The MOZA Racing wheel base and steering wheel already come with a matching quick release. If you are using a third-party steering wheel, you need to purchase a quick release that meets the D1 SPEC specification to install it on our base.

Q: Compatibility of MOZA R9 wheel base with Fanatec and Thrustmaster and other brands of hardware?

A: We are always asked if it is possible to use Fanatec and Thrustmaster or other brands of wheels, pedals, shifters, and other accessories with MOZA Racing. Often, devices from different vendors are not compatible with each other. So you can’t directly connect products from different companies to each other, or at least not support that way.

There may be adapters on the market that make this combination possible, but due to the different technologies used in the hardware and different signal tolerances, these solutions are unreliable even with similar specs. MOZA Racing cannot make any representations regarding third-party adapters or similar solutions. Of course, we are striving to achieve the highest possible incompatibility between all devices, although this is not easy to achieve. For any compatibility issues, we can only direct you to the information provided on our product pages or FAQs.

Q: Can I use other cables to connect the base and computer (USB, RJ12, etc.)?

A: In theory, any RJ12 and USB cables with the correct connectors on both ends could be used, however, MOZA cannot guarantee perfect functionality because of the involvement of the third-party products.

Q: Can other brands of steering wheels be connected to the R9 wheel base?

A: Yes, as long as the steering wheel that meets the D1 SPEC specification quick release can be connected to the MOZA Racing base, but the interaction between the paddles and buttons of the steering wheel body requires the steering wheel to be connected to the computer by other means.

However, it should be noted that after using a third-party steering wheel, you need to select the actual inertia ratio of the third-party steering wheel in MOZA Pit House, otherwise the off-hand protection will not work properly.

Q: Should I wear gloves to use the wheel base?

A: Yes, it is recommended to wear gloves for better control of the steering force and a more realistic racing experience, while reducing the wear and tear of the steering wheel leather. When combined with today’s best racing simulation games, the R9 is as close as you can get to driving the real thing.

Q: Can I mount my MOZA Racing device on a custom or 3rd party cockpit?

A: The R9 wheel base can be mounted with Side Mount Bracket (apply on MOZA R21/R16/R9) and table clamp (apply on MOZA R9). There are integrated mounting holes in those products which can be used.

*If you do use any 3rd party cockpit / rig / wheelstand product (e.g. Playsteats, Obutto, Nextlevel …) please ask the production company about MOZA Racing product compatibilty.

You can use the table clamp to mount the MOZA R9 to a table or desk as in Figure below:

Fanatec who?

This things a beast and I couldn’t be happier with my purchase. Thanks Moza for getting me back into racing

Simply Amazing!

I recently upgraded from a Thrustmaster TS-PC and wow what an upgrade. It adds a whole different level of immersion to sim racing. It’s not only the hardware that is top notch but the software really brings it all together. And to add to that you can make adjustments on the fly with a super intuitive app. It’s only been less than a month but I couldn’t be happier and more excited for what is to come.

AMAZING EXPERIENCE

Blown away from the fun I’ve been having, paired with VR on asseto corsa or iracing this thing is PERFECT.

R9 Wheel Base

Absolutely amazing

Wheel base is amazing I absolutely love it the only problem is that the steering wheel, one of the stitches got loosen.. not a big deal and I am pretty sure it’s happening often
