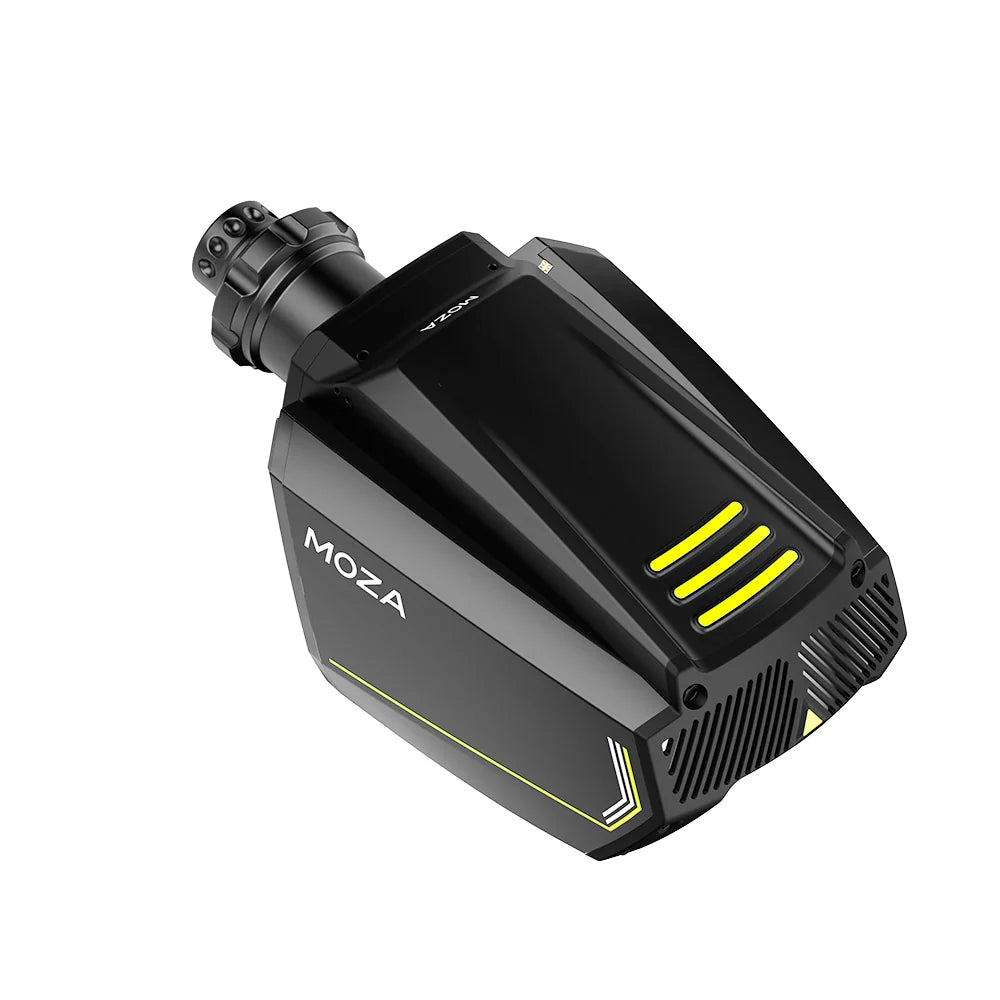

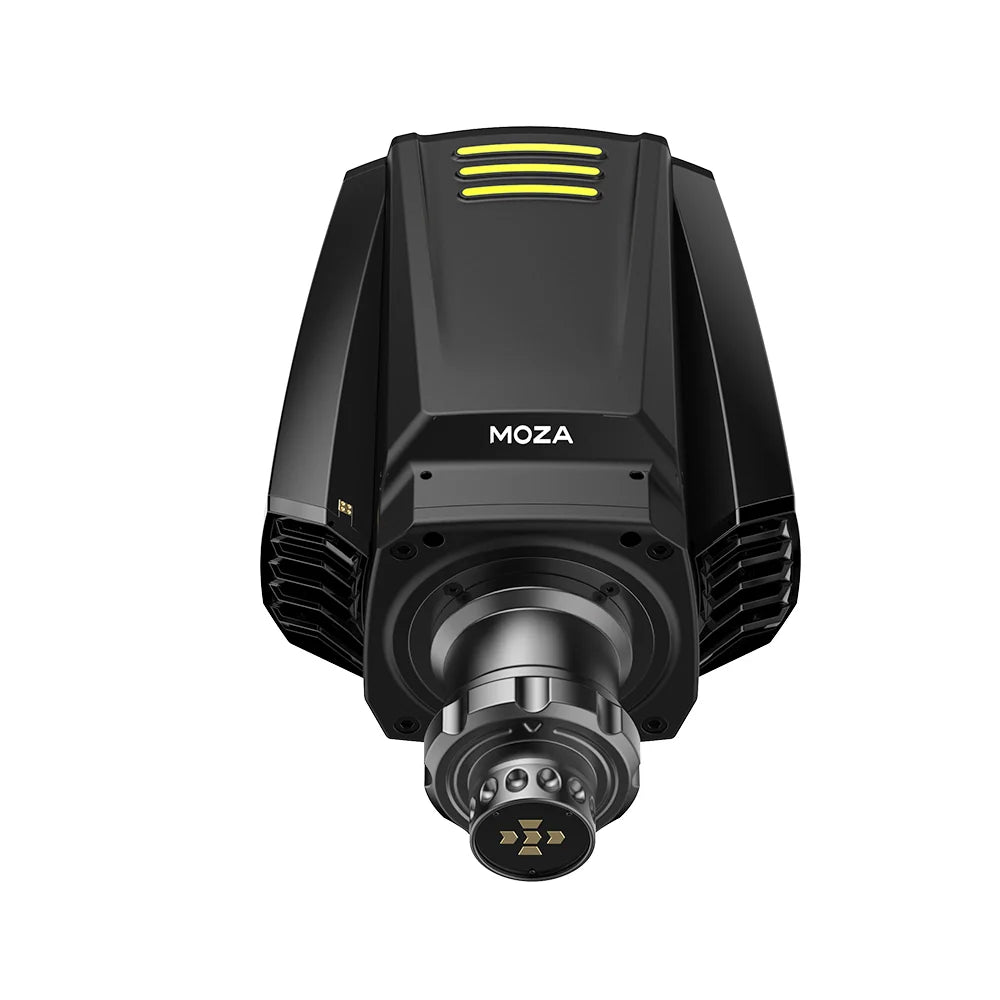

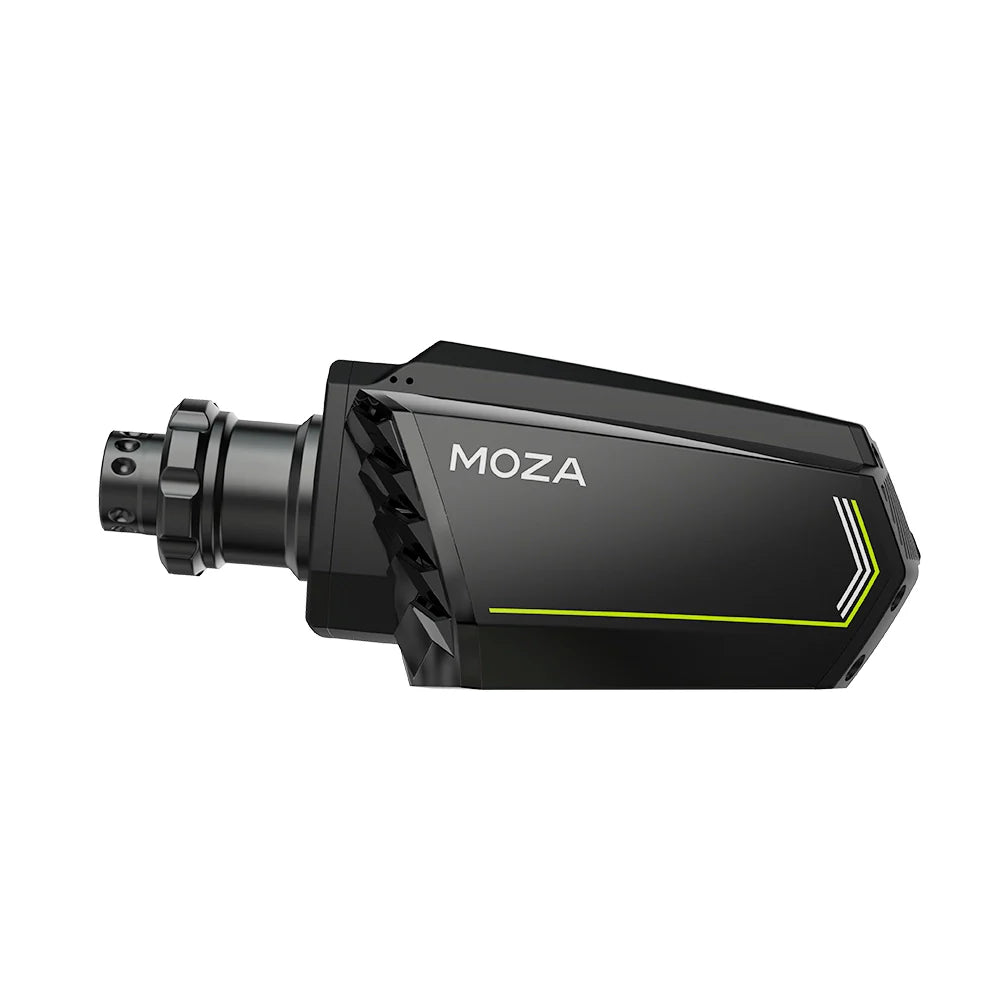

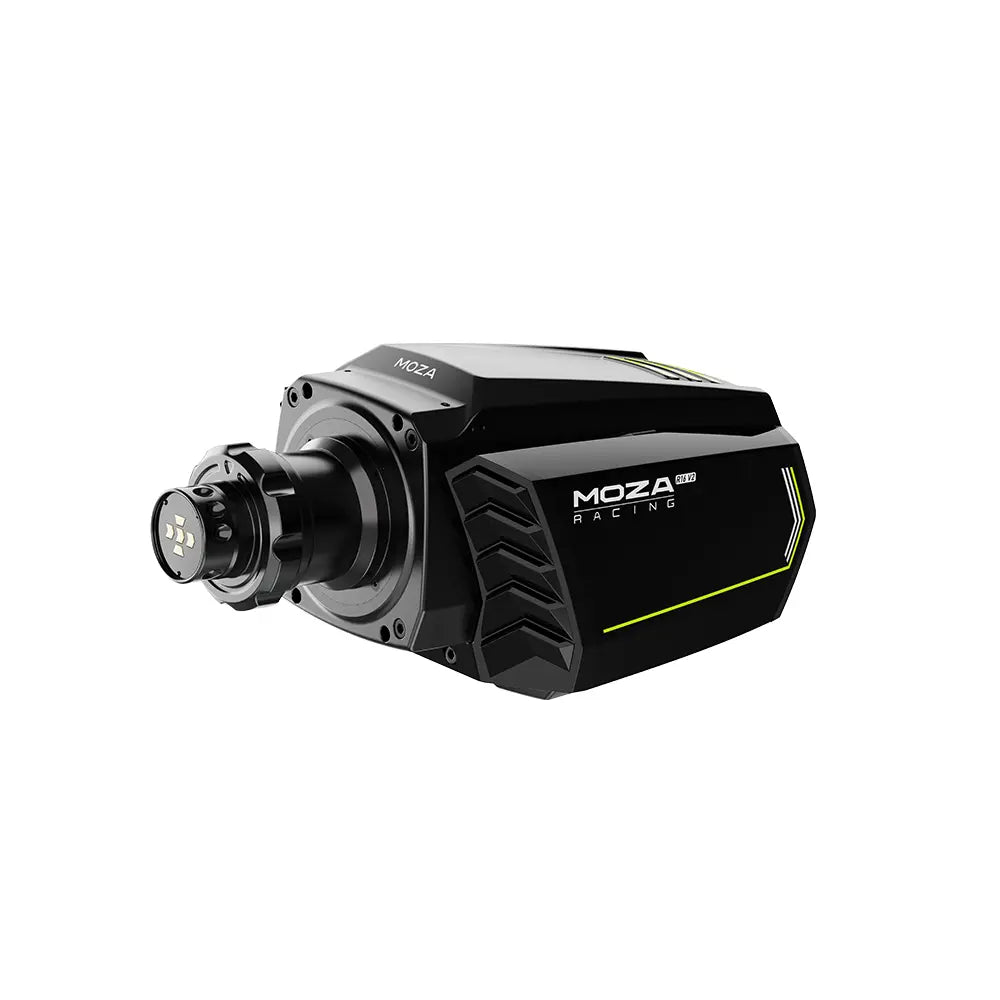

R16 V2 Wheel Base

Name: R16 V2 Wheel Base
Brand: MOZA Racing
SKU: T02D000003B
Price: 659.00 USD
Availability: InStock

$659.00

Shipping calculated at checkout.

The MOZA R16 V2 delivers an uncompromising sim racing experience with 16Nm of direct drive torque, a 21-bit magnetic encoder, and a high-performance slanted pole servo motor. Built with an aviation-grade aluminum body and powered by the advanced NexGen 4.0 force feedback algorithm, the R16 V2 offers unmatched precision, smoothness, and realism for competitive sim racers.

Overview >

Product variants

Model: R16 V2

R16 V2

Upgrade for the Ultimate Simulation

FSR2 Formula Wheel

$649.00

MOZA GS V2P GT Wheel

$399.00 $469.00

RS V2 Steering Wheel

$399.00

MOZA CRP2 Load Cell Pedals (Throttle+Brake)

$399.00

MOZA mBooster Active Pedals

$799.00

Usually ship within 5 business days.

14-Day Returns Policy

Up to 24-Month Warranty Protection

Global Support

Pairs well with

R16 V2 Wheel Base

Usually ship within 5 business days.

$659.00

At a Glance

MOZA R16 DD Wheel Base

Engineered for Elite Sim Racers Seeking Precision and Performance

16Nm of Direct Drive Power

With a huge 16Nm of torque, the R16 provides an impressive torque range to give the kind of accurate immersion that only direct drive wheels can provide. From GT to F1, feel every moment.

21-Bit Magnetic Encoder with 280MHz Processor

Achieves ultra-smooth, responsive control with 2 million+ steps per rotation and 0.00017° resolution, delivering highly detailed force feedback.

High-Performance Slanted Pole Servo Motor

Engineered with a Segmented Rotor, 18-Slot/16-Pole Design, and Low Back-EMF for Consistent Torque and Hyper-Realistic Force Feedback.

NexGen 4.0 Force Feedback Algorithm

MOZA's NexGen 4.0 algorithm delivers smooth, detailed, and responsive force feedback. Experience sharper curbs, clearer surface textures, and quicker reactions to tire slip and weight transfer—with improved torque compensation for precise steering.

Sturdy All-aluminum Body

The R16 is made of aluminum alloy, giving the base a rock-solid feel and weight.

Cloud-based Mobile App Control

Enjoy on-the-fly changes using the MOZA app! Force feedback, pedal settings, and more can all be changed in real-time. One-click importing allows easy hassle free setup transfers to new devices.

Multiple Connection Ports

With the ability to directly connect MOZA pedals, shifter, handbrake, and digital dash to the base, you not only conserve USB ports on your PC but also unlock the potential for simultaneous use of multiple devices.

Learn More

SPECS

R16 V2 DD Wheel Base

Platform: PC
FFB Drive System: Direct Drive
Max Wheel Rotation: 90~2700°
Housing Material: Aviation Grade Aluminum Alloy
Color: Black
Peak Torque: 16 N·m
Peak Power： 360W
Input VoltageInput Voltage: 110V~220V AC —>36V DC
USB Refresh Rate: 1000Hz
Wheel Base Indicator Light: Supported
App Functionality: Supported
Quick Release: MOZA Quick Release
Connection Port: Power, USB, Pedal, Dash, Shifter, Handbrake, E-stop
Mounting Method: Bottom mount
Side Mount Option: With optional side/front mount bracket
Table Clamp: Optional
Side Mounting: Optional
Emergency Stop Switch: Optional
Firmware Updating: Applicable
Size (L x W x H) (mm): 327*170*130
Weight: 8.9kg

WHAT'S INBOX

R16 V2 DD Wheel Base * 1
Power Adapter * 1
USB Cable * 1
Toolkit * 1
User Manual
Warranty Card
MOZA Stickers

FAQs

FAQ - Find out more

What makes the MOZA R16 V2 stand out from other 16Nm direct drive wheel bases?

The R16 V2 is engineered with a high-torque slanted pole servo motor, 21-bit magnetic encoder with 2 million+ resolution steps, and our proprietary NexGen 4.0 force feedback algorithm. This delivers incredibly smooth, detailed, and responsive feedback—whether you're navigating hairpins in GT cars or feeling curbs in an F1 chassis. With automotive-grade components and precision thermal management, it's built for sustained peak performance.

What steering wheels are compatible with the R16 V2?

The R16 V2 is compatible with MOZA’s full range of racing wheels. Thanks to its industrial-grade conductive slip ring design (rated for over 5 million revolutions), it supports high-speed signal transmission and seamless infinite rotation—making it ready for high-end setups with no compromise.

Is the R16 V2 suitable for long racing sessions or endurance events?

Absolutely. The R16 V2 features an intelligent temperature control system that monitors motor and electronic temperatures in real-time, ensuring thermal stability and consistent performance, even during extended racing sessions.

Can I customize force feedback settings for different games?

Yes. The MOZA Pit House software gives you full control over force feedback characteristics via tools like the FFB Equalizer, interpolation algorithm, and custom FFB curve tuning. You can save game-specific presets and even fine-tune vibration filtering, damping, and weight shift response for a highly personalized racing feel.

How easy is it to set up the R16 V2 with other MOZA accessories?

Very easy. The R16 V2 features direct connection ports for MOZA pedals, handbrake, shifter, and dashboard, minimizing the need for PC USB port usage. Combined with front and side mounting support, installation is flexible and clean—perfect for both GT and formula-style cockpit layouts.
