MOZA SR-P Pedal

Load Cell for the Best Control

Load Cell for the Best Control

Made with high-strength steel

High precision pressure sensor for up to 75KG

16-bit high precision magnetic encoder

Direct connection with PC through USB port

Adjustable pedal spacing

Braking spring and damping block combined

Made with high-strength steel

High precision pressure sensor for up to 75KG

16-bit high precision angle sensor

DC with PC through USB port

Adjustable pedal spacing

Braking spring and damping block combined

Made with High-strength Steel

The pedal is machined with high-strength steel, giving superior quality and endurance.

The pedal is machined with high-strength steel, giving superior quality and endurance.

Floor Mounted Organ Type
Accelerator Pedal

The organ-type accelerator pedal allows the driver's foot and pedal to follow the same trajectory. Which makes throttle control easier and more accurate.

The organ-type accelerator pedal allows the driver's foot and pedal to follow the same trajectory. Which makes throttle control easier and more accurate.

High Precision Pressure Sensor with
A Maximum Range of 75 KG

High Precision Pressure Sensor with A Maximum Range of 75 KG

The MOZA SR-P pedals utilize pressure sensors with a maximum range of 75KG. The pressure sensors will detect the braking pedal stopping pressure . A user can obtain the ideal braking force by controlling the amount of pressure applied on the braking pedal.

16-bit High Precision Magnetic Encoder

16-bit High Precision Magnetic Encoder

The brake, clutch and throttle pedals all use 16-bit precision magnetic encoder with 65536 PPR resolution, a much higher resolution and more stable than a Hall sensor.

Dual Sensor Fusion Algorithm

Dual Sensor Fusion Algorithm

The brake utilizes a pressure and angle sensor, allowing fine tuning of braking. The initial stage is dominated by the angle sensor, allowing racers to control the braking angle, the mid and last stage is controlled by the pressure sensor, which makes the pedal easier to control.

The brake utilizes a pressure and angle sensor, allowing fine tuning of braking. The initial stage is dominated by the angle sensor, allowing racers to control the braking angle, the mid and last stage is controlled by the pressure sensor, which makes the pedal easier to control.

Braking Spring and Damping
Block Combined

Utilizing both a braking spring and damping block, racers can enjoy more control in the initial stage pedal travel, with a signature stiffness in the final stages of braking, highly simulating a real foot feel.

Utilizing both a braking spring and damping block, racers can enjoy more control in the initial stage pedal travel, with a signature stiffness in the final stages of braking, highly simulating a real foot feel.

MOZA SR-P Accessory Kit

The MOZA SR-P pedals come with an accessory kit, including 2 springs and 1 damper, which together with the original spring and damper could create 6 different foot feel combinations. The springs and damper in the accessory kit could increase damping and shorten braking distance to meet the needs of pro racers.

MOZA-SRP springs
Springs
MOZA-SRP Spring 2
Damper

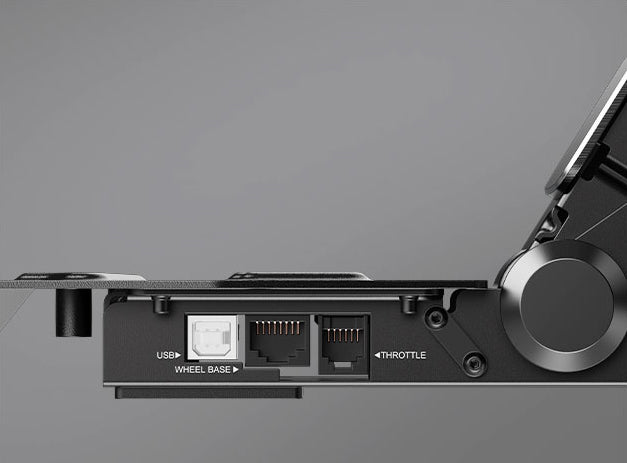

Direct connection with PC through USB port

The MOZA SR-P pedals could connect to PC easily through a USB port and calibrate through the MOZA Pit House software. Compatible with all simracing gears in the market.

Multiple use scenarios

The anti-slip mat at the bottom prevents the pedal from slipping while being used without professional brackets, while being easily applied to more professional setups.

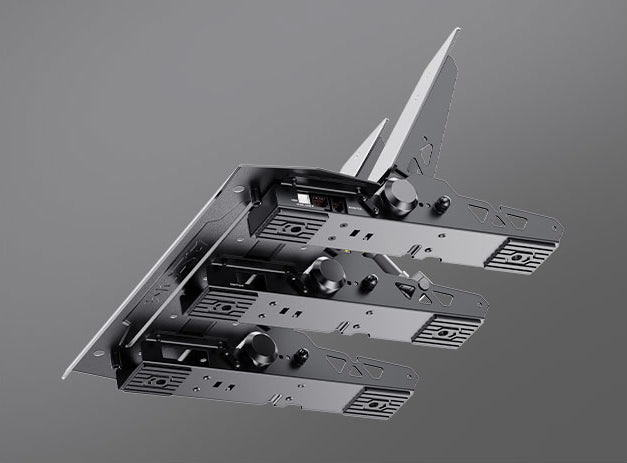

Detachable Pedal Design

Pedals can be detached and mounted onto other professional brackets with ease. For hardcore users, the pedals can also be reversed.

Pedals can be detached and mounted onto other professional brackets with ease. For hardcore users, the pedals can also be reversed.

Pedal Output Curve Adjustment

MOZA's Pit House allows for easy configuration of the pedal output curves according to different needs.

MOZA's Pit House allows for easy configuration of the pedal output curves according to different needs.

Specs

Material

High-strength steel

Plate Material

High-strength steel

Color

Black

Braking Sensor

Pressure sensor+angle sensor

Max Range of Pressure Sensor

75KG

Throttle Sensor

Angle sensor

Clutch Sensor

Angle sensor

Angle Sensor Resolution

16-bit (65536ppr)

Pedal Spacing

Adjustable

Pedal Surface Height

Adjustable

Pedal Connection Port

USB direct

Pedal Travel Software Adjustment

Yes

Pedal Travel Reverse Function

Yes

Anti-Slipping Bottom

Yes
