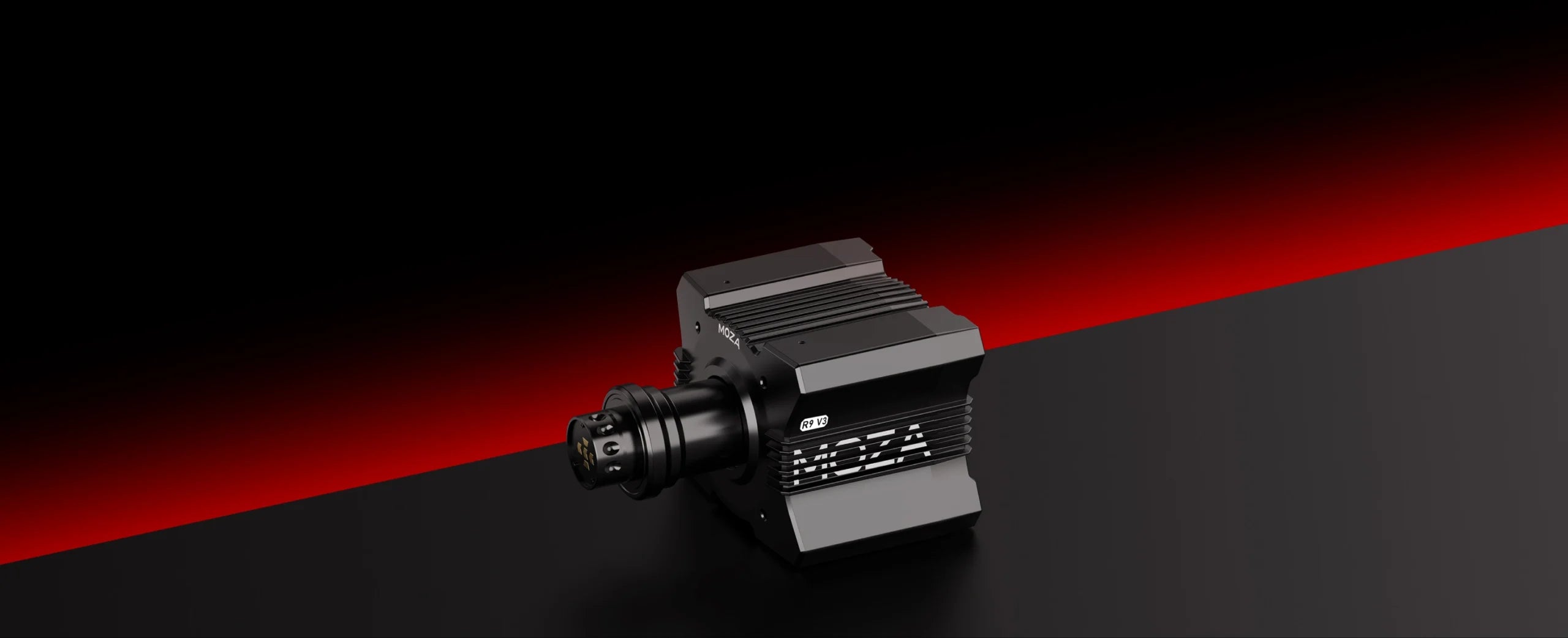

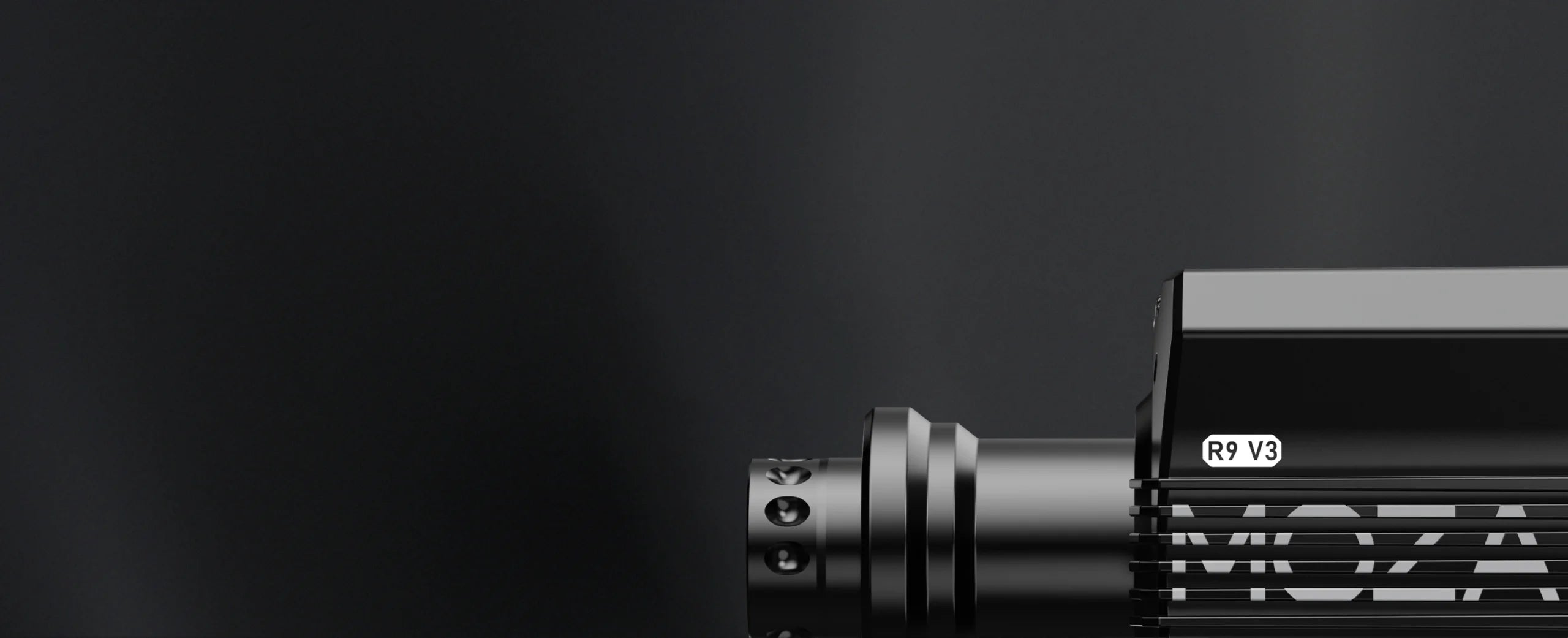

R9 Direct Drive Wheel Base

WATCH INTRO

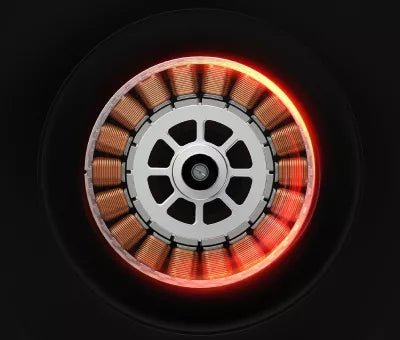

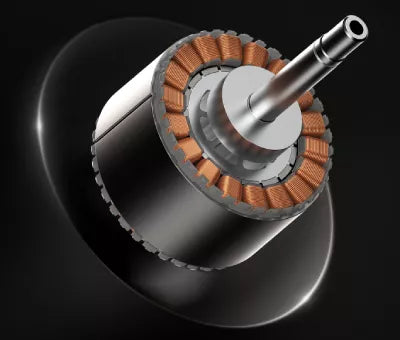

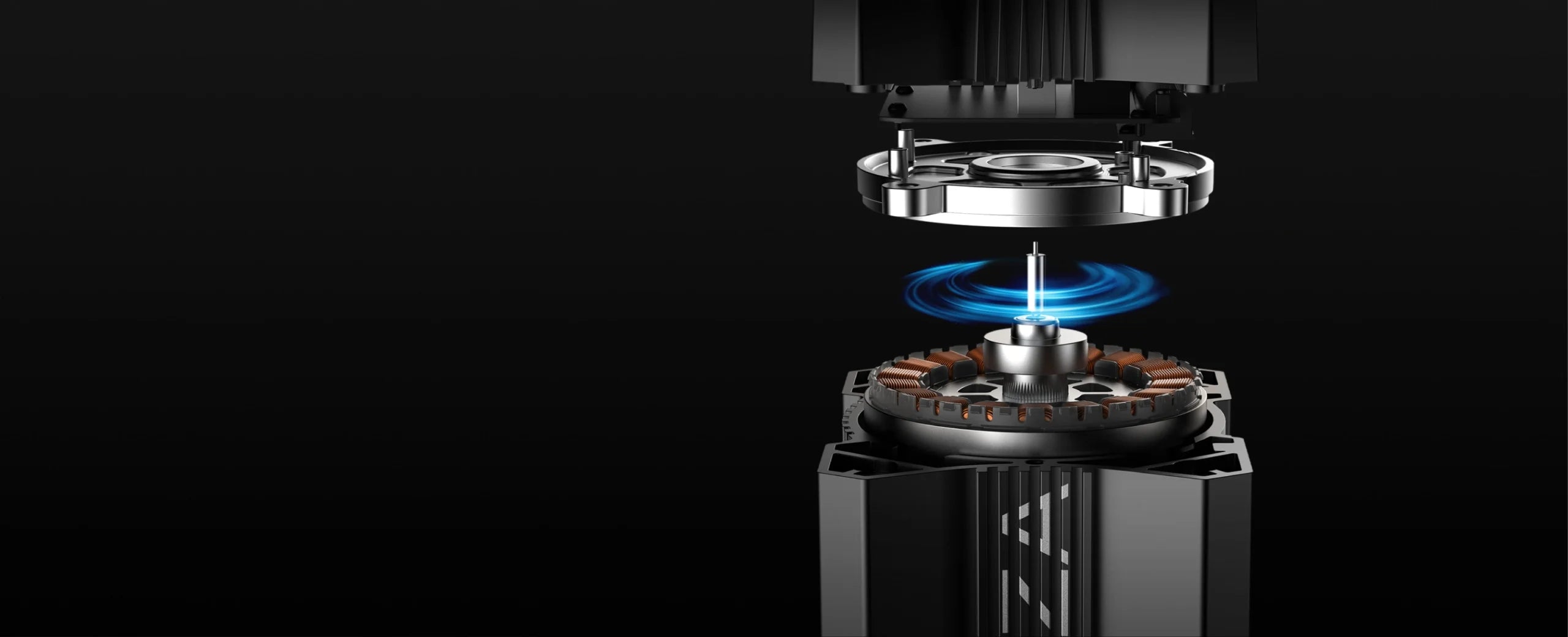

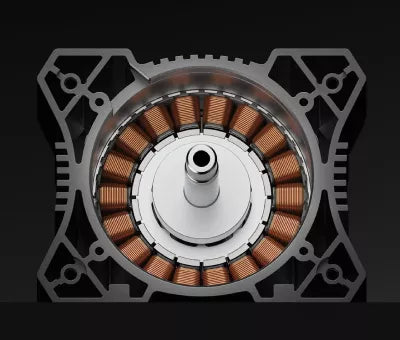

9 N·m of Torque from
a Direct Drive Servo Motor

The R9's 9N·m of torque can simulate a full range of steering forces and car handling characteristics.

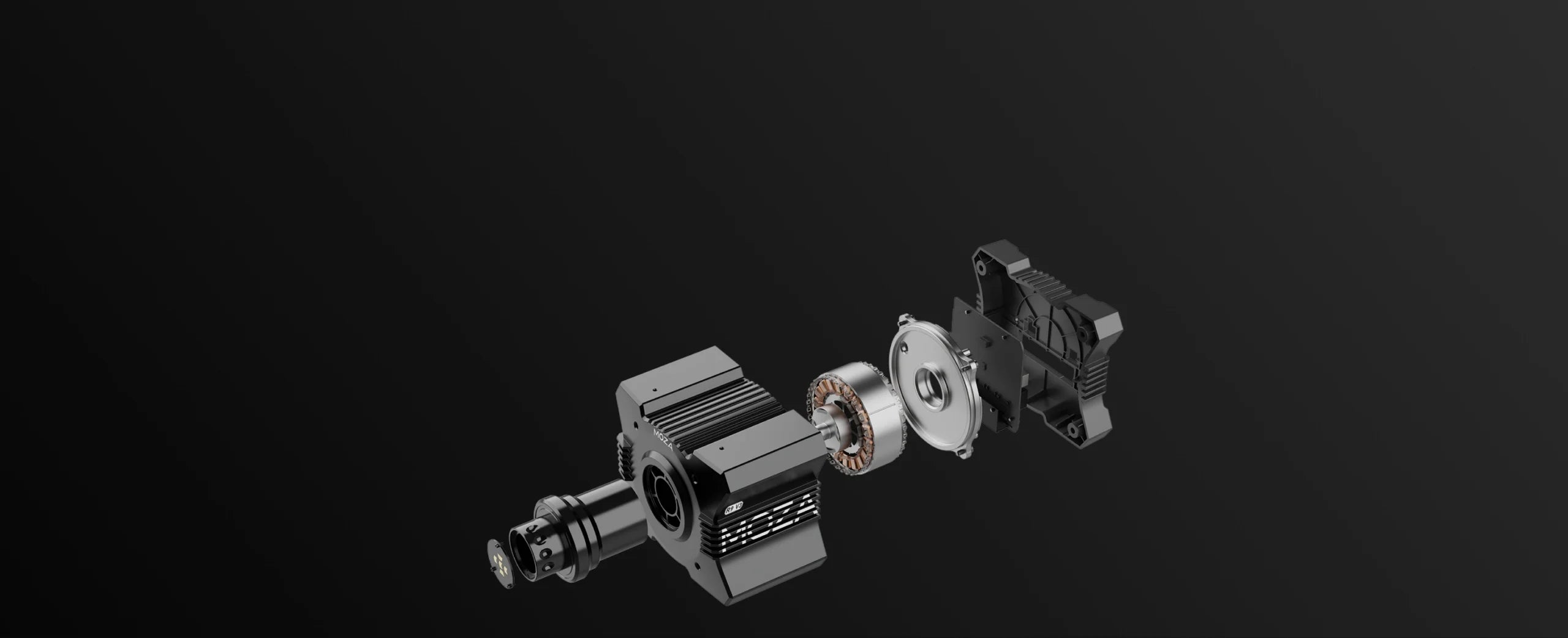

Minimum Weight
& Maximum Torque

It adopts the designing principle of Maximum & Minimum, which means outputting maximum torque with the most compact body size and mass.

Minimum Weight & Maximum Torque

Maximum torque from a compact body.

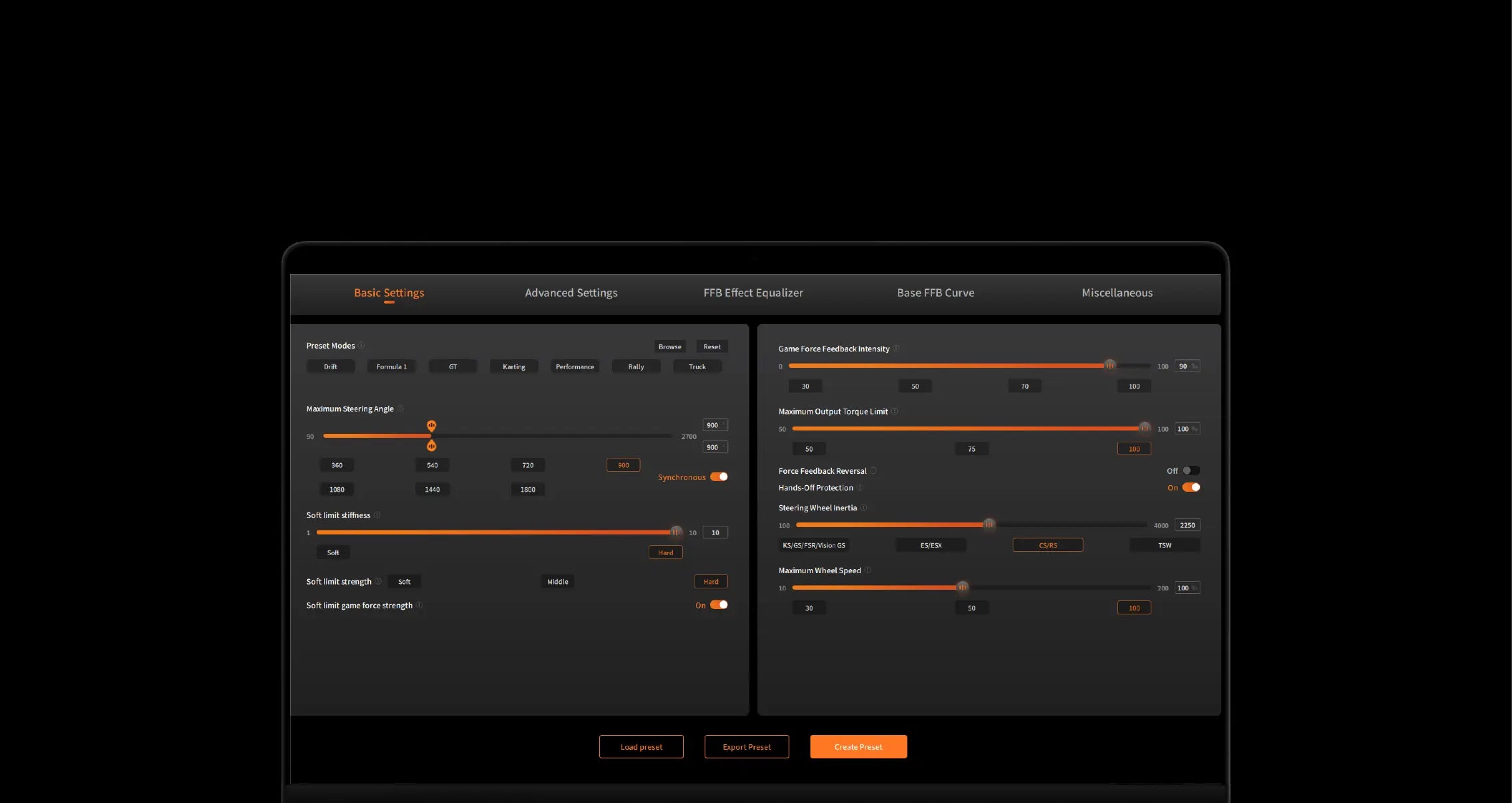

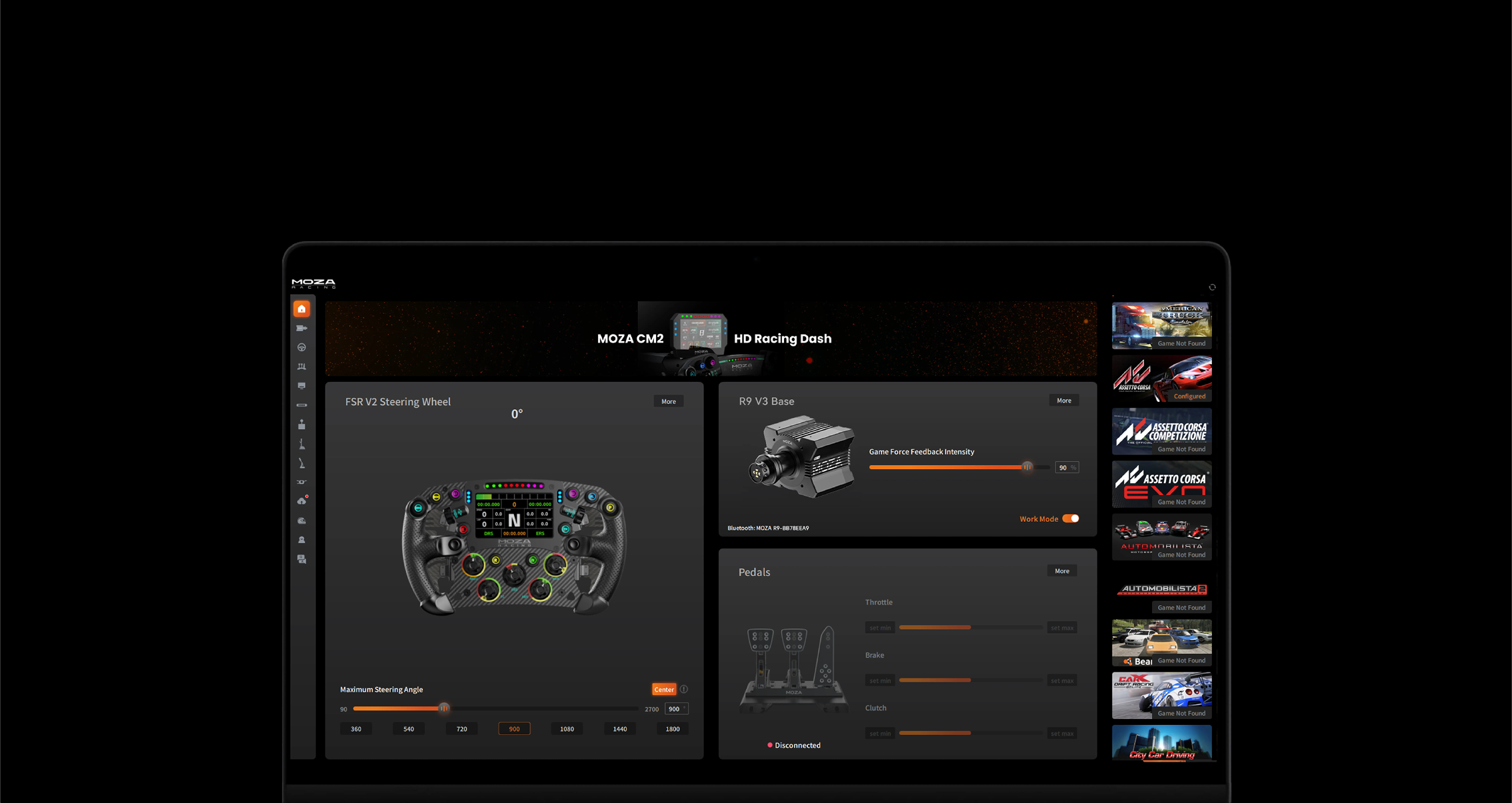

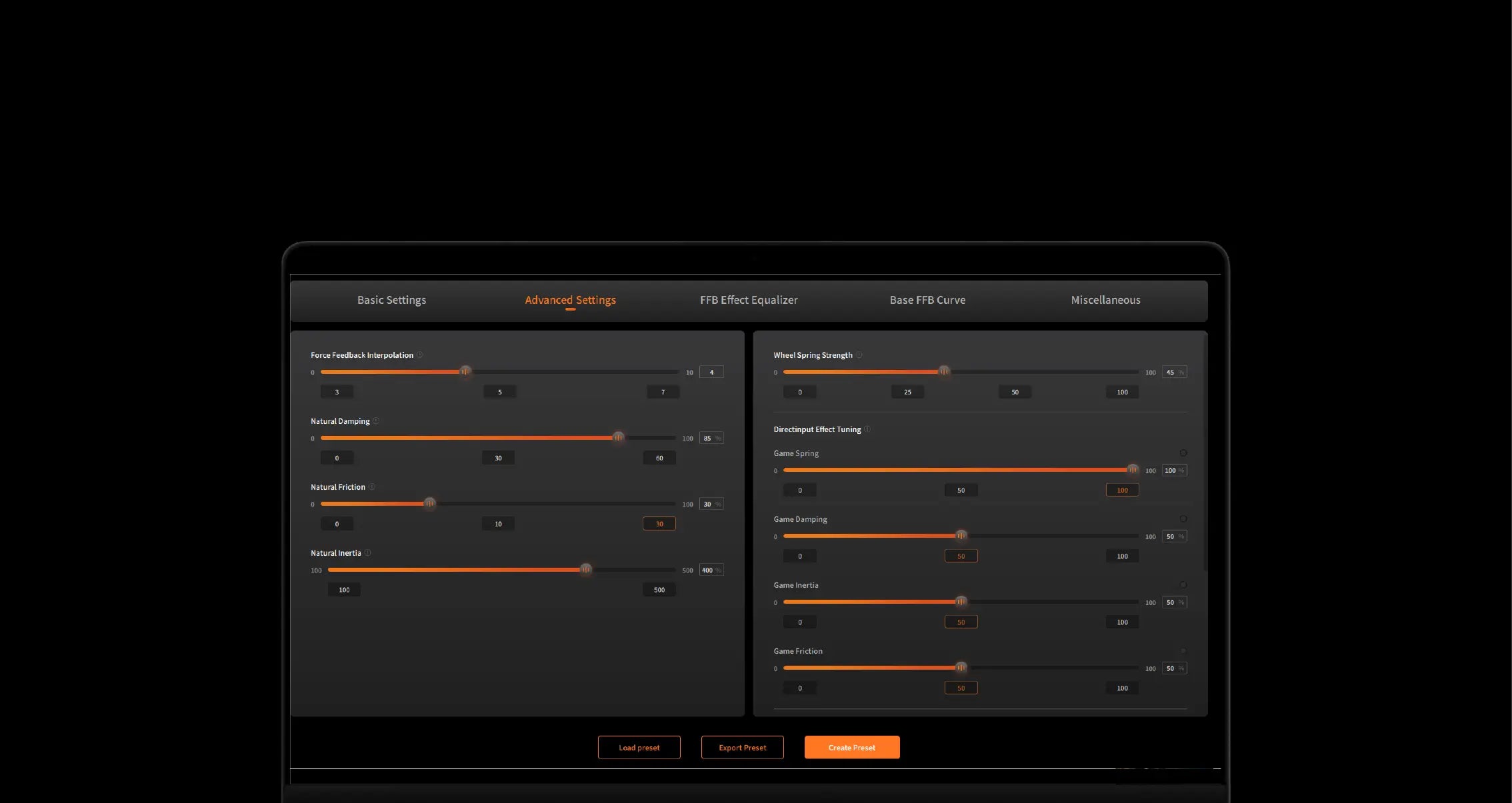

MOZA Pit House

Control center, convenient and fast
The MOZA Pit House control center allows a racer to check the status of a device, adjust settings, and load presets.
One-click Start
The driving modes such as GT, performance car, formula, rally, drifting, and karting are custom designed for racers.

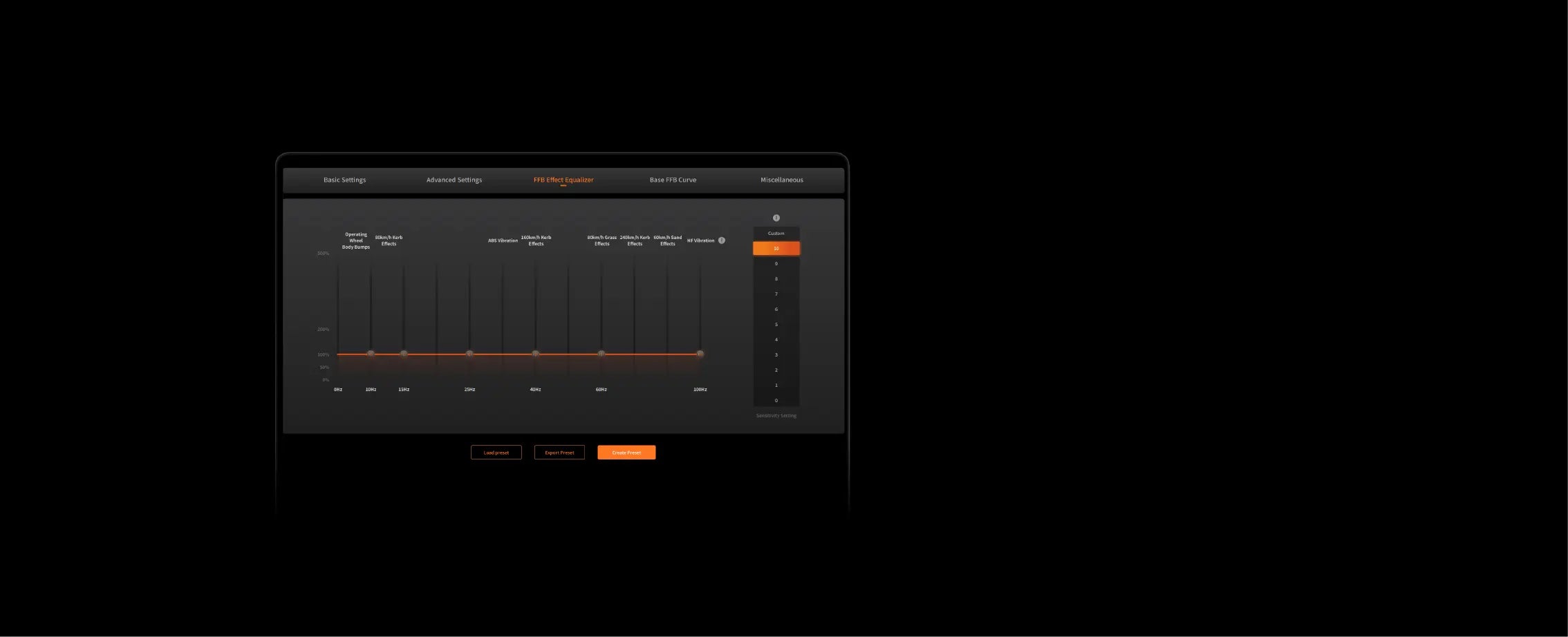

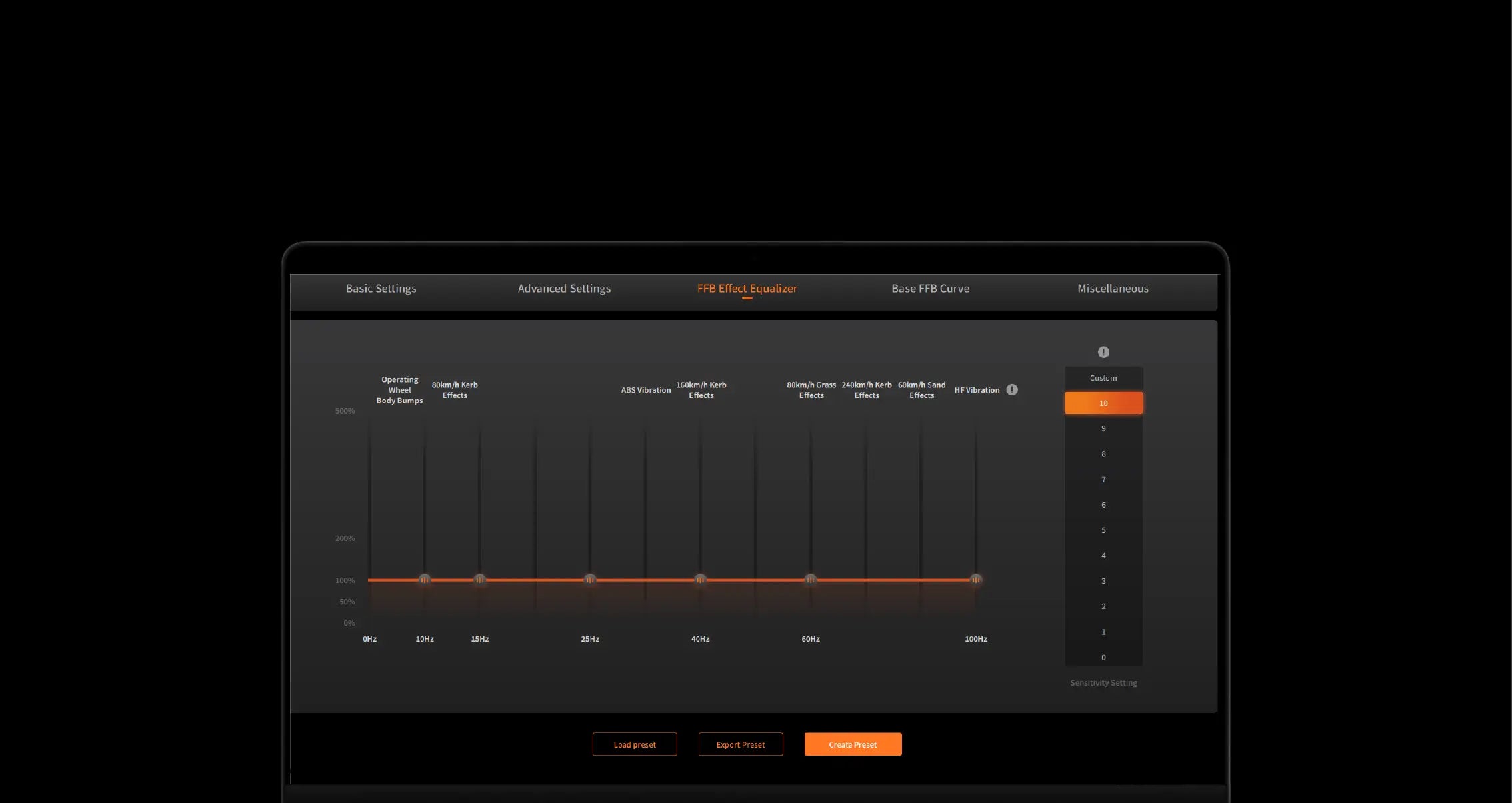

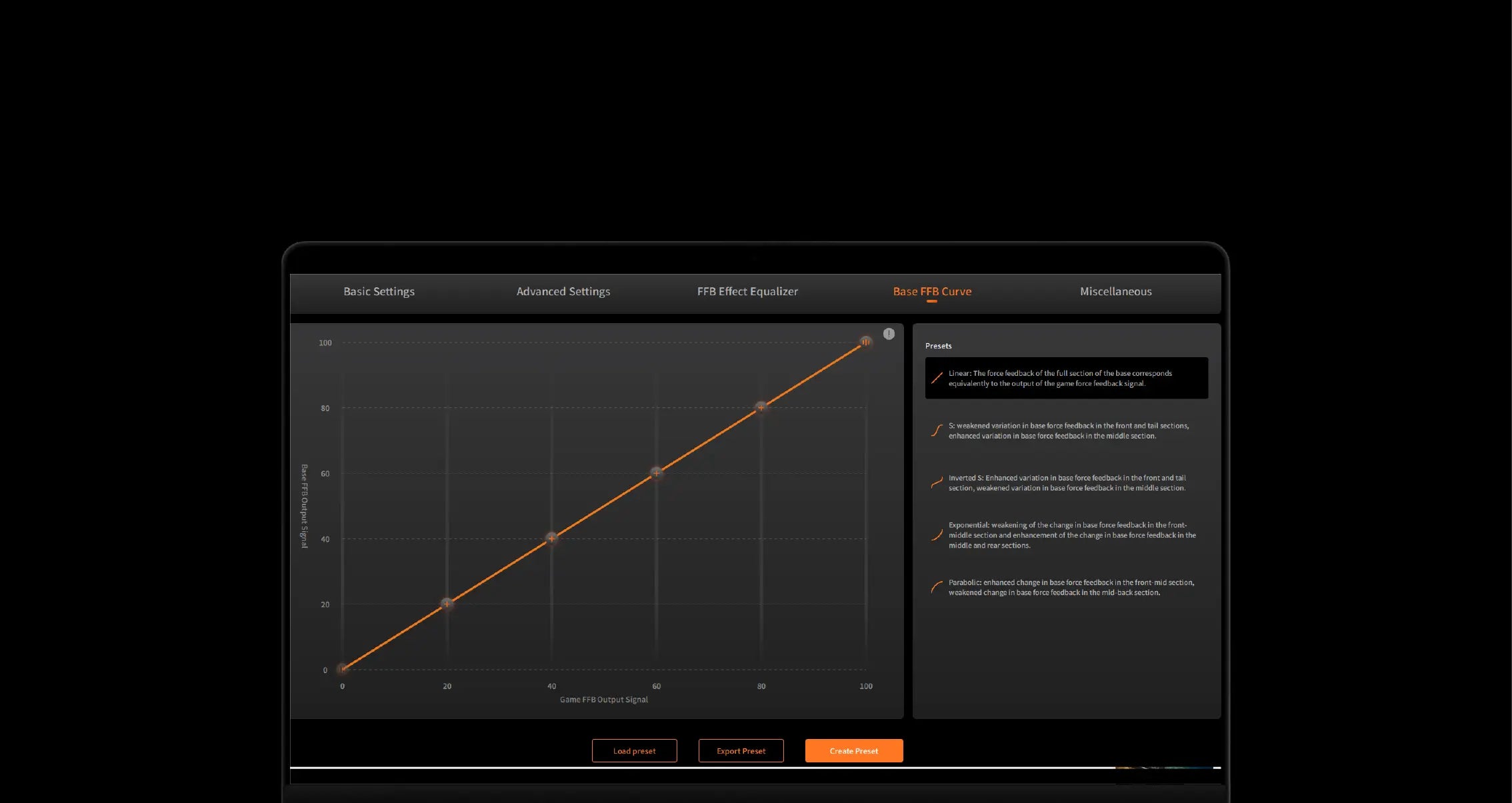

See What you Feel
The R9 can simulate different driving experiences.

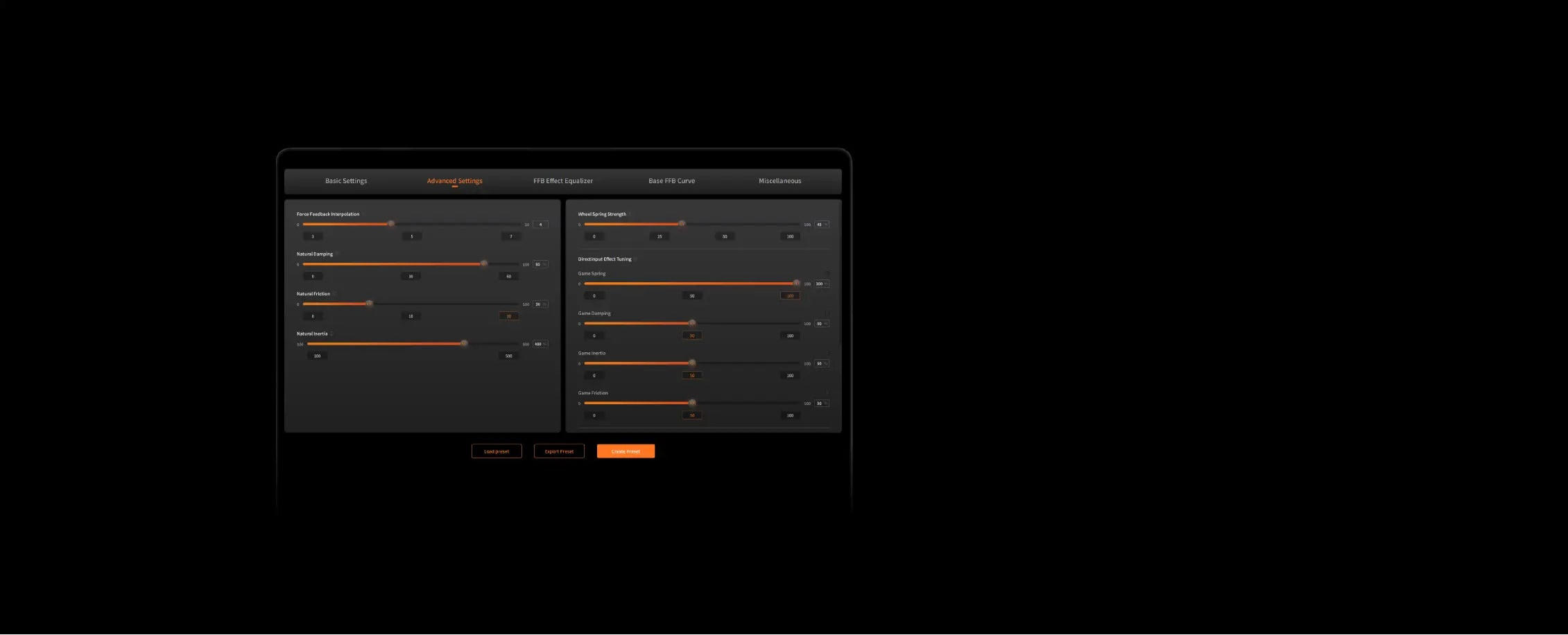

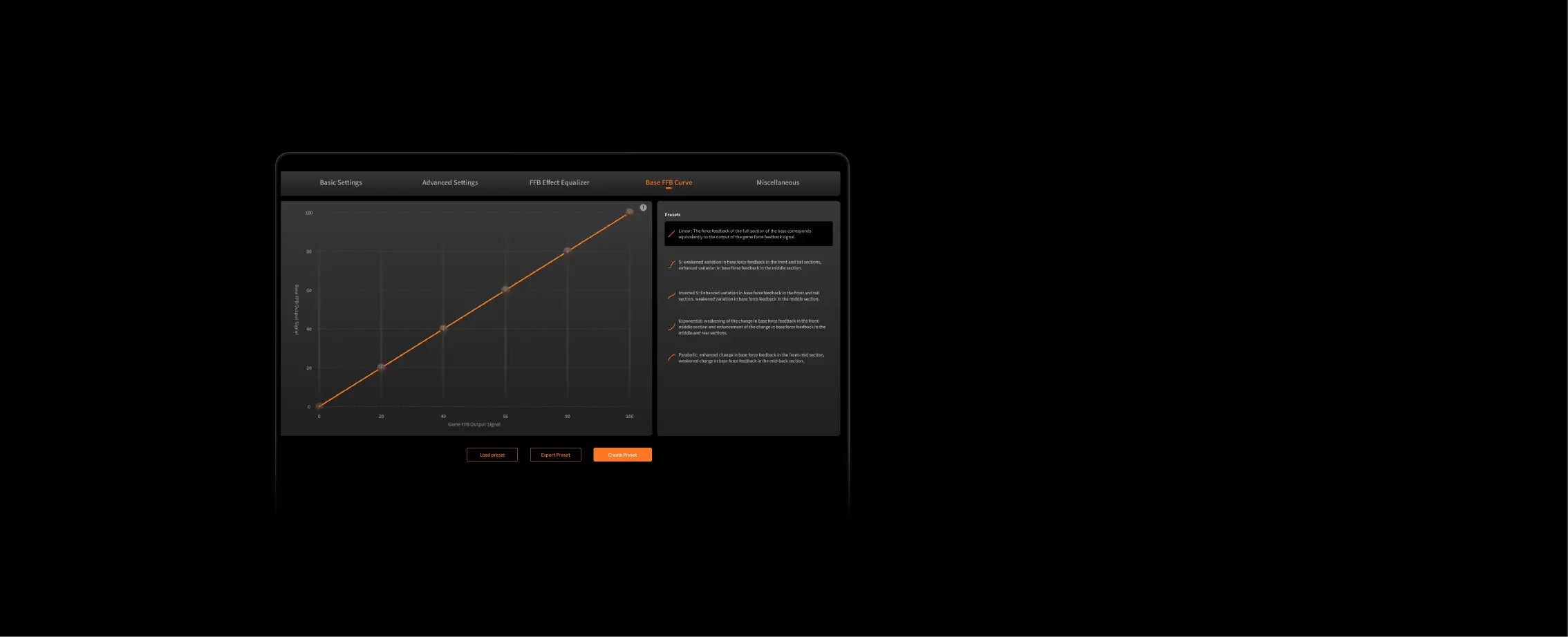

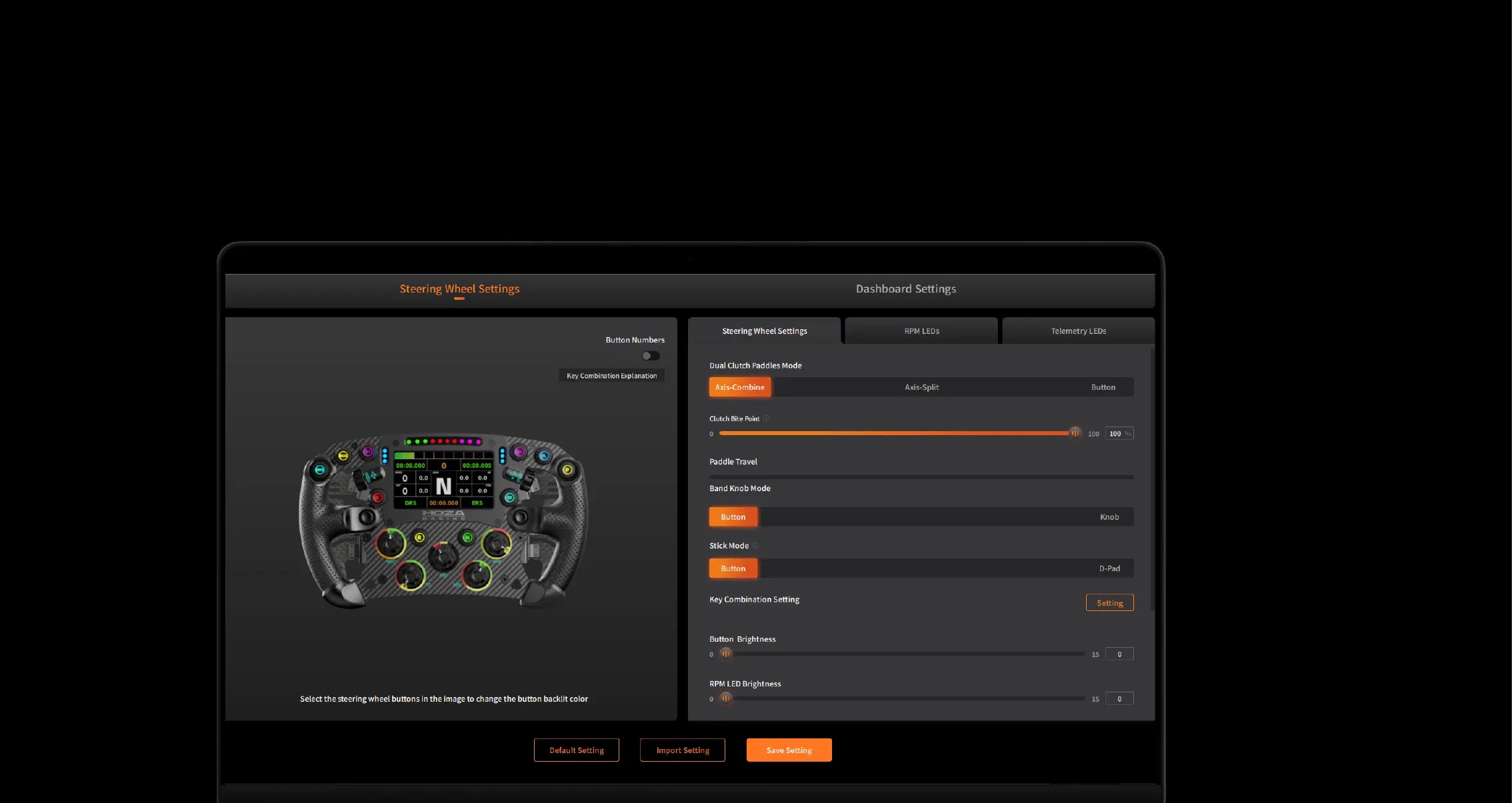

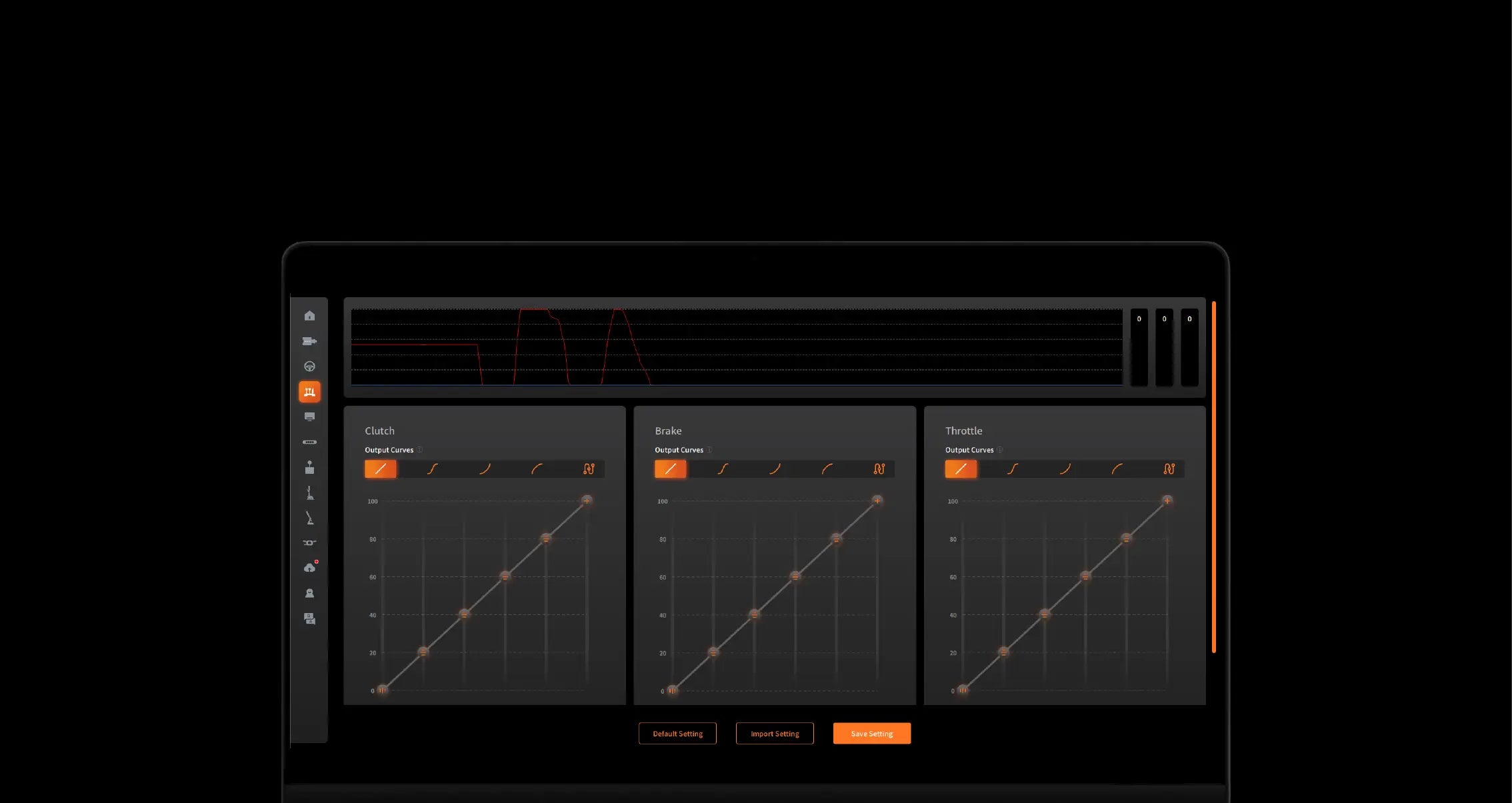

Custom Settings
User created custom settings for the best racing experience.

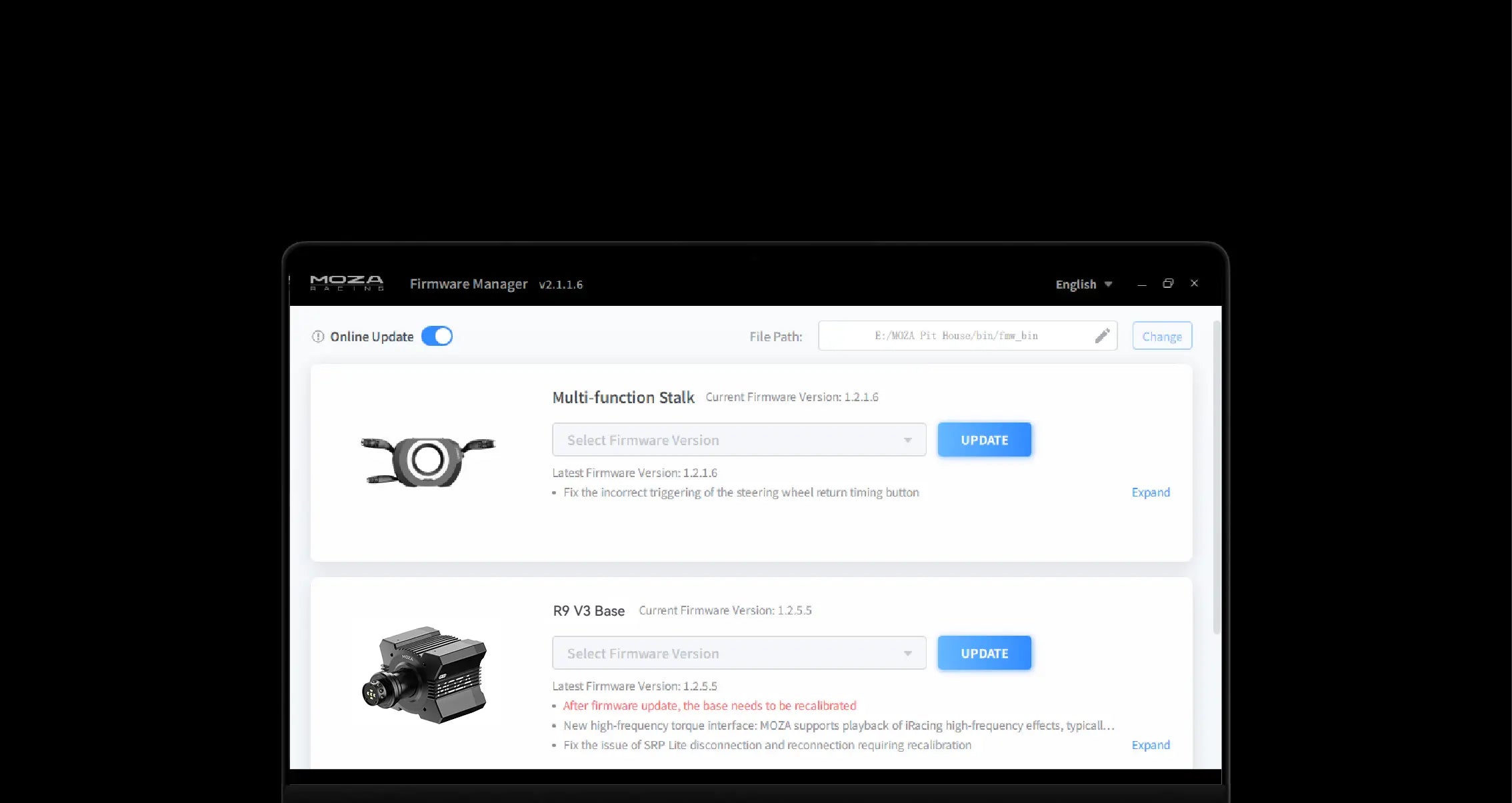

One-Click Ecosystem Upgrading
When firmware needs to be updated, users can upgrade all devices in the control center with just one click.
Previous slide
Next slide
Compact and Convenient for
All Driving Setups.
When using in your house, in the large space such as the living room, it could be assembled with ground brackets and special tables and chairs, simulating cockpit and enjoy the amazing driving experience. It is convenient to invite friends over to try it. However, for relatively small spaces such as gaming rooms, study rooms, bedrooms, etc., you could mount it on the desktop, without occupying much space.

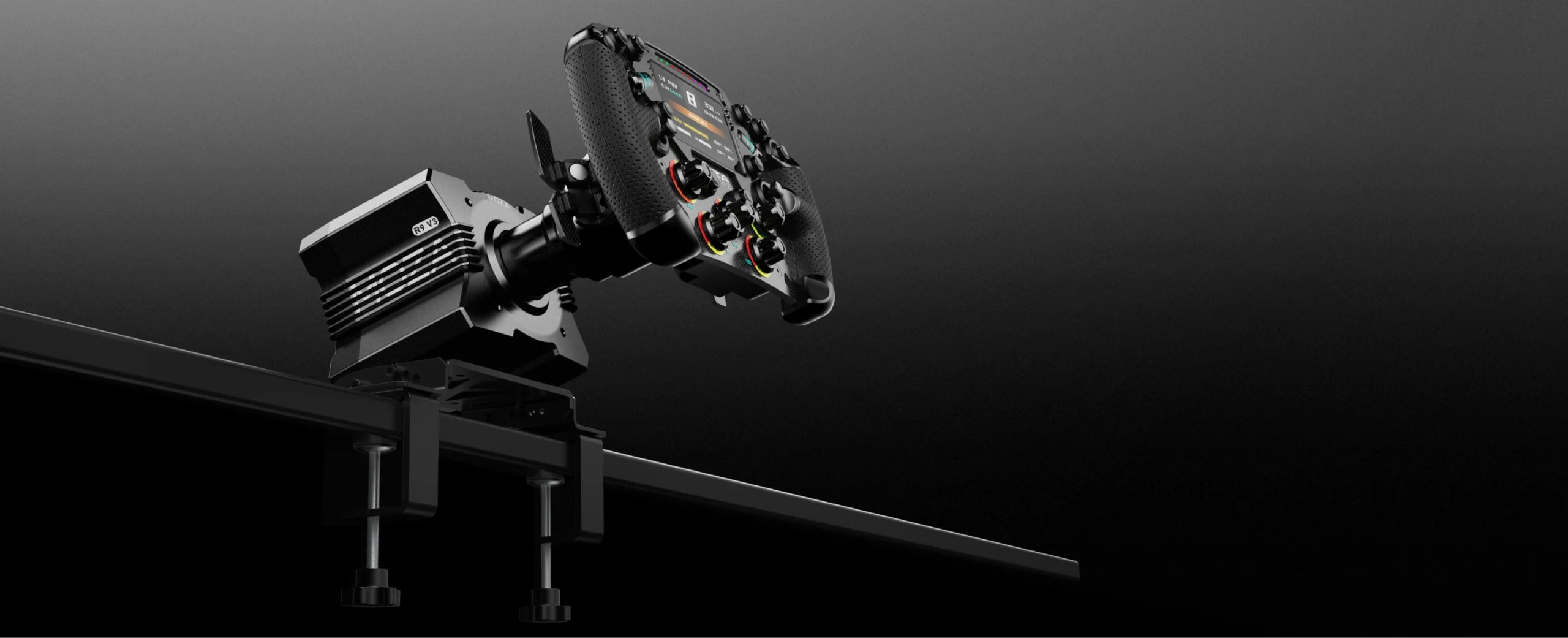

Race in Limited Space
Use the table clamp to mount the MOZA R9 to a table or desk.
Previous slide
Next slide

Aviation Grade Aluminum Alloy Housing

Unmatched quality and durability. The MOZA R9's whole housing is made of aviation grade aluminum alloy.

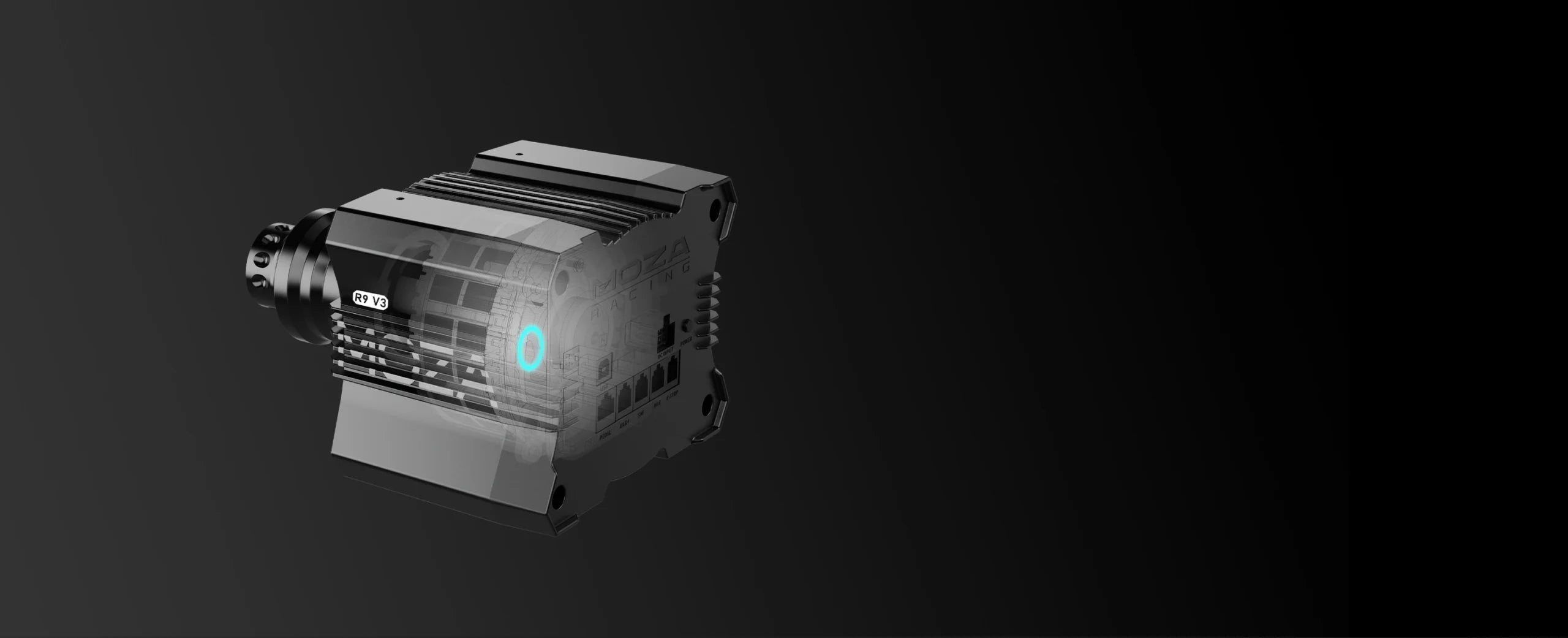

Smart Temperature Control System

Our advanced system continuously monitors the temperature of the motor and electronic components and employs intelligent temperature control strategies to deliver stable and reliable performance in all circumstances.

Smart Temperature Control System

Our advanced system continuously monitors the temperature of the motor and electronic components and employs intelligent temperature control strategies to deliver stable and reliable performance in all circumstances.

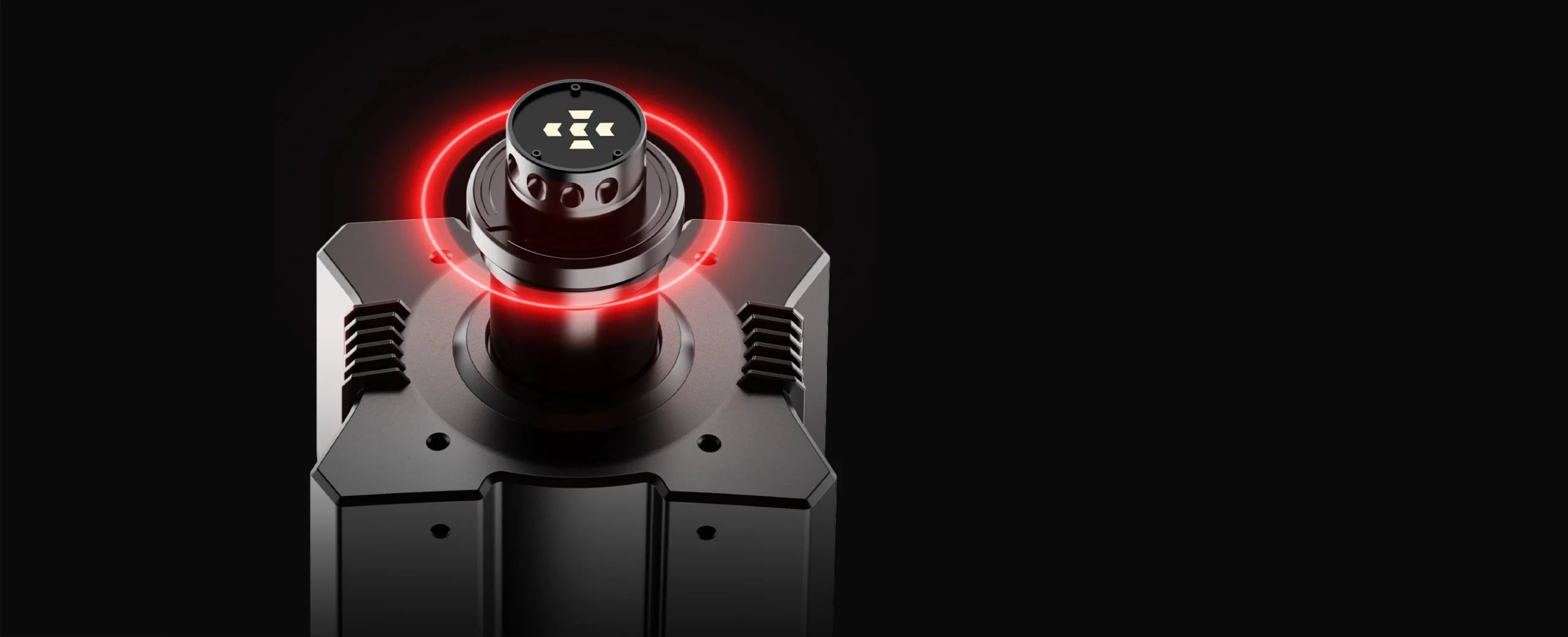

Zero Latency Wireless Technology

Wirelessly transmit data and power between the steering wheel and the base.

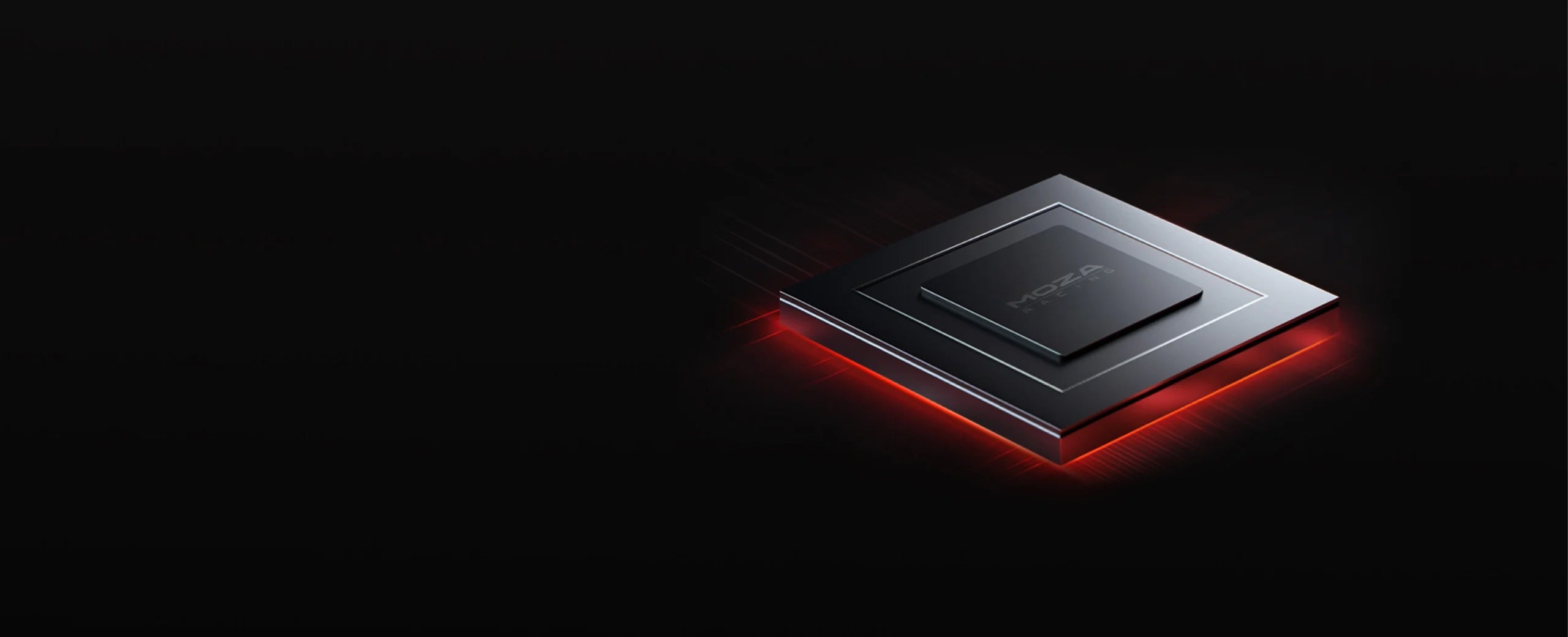

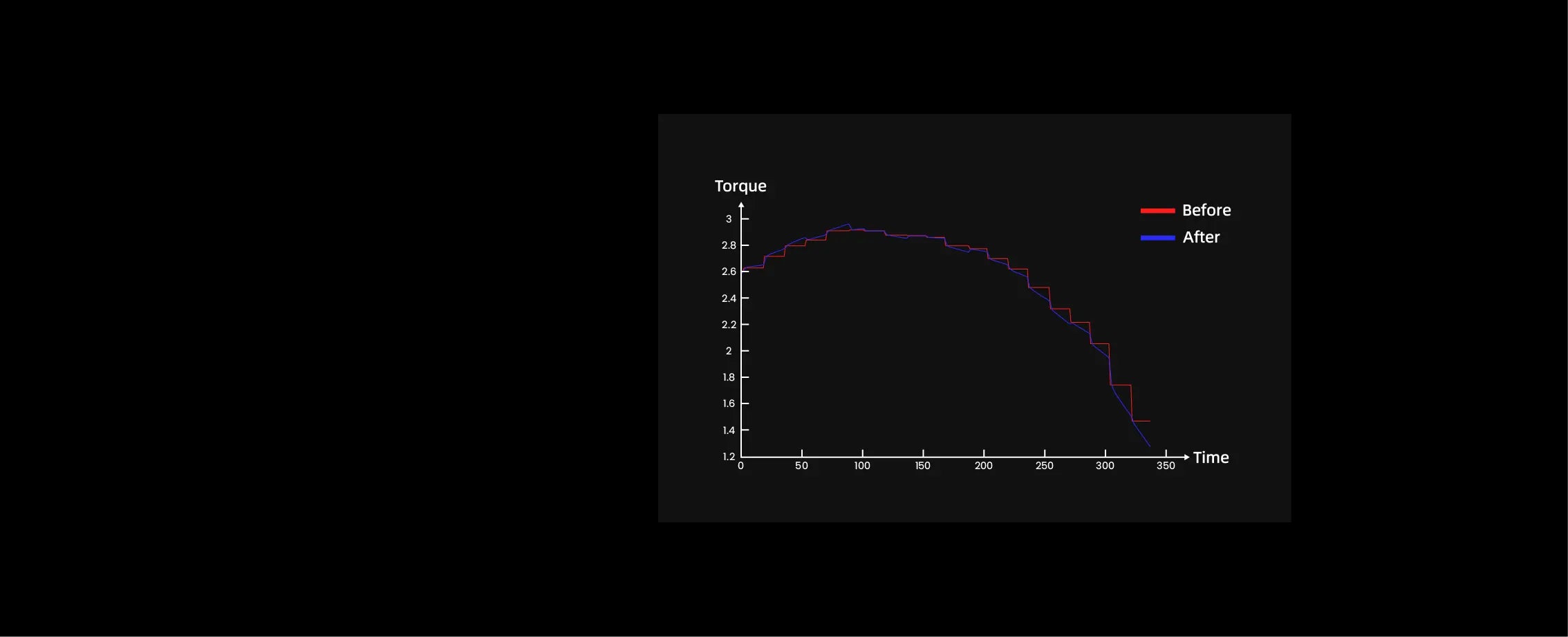

Quad Core Architecture

No matter how complex the force feedback calculations get. The unique Quad CPUs can reliably process the task at maximum precision.

Quad Core Architecture

No matter how complex the force feedback calculations get. The unique Quad CPUs can reliably process the task at maximum precision.

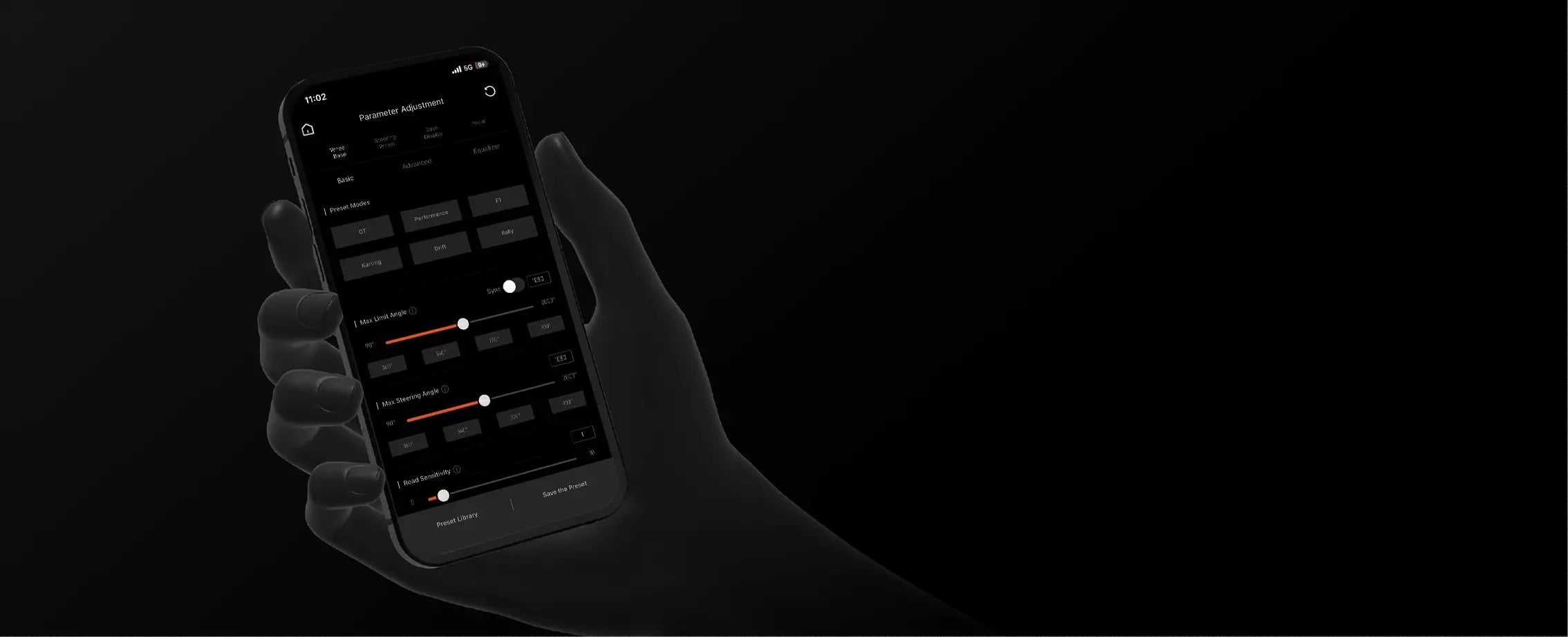

APP Cloud Control

The settings of the wheel base, steering wheel, pedals, etc. can be modified through the MOZA APP. Settings can be imported with one click onto new simulators.

Compatible, Customizable

MOZA R9 V2 is compatible with any MOZA ecosystem other than the V1 steering wheels.

Specs

Platform

PC

FFB Drive System

Direct Drive

Communication Method

R9 V1: Wireless
R9 V2: Wired

Max Wheel Rotation

Limitless

Housing Material

Aviation Grade Aluminum Alloy

Color

Black

Peak Torque

9 Nm

Peak Power

180W

Input Voltage

110V~220V AC —> 36V DC

USB Refresh Rate

1000Hz

Encoder Resolution

32768 ppr (15-bits)

Indicator

YES

App Functions

Supported

Quick Release

Supported

Connection Ports

Power, DC Input, E-stop, USB, Dash

Accessories

User manual, Warranty card, Power supply, USB cable, Toolkit

Mounting Method

Bottom mount

Side Mount Option

With optional side mount bracket

Desk Clamp

Optional

Emergency Stop Switch

Optional

Online Firmware Upgrade

Applicable

Firmware Update

Applicable

Dimension (L x W x H)（mm）

240*157*124

Weight

6.8kg
