At a Glance

仕様

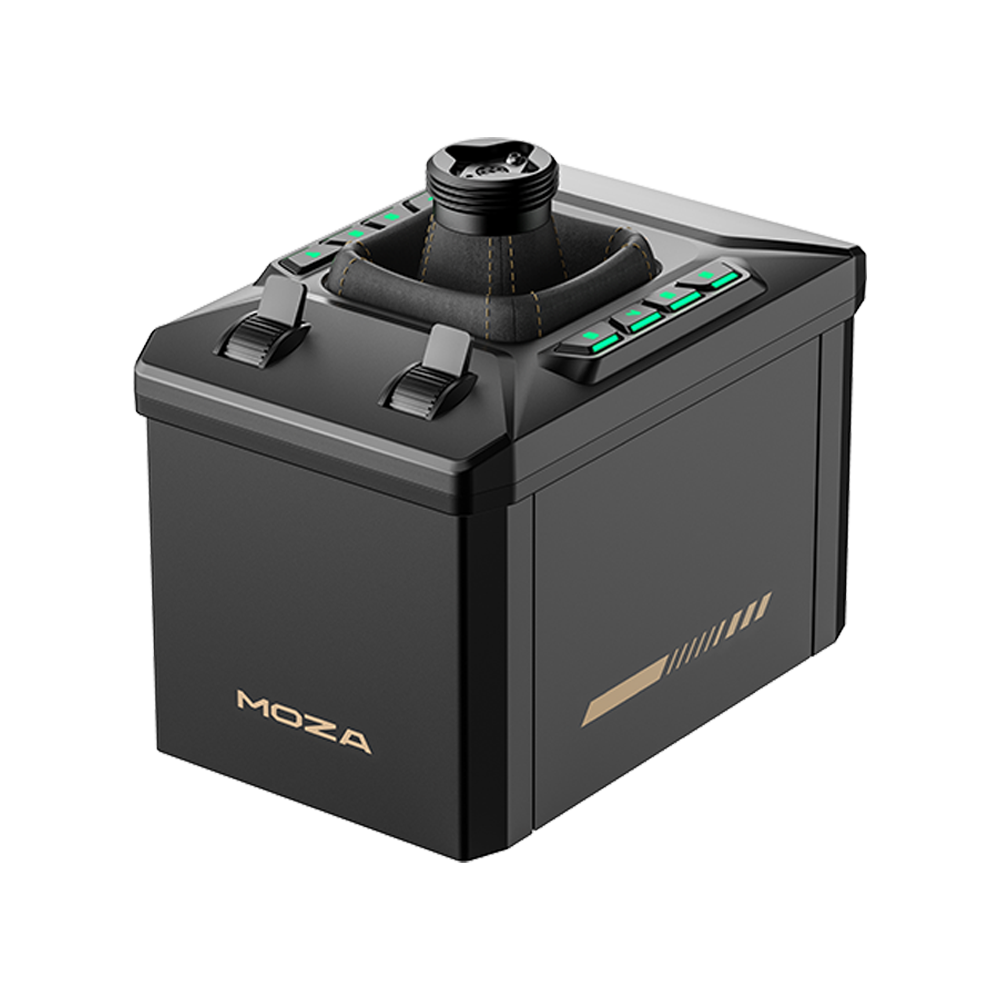

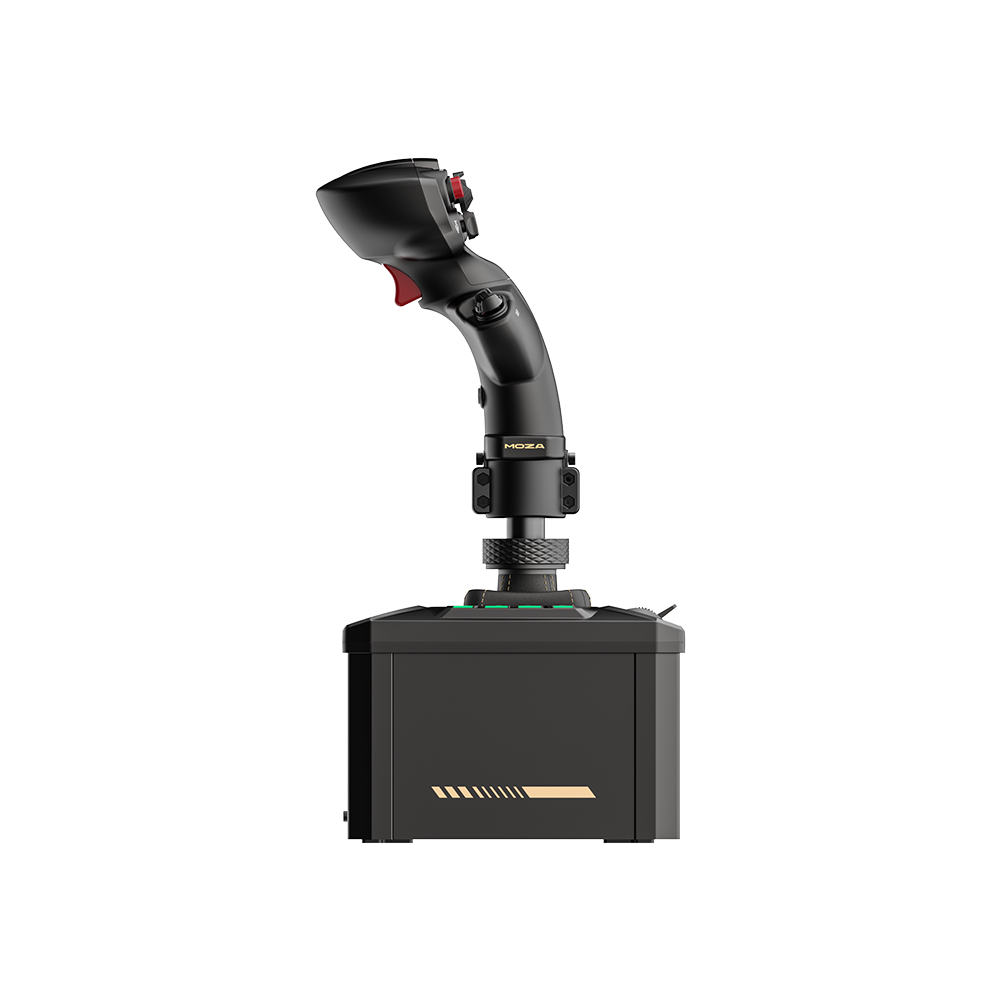

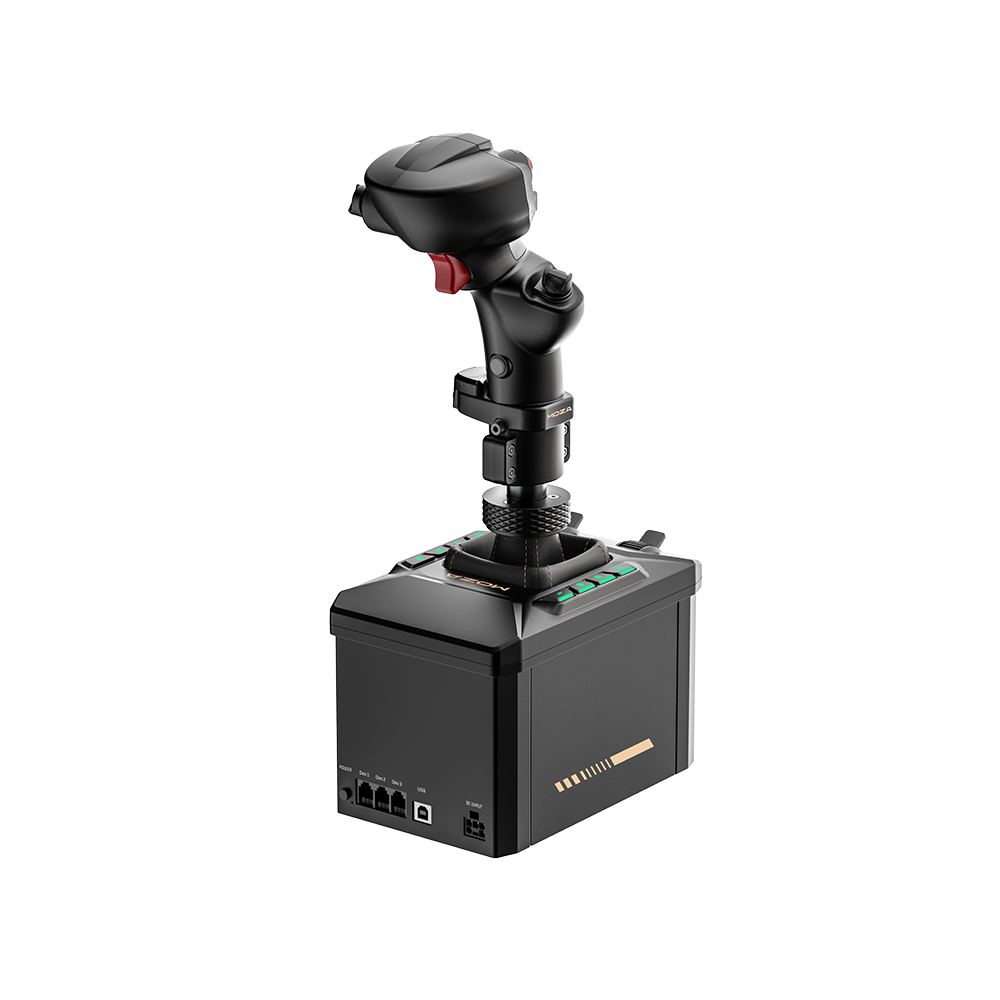

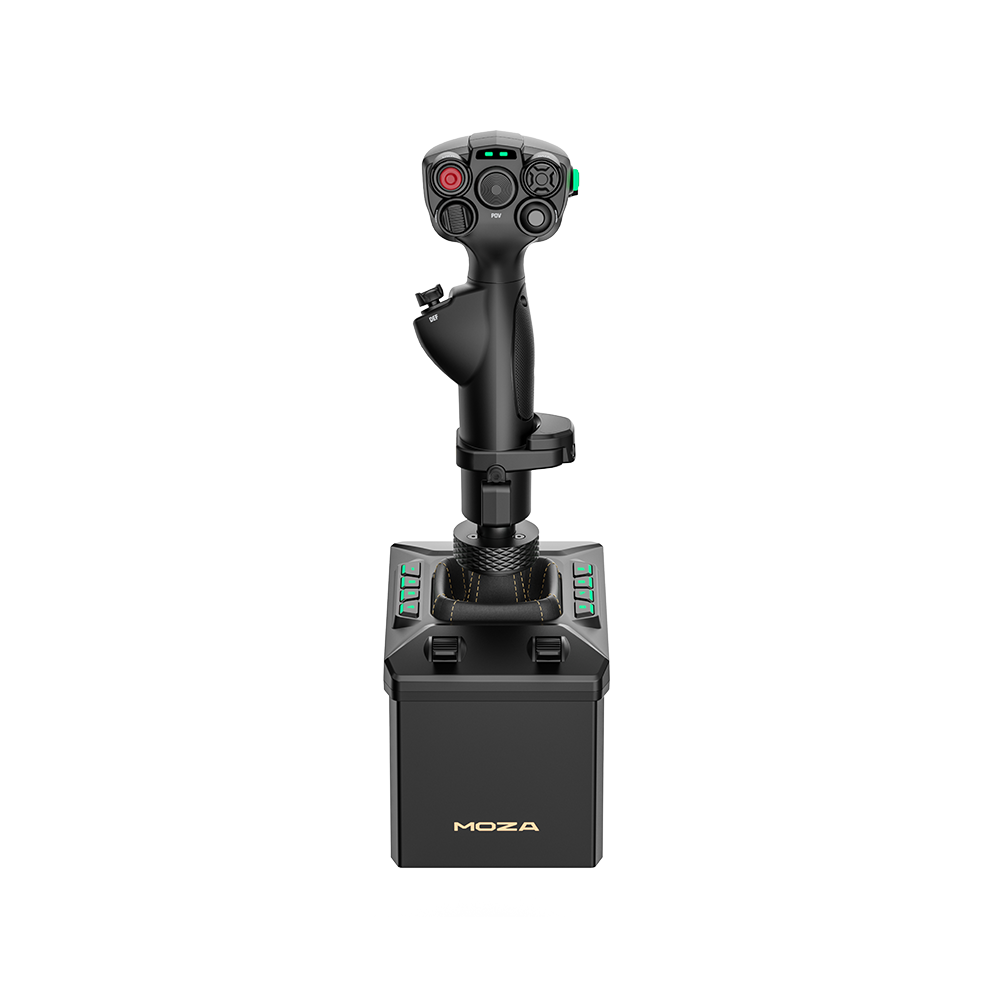

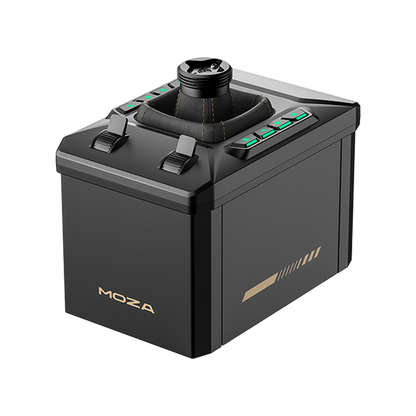

MOZA AB6 Force Feedback Base

Dimensions: 188*123*163 mm
Housing Material: Aluminum alloy
Dust Bag Material: Microfiber leather
Weight: 2.95KG

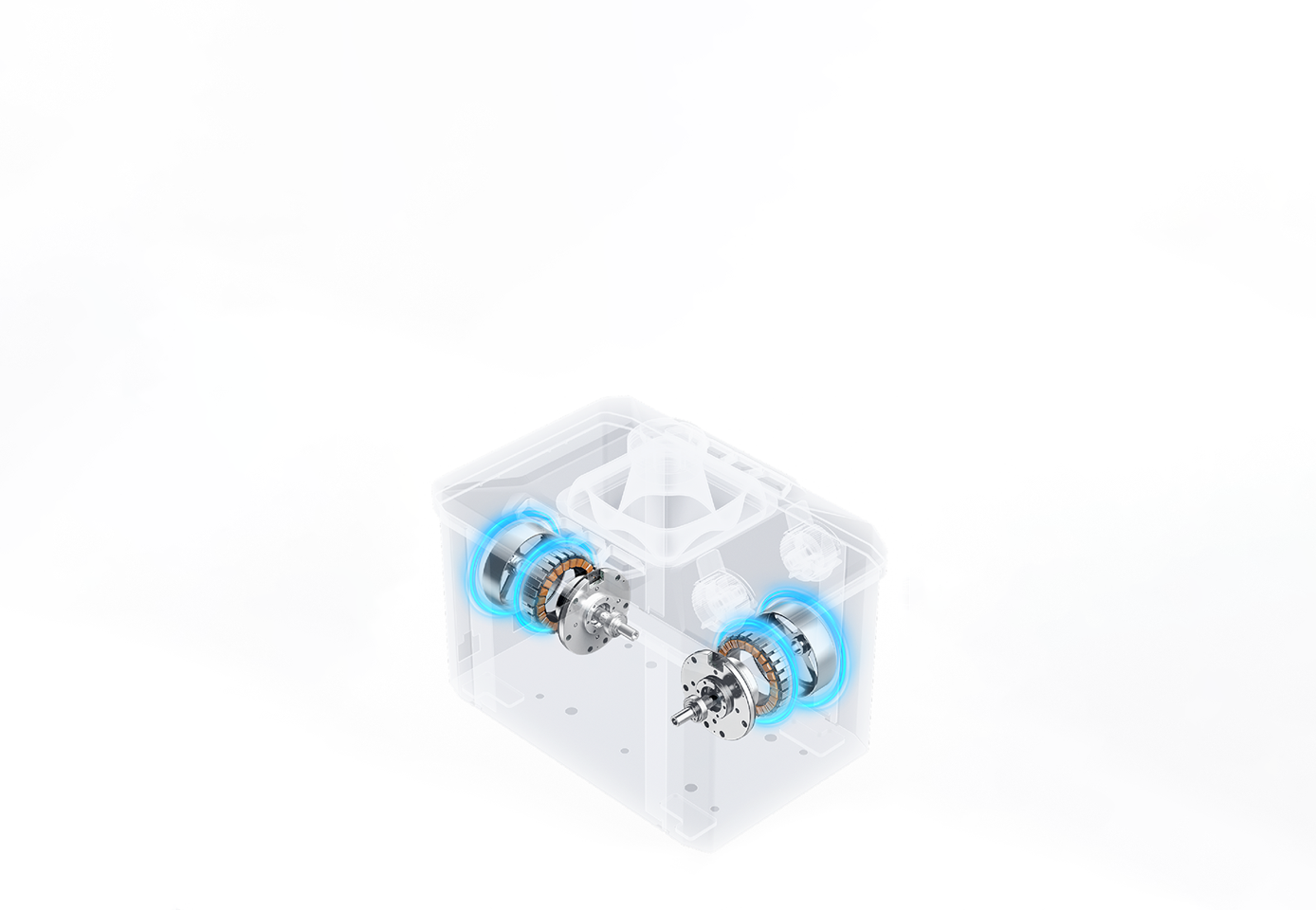

Motors: Dual high-performance servo motors
Roll Axis Continuous Torque: 4.4N·m
Peak Combined Torque: 6N·m
Travel Range: ±20°
Compatible Sticks: All MOZA flight sticks
Power: 72W
Voltage Input: 110~220V AC —>12V DC
Game Resolution: 0-65535
USB Polling Rate: 1000Hz
Mounting Options: Desktop clamp (included), Base Mount Adapter (sold separately), direct hard mount
Emergency Stop Switch: Optional
Smart Telemetry-Based Force Feedback: Supported (no plugin required)
Native Force Feedback Support:
Platform: PC
Included Accessories: Power supply, power cable, data cable, toolkit, user manual, stickers

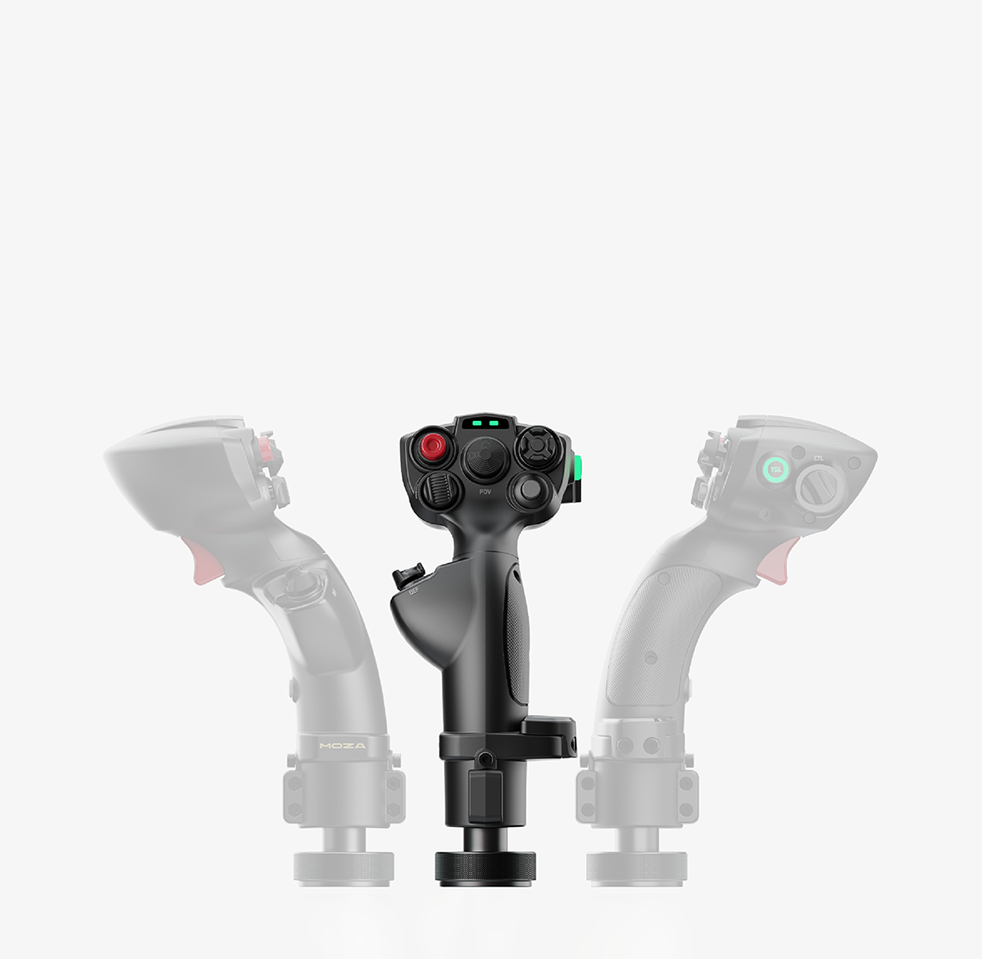

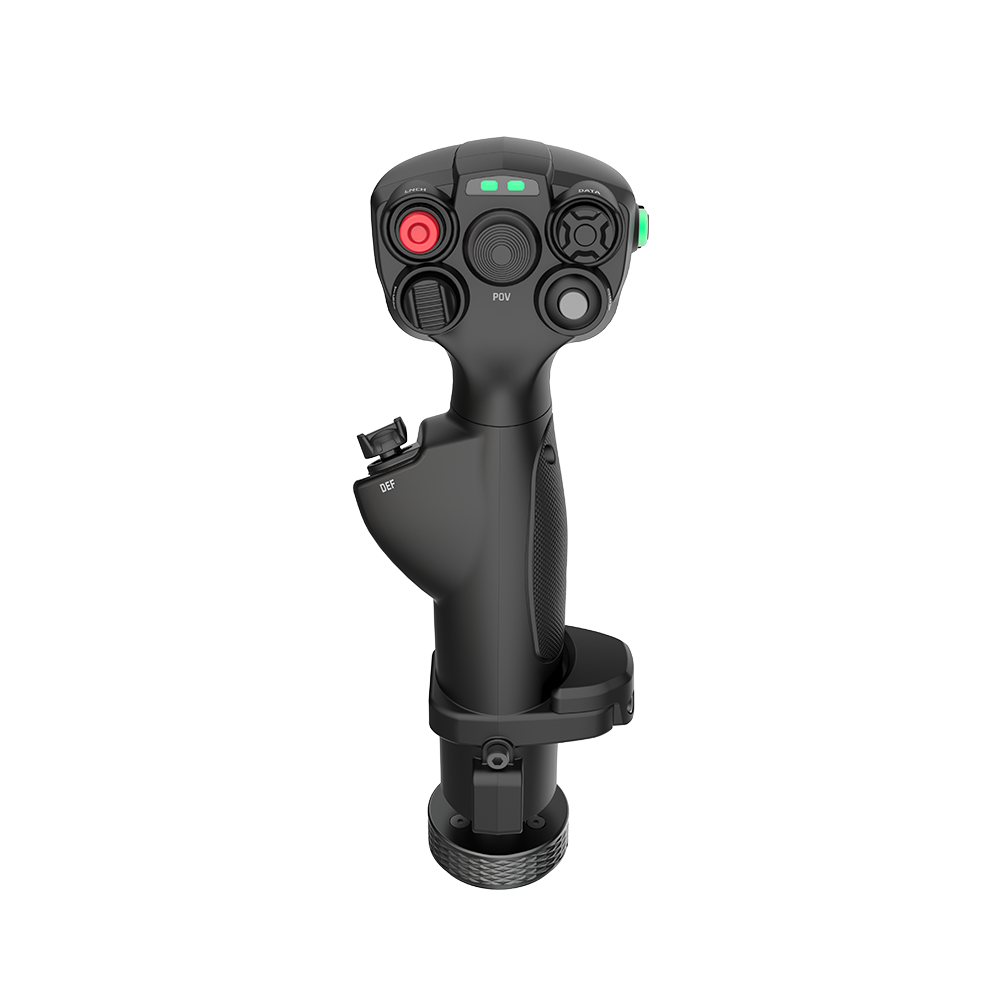

MOZA MHG Flight Stick

Dimensions: 142.5*202*313mm
Casing Material: Carbon fiber reinforced composite
Connector Material: Metal
Button Cap Material: ABS plastic
Weight: 395g

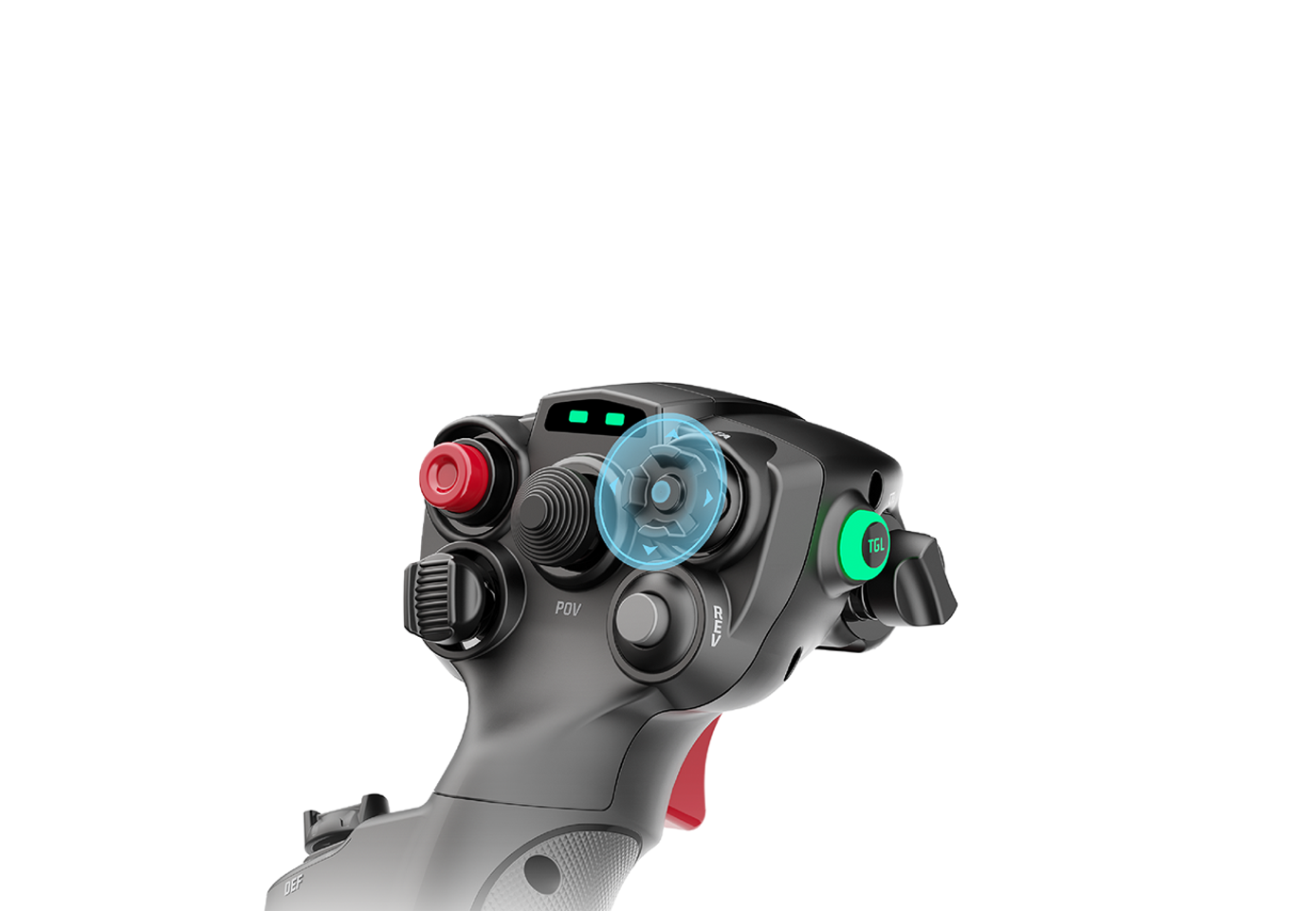

5-Way Switches: 4

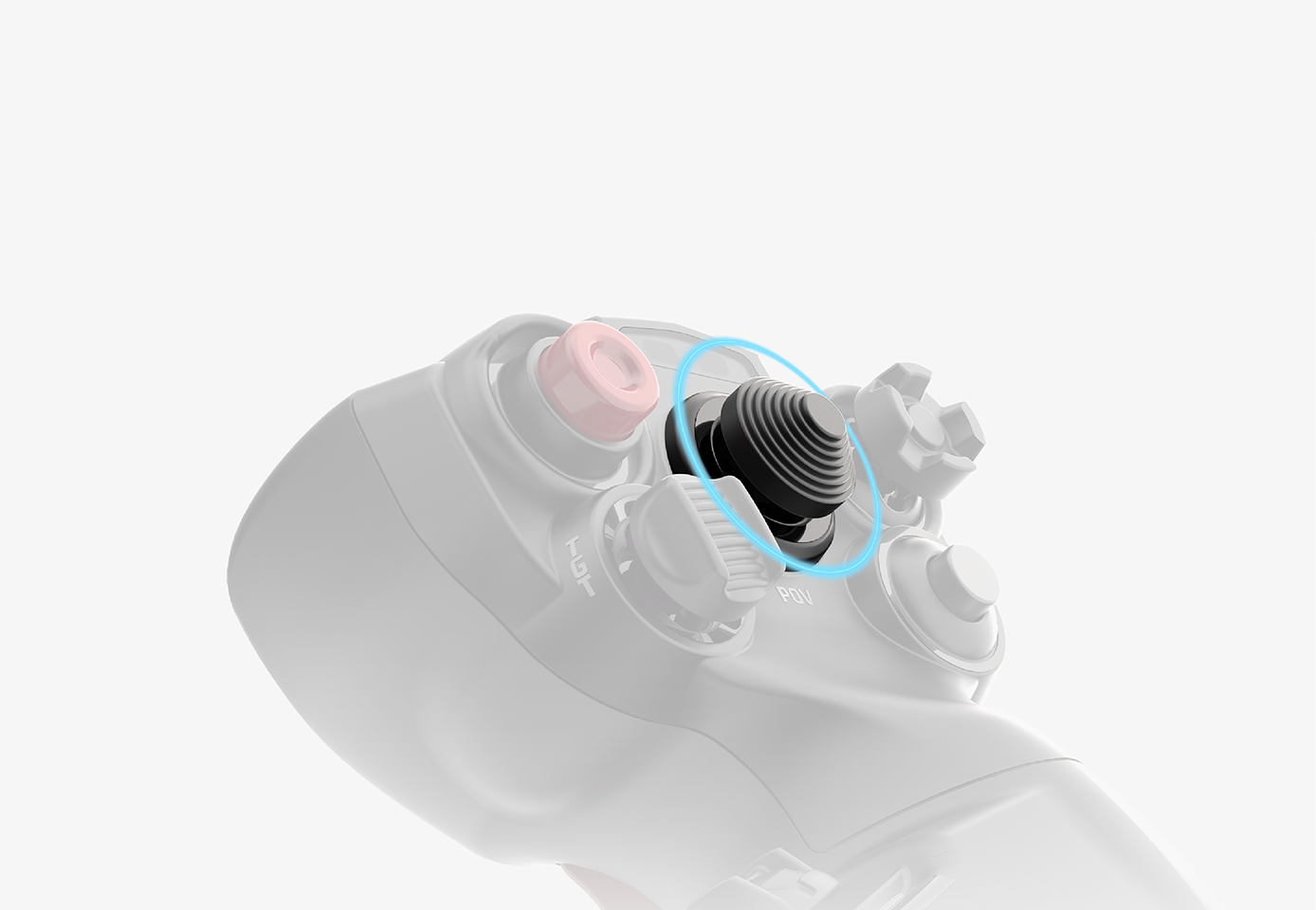

Hall Effect Mini-Stick: 1
Trigger Stages: 2
Assignable Outputs: 25
Included Accessories: User manual, toolkit

セット内容

  • MOZA AB6 Force Feedback Base * 1

  • MOZA MHG Flightstick * 1

  • Table Clamp for AB6 Base * 1

  • Power Adapter

  • Power Cord

  • Data Cord

  • Toolkit

  • User Manual

  • MOZA Stickers

よくある質問

How realistic is the force feedback in AB6 Flight Simulator Kit?

It's very realistic. Dual servo motors, a high-torque outrunner motor, and a 15-bit magnetic encoder produce up to 6 N·m peak torque and ultra-precise input tracking. MOZA Cockpit software lets you tailor centering force, damping, and friction to simulate takeoff, turbulence, landing forces, and other flight dynamics.

Will the kit work with my favorite flight sim?

Yes. The AB6 + MHG are compatible with major PC flight titles (e.g., MSFS 2020/2024, DCS, X-Plane 11/12, IL-2, War Thunder, Star Citizen). When connected as a standard USB controller the system works with most sims that accept controller input; use MOZA Cockpit for the best native force-feedback and telemetry support.

How do I mount the kit — is it easy to install?

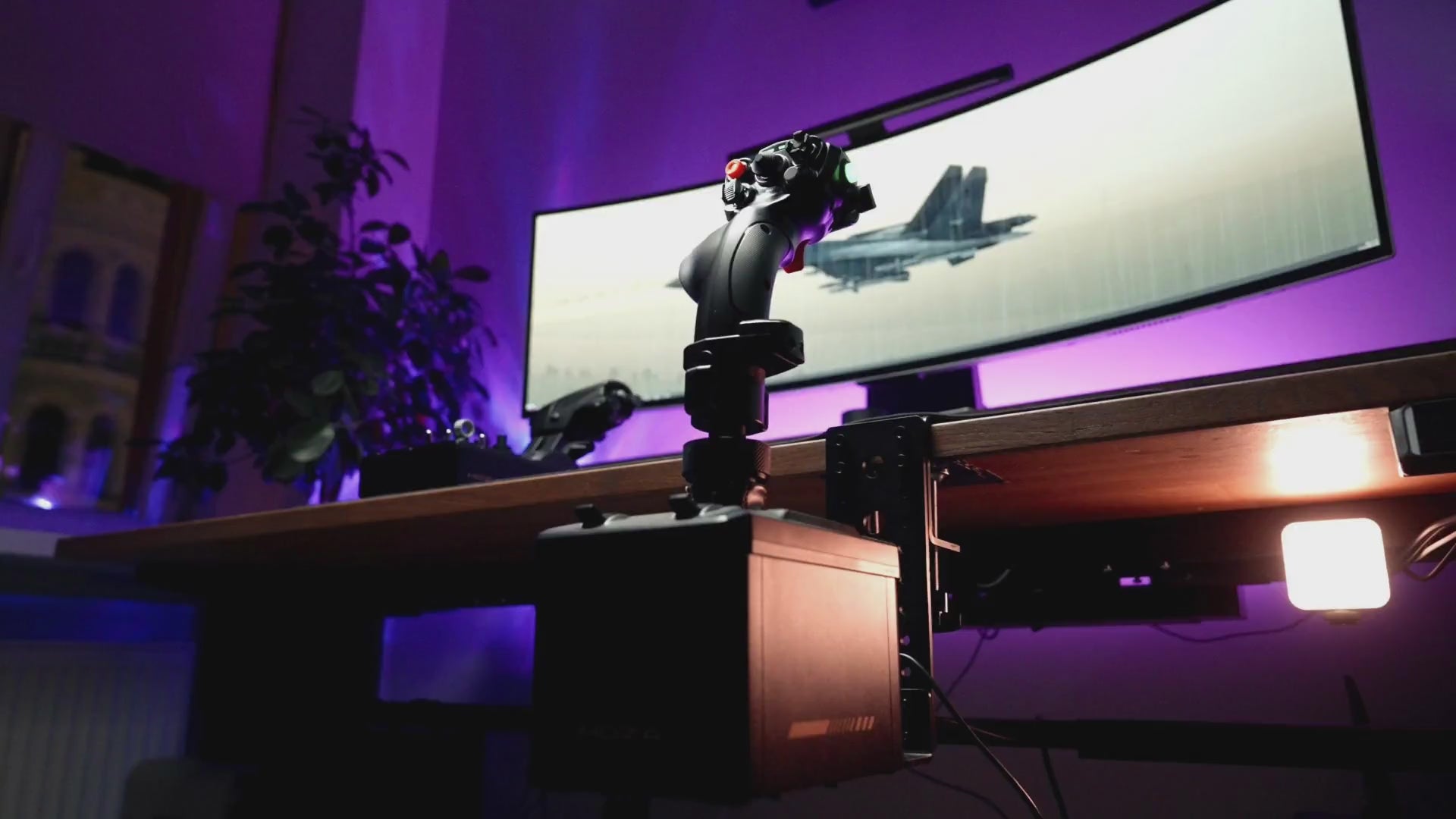

The AB6 features a compact, mount-friendly design that supports multiple installation methods, including a desktop clamp (included), a flight base mount (sold separately), and direct hard-mount to a rig or aluminum profile. This versatile design adapts to a variety of environments and setups, accommodating users’ individual installation preferences. The kit includes all required cables and a toolkit, and users can refer to the included manual or MOZA Cockpit guides for detailed installation steps and mounting templates.

What customization options are available?

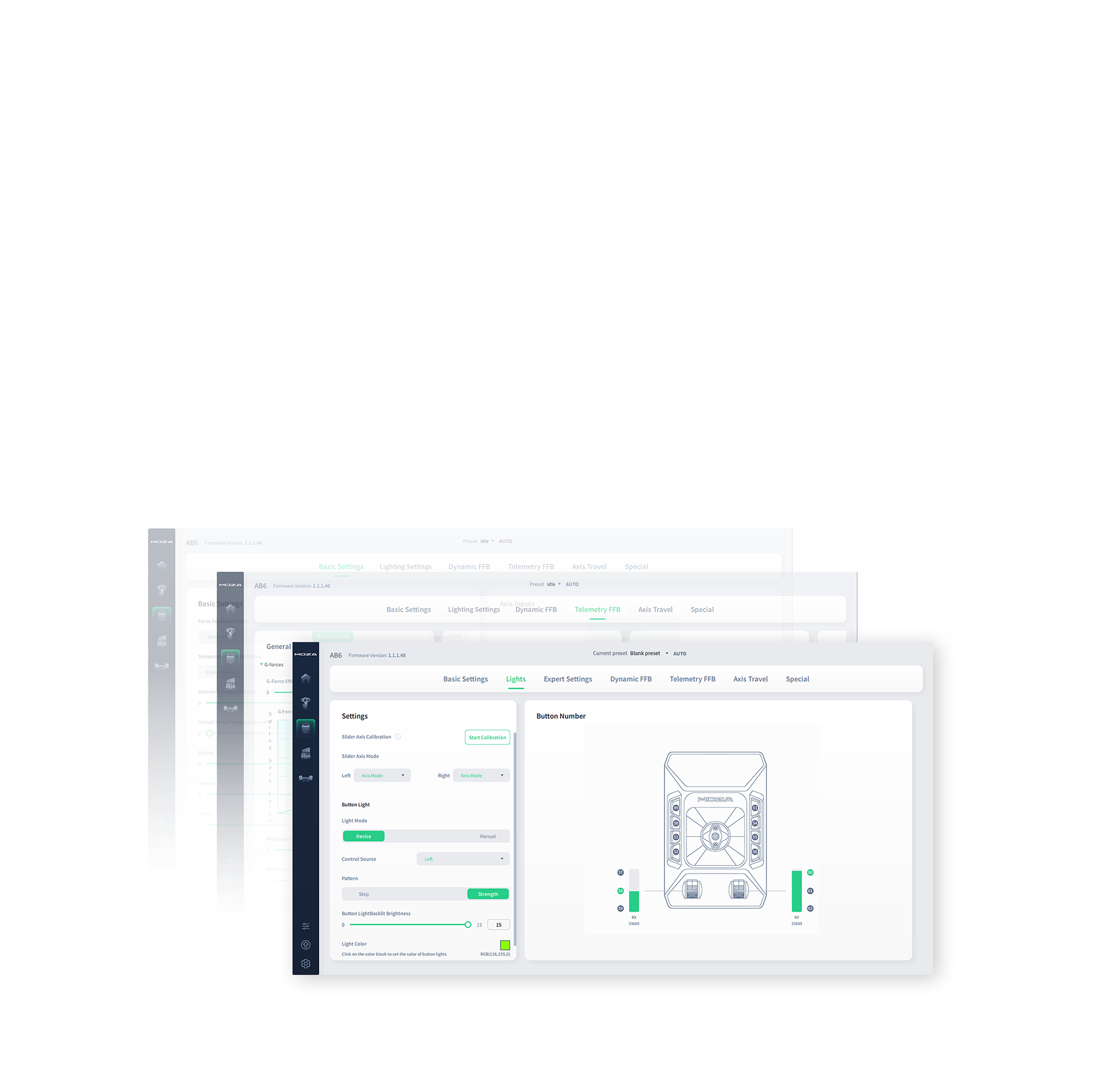

Via MOZA Cockpit you can customize force-feedback profiles, program the MHG’s buttons and switches, map the dual throttle sliders, and configure the front panel RGB (16.7M colors) and telemetry lighting. The kit ships with presets for common aircraft and combat profiles to get you flying fast.

Can I reassign buttons and lighting on the fly?

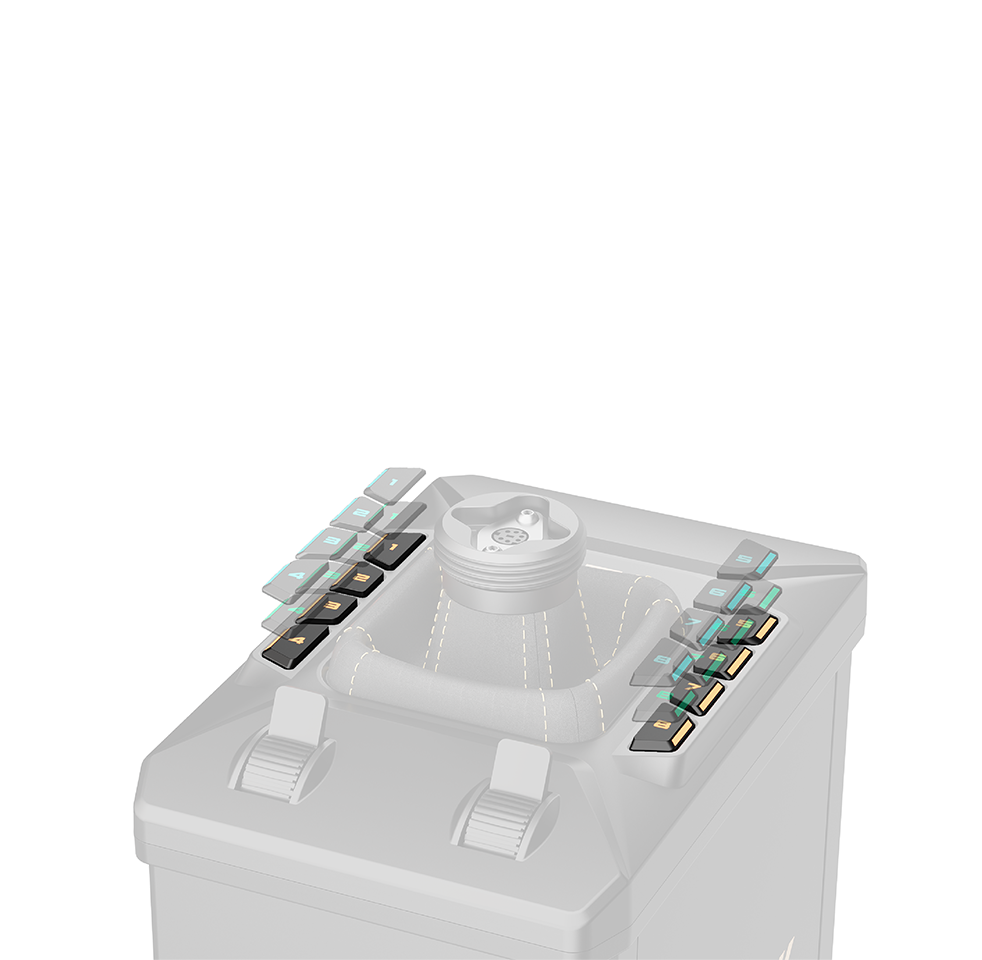

Yes. The MHG supports multiple mapping profiles (switchable onboard or via MOZA Cockpit), and the AB6 front-panel buttons and RGB can be mapped to controls or telemetry indicators to suit different aircraft or game modes.
