MOZA R12 V1 Direct Drive Wheel Base
MOZA R12 V1 Direct Drive Wheel Base
MOZA R12 V1 Direct Drive Wheel Base
MOZA R12 V1 Direct Drive Wheel Base

MOZA R12 V1 Direct Drive Wheel Base

セール価格$476.00 CAD通常価格 $598.00 CAD
送料はチェックアウト時に計算されます。

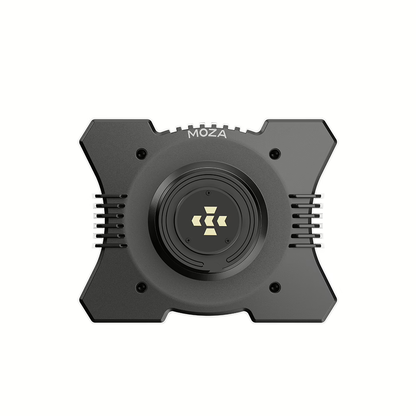

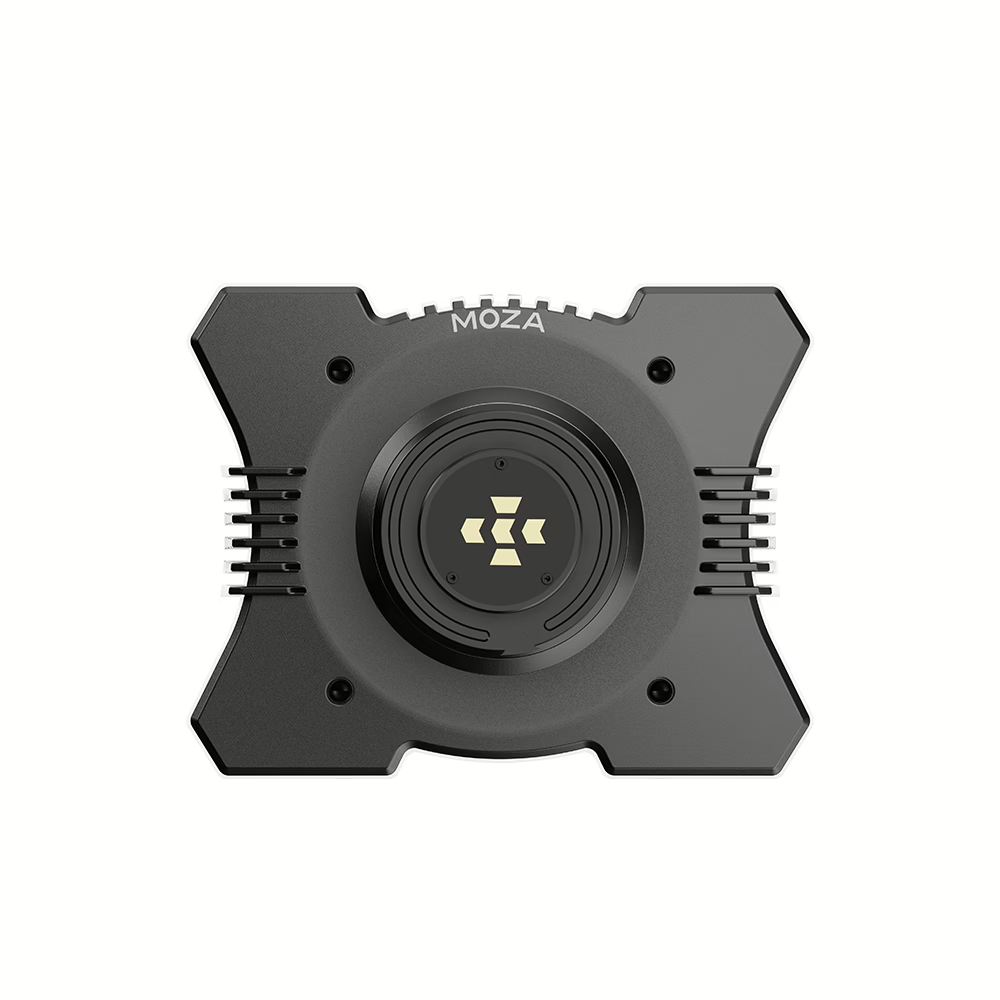

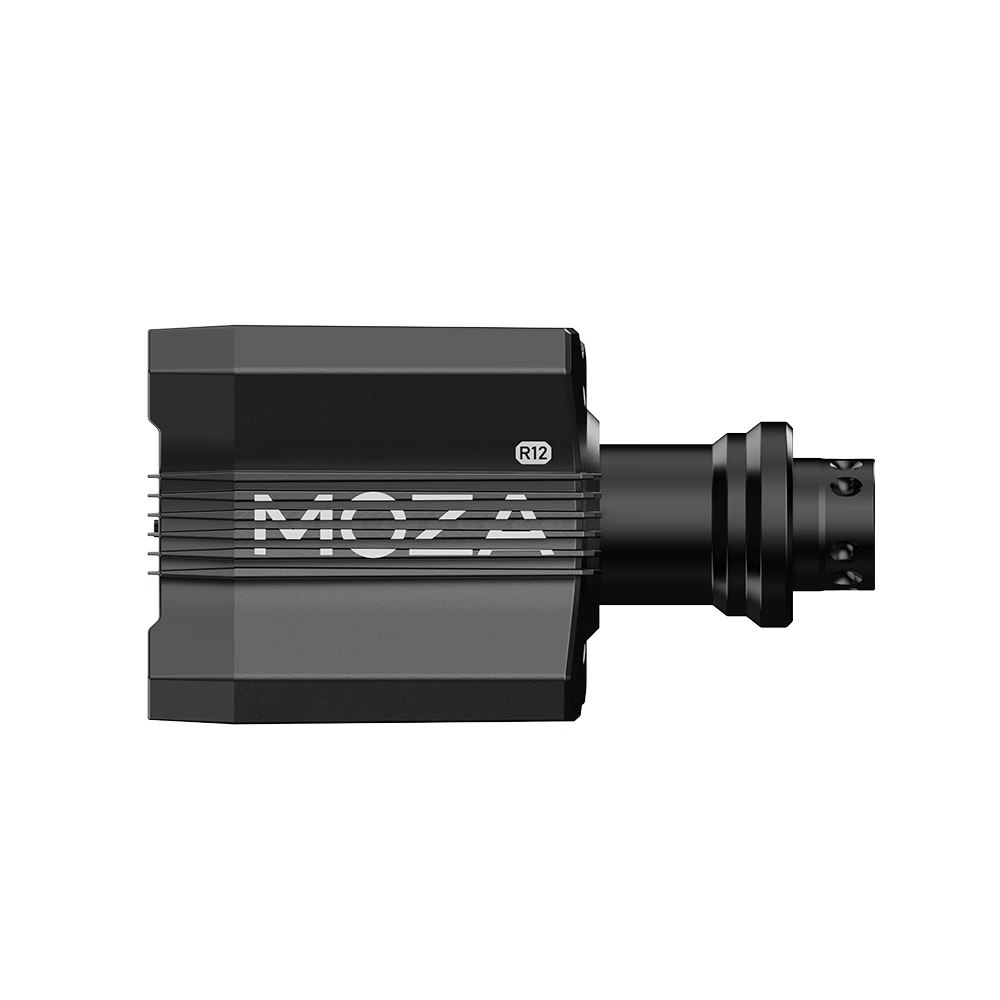

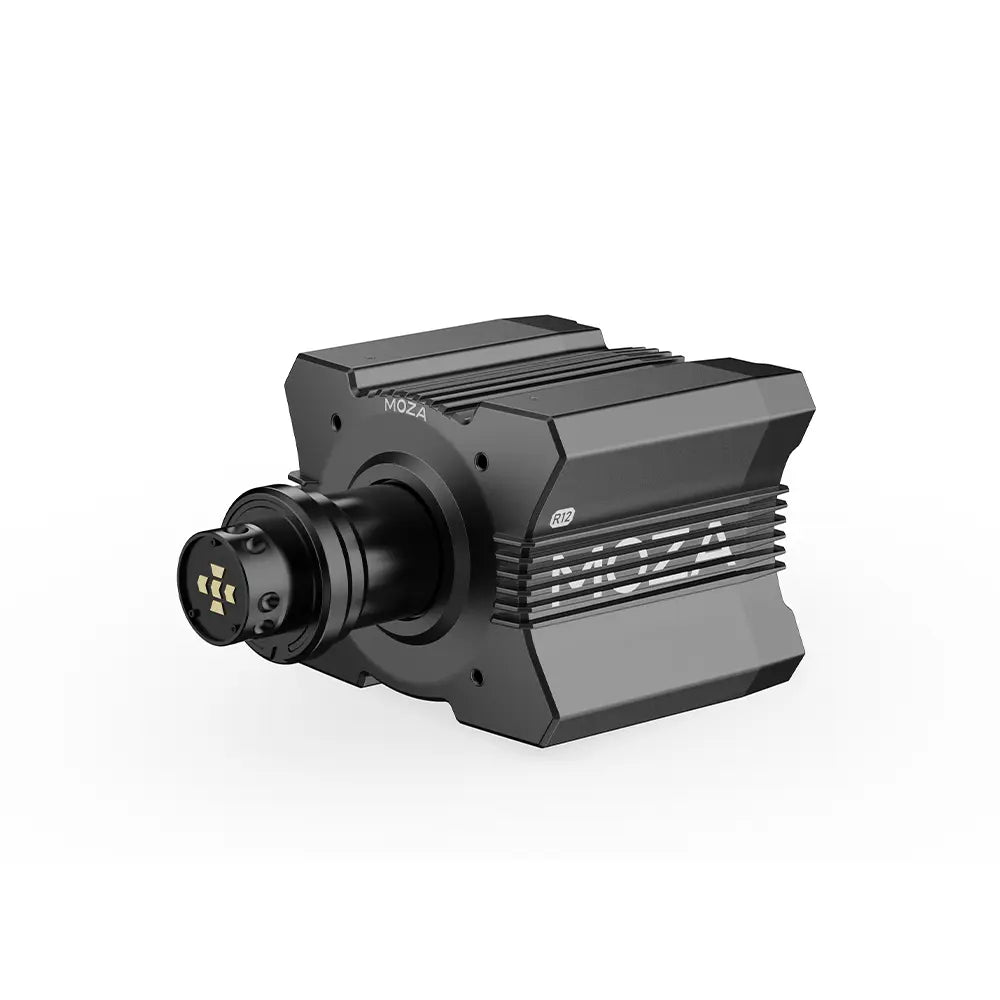

The MOZA R12 V1 is a 12Nm direct-drive wheel base for serious sim racers seeking powerful performance and exceptional value. Equipped with a high-torque servo motor and a 15-bit (32,768 PPR) industrial-grade encoder, it delivers precise, responsive, and consistent force feedback. Like the R12 V2, the R12 V1 supports NexGen 4.0 technology, providing ultra-smooth, high-fidelity feedback with minimal latency, and iRacing 360Hz support, ensuring rapid force feedback updates for maximum realism in racing simulations. Crafted from aerospace-grade aluminum alloy with intelligent temperature control and full MOZA Pit House software support, the R12 V1 provides reliable, smooth control and an authentic racing experience at an unbeatable price.

Overview >

Add to cart to access exclusive offers
モデル
モデル:
Upgrade for the Ultimate Simulation

In stock! Dispatched within 2 business days.

14日間返品ポリシー

最大24ヶ月の保証保護

グローバルサポート

相性が良い
さらに詳しく知る

仕様

MOZA R12 V1 DD Wheel Base

Platform: PC
FFB Drive System: Direct Drive
Encoder Resolution: 15-bit (32,768 PPR)
Max Wheel Rotation: 90~2700°
Housing Material: Aviation-grade aluminum alloy
Housing Color: Black
Peak Torque: 12 N·m
Peak Power: 216W
Input Voltage: 110V~220V AC → 36V DC
USB Refresh Rate: 1000Hz
App Functions: Supported
Quick Release: Supported

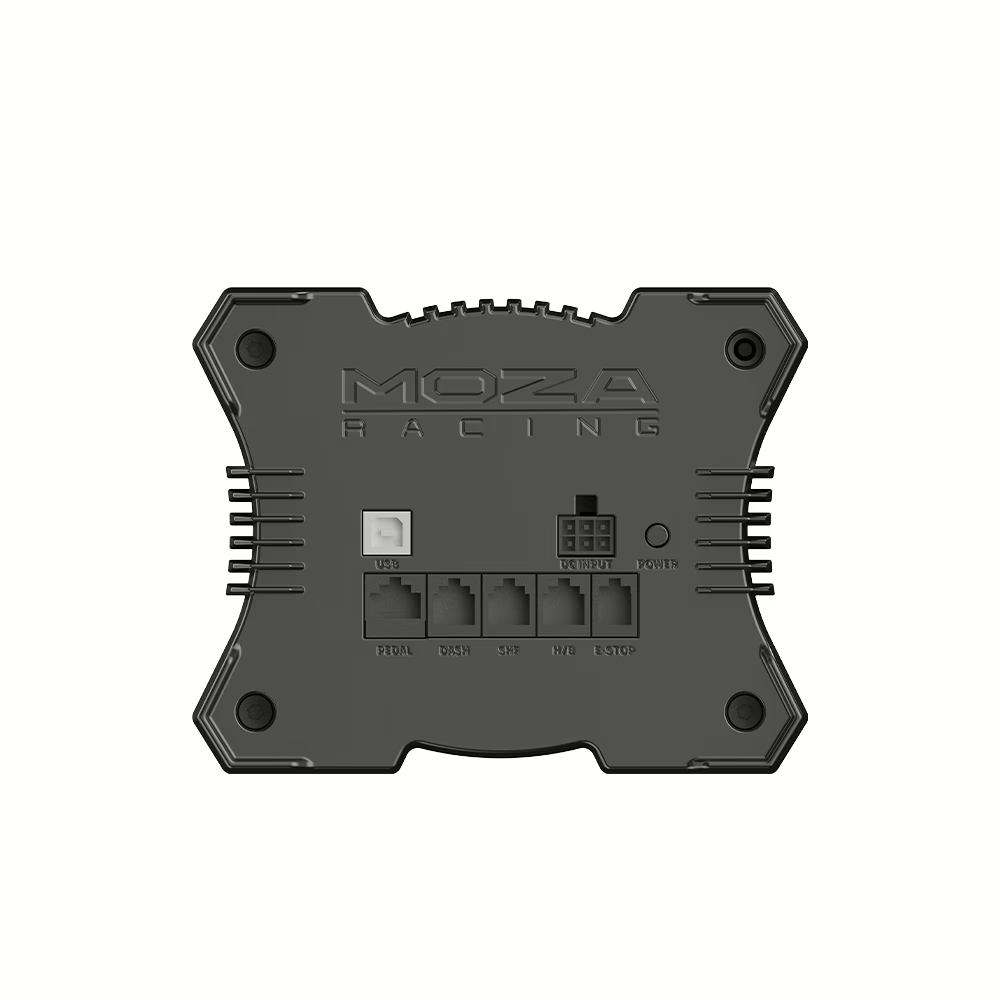

Connection Ports: Power, USB, Pedal, Dash, Shifter, Handbrake, E-stop
Accessories: User manual, power adapter, cable, tool kit
Fixing Method: 4-hole bottom mount
Desk Clamp: Optional
E-stop: Optional
Online Firmware Update: Supported
Weight: 7.5 kg
Dimensions: 225.87 × 156.68 × 123.99 mm

MOZA R12 DD Wheel Base User Manual

MOZA R12 DD Wheel Base User Manual >

Dimension

MOZA R12 V1 DD Wheel Base Dimensions >

セット内容

  • MOZA R12 V1 DD Wheel Base * 1

  • Power Adapter

  • Data Cable

  • Tool Kit

  • User Manual

  • Warranty Card

よくある質問

What’s the difference between the R12 V1 and the R12 V2?

The MOZA R12 V1 delivers a 12Nm direct-drive experience with NexGen 4.0 force feedback and iRacing 360Hz support, providing precise and immersive control for serious sim racers. The R12 V2 builds on this with an upgraded encoder, going from 15-bit to 21-bit magnetic resolution for even finer steering precision, a carbon fiber rotor that enhances cooling for improved stability during long sessions, and front-mounted holes for optional front-mount installation. Both models offer the same torque, software support, and compatibility with MOZA wheels, pedals, and accessories, ensuring reliable and smooth racing performance at every level.

Is the R12 V1 still compatible with MOZA wheels and accessories?

Yes. The R12 V1 is fully compatible with all MOZA steering wheels, pedals, shifters, and handbrakes, as well as the MOZA Pit House software suite.

Does the R12 V1 receive the same software updates as the V2?

Yes. Both versions use MOZA Pit House for firmware and force-feedback updates, ensuring consistent software support and tuning features.

How does the driving feel compare between V1 and V2?

The V2 offers slightly smoother and finer FFB detail due to the new encoder and algorithm. However, most racers will find the V1 provides a powerful, precise, and immersive experience suitable for competitive racing and daily use.

Does the R12 V1 support all major racing games?

Yes. It supports all popular PC racing titles, including iRacing, Assetto Corsa, ACC, rFactor 2, and more, through the MOZA Pit House software.
