SPECS

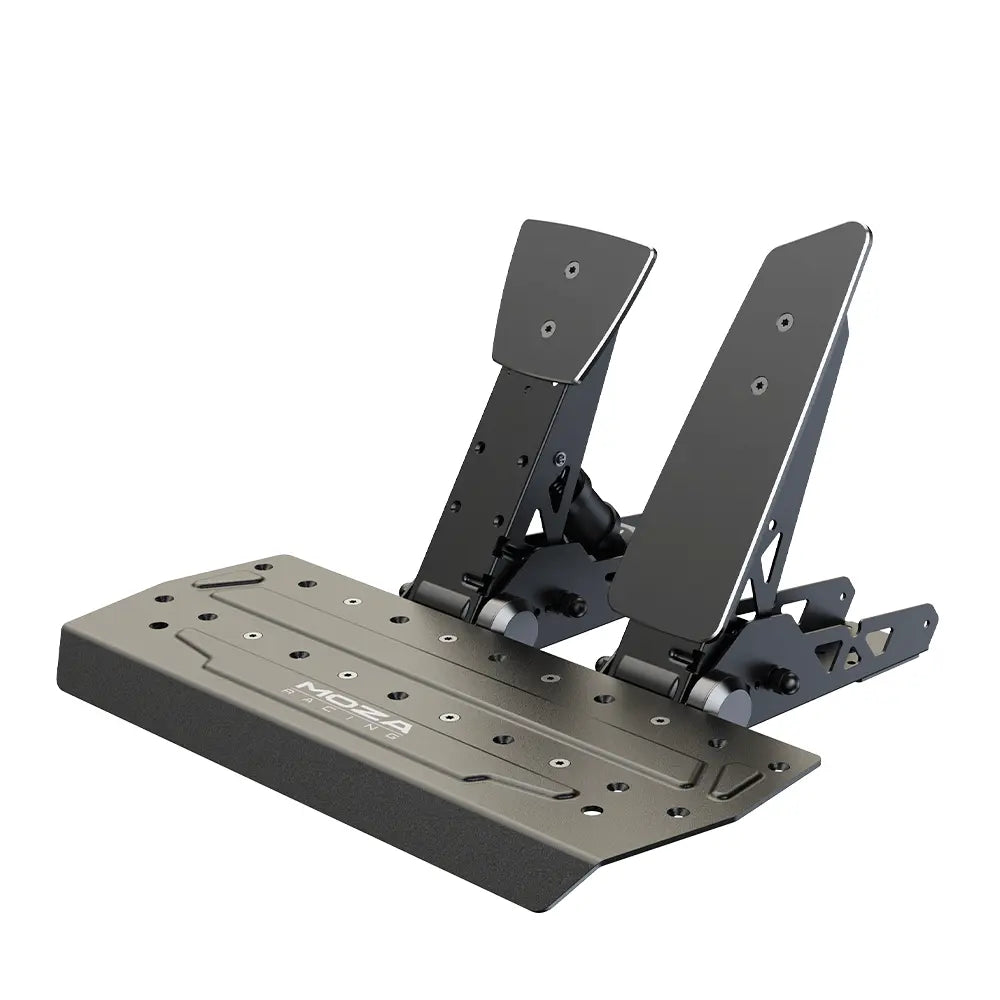

MOZA SR-P Pedals (No clutch)

Material: High-strength steel
Plate Material: High-strength steel
Color: Black
Brake Sensor: Load cell + angle sensor
Max Capacity: 100KG
Throttle Sensor: Angle sensor

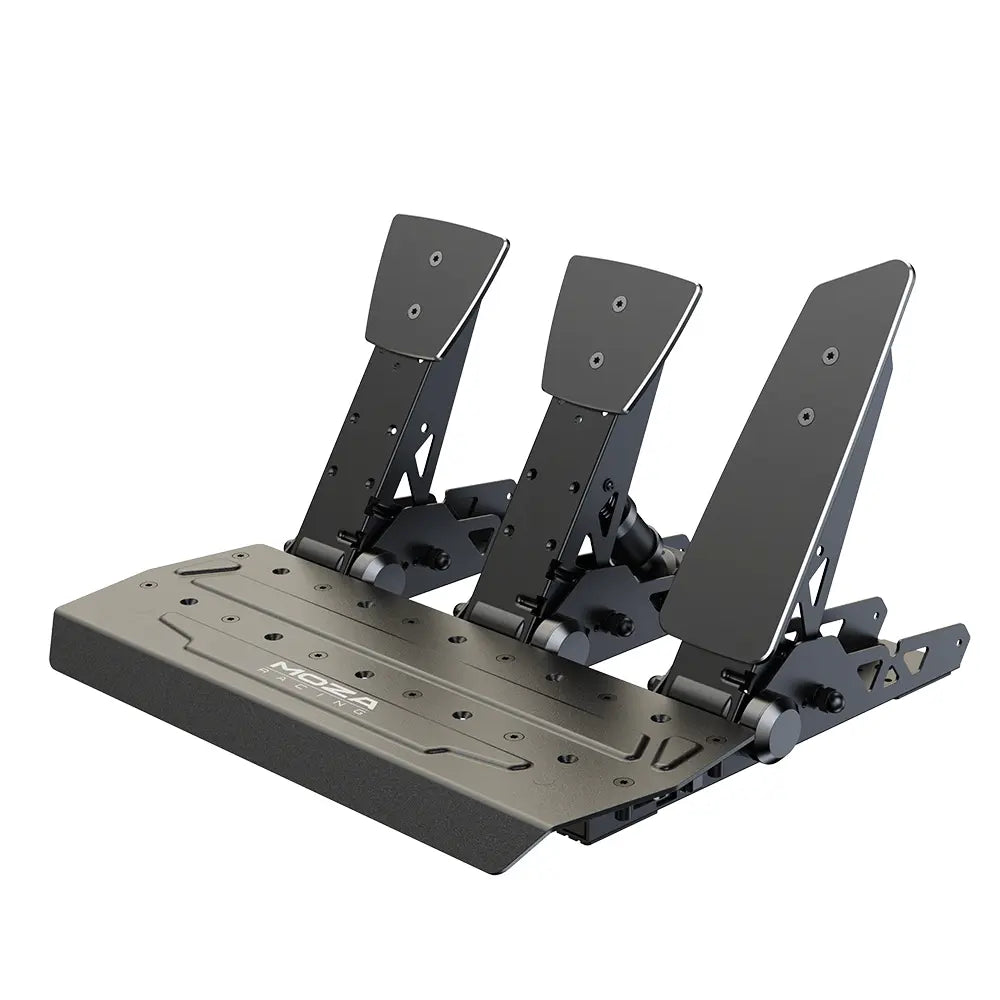

Clutch Sensor: Angle sensor
Angle Sensor Resolution: 16-bit (65536ppr)
Pedal Spacing: Adjustable
Pedal Plate Height: Adjustable
Pedal Connection Port: USB
Pedal Travel Software Adjustment: Yes
Pedal Travel Reverse Function: Yes
Anti-Slipping Pad: Included

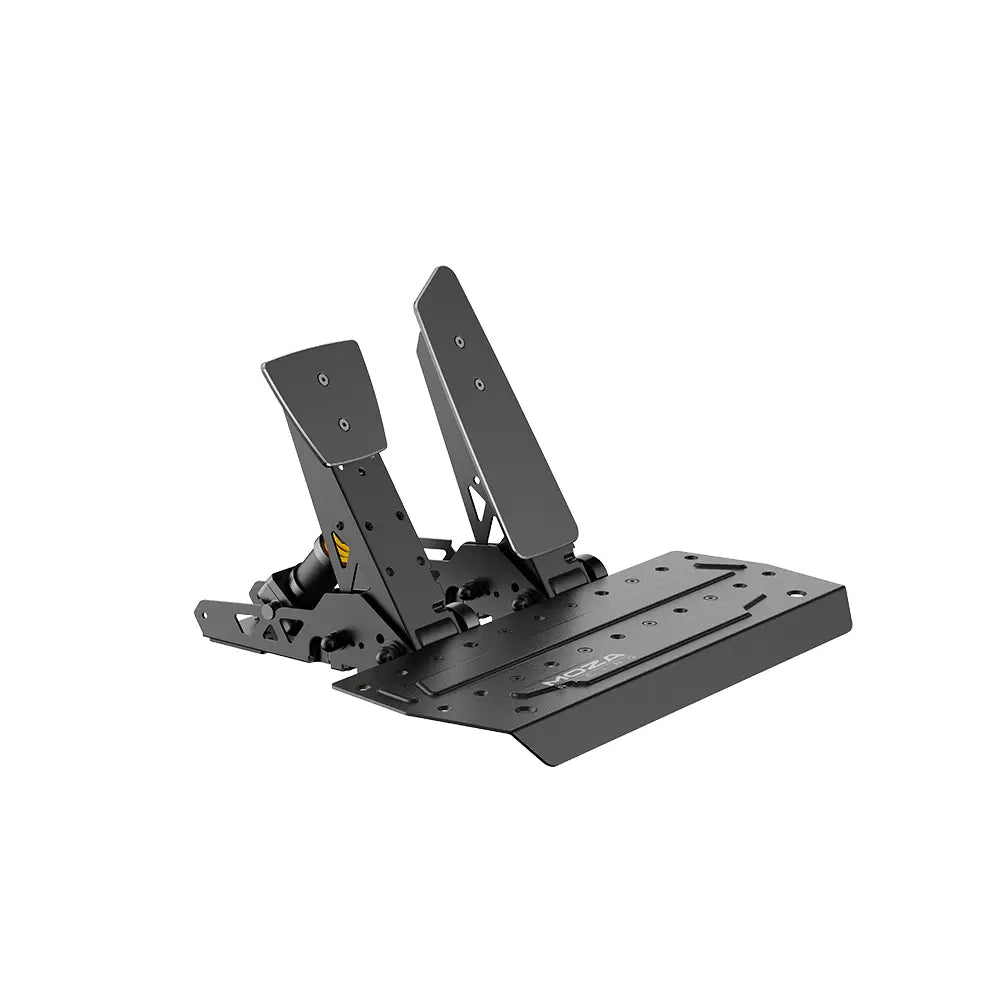

Size: 410Γ—310Γ—170 (mm) – Pedal Set of 2 (No clutch)
Mass: 4.3KG – Pedal Set of 2 (No clutch)

WHAT'S INBOX

  • MOZA SR-P Pedals (No Clutch) * 1

  • Type A to Type B USB Cable

  • Toolkit

Are the MOZA SR-P pedals compatible with my sim racing setup?

Yes. The SR-P pedals connect directly to your PC via USB and are fully compatible with all sim racing gear brands β€” not just MOZA. This makes them a great choice whether you're building a new setup or upgrading an existing one.

Do I need a professional cockpit or bracket to use these pedals?

Not necessarily. The SR-P pedals feature an anti-slip mat on the base, allowing for stable use on the floor. However, for the best performance and feel, they can also be mounted on professional rigs and even reversed to match your preferred driving position.

What’s the difference between load cell and angle sensors? Why does it matter?

The SR-P brake pedal uses a dual sensor fusion system, combining a load cell sensor (up to 100KG) and an angle sensor. This allows for precise control β€” the angle sensor handles early pedal travel, while the load cell manages braking pressure in the final stage. The result is realistic brake feel that closely mimics real cars.

Can I adjust the pedal resistance or brake feel?

Yes. The brake uses both a spring and damping block, and with the optional MOZA SR-P Accessory Kit, you can customize up to six different pedal feel combinations β€” from soft and progressive to short and stiff, ideal for both casual users and professional racers.

How do I configure or calibrate the pedals?

Simply use the MOZA Pit House software, which allows for full pedal curve adjustments, sensitivity tuning, and mode switching. It’s user-friendly and designed for both newcomers and experienced sim racers.

Customer Reviews

Based on 71 reviews
80%
(57)
18%
(13)
0%
(0)
1%
(1)
0%
(0)
J
Javier

They work perfectly

F
Fulvio

Good product, solid and pleasing to the eye.
Easy to install

K
Kevin

Really like these pedals and the two stage system they have with spring and then rubber onto the loadcell, it gives you a feel of pressurising the brakes and then pushing hard, it's a good setup. Quality is good and price is great.

N
Nolan

Great entry level load cell. I put over 3,000hrs on them before I had an issue.

N
Nunes
Non funzionano al 100%

Non funziona correttamente continua a bloccarsi elettronicamente
