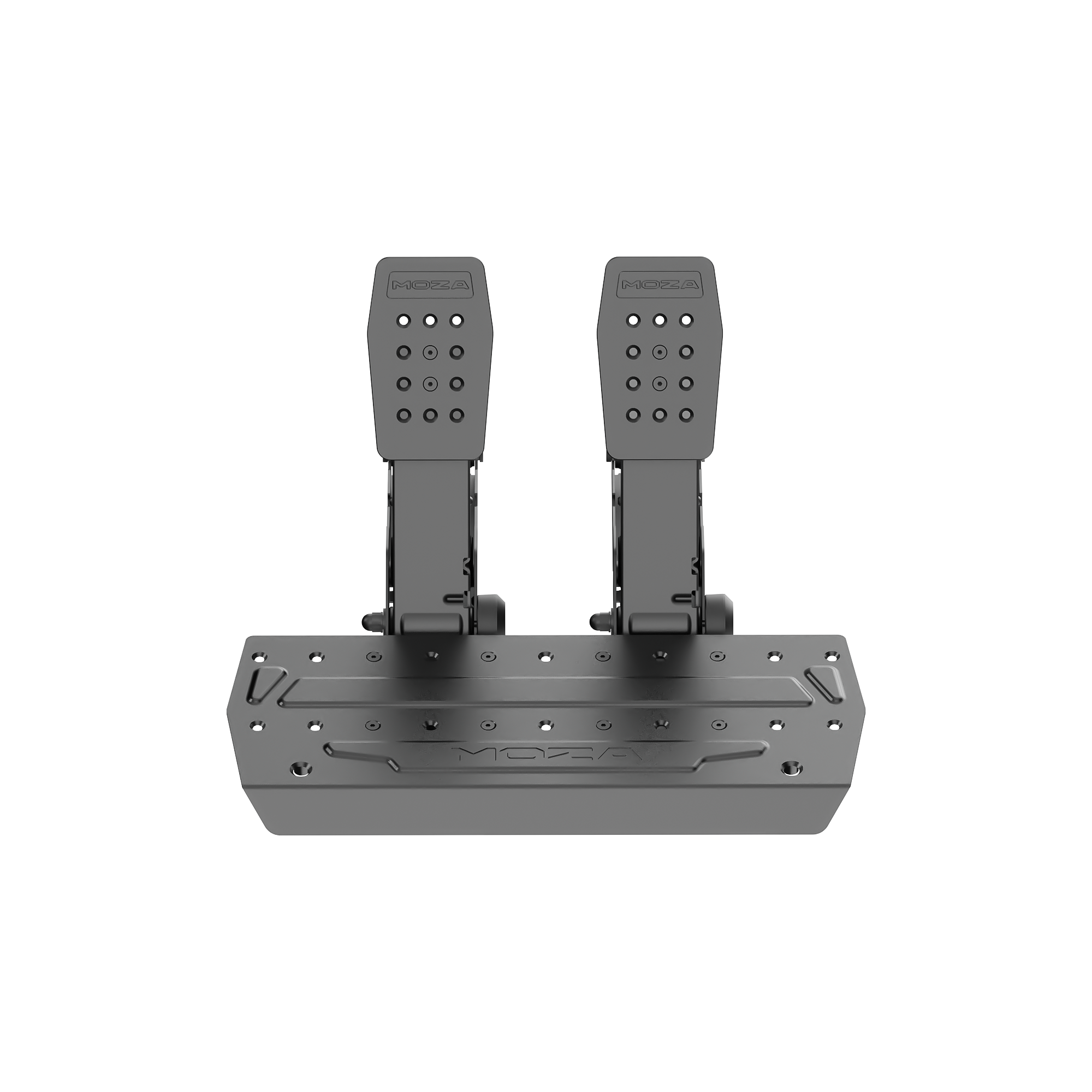

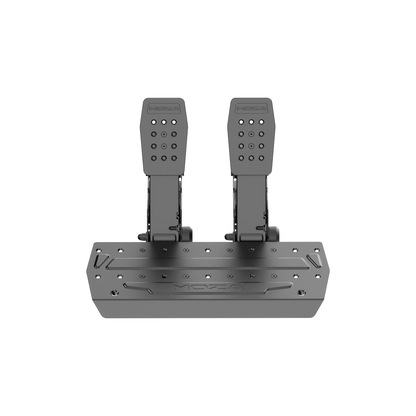

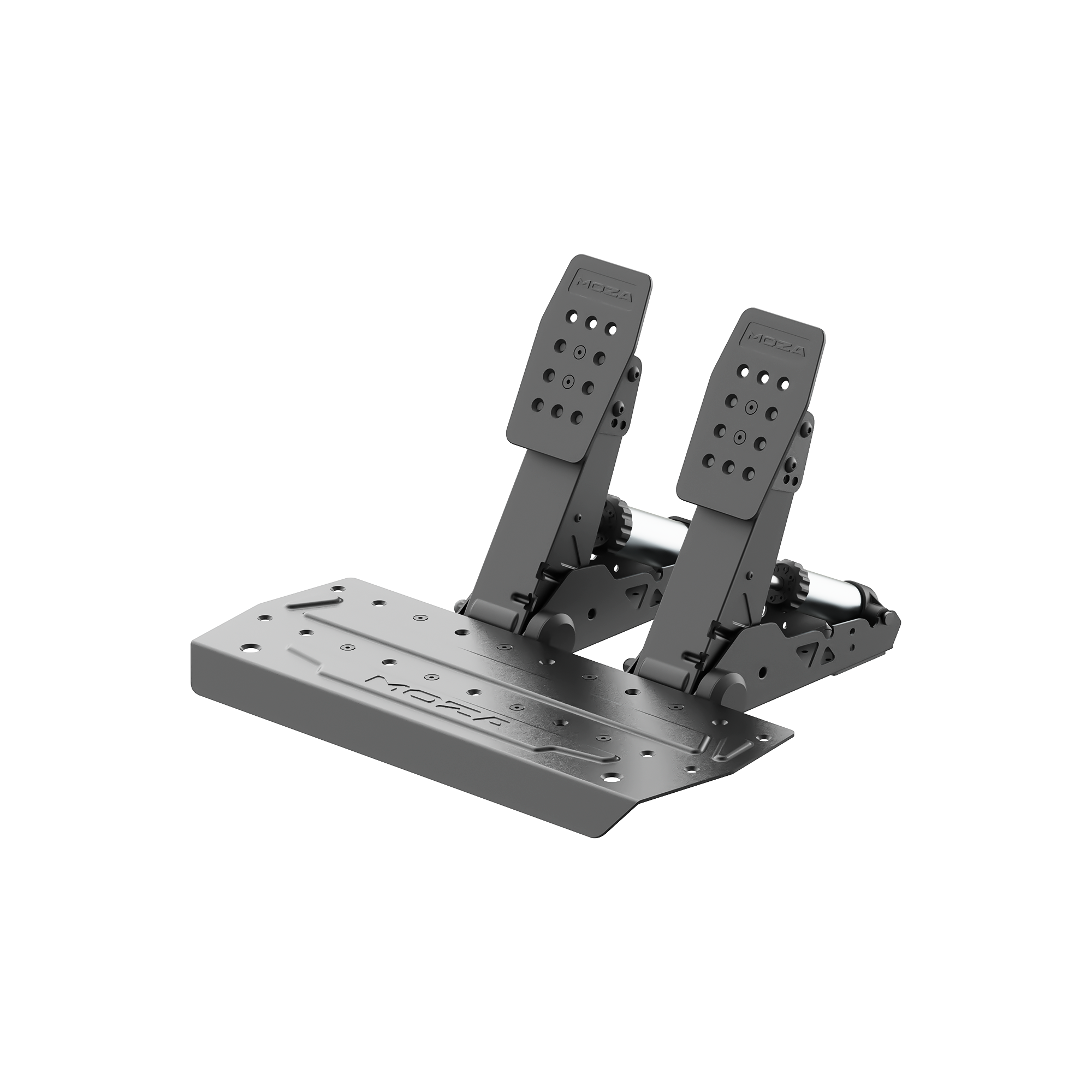

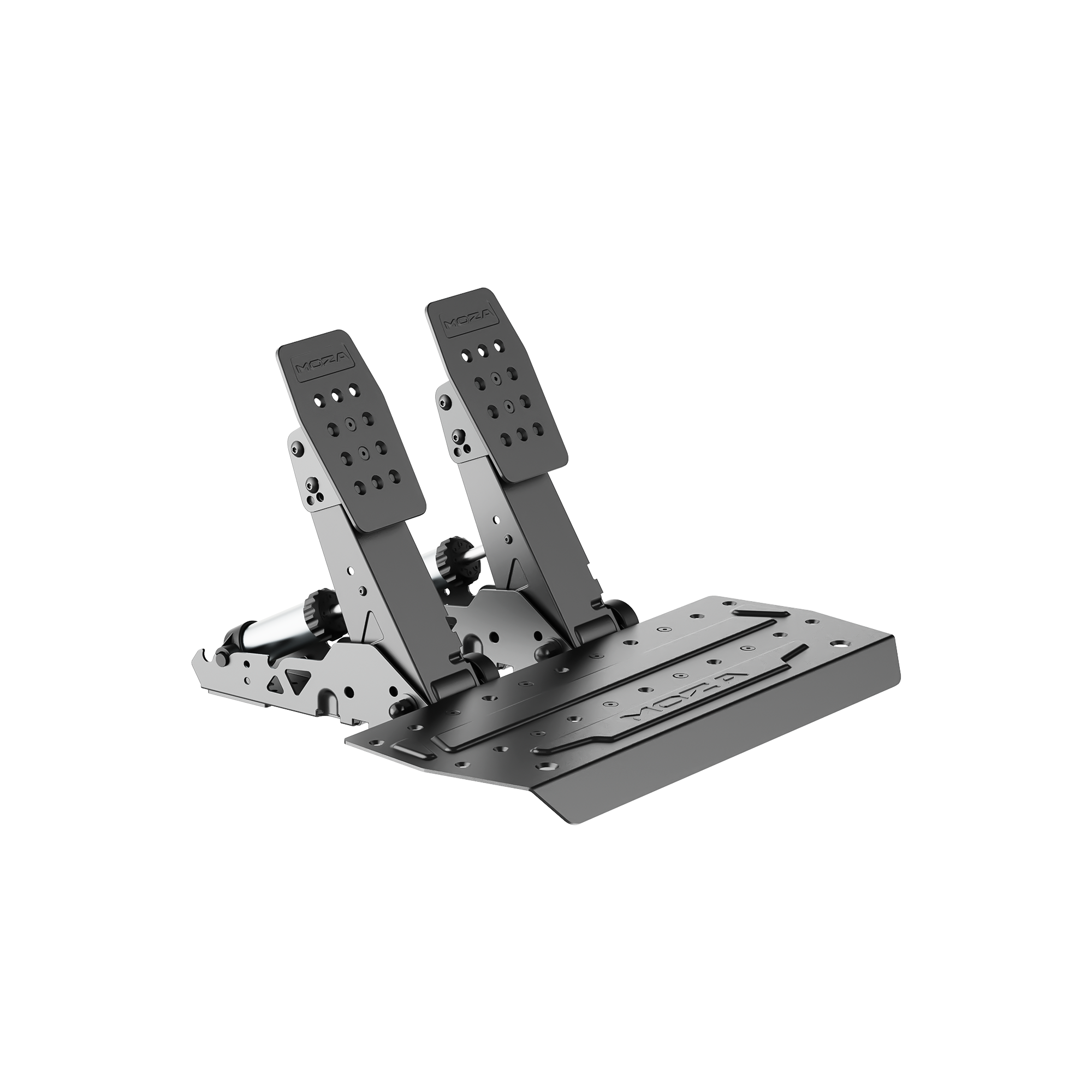

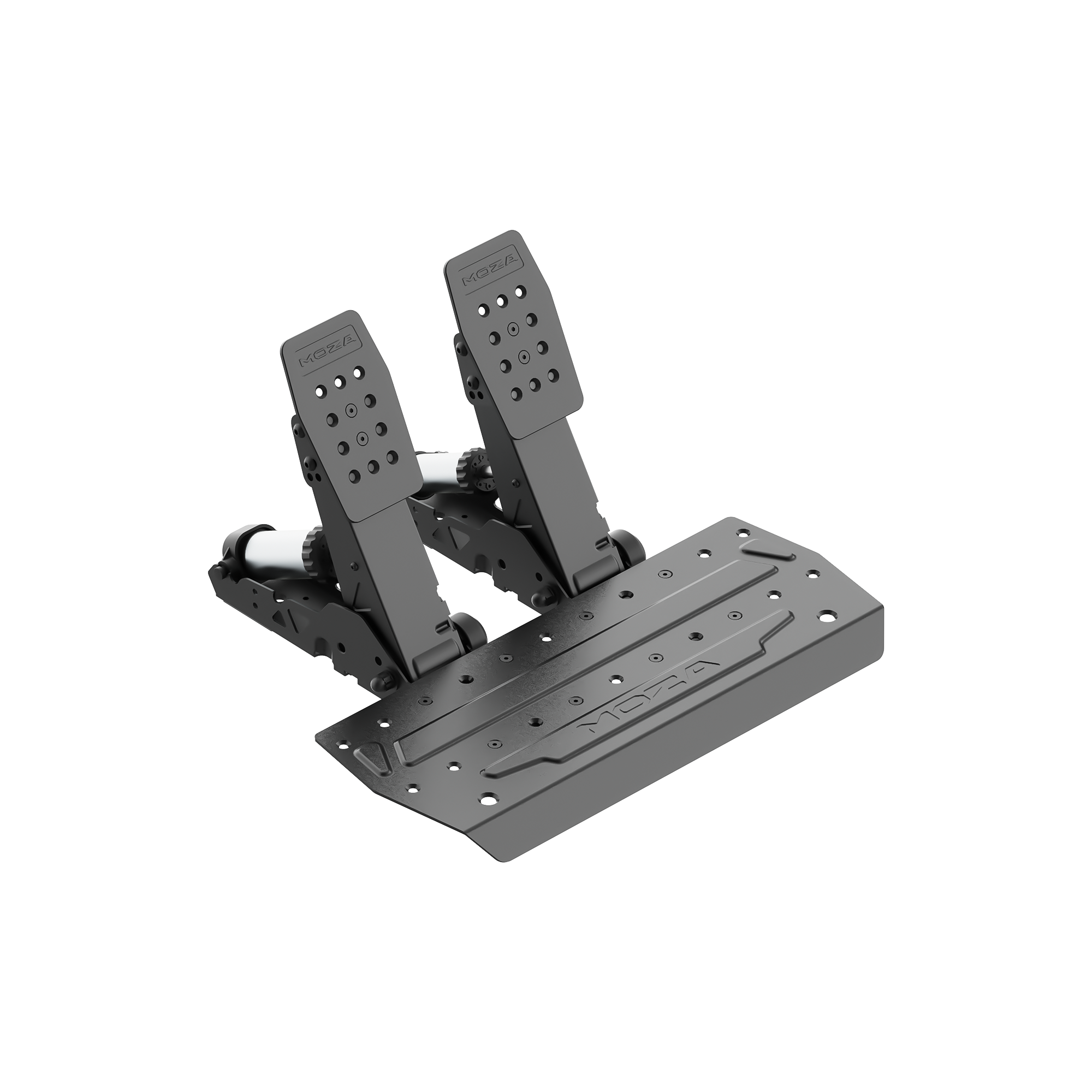

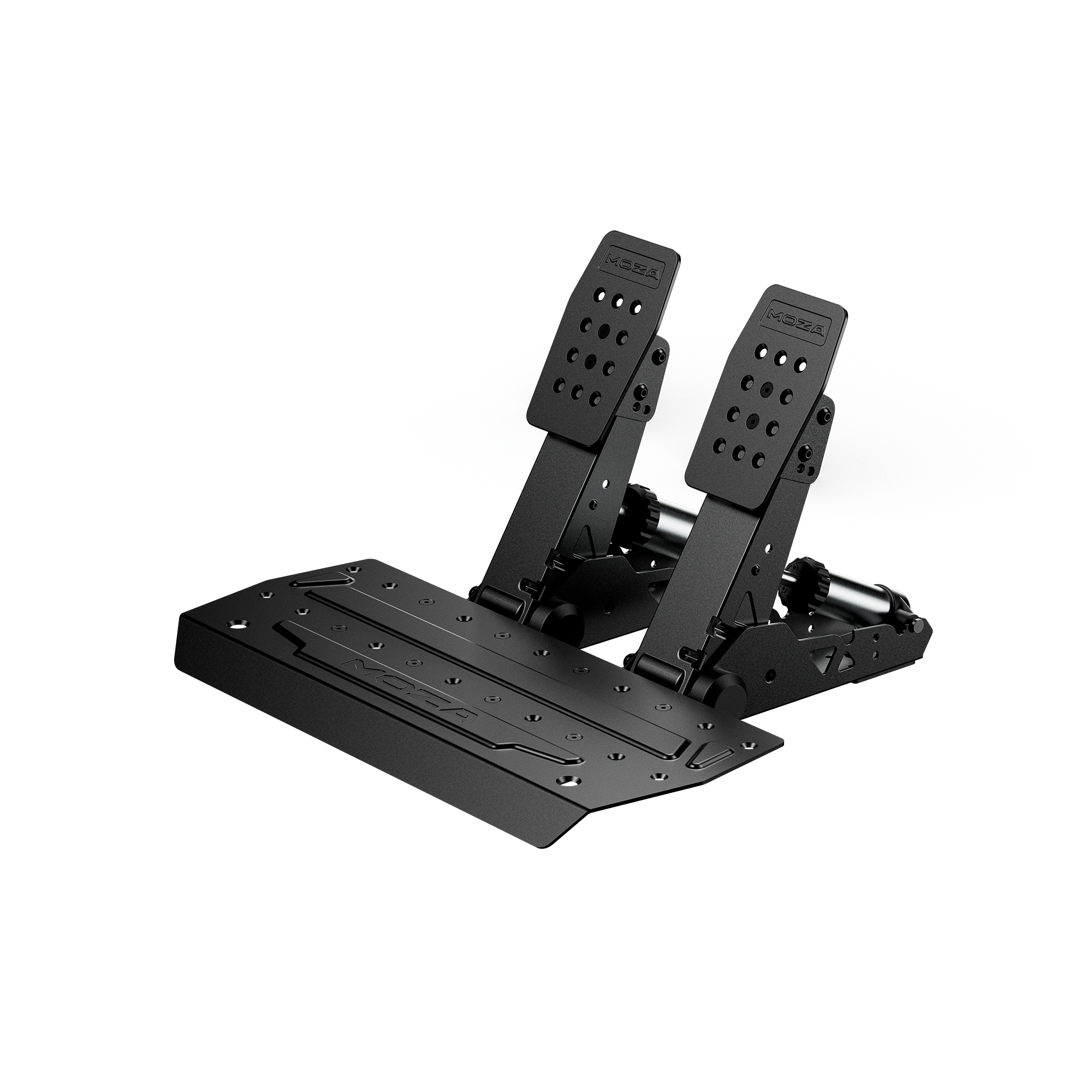

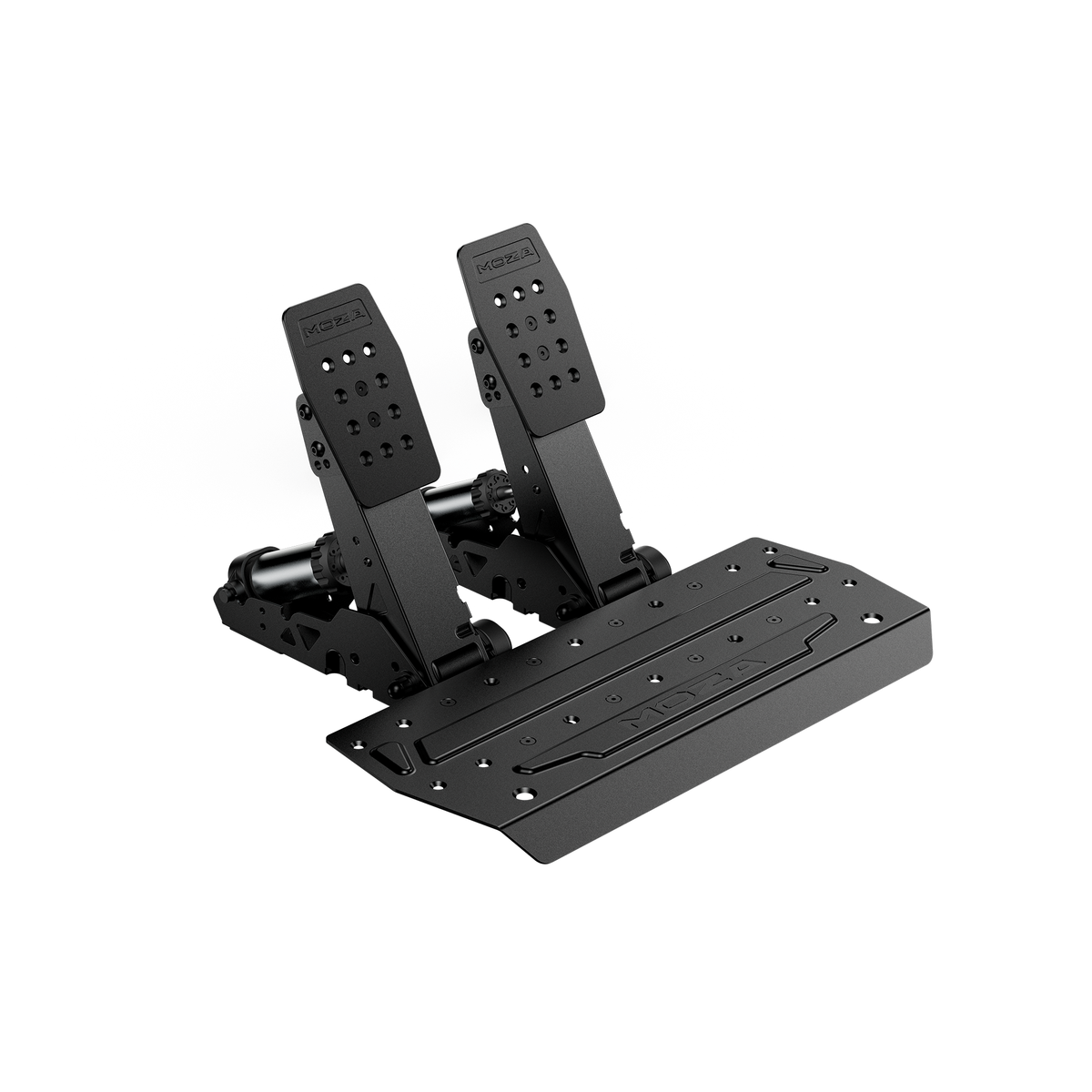

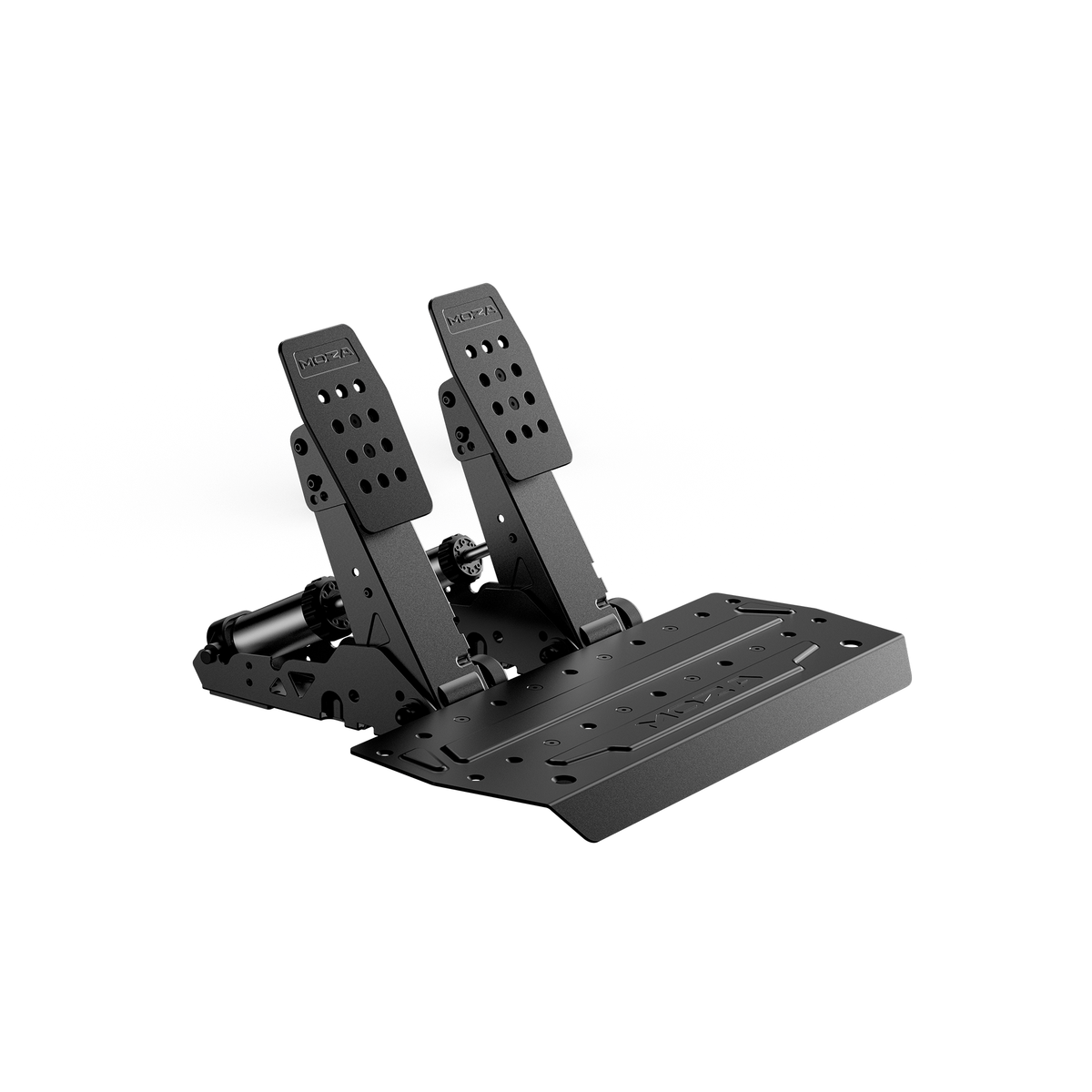

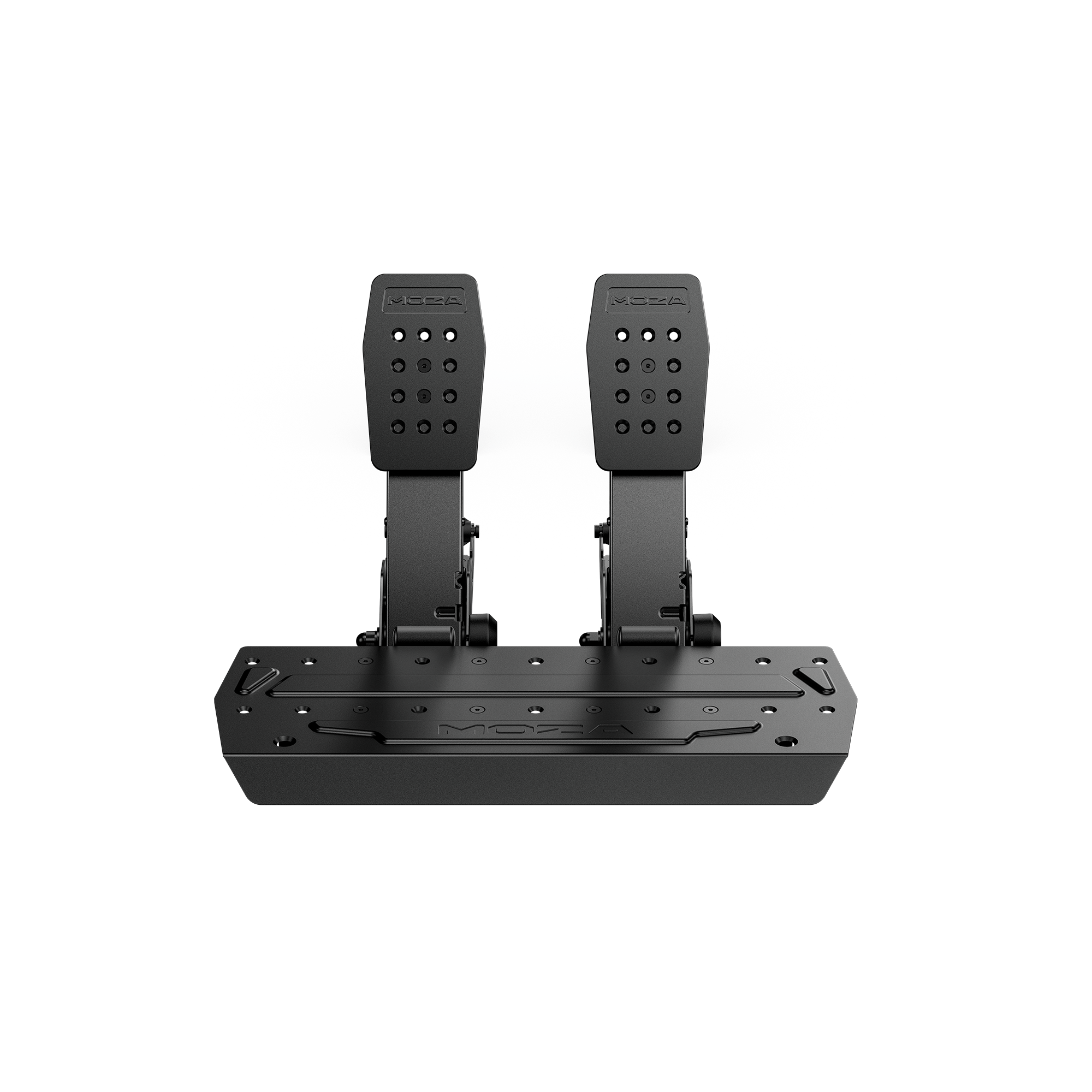

MOZA SRP2 Pedals

Name: MOZA SRP2 Pedals
Brand: MOZA Racing
SKU: T03P030001A
Price: 219.00 CAD
Availability: InStock

$219.00 CAD

Shipping calculated at checkout.

Precision-engineered MOZA SRP2 Dual Pedals feature CNC aerospace-grade aluminum and high-strength steel for durable, professional-grade performance. Equipped with a 100KG load cell and 15-bit angle sensor with fusion technology, the SRP2 delivers accurate, responsive brake input. Fully adjustable pedal angle, spacing, and height, combined with tool-free tuning and optional Performance Kit for 1,000+ brake feel configurations, ensure a customizable and immersive sim racing experience. Compatible with PC and Xbox.

Product variants

Model: Pedal Set of 2- No Clutch

Upgrade Your SRP2 Setup

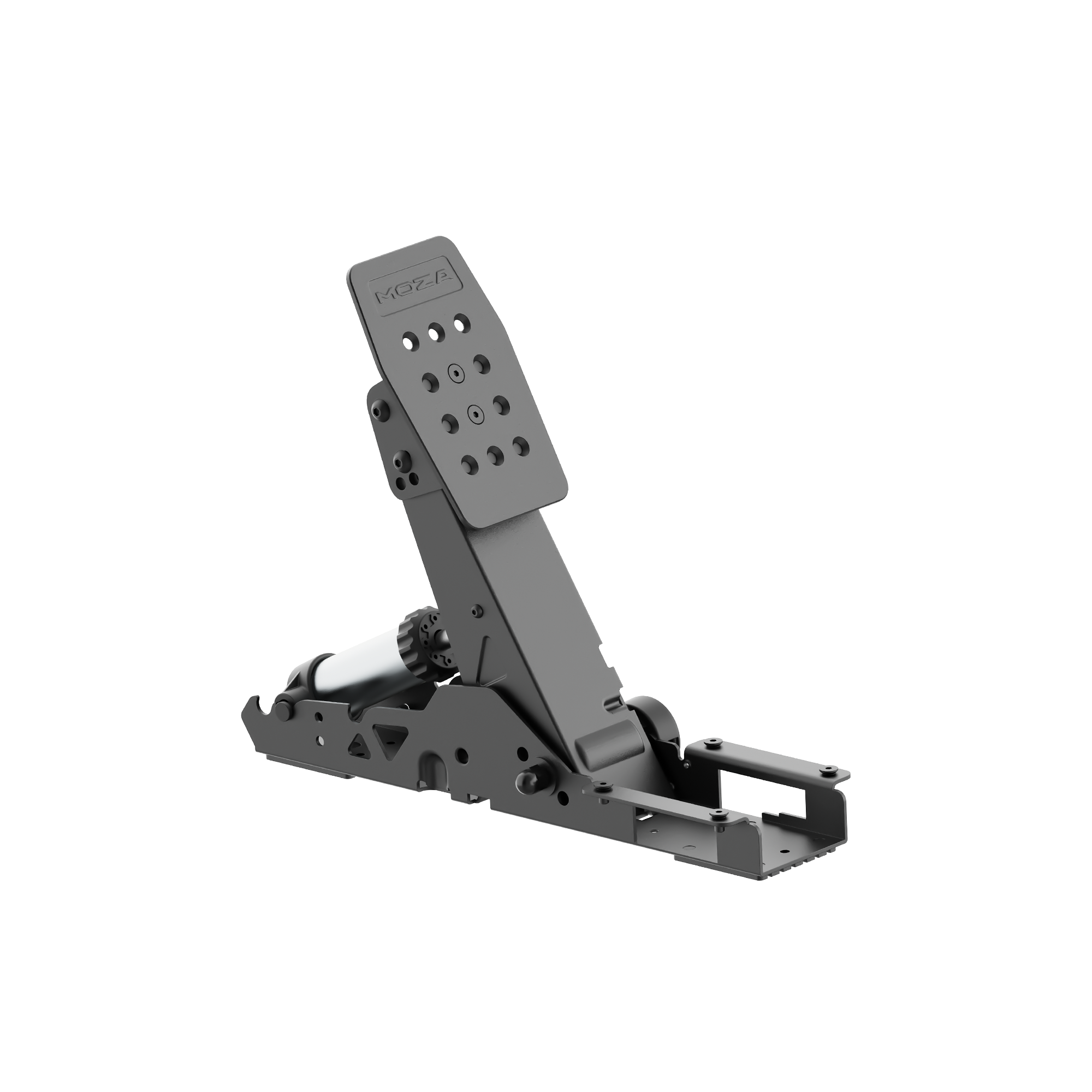

MOZA SRP2 Clutch Pedal

$62.90 CAD

Performance Kit for CRP2 & SRP2

$29.90 CAD

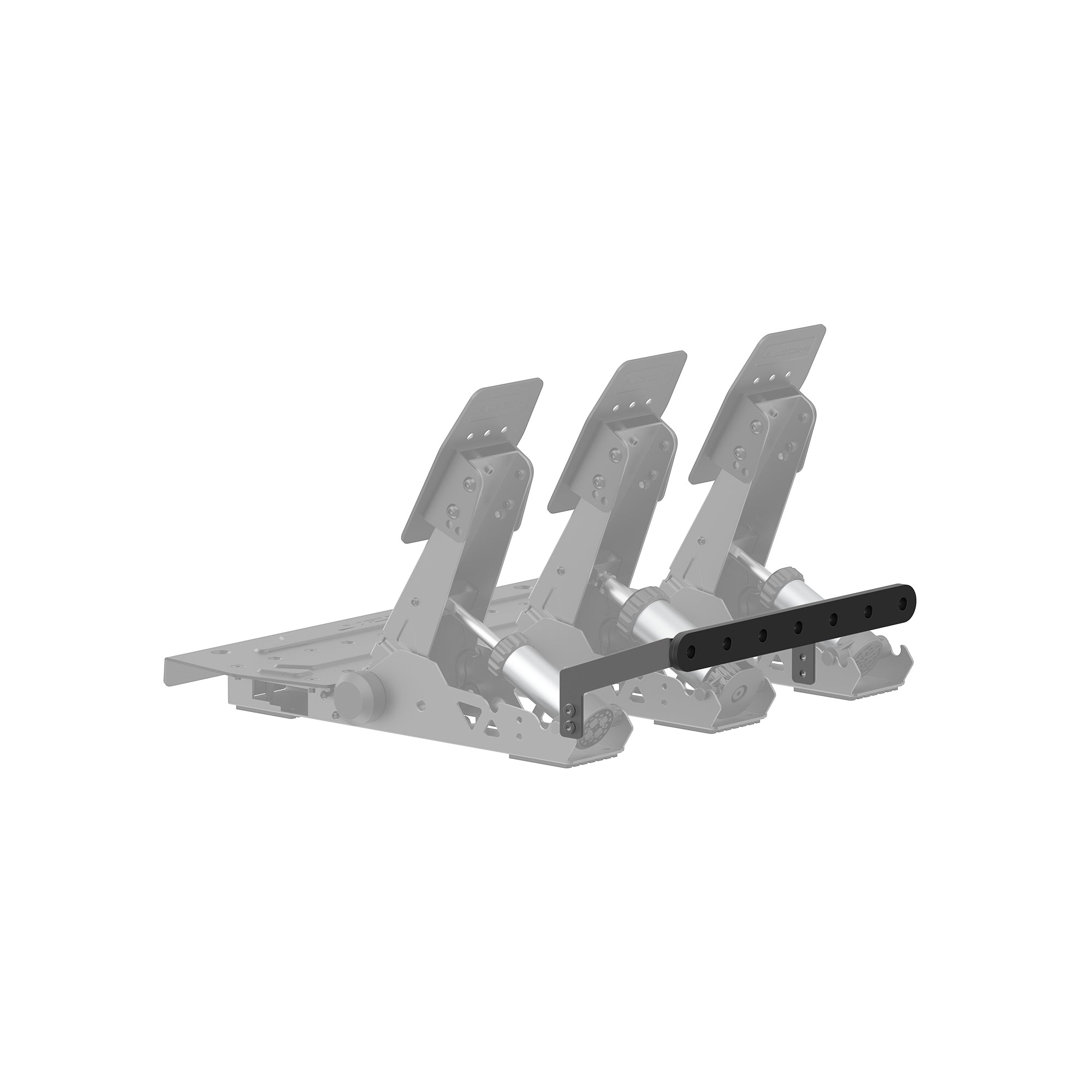

MOZA SRP2 Rear Support Bracket

$45.90 CAD

In stock! Dispatched within 3 business days.

14-Day Returns Policy

Up to 24-Month Warranty Protection

Global Support

Pair well with

MOZA SRP2 Pedals

In stock! Dispatched within 3 business days.

$219.00 CAD

At a Glance

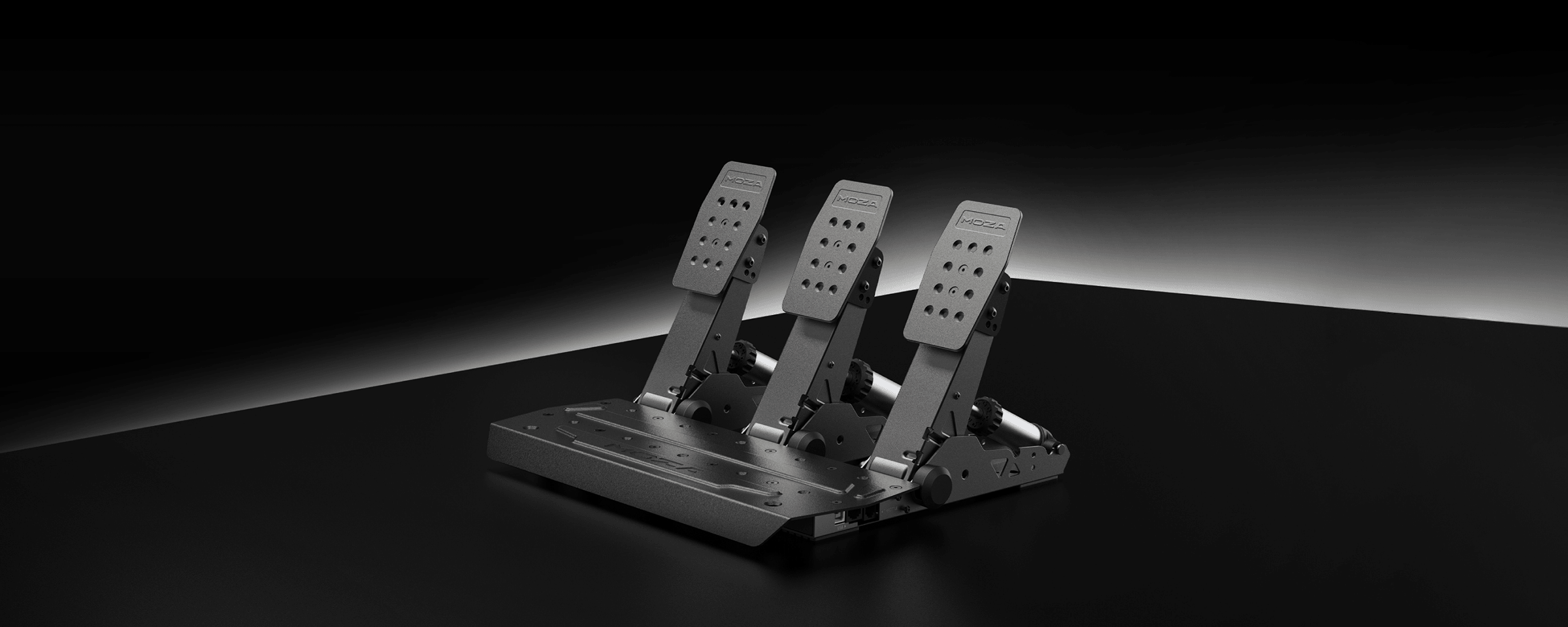

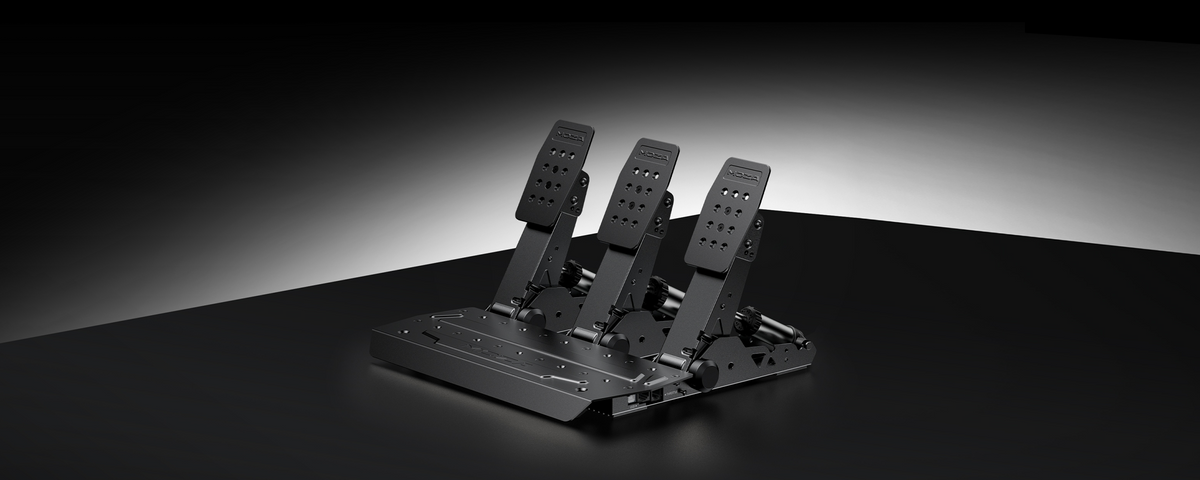

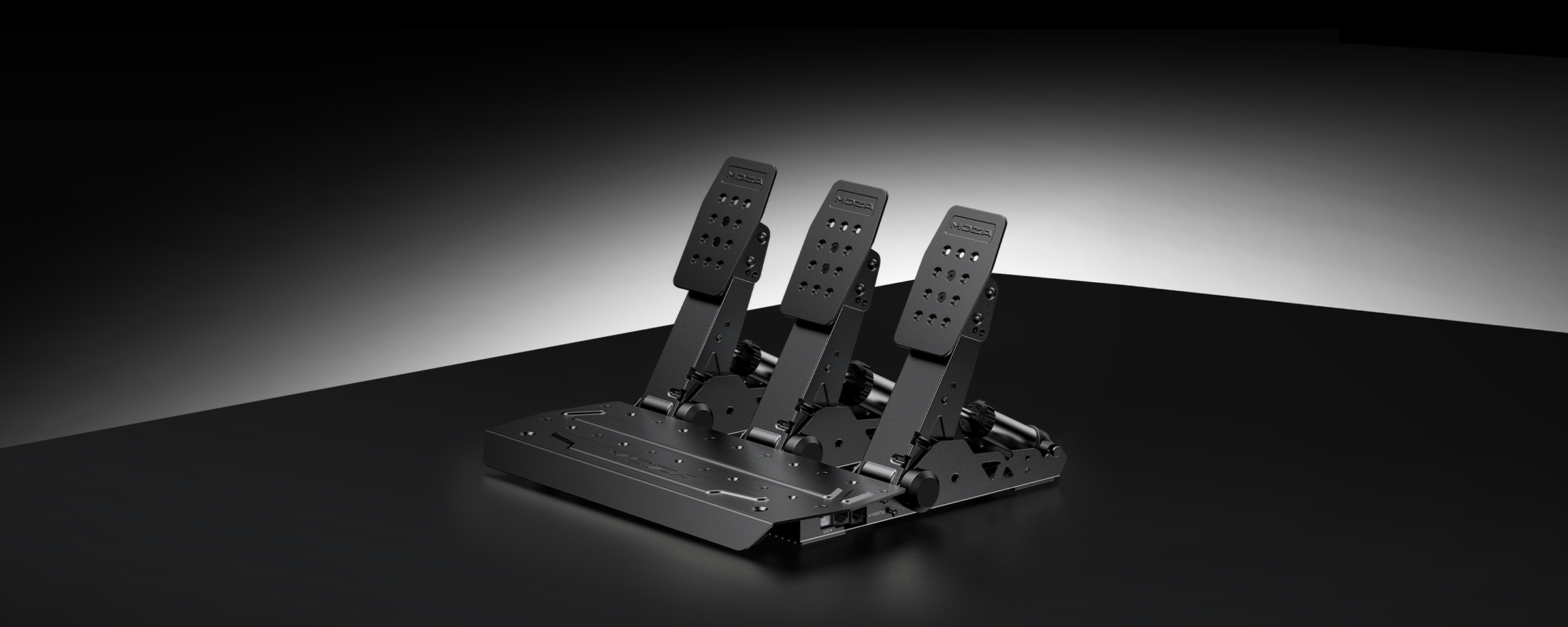

Engineered for Competitive Sim Racing

Race-ready pedals built for ultimate control—fully adjustable, highly precise, and crafted from aerospace-grade materials for serious sim racers.

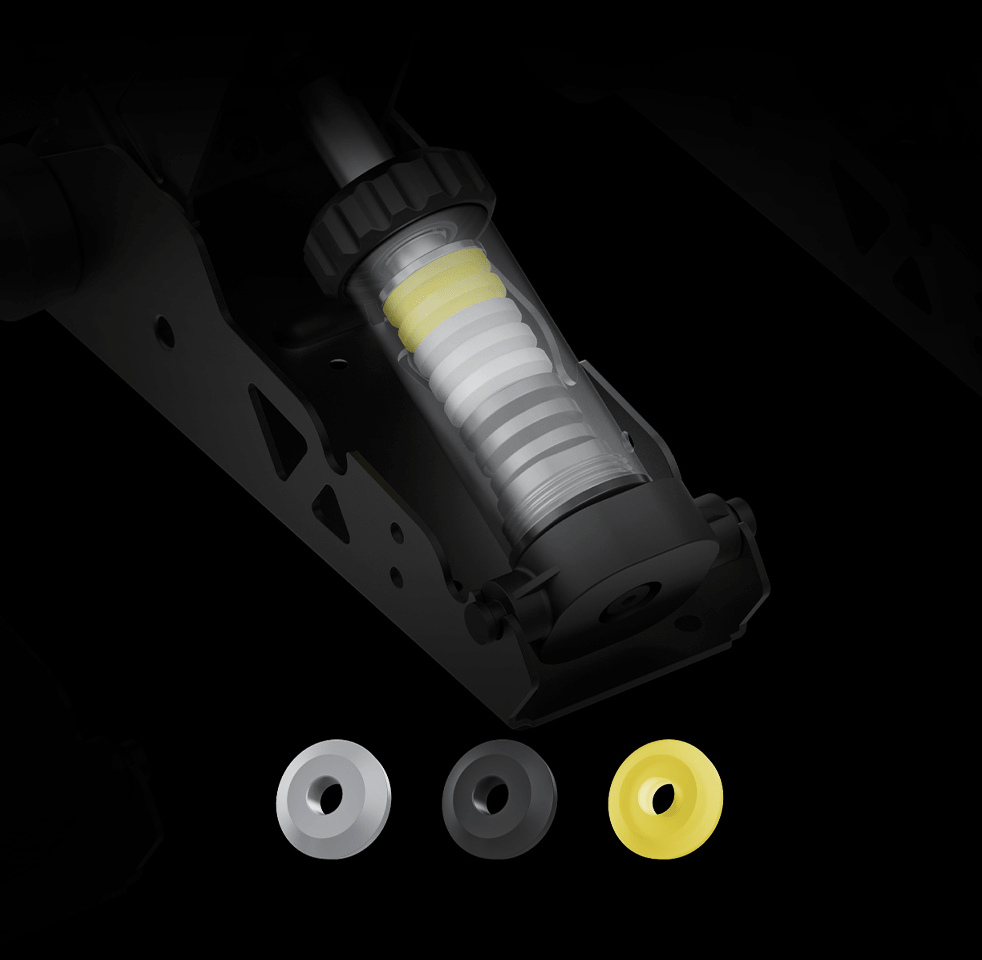

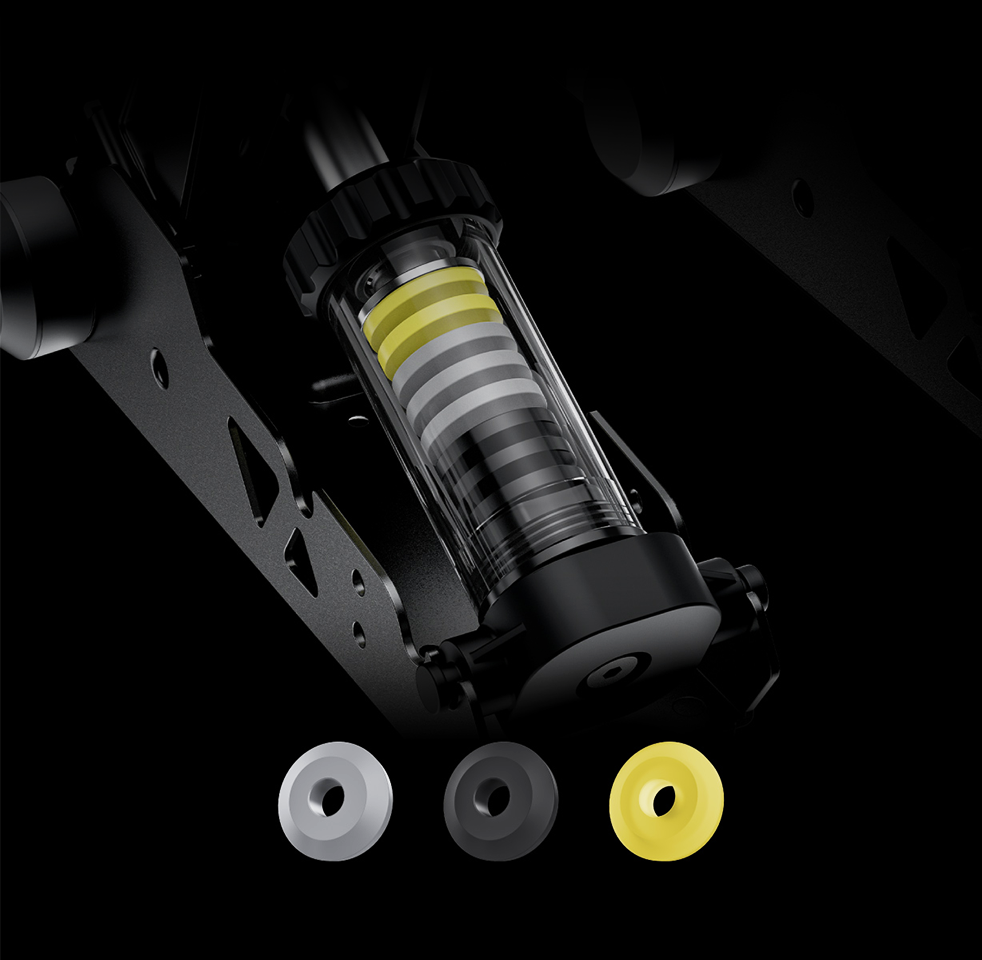

Customizable Brake Feel

The standard elastomer and multi-hardness spring setup enables 25 brake feel configurations. Optional Performance Kit unlocks 1,000+ setups with F1/LMP1-style ultra-responsive feedback.

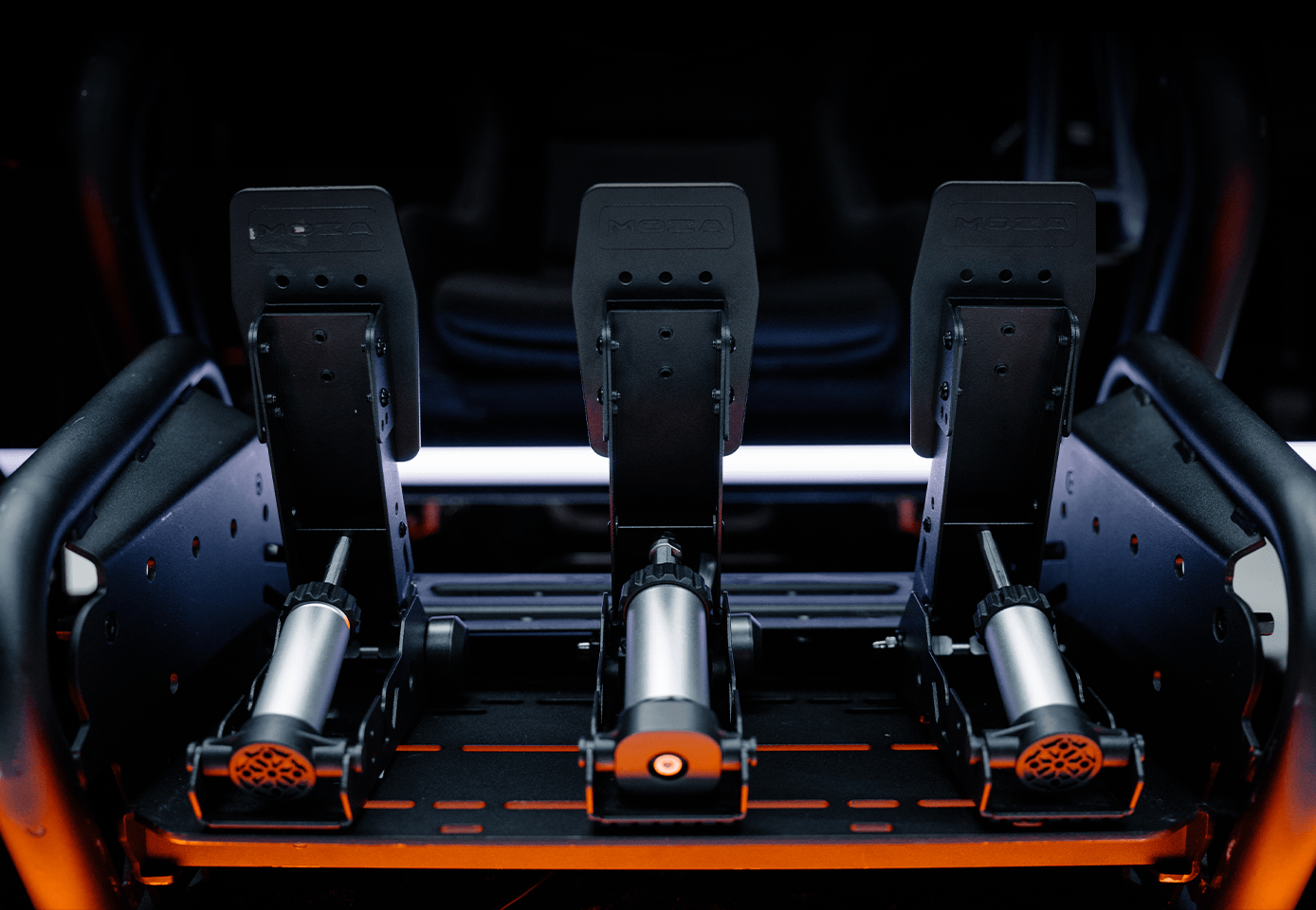

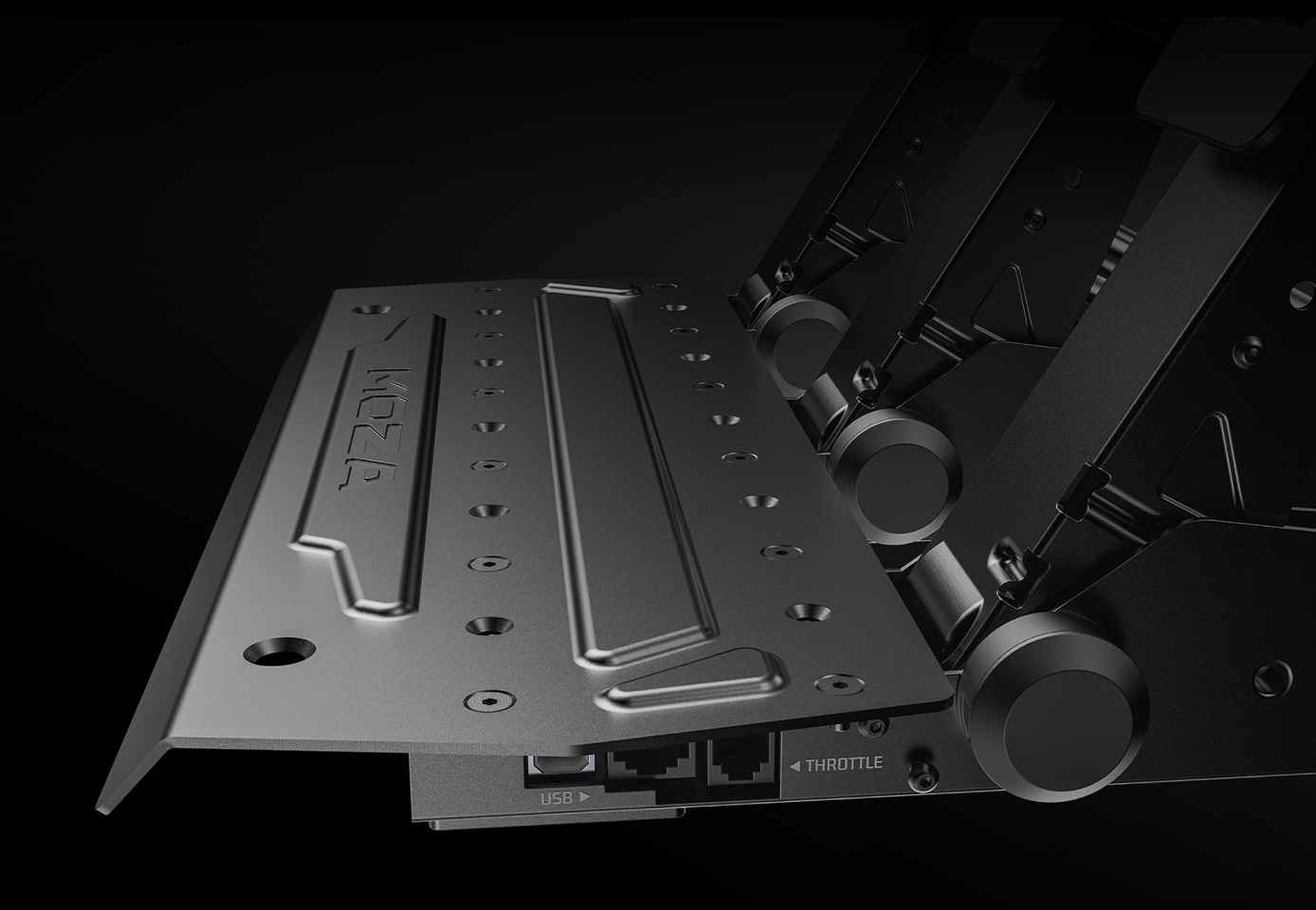

Aluminum Construction

CNC-machined aerospace-grade aluminum and high-strength steel deliver rock-solid durability and a premium, lightweight feel.

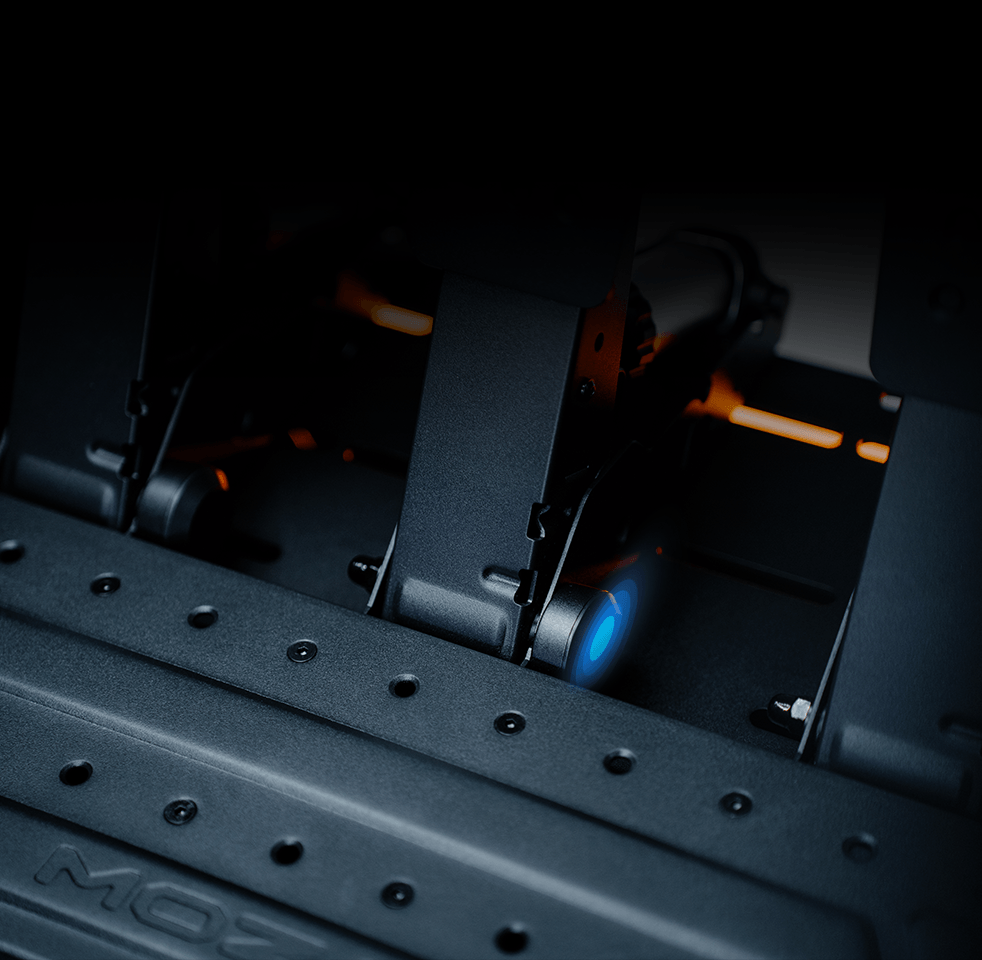

100KG High-precision Load Cell Sensor

Feel every gram of pressure. The 100Kg load cell ensures instant, accurate brake response under any racing scenario.

15-bit High-precision Angle Sensor

Advanced sensor fusion merges angle and force data, giving you unmatched braking precision and intuitive control.

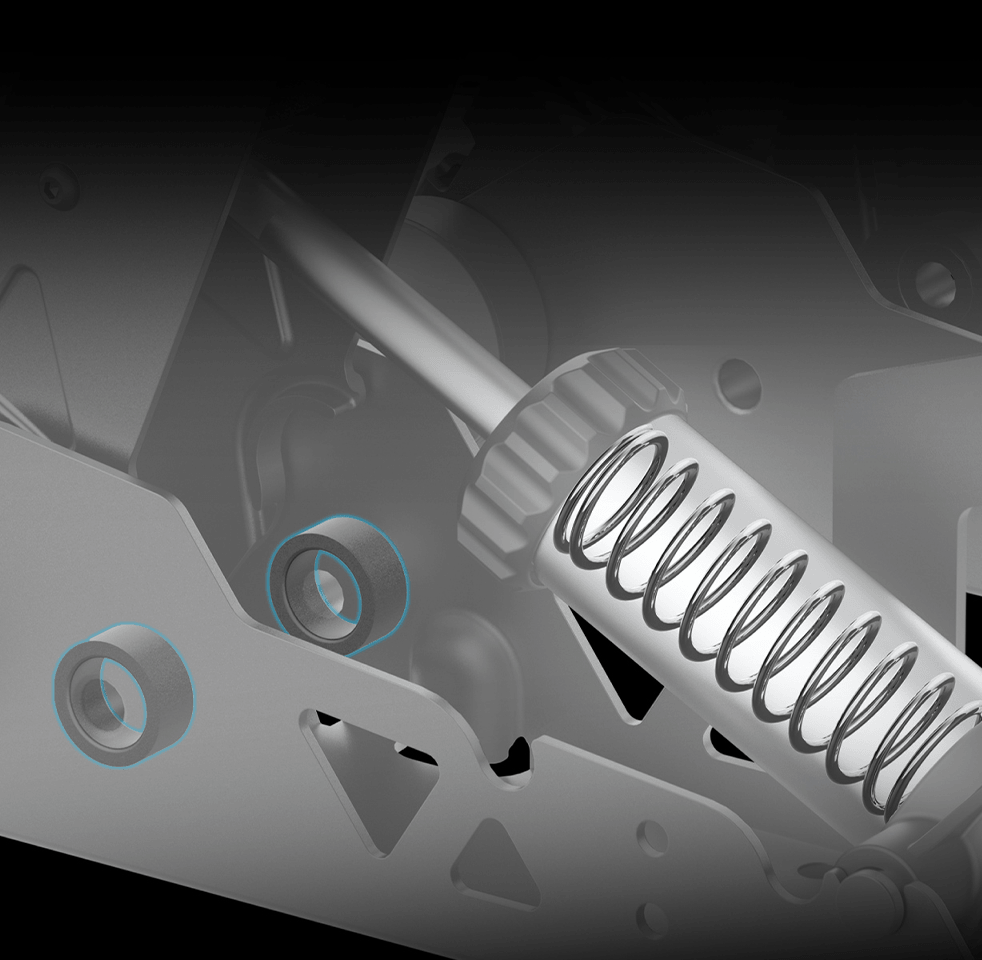

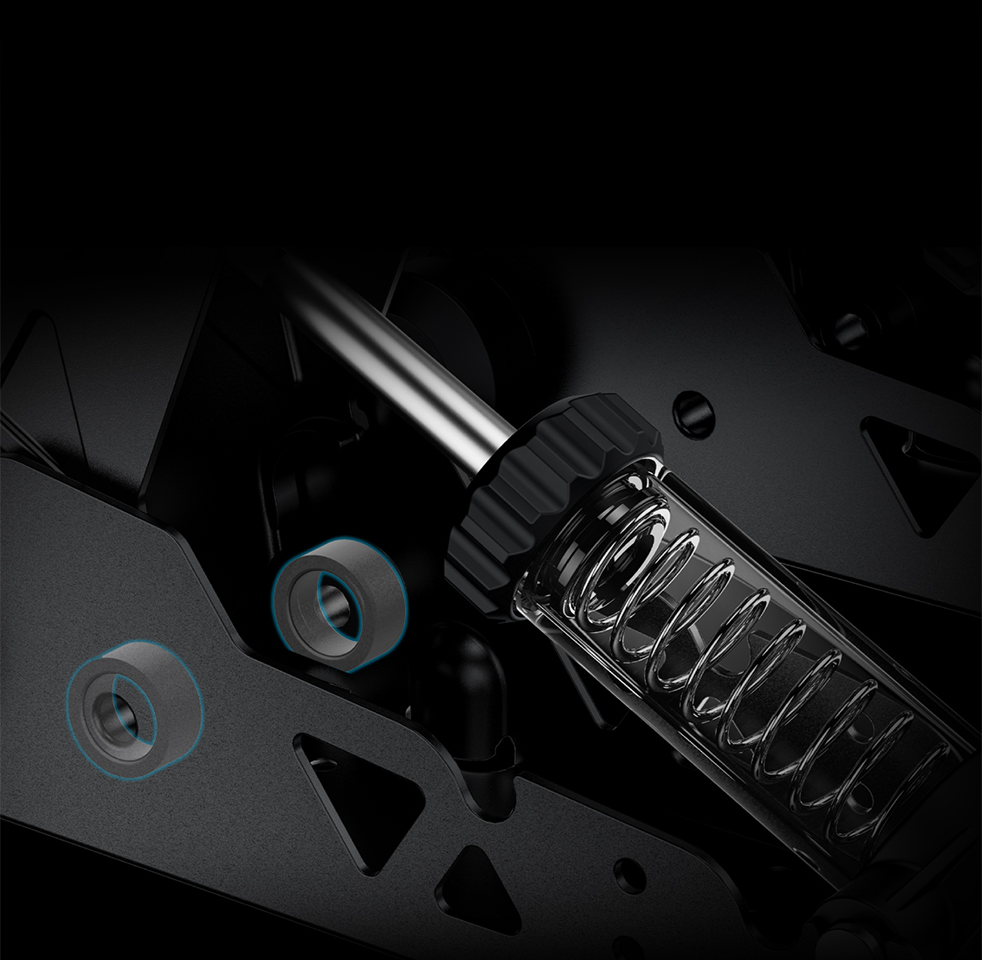

Smooth and Quiet Operation

Enclosed sleeve motion and polished steel shafts deliver ultra-smooth pedal travel, while soft limit cushioning reduces noise for a more immersive racing experience.

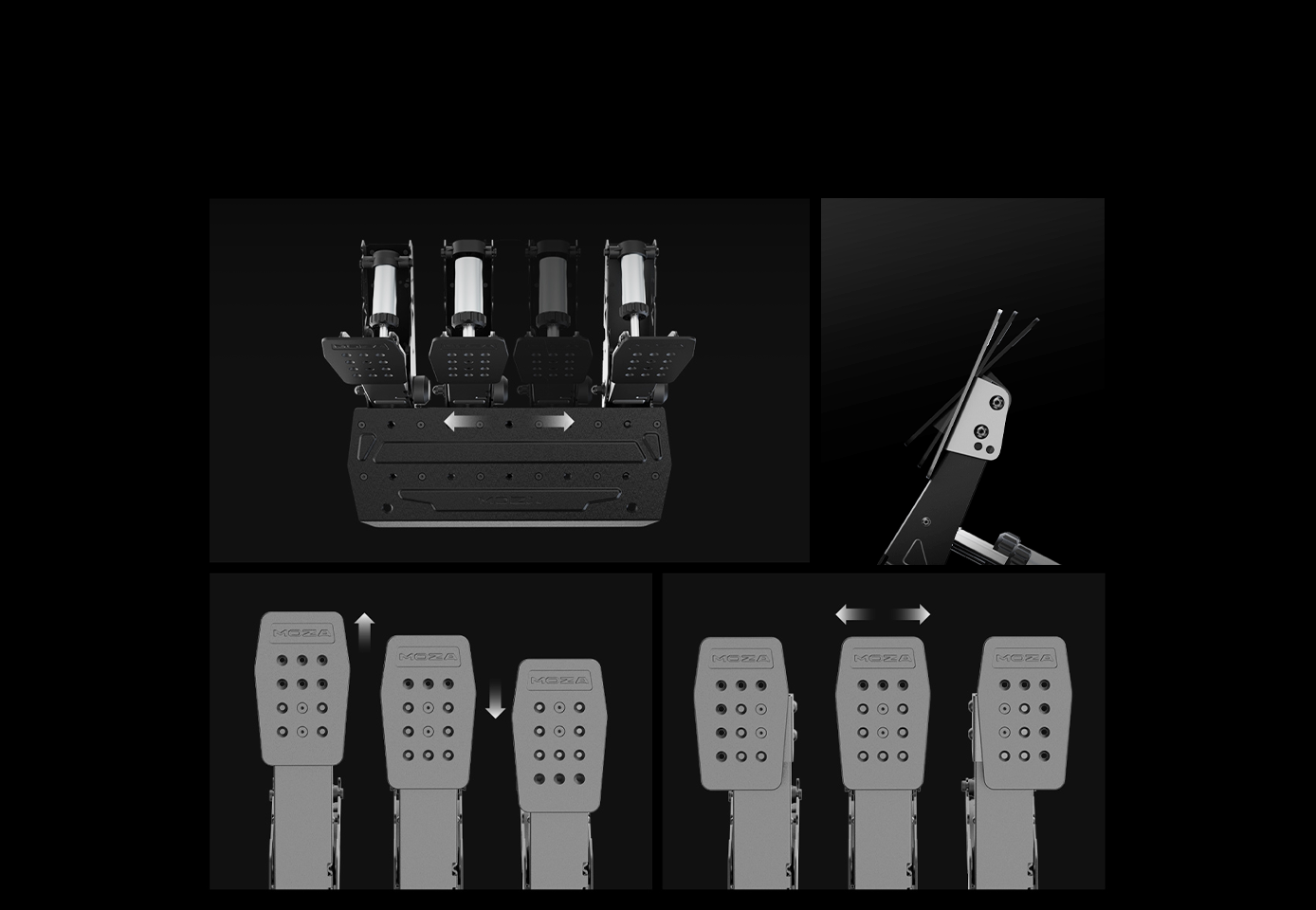

Wide-range Adjustable Design

Fully customize your pedals for optimal comfort and control. Featuring a two-stage pedal face angle adjustment (10° / 25°), along with adjustable pedal spacing (±15mm) and height (36mm range), allowing precise ergonomic tuning.

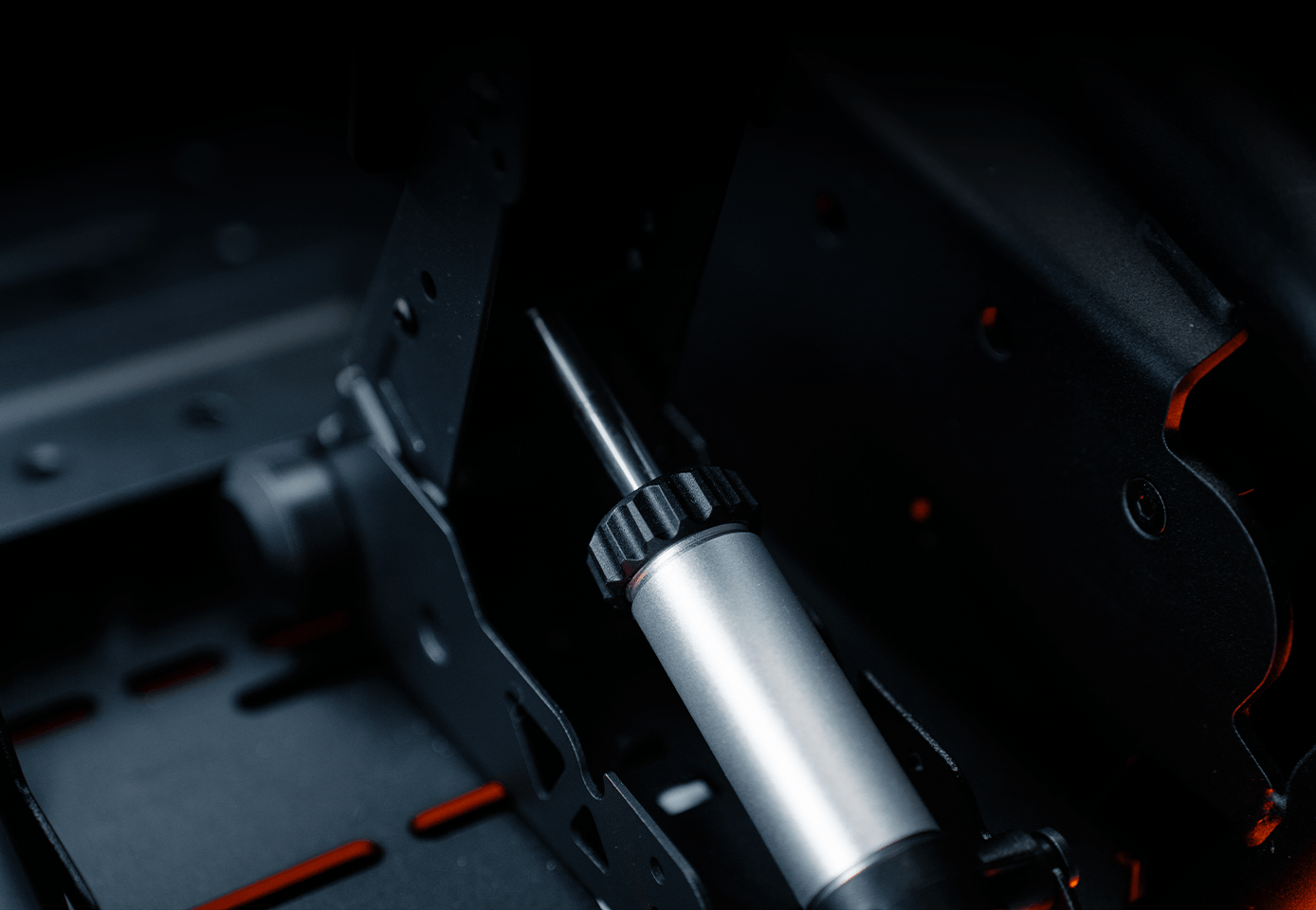

Tool-free Adjustment

No tools, no hassle—adjust brake feel and force in seconds with just your hands.

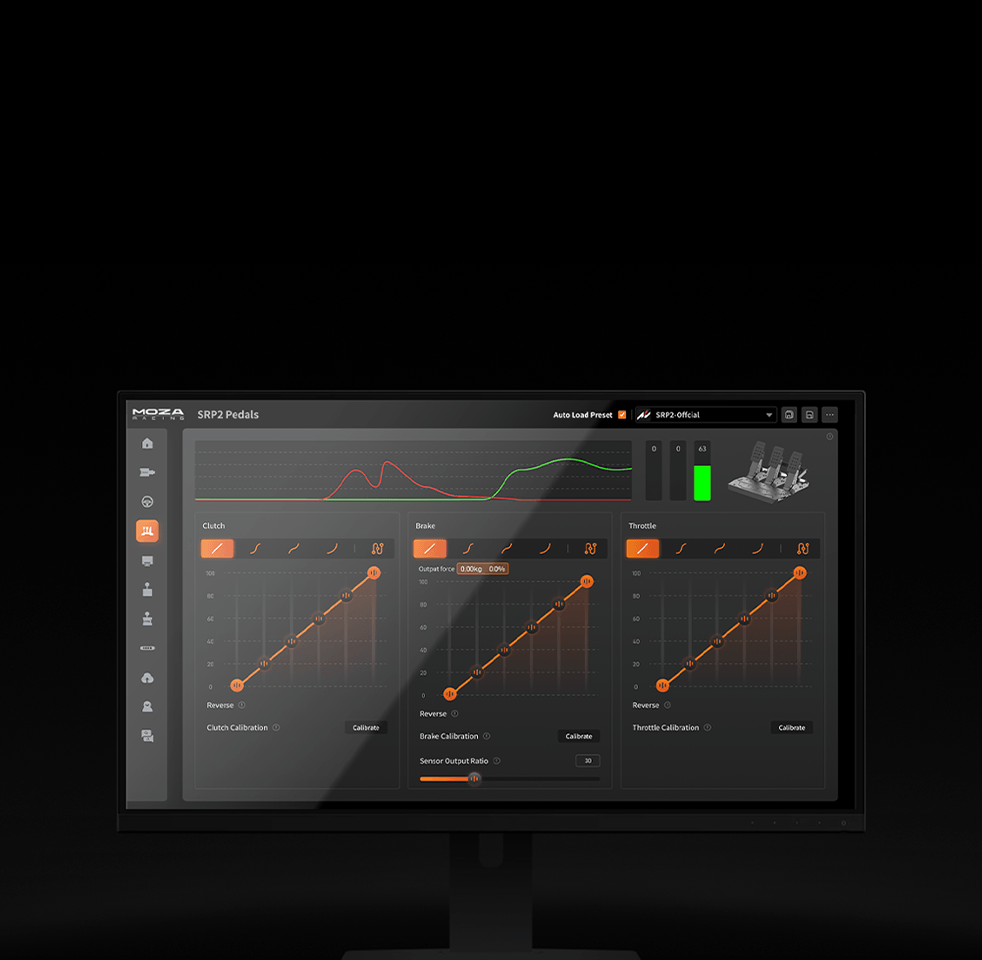

Software Integration

Take full control with MOZA Pit House—monitor performance, fine-tune travel and signal curves, and optimize every pedal input.

Learn More

SPECS

MOZA SRP2 Pedals

Pedal Material: High-strength Steel
Base Material: High-strength Steel
Load Cell Range: 0–100 kg
Brake Sensing Method: Hybrid Load Cell and Angle Sensor
Angle Sensor Resolution: 15-bit (32,768 PPR)
Brake Feel Adjustability: Supported by swapping the included 2 elastomer sets or using the optional Kit
Throttle Adjustability: 2-step preload adjustment
Clutch Adjustability: 2-step preload adjustment
Pedal Angle Adjustment Range: 10°/25°
Pedal Left/Right Adjustment Range: 15 mm
Pedal Height Adjustment Range: 36 mm
Pedal Curve Adjustment: Supported
Real-time Pedal Output Display: Supported
Brake Pressure Engagement Point Adjustment: Supported

User Manual

MOZA SRP2 Pedals User Manual >

WHAT'S INBOX

MOZA SRP2 Pedals (Throttle+Brake) x 1
Toolkit
Warranty Card

FAQs

How does the SRP2 brake pedal compare to other load cell pedals?

The SRP2 brake pedal features a 15-bit angle sensor combined with a 100KG load cell and a unique angle-load sensor fusion algorithm. You can use the sensors individually or together: the angle sensor handles the initial pedal travel, while the load cell handles the later travel. This ensures more controllable brake input and a feel that closely mimics a real car.

Can the SRP2 pedals work with other sim racing equipment?

Yes. The SRP2 pedals connect directly to a PC via USB and are fully compatible with all sim racing brands—not just MOZA.

Do the SRP2 pedals need to be mounted on a cockpit or stand?

No. The SRP2 can be mounted on a cockpit or stand, or placed directly on the floor. Anti-slip pads on the base minimize movement during use. An optional wall support bracket can be installed for extra stability.

Can I adjust pedal resistance or brake feel?

Yes. Both the throttle and clutch pedals feature two-stage preload adjustment. The brake pedal comes with 3 elastomer springs, offering 25 brake feel configurations. With the optional Performance Kit, you can expand to over 1,000 customizable brake feel setups.

How do I configure or calibrate the pedals?

Simply use the MOZA Pit House software. It allows full adjustment of pedal travel curves, sensitivity tuning, and mode switching.
